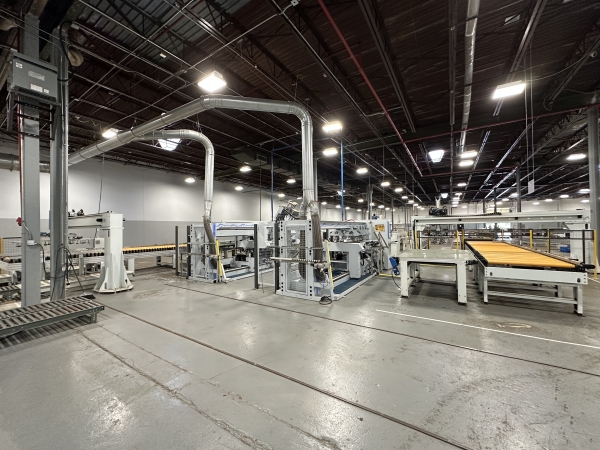

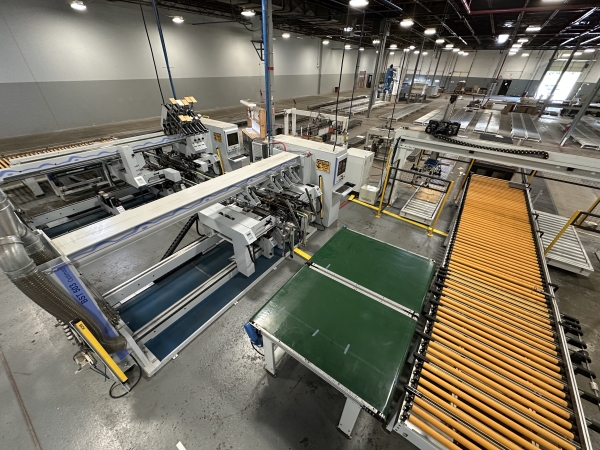

Weeke Models Optimat BST503 and BST507 CNC Through Feed Boring Line
Machine Available
Stock #57245

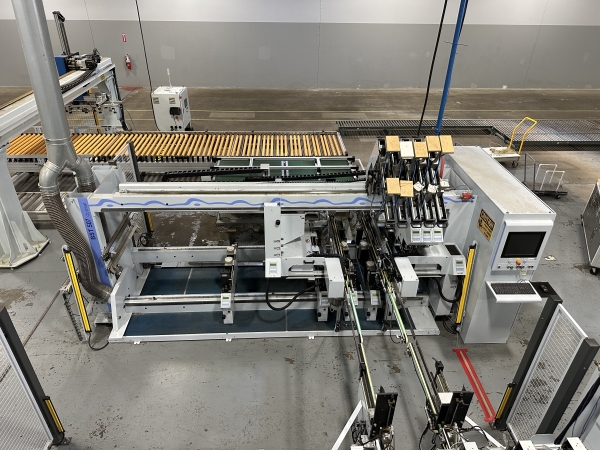

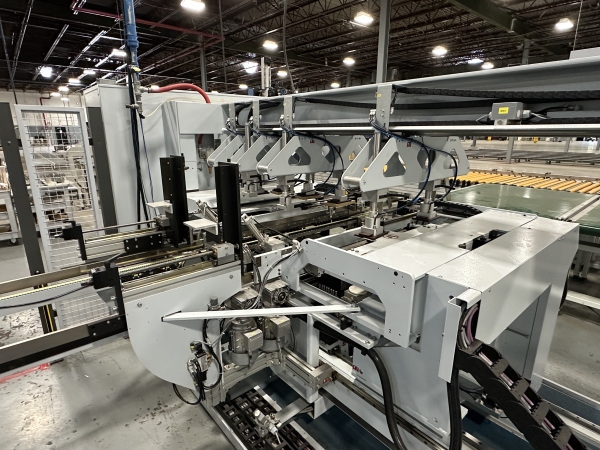

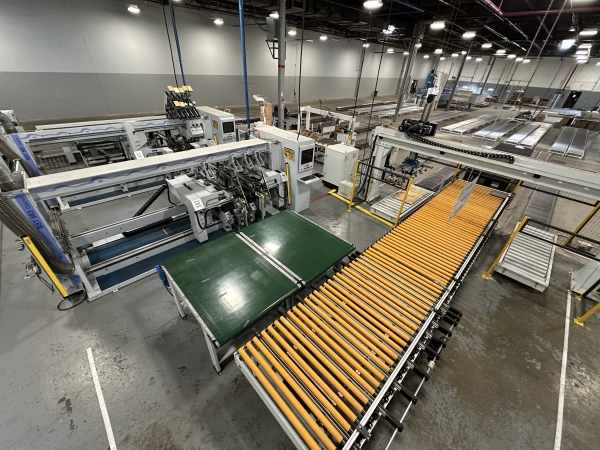

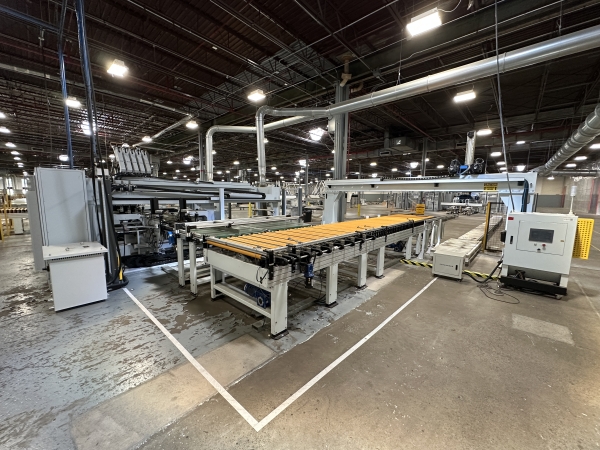

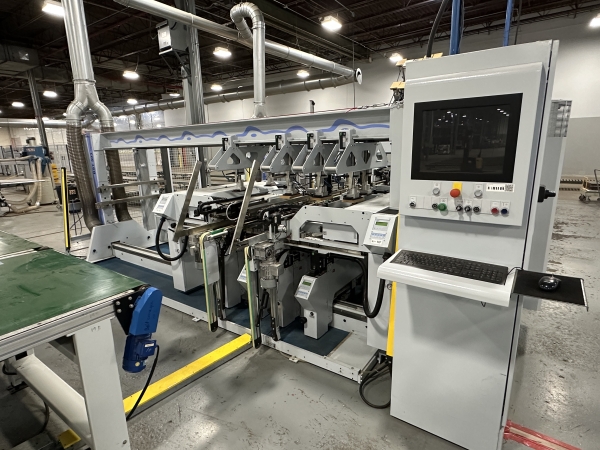

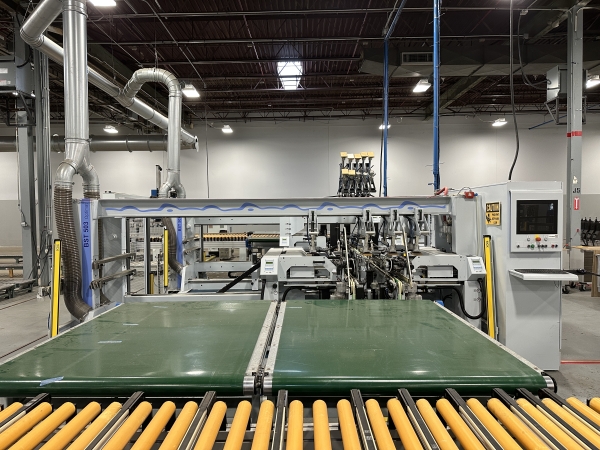

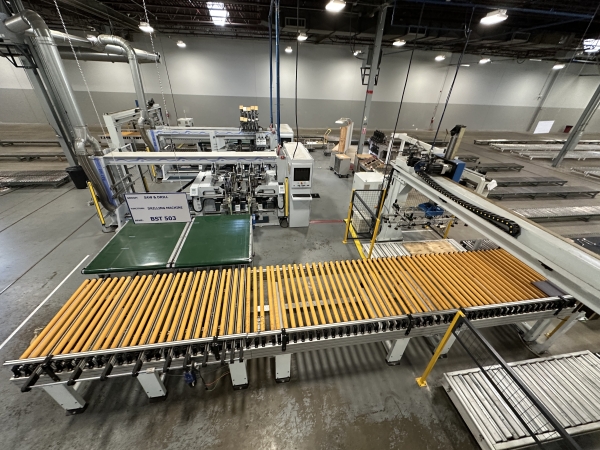

Used- Weeke Models Optimat BST503 and BST507 CNC Through Feed Boring Line
- Optimal BST507 High Capacity Drilling Machine.
- Min/Max Workpiece Dimension
- - Length: 250mm/2500mm
- - Width (Single): 80mm/1000mm
- - Width (Line): 100mm/1000mm
- - Thickness: 12mm/60mm
- Center Distance Between Drilling Motors (Min/Max): 160mm/576mm
- Support Center Distance: (Min)128mm
- Configuration:
- - 2 horizontal drilling supports (fixed and movable side)
- - with two drilling motors, driving capacity 1.5 kW, 240/400 V, 50 Hz, 3000 1/min each,
- - pneumatic central drilling feed with infinitely adjustment of the drilling depth

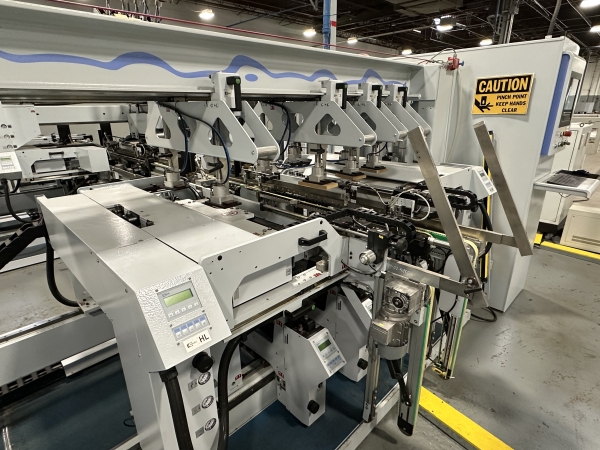

- 4 horizontal drilling blocks with 11 drilling spindles each
- 5 vertical bottom drilling supports
- - mounted in the bottom machine frame
- - each support with two drilling motors, driving capacity 1.5 kW, 240/400 V, 50 Hz, 3000 1/min each
- - digital display of position manual adjustment X-direction and of drilling motors (Y-direction)
- - pneumatic drilling feed
- - infinitely adjustment of the drilling depth - hydraulic damping for through drillings
- - quick change system for drilling blocks
- 10 vertical drilling blocks with 11 drilling spindles each

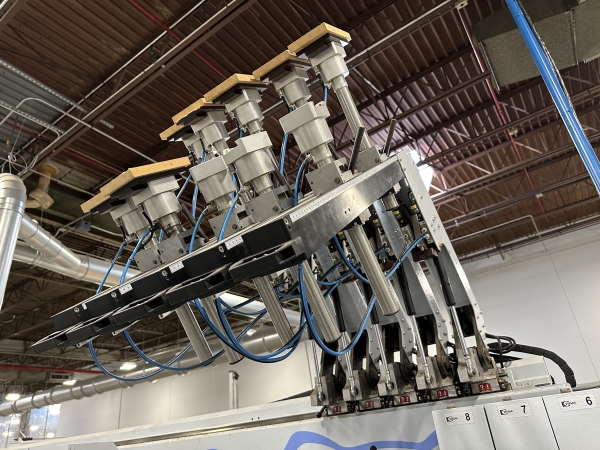

- 2 vertical top drilling supports
- - mounted at the top machine frame each support
- - with two drilling motors driving capacity 1,5 kW, 240/400 V, 50 Hz, 3000 1/min each

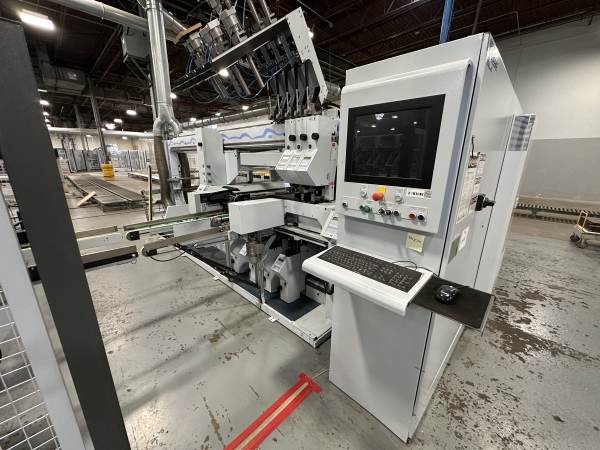

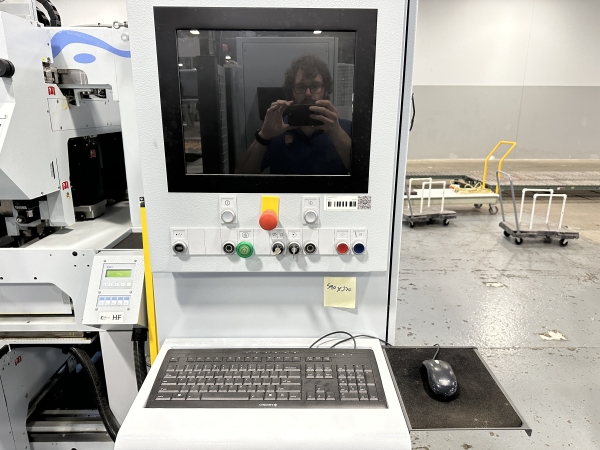

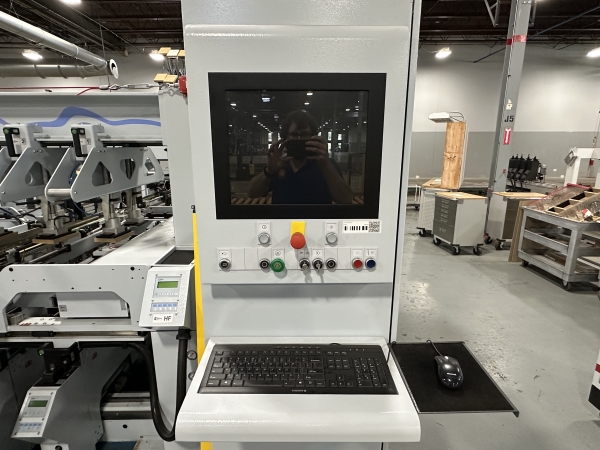

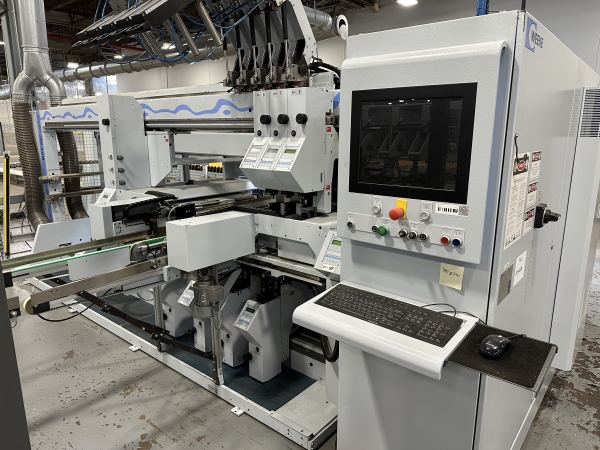

- PowerControl System - Windows XP

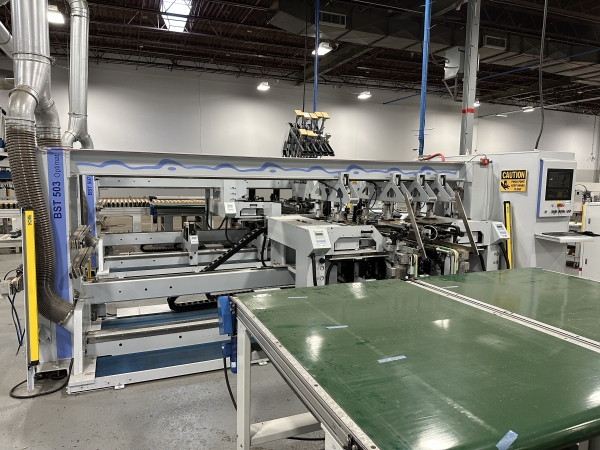

- Optimat BST503 High Capacity Drilling Machine
- Configuration:
- 2 horizontal drilling supports (fixed and movable side)
- - with one fixed drilling motor, driving capacity 1.5 kW, 240/400 V, 50 Hz, 3000 1/min
- - pneumatic central drilling feed with infinitely adjustment of the drilling depth
- 2 horizontal drilling blocks with 21 drilling spindles each
- 4 vertical bottom drilling supports
- - mounted in the bottom machine frame
- - each support with two drilling motors, driving capacity 1.5 kW, 240/400 V, 50 Hz, 3000 1/min each
- - digital display of position manual adjustment X-direction and of drilling motors (Y-direction)
- - pneumatic drilling feed
- - infinitely adjustment of the drilling depth - hydraulic damping for through drillings
- - quick change system for drilling blocks
- 8 vertical drilling blocks with 11 drilling spindles each

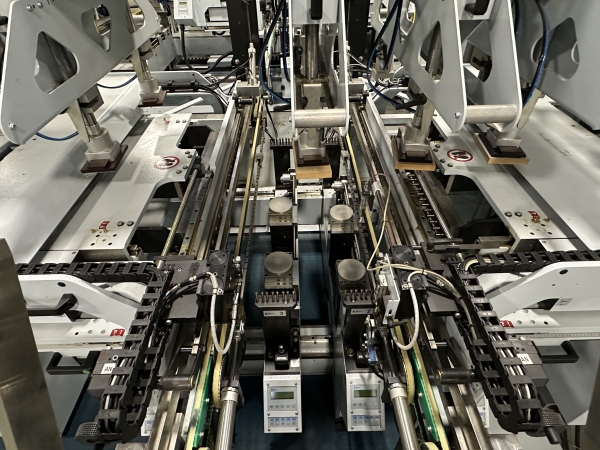

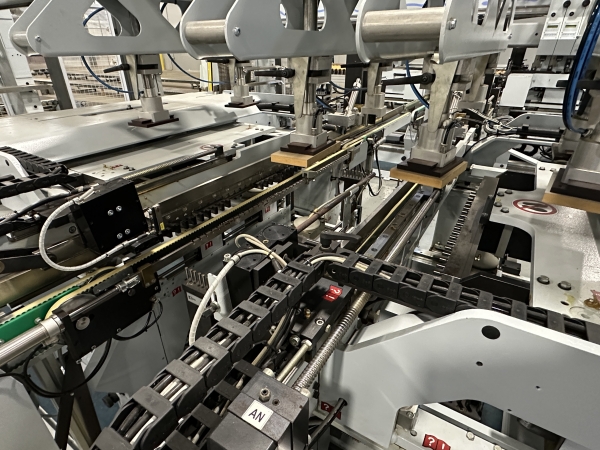

- 4 clamping bridges (not tiltable)
- - with two pneumatic clamping cylinders adjustable to the workpiece thickness
- - clamping bridge longitudinally adjustable incl. pneumatic clamping
- 100 pick-ups for tools, shaft D = 10 mm,
- L = 46 mm (horizontally and vertically)
- 1 preparation for the retrofitting of max.
- 3 vertical bottom supports and of the clamping System

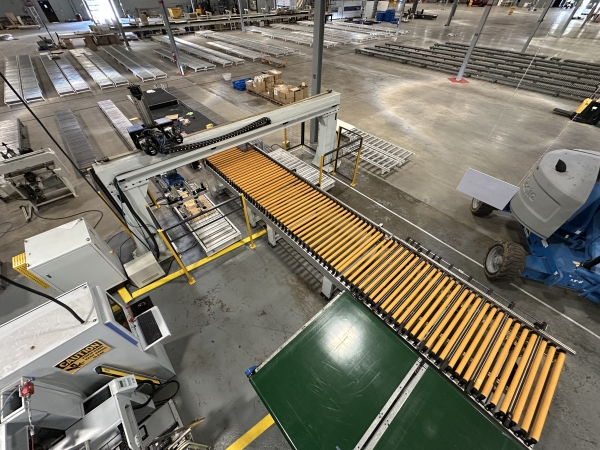

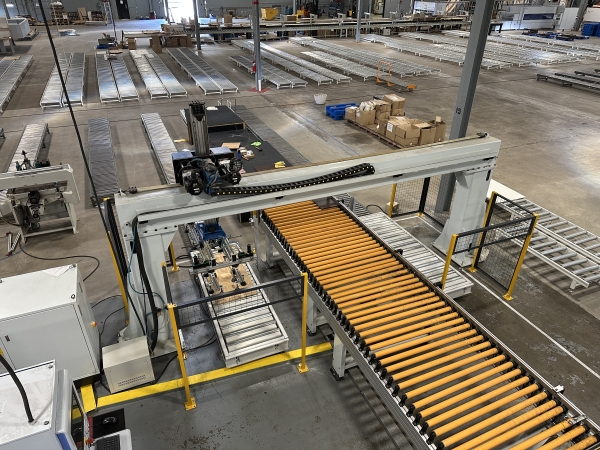

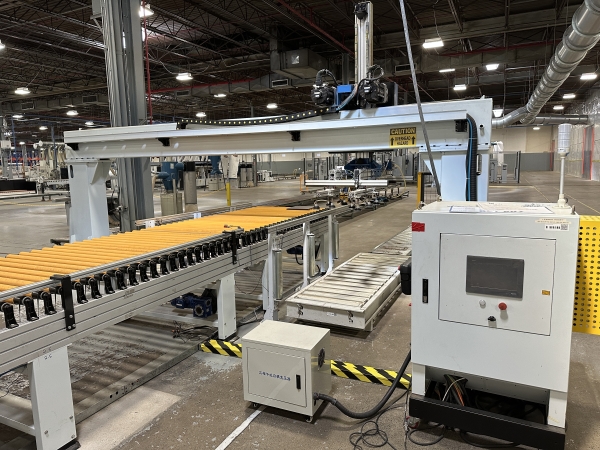

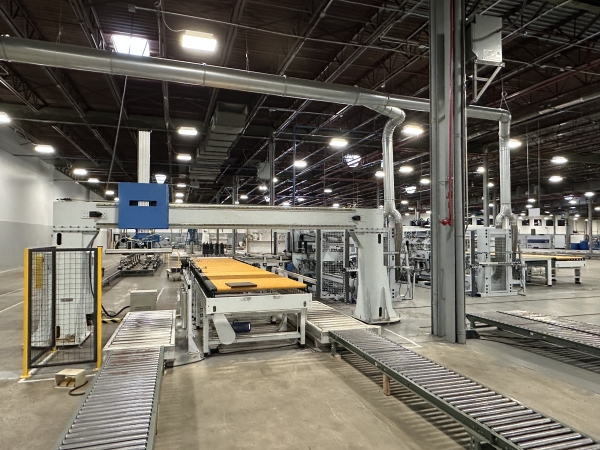

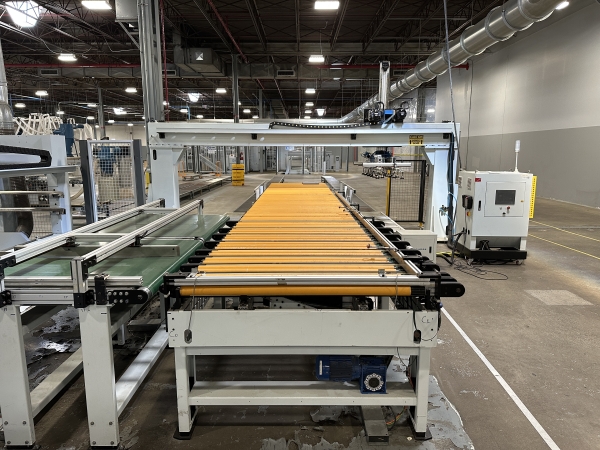

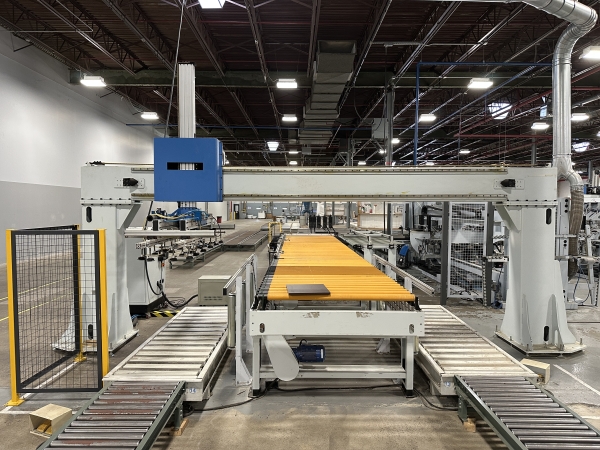

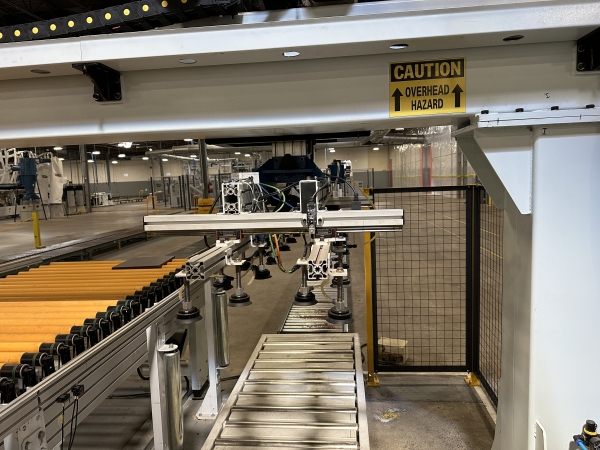

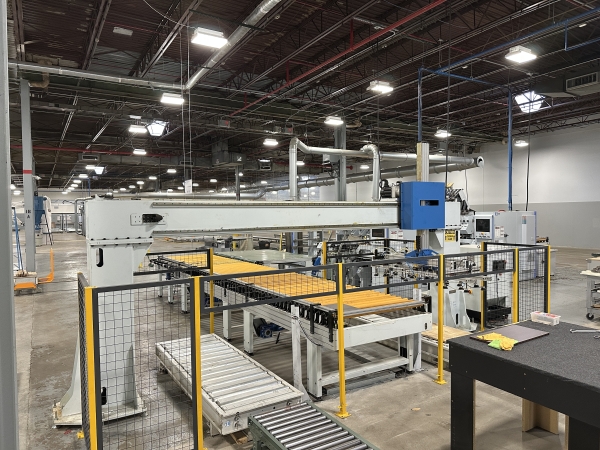

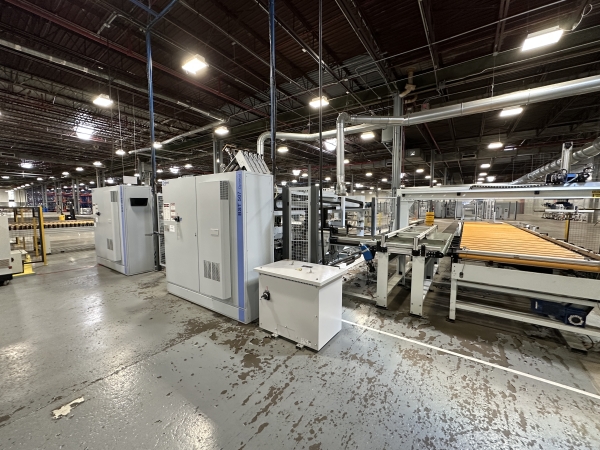

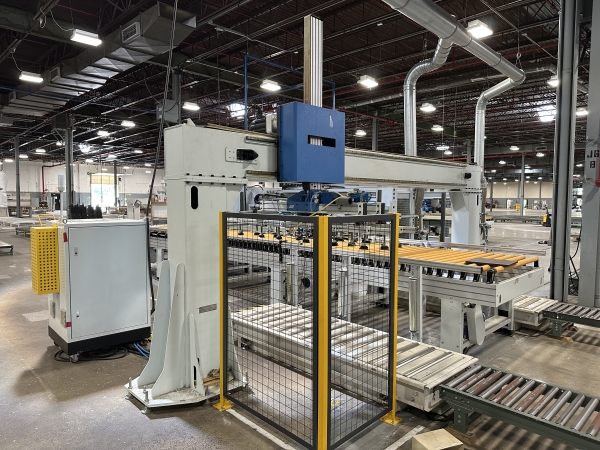

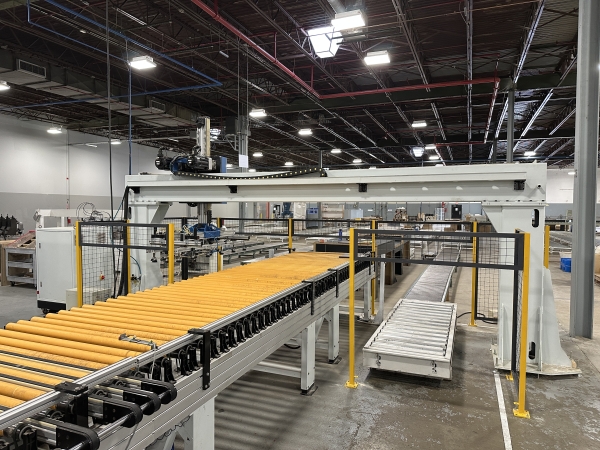

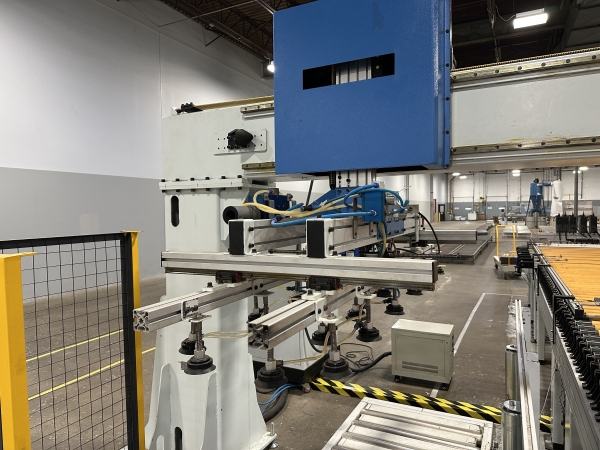

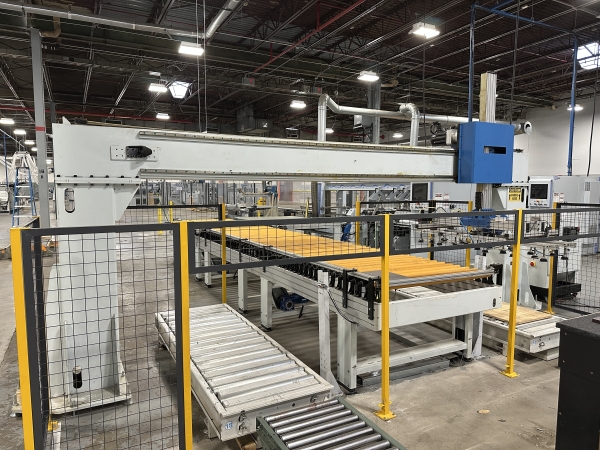

- Includes Tiege Infeed Vacuum Loader and Tiege Outfeed Vacuum Stacker
- 2015 Machines, with Shockingly Low Hours.
- Rigging, Loading, Delivery, etc. can be priced based on your needs. Please contact us to discuss.
