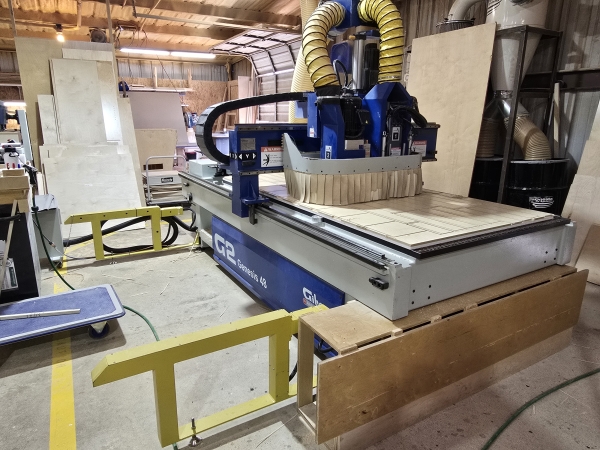

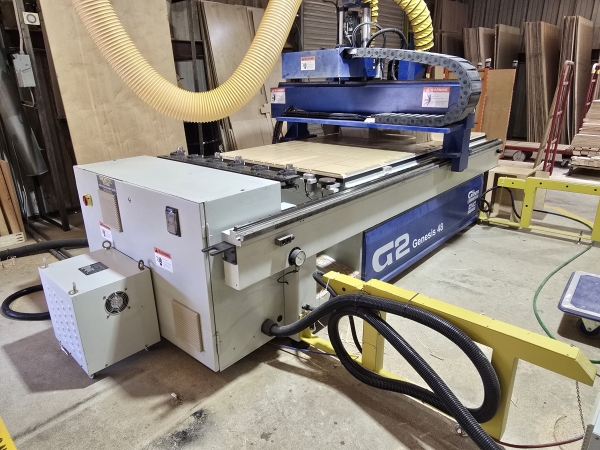

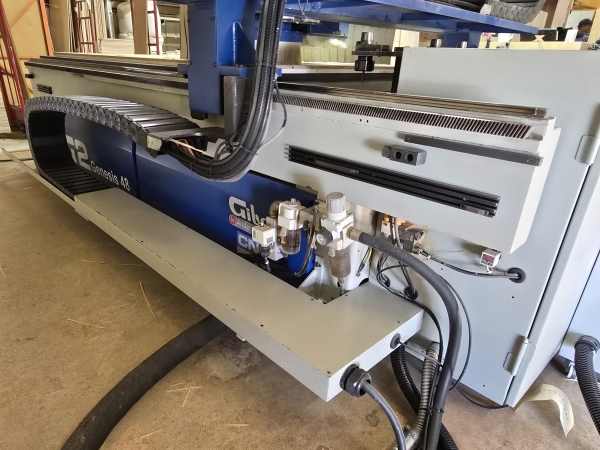

Giben G2 Genesis 48 CNC Router

• Feed Rate:
• X Axis ~ 60 m/min
• Y Axis ~ 60 m/min
• Z Axis ~ 20 m/min

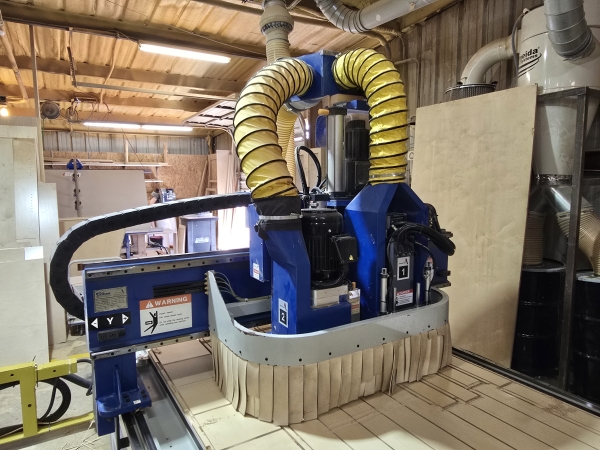

• One 12 Hp ANDI HSK-63F air cooled spindle, 24,000 RPM
• 5 x 5 vertical drilling

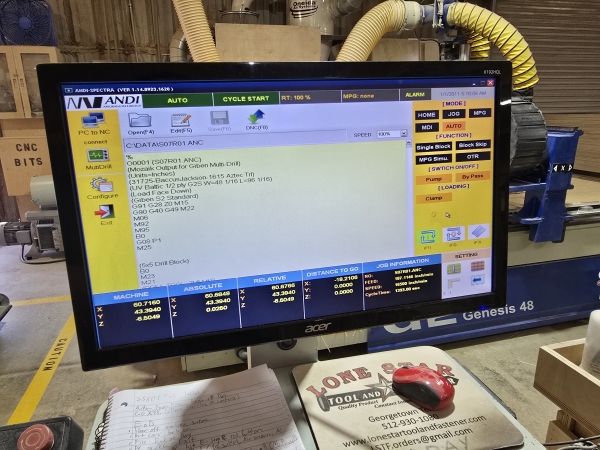

• SYNTEC CNC Controller with independent cabinet and remote hand wheel

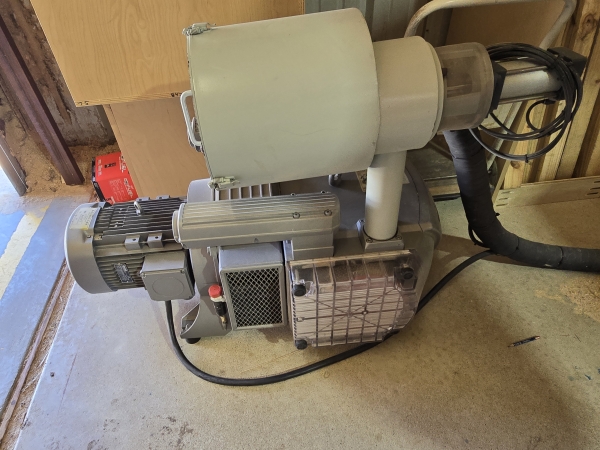

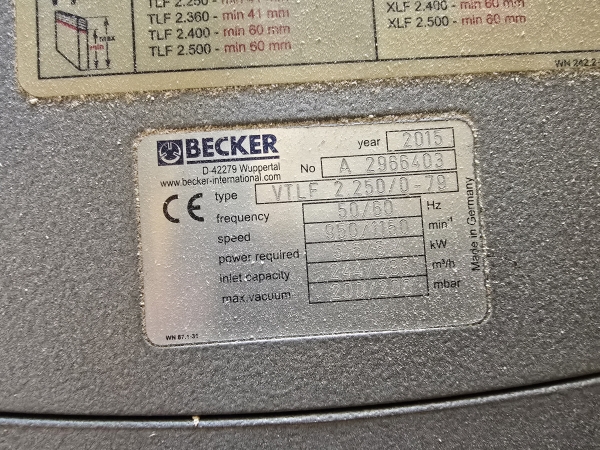

• One 10 Hp Becker vacuum pump
• Touch off function fixed on the table
• Helical rack direct drive ~ not belt driven

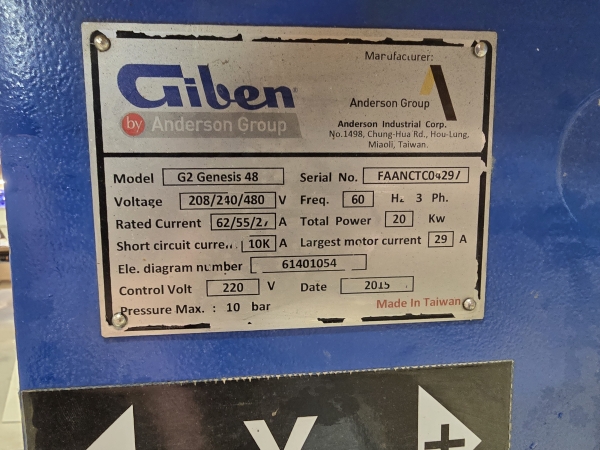

• 208-240-480 volt / 3 ph / 60 Hz

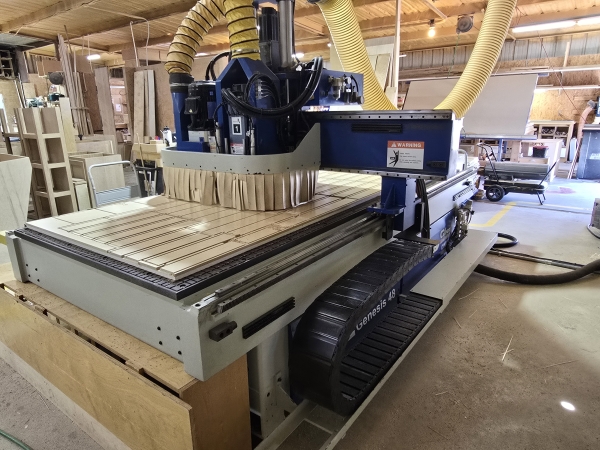

• Table size 2500 mm x 1300 mm
• One suction zone to accept 4x 8 panel
• Working stroke: X 2635 mm ~ Y 1600 mm ~ Z 200 mm
• Six tool pick up station 6 tool holders and 12 collets (rack)
