SCM Routech 5-Axis Work Cell

• SCM Routech 5-Axis Work Cell
• Includes (2) Mahros Vacuum Stackers on Infeed/Outfeed of the Work Cell & (2) SCM Routech 5-Axis CNC Routers

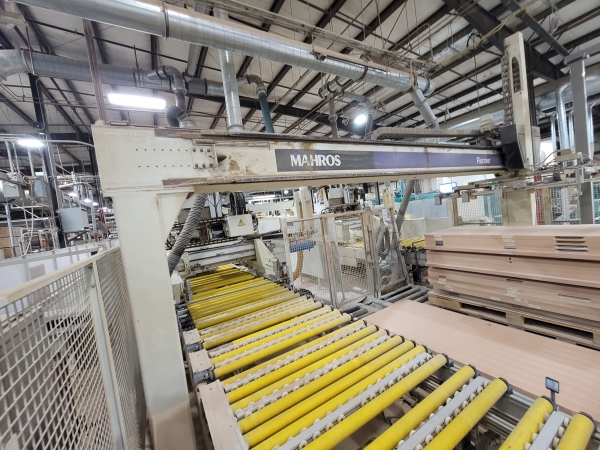

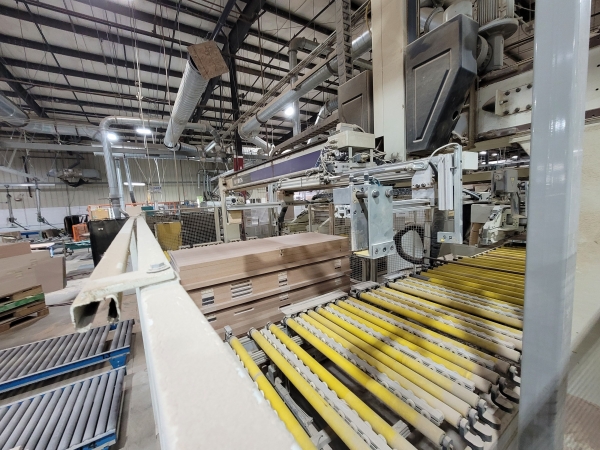

• (2) Mahros Vacuum Loader/Stacker for Panels
• Double Row Machine
• Maximum Panel Weight Per Cycle 100 kg (220 lbs)
• Speed - 10 Cycles/min with 50 kg panel and Max Width of 600mm or 9 Cycles/min. with 100 kg panel and Max Width of 1300 mm
• Panel Dimensions
• - Min Length 280 mm (11")
• - Max. Length 3200 mm (126")
• - Min. Width 240 mm (9.5")
• - Max. Width 1300 mm (51")
• - Min. Thickness 10 mm (0.40")
• - Max. Thickness 60 mm (2.4")

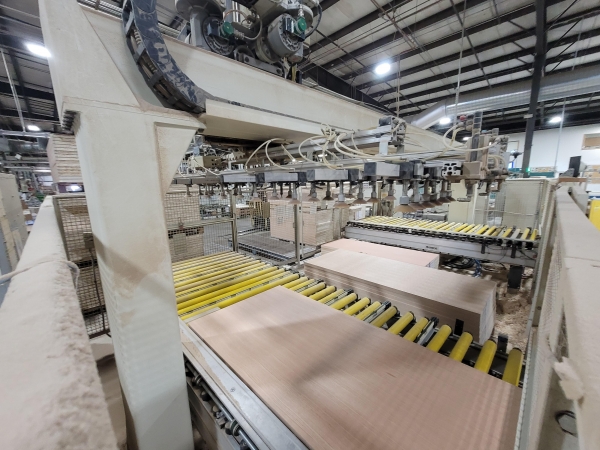

• Equipped with 32 Vacuum Cups

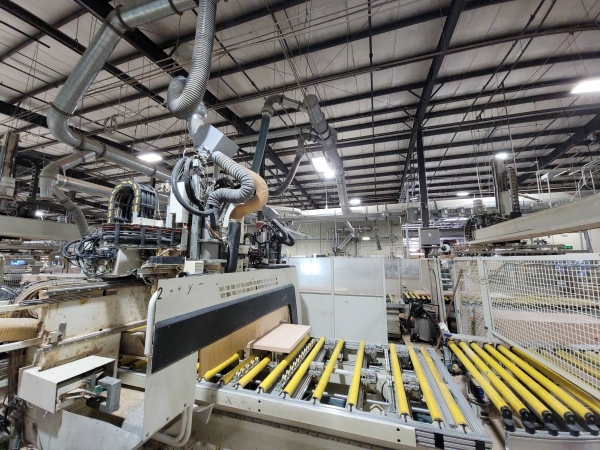

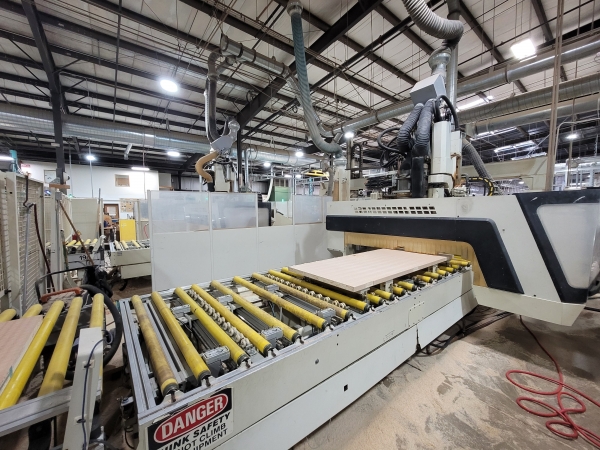

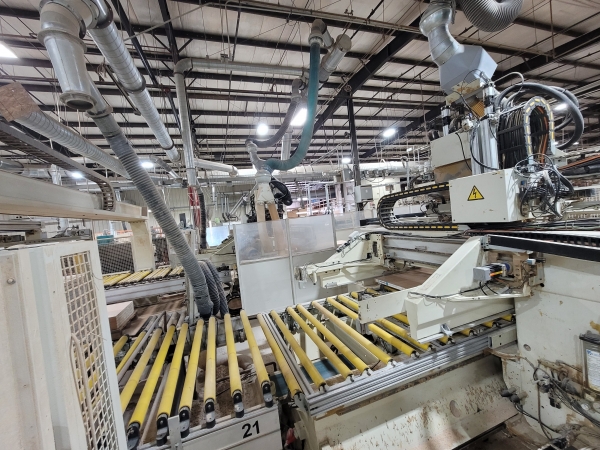

• (2) SCM Routech 5-Axis CNC Router
• Max Work Piece: 48" x 120"
• 16 Smart Vacuum Pods
• Tool Carousels:
• Main Spindle: Up to 12 Tools
• Secondary Spindle: Up to 8 Tools
• Drill Unit: Up to 9 Drill Bits
• Spindle Horsepower:
• Main Spindle: 13.5 @ 9,000RPM
• Secondary Spindle: 16HP @ 20,000RPM
• Drill Unit: 2HP
• Wired For 480v 3Ph
