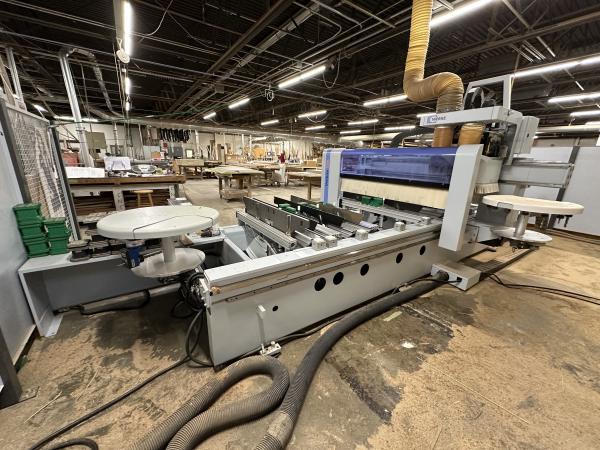

Weeke Model Venture 230L 4-Axis, Flex-5 CNC Machining Center
Machine Available
Stock #57236

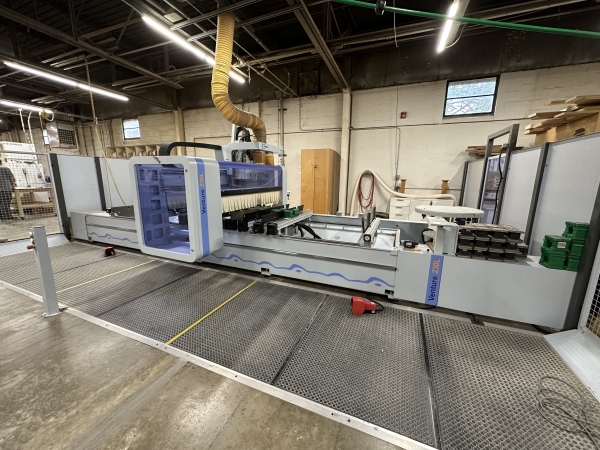

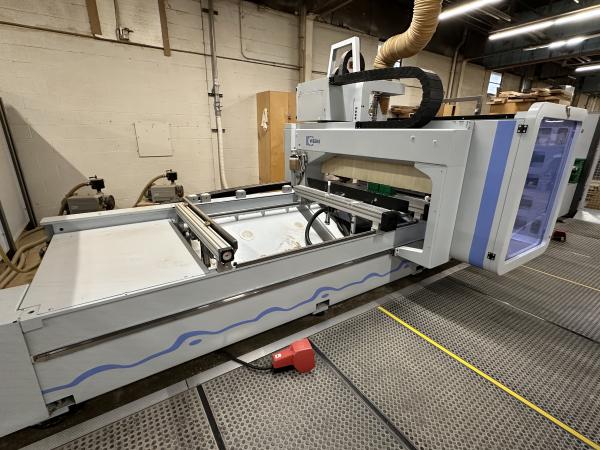

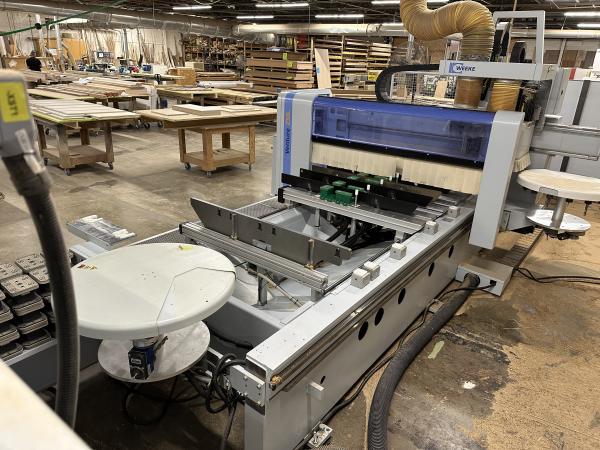

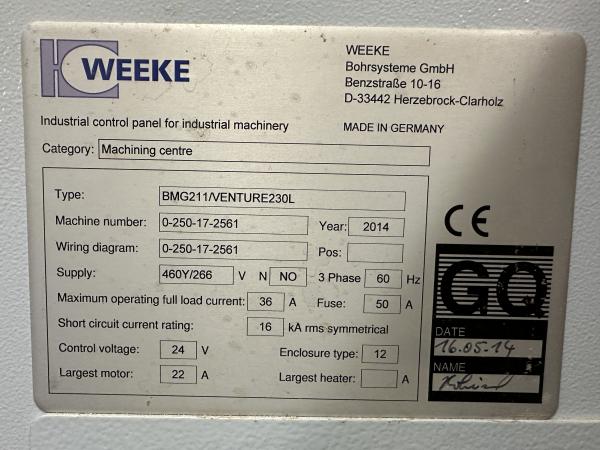

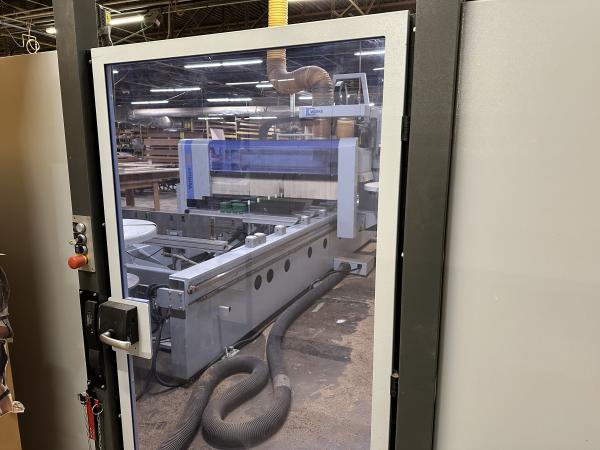

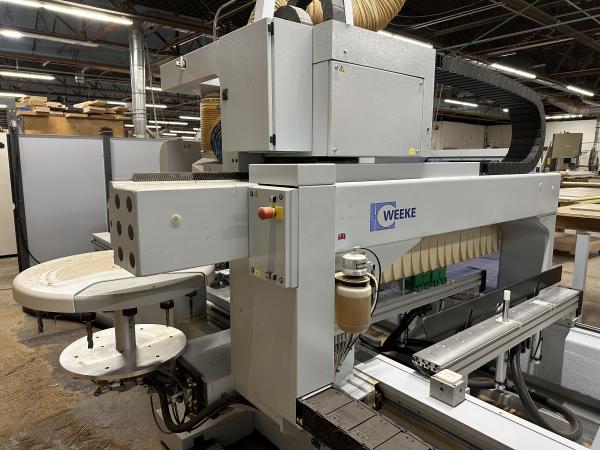

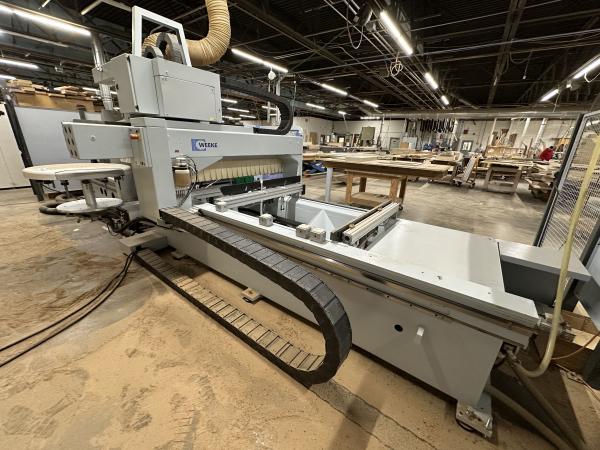

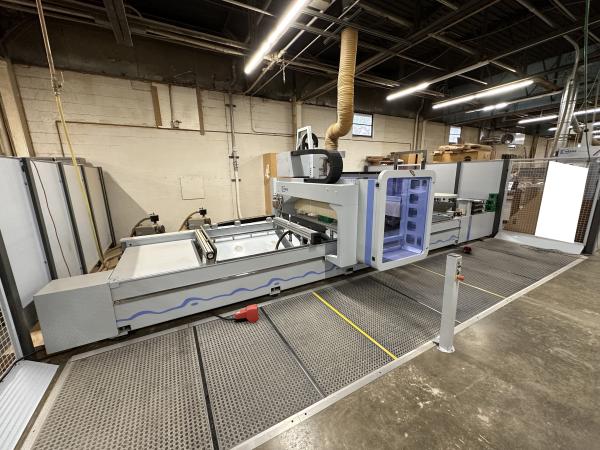

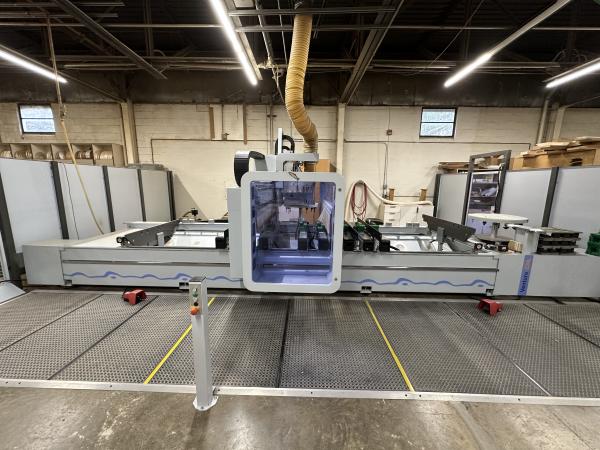

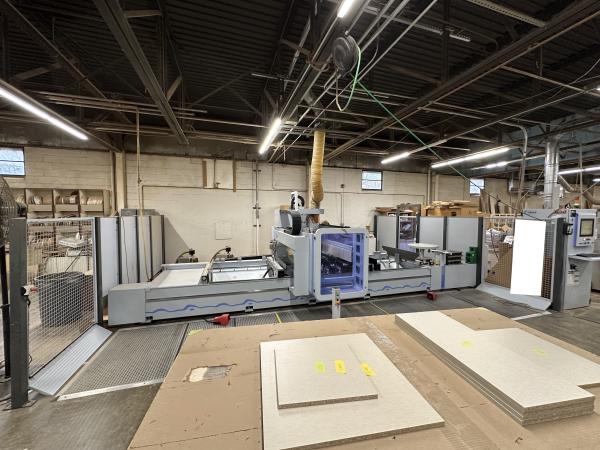

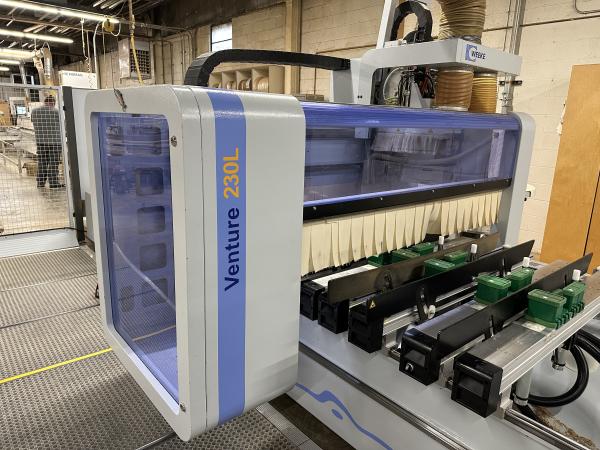

Used- Weeke Model Venture 230L CNC Router
- Note: Machine will not be available for pickup until ~March 2025
- Axis Travel:
- X - 5430mm (213.77")
- Y - 2180mm (85.82")
- Z1 - 348mm (13.70")
- Z2 - 215mm (8.46")
- Axis Speed:
- X/Y - 110m/min
- Z - 20m/min

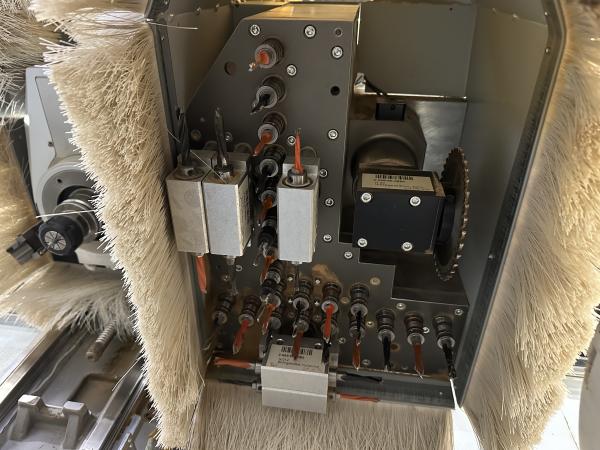

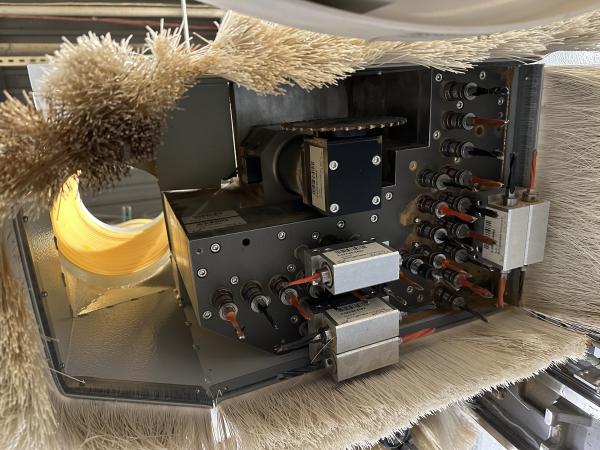

- 21 Drilling Block -
- 60mm Stroke - Max Drilling Depth 38mm
- Total Drill Length - 70mm
- Speed - 1500-7000 RPM w/ VFD controlled Motor 3HP
- Shaft Diameter - 10mm
- Drilling Diameter - 35mm
- Distance between Spindles: 32mm
- Horizontal Boring Spindles -
- 6 Spindles - 32/64mm Pitch - 3 Each Direction X+/-
- 4 Spindles - 32 Pitch - 2 Each Direction Y+/-
- Drilling Depth - 38mm
- Speed 1500-7500 RPM
- Shaft Diameter - 10mm
- Drill Diameter - 20mm Max
- Grooving Saw -
- X- & Y- Direction - 90 Rotation
- Cutting Depth - 30mm
- Cross Section - 70mm
- Rotation Speed - 1500-7000 RPM
- Tool Diameter - 125mm
- Blade Width - 5mm Max

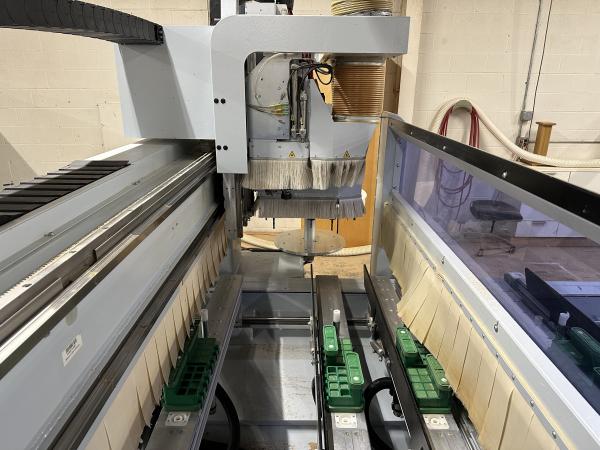

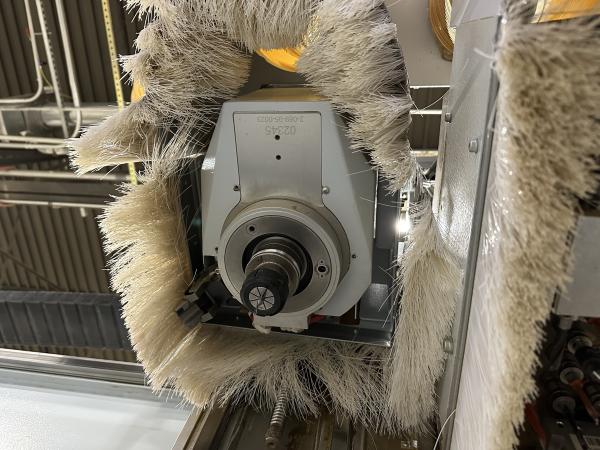

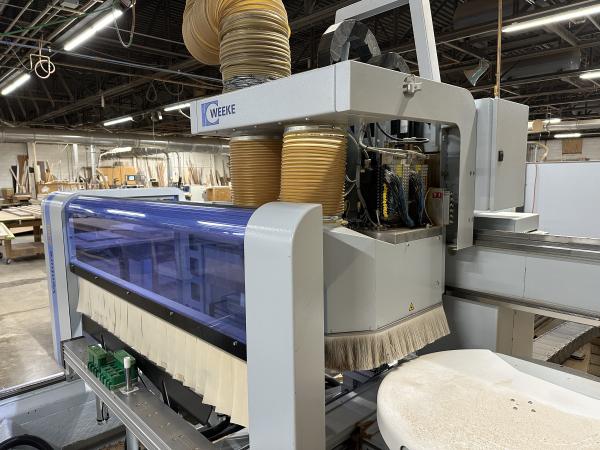

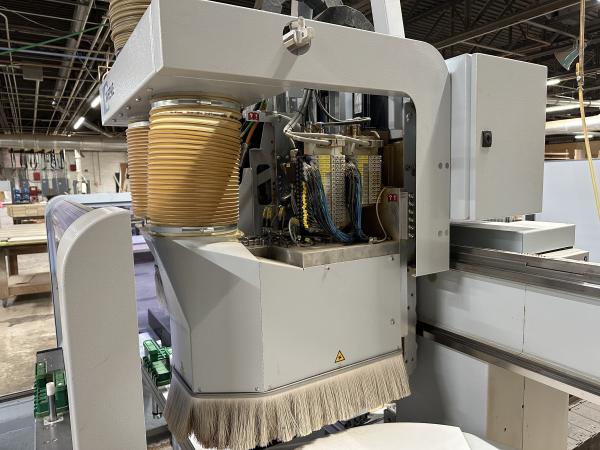

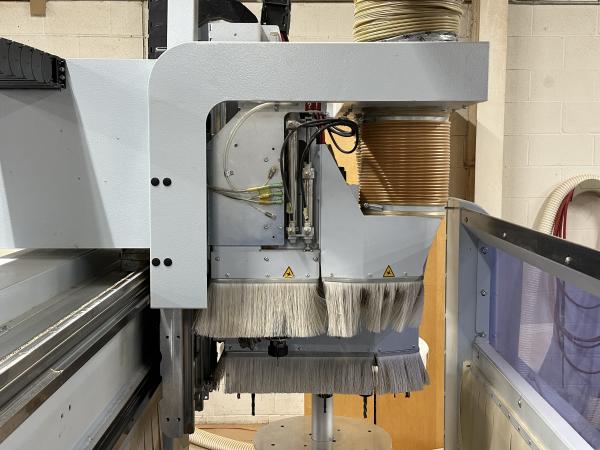

- Vertical Router Motor -
- 12kW (16HP)
- Tool Holder - HSK63

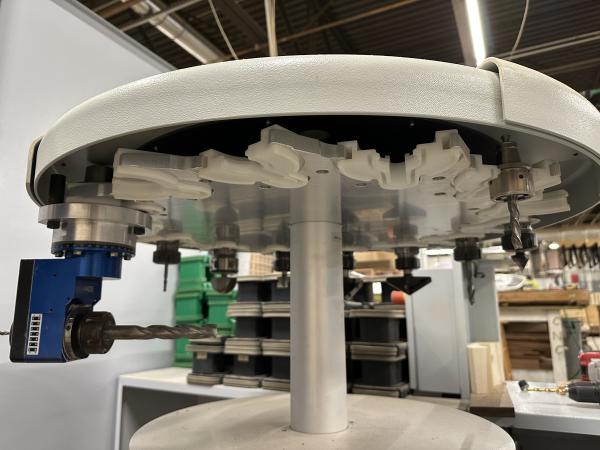

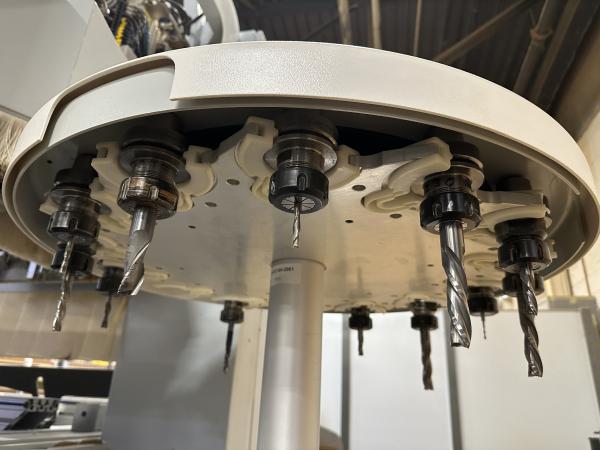

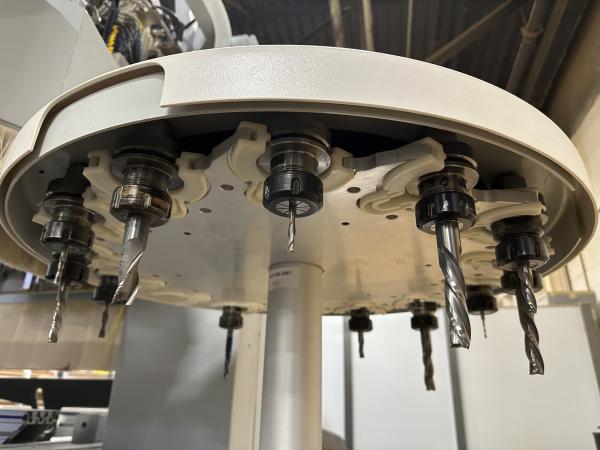

- Tool Changing - Automatic
- Speed - 1250-24000 RPM Stepless

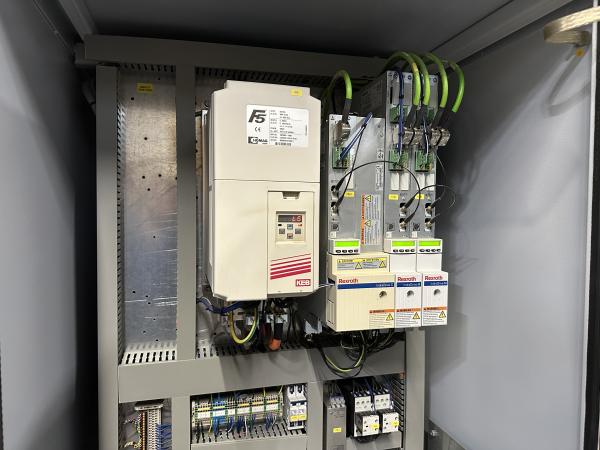

- Frequency Controlled motor

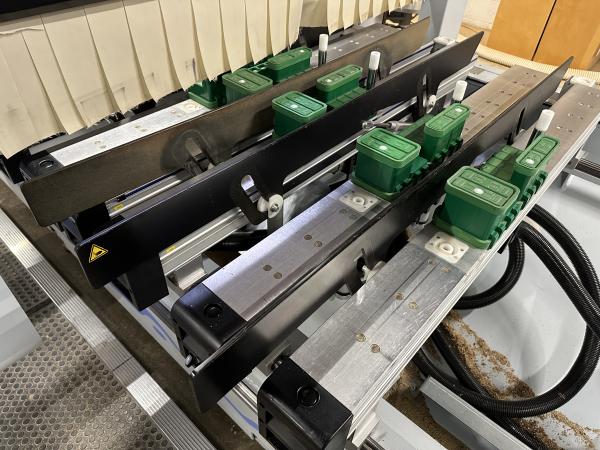

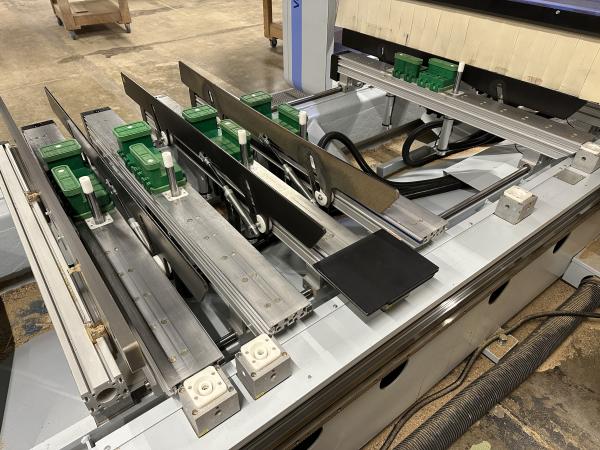

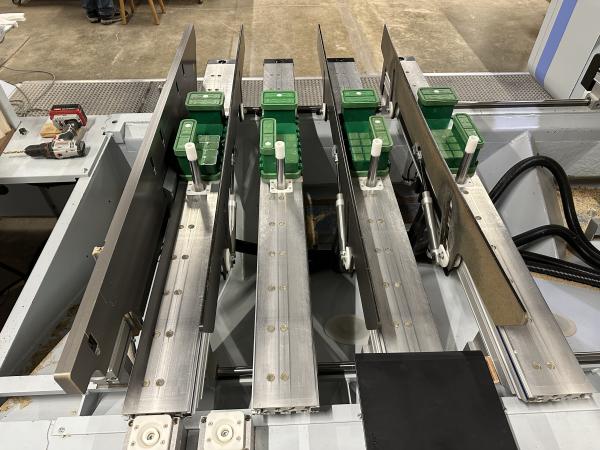

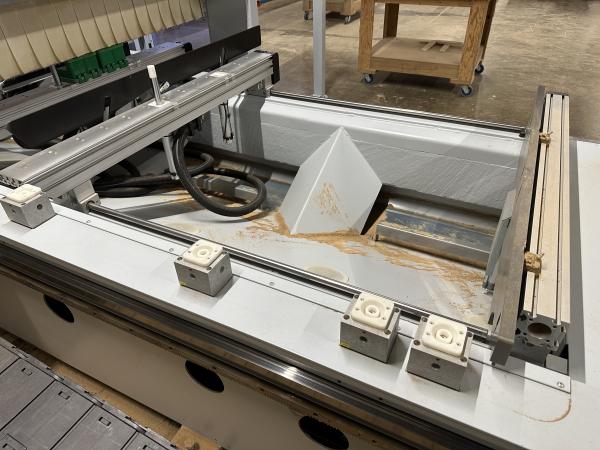

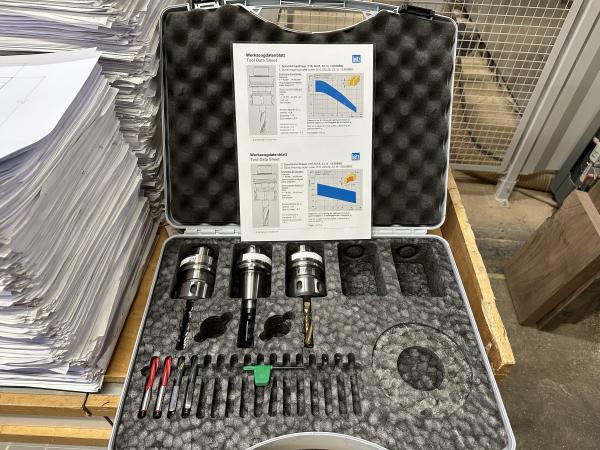

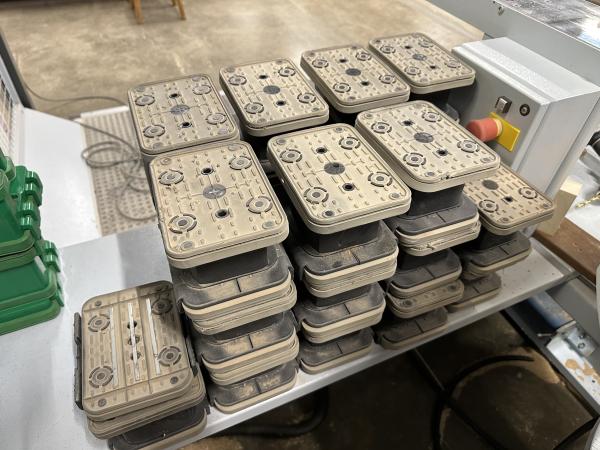

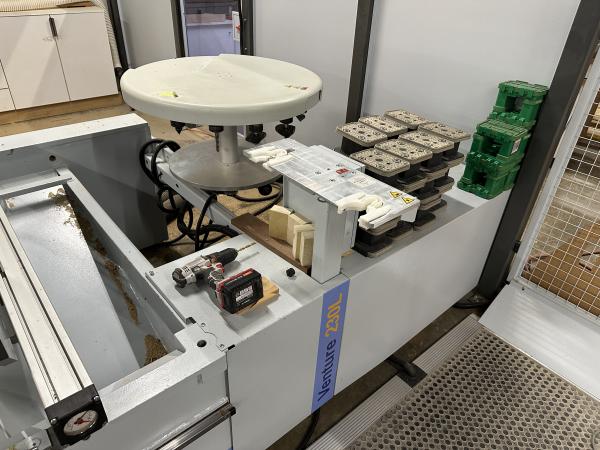

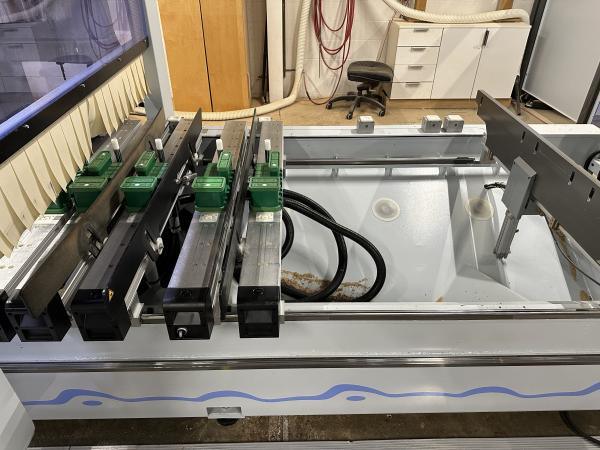

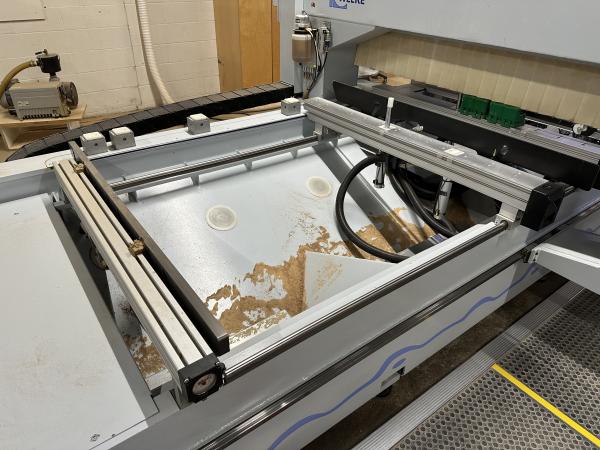

- Notes: This is a super-clean machine that is still being used by a single-shift medium-sized shop on a daily basis. They are only selling because of a move towards full five-axis. Original Weeke Pods will be included with the machine (previous owner is keeping the green BVC pods). They are also keeping the tool holders and aggregate. This machine does have a spindle vibration sensor installed.
