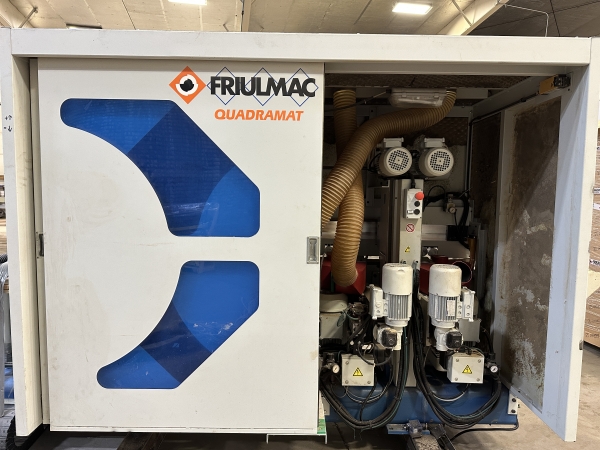

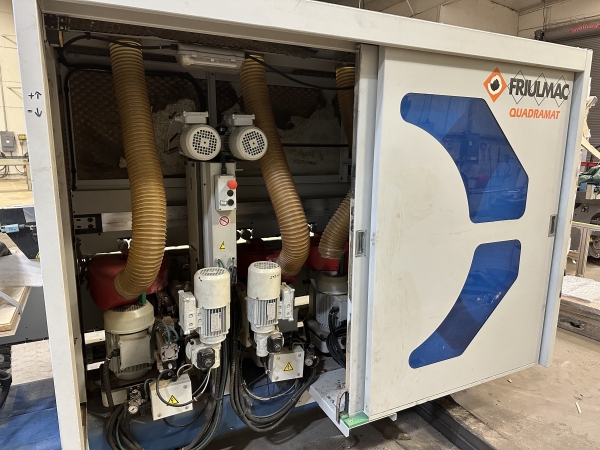

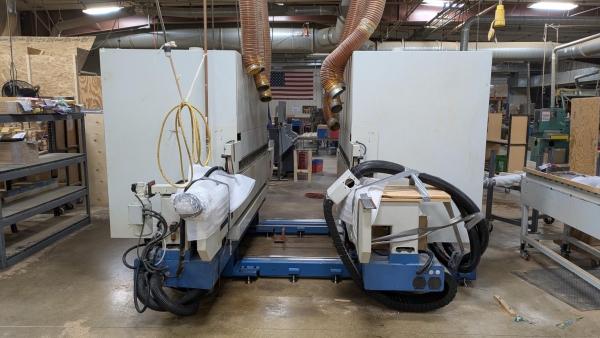

Friulmac Model Quadramat Double End Tenoner

• Friulmac Model Quadramat Double End Tenoner
• Width Capacity: 1,500 mm (59") Maximum
• Loading space 1,041 mm (41")
• Thickness 10 - 100 mm (0.4" to 3.9")
• Equipped With Four Stations Each Side: Jump cope - Cope - Jump Cope - Cope
• Motorized opening with LED readout on the control panel, approx. 25" infeed in front of hold downs.
• Variable speed feed 6-28 M/min, feed motor 4.5 HP
• Feed chain 2-7/8" wide with rubberized pads
• Top pressure with non-stainable stretching wheels driven by gear motor and inverter with speed adjustment synchronously to chain feeding speed
• Infeed fence on left side
• Machine left side fixed, right side adjustable

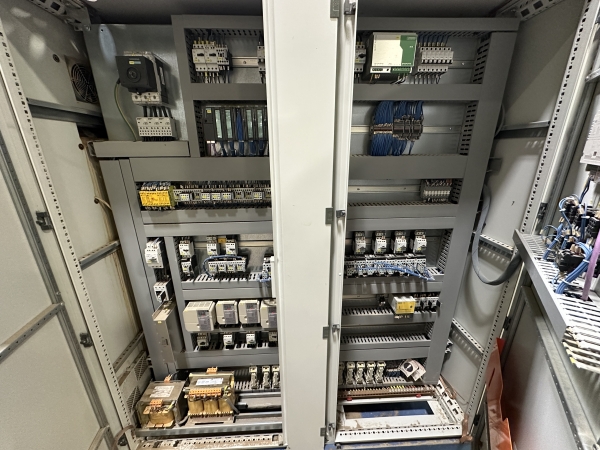

• Control panel

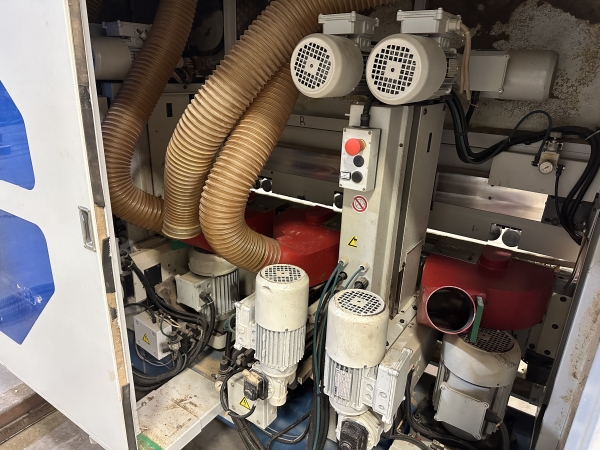

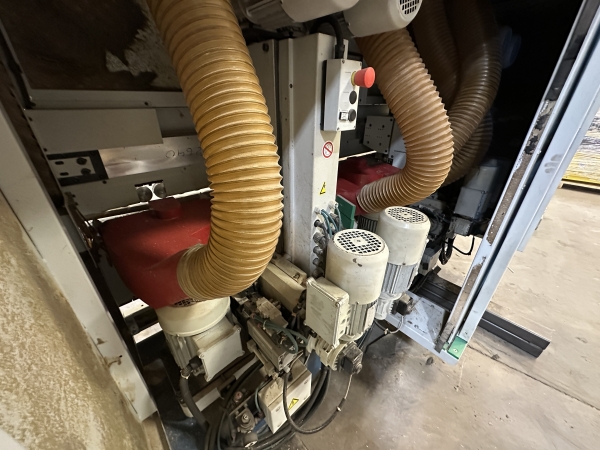

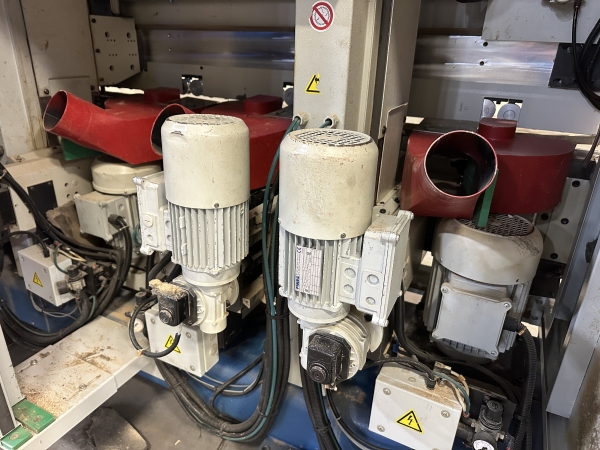

• Working Stations:
• 1st station: Profiling unit J-33 Right and Left (Jump Cope), Motor 15HP, 40 mm dia. Spindle 7200 RPM Belt Drive with max tool diameter 250 mm
• 2nd station: Profiling unit J-32 Right and Left, Motor 15HP, 40 mm dia. Spindle 7200 RPM Belt Drive with max tool diameter 250 mm
• 3rd Station: Profiling unit J-33 Right and Left (Jump Cope), Motor 15HP, 40 mm dia. Spindle 7200 RPM Belt Drive with max tool diameter 250 mm
• 4th Station: Profiling unit J-32 Right and Left, Motor 15HP, 40 mm dia. Spindle 7200 RPM Belt Drive with max tool diameter 250 mm
