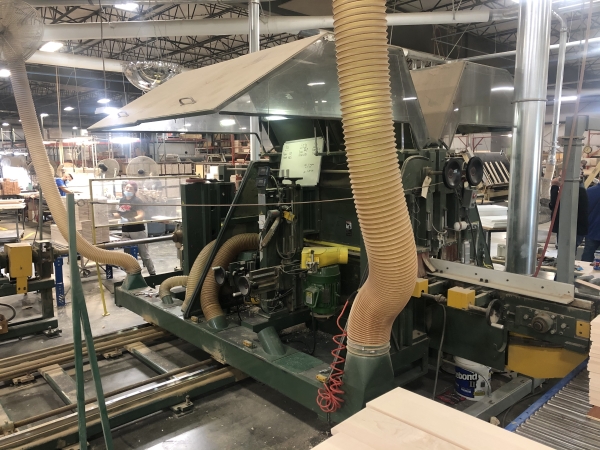

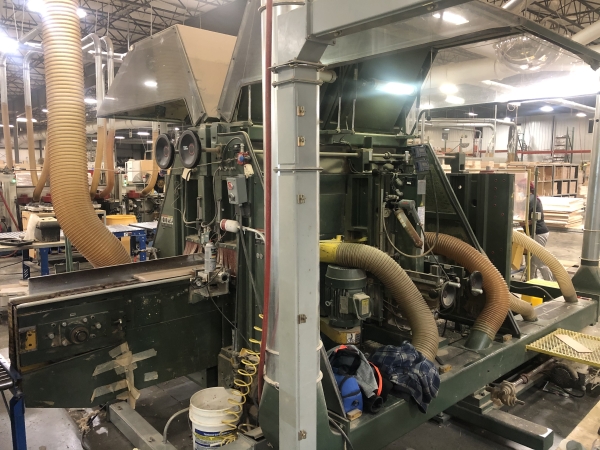

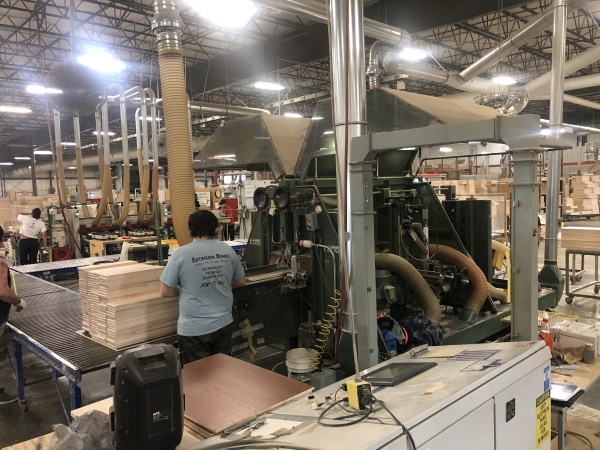

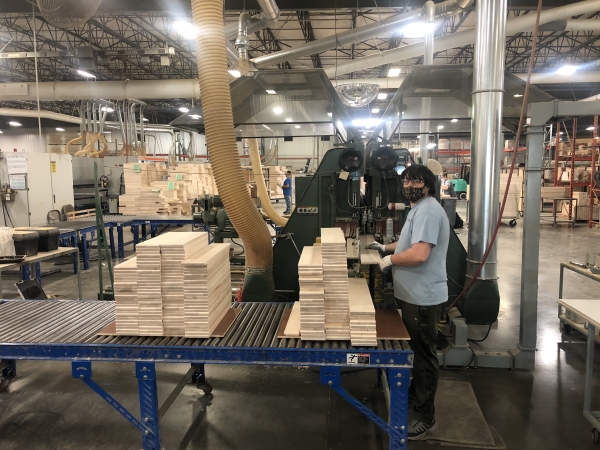

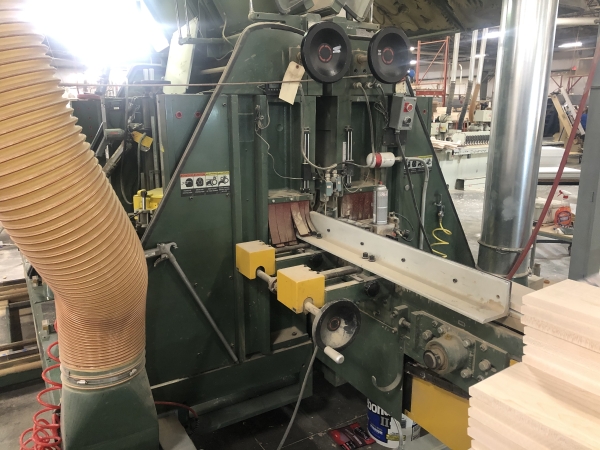

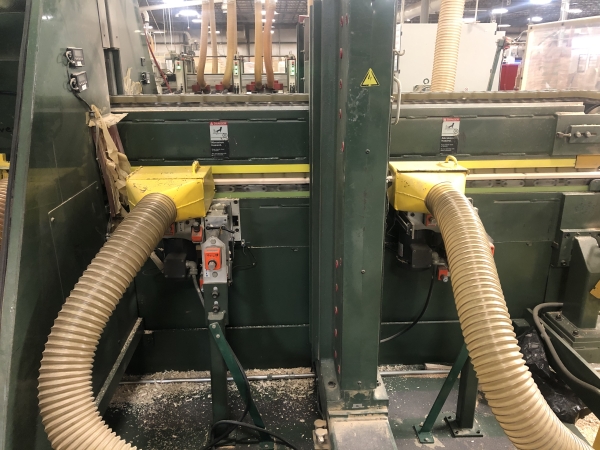

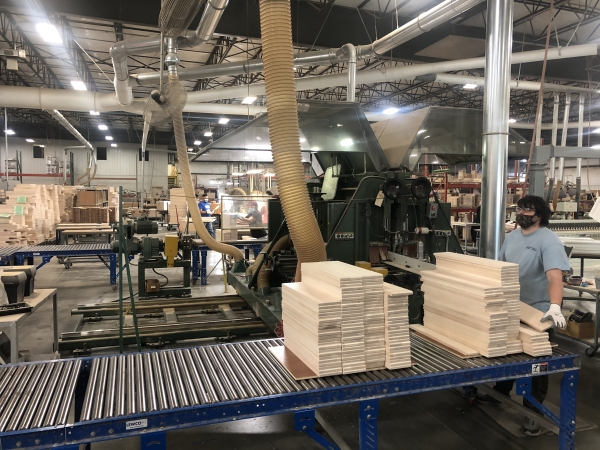

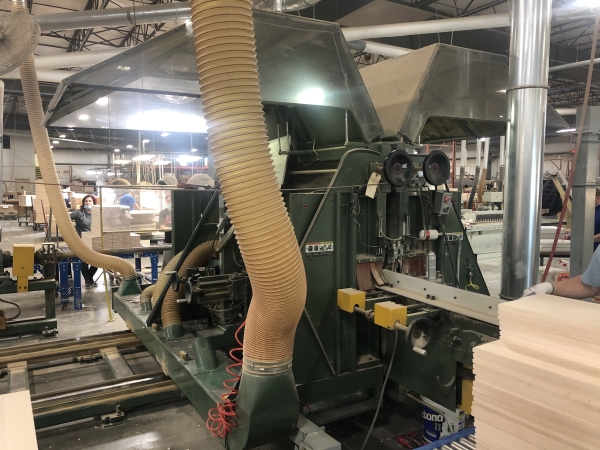

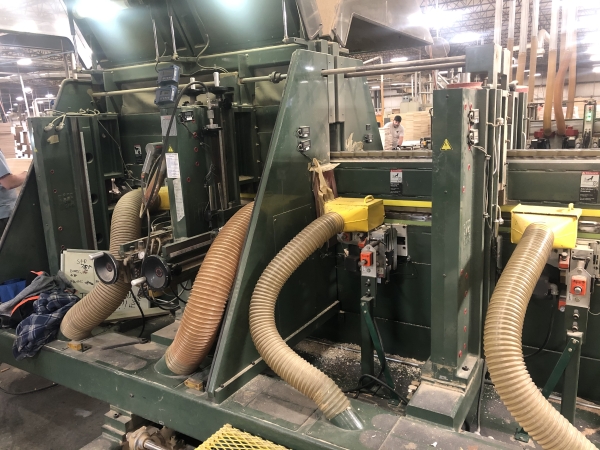

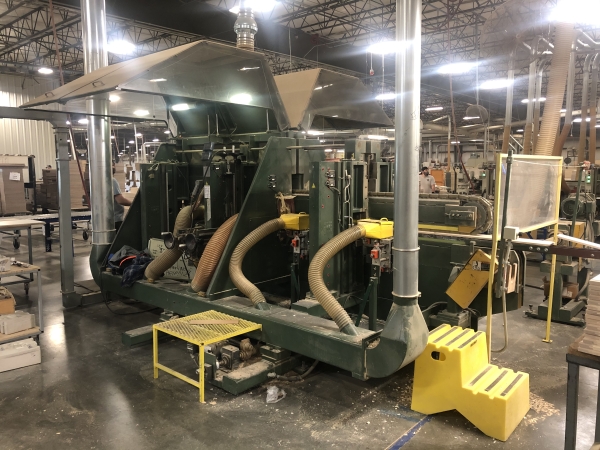

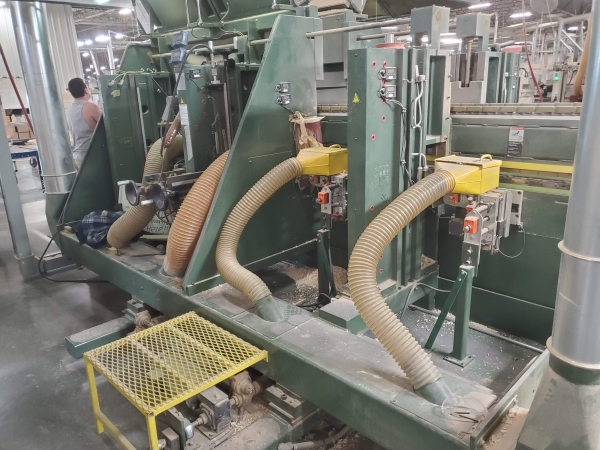

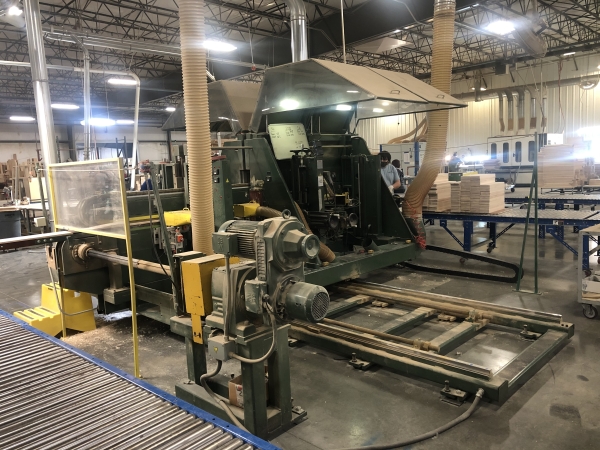

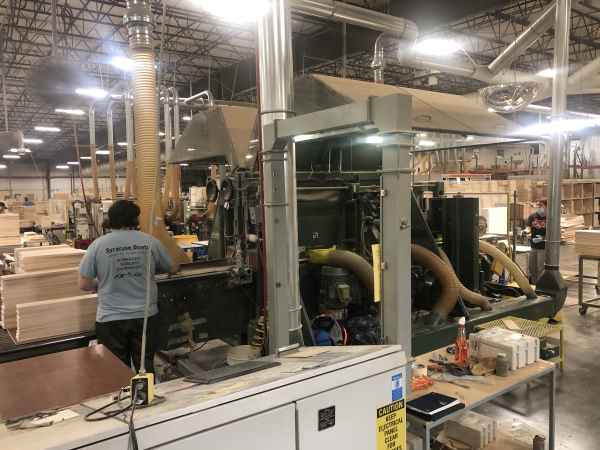

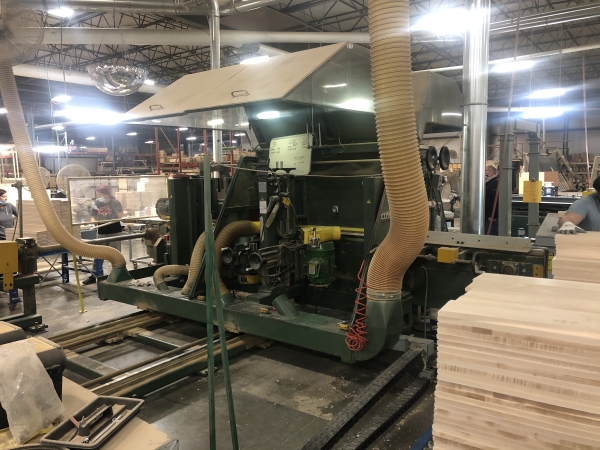

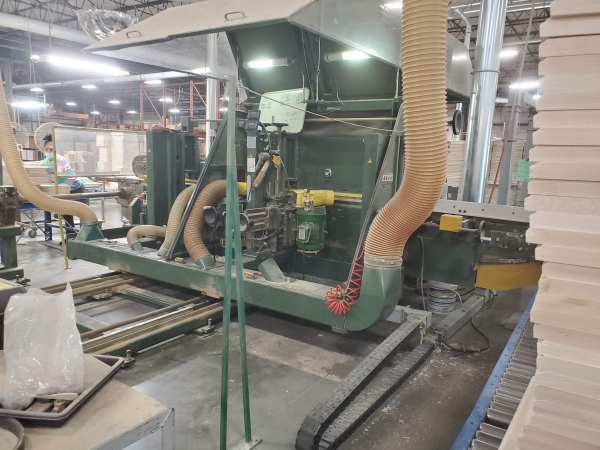

Mereen-Johnson Model 2050 Double End Tenoner

• Mereen-Johnson Model 2050 Double End Tenoner
• Maximum Width Capacity: 96" to Outside of Feed Chains
• Minimum Width: 5-1/4"
• Lay-Up Area: 30"
• First Station (Not Currently Installed): Trims Saws, 10 HP Each, Tilting

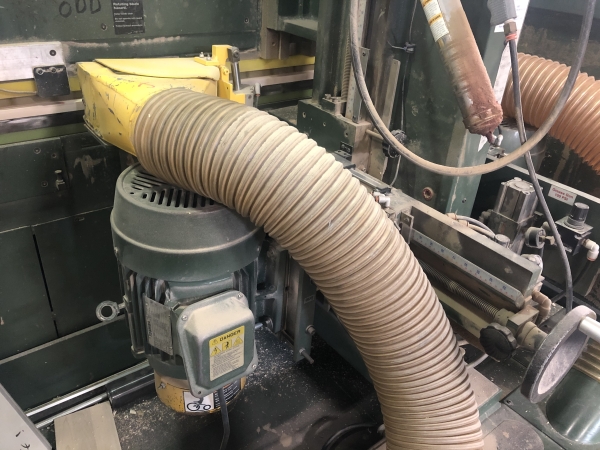

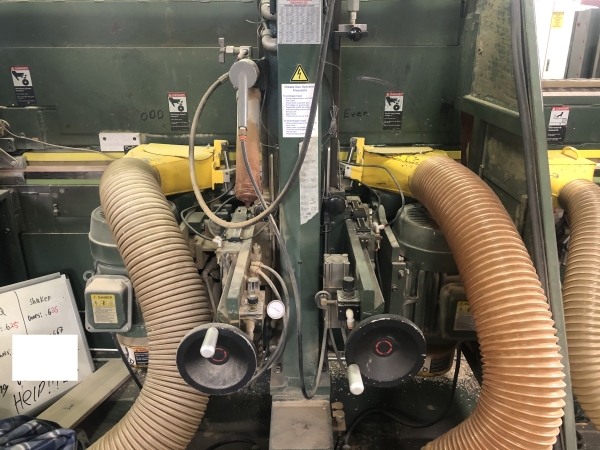

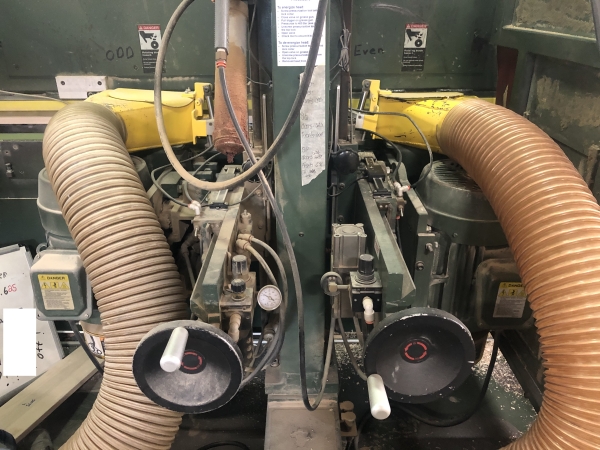

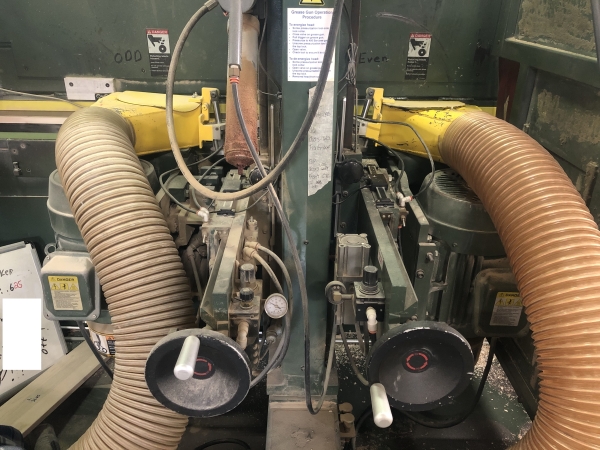

• Second Station: High-Speed Jump Copes, 10 HP Each

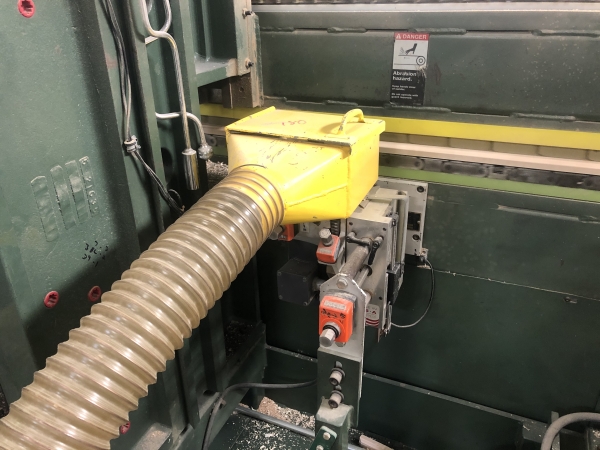

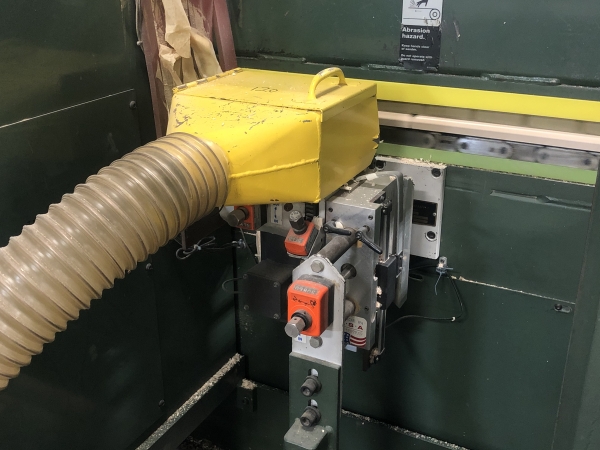

• Third Station: High-Speed Copes, 10 HP Each
• Cope Unit Spindles: 1-1/4" Diameter x 3-1/4" Un-Threaded Tool Space
• Fourth Station: Tandem Sanding Wheels, 0.33 HP Motors, Counter-Rotating
• Fifth Station: Tandem Sanding Wheels, 0.33 HP Motors, Counter-Rotating

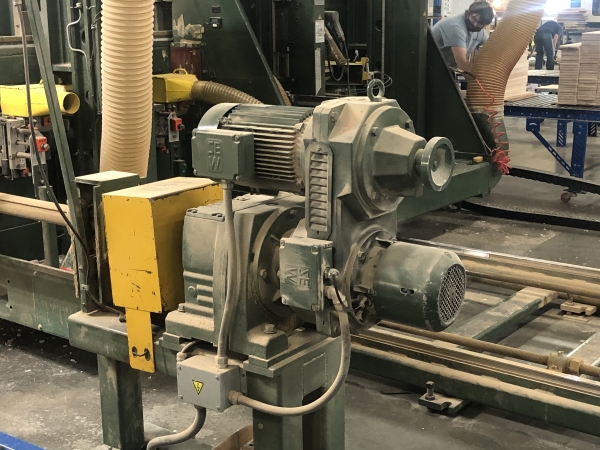

• Left-Hand Traverse via 3 HP Motor
• Feed Drive: 7-1/2 HP Motor
• Variable Speed Feed from 15 - 75 FPM

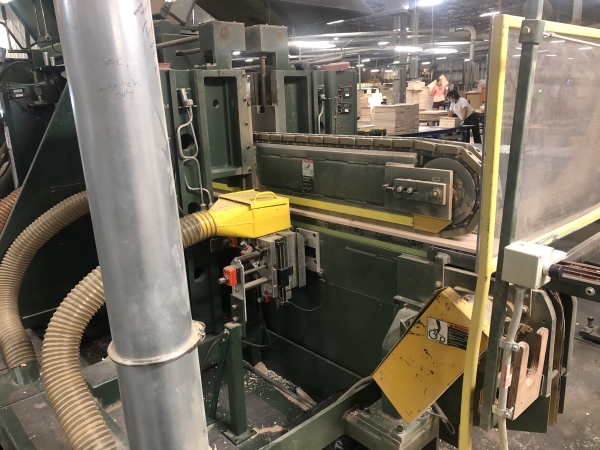

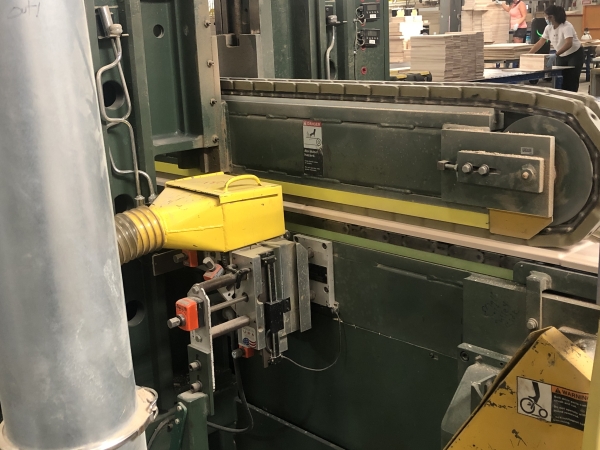

• 1-3/4" Wide Multi-Vee Feed Chains
• Flip-up Feed Lugs Spaced at 10" On-Centers
• Urethane Block Chain Hold-Downs

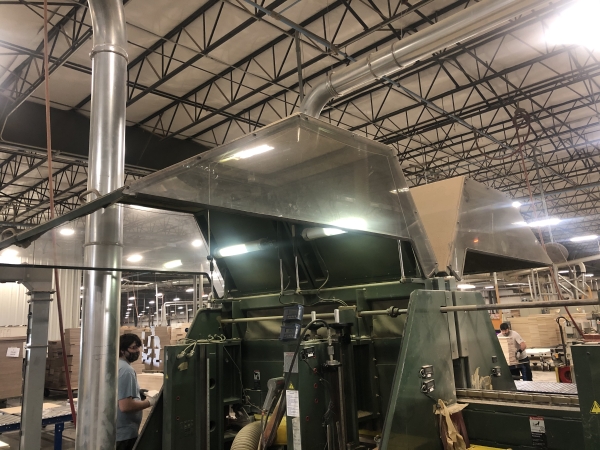

• Sound Enclosure

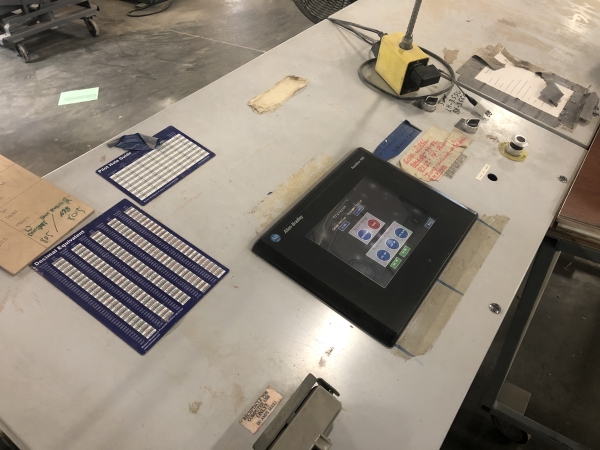

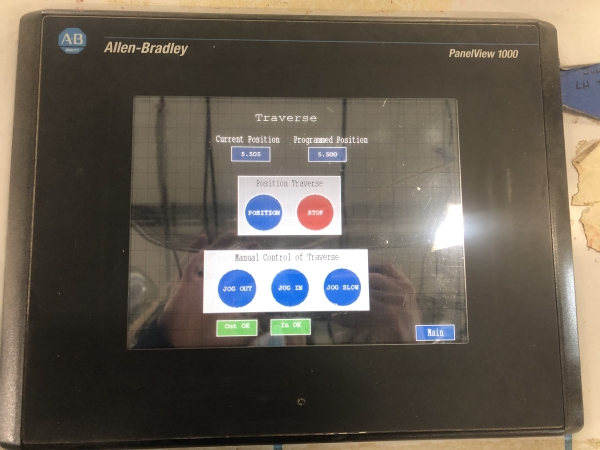

• Stand-Alone Operator Control w/ Allen-Bradley PanelView 1000 Interface
• Year: 2004
• 460v, 3ph

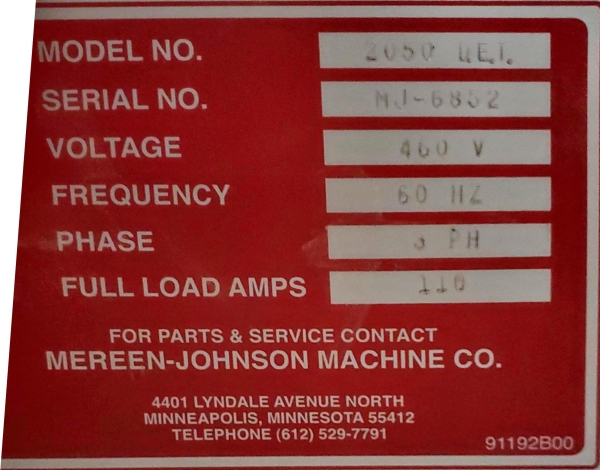

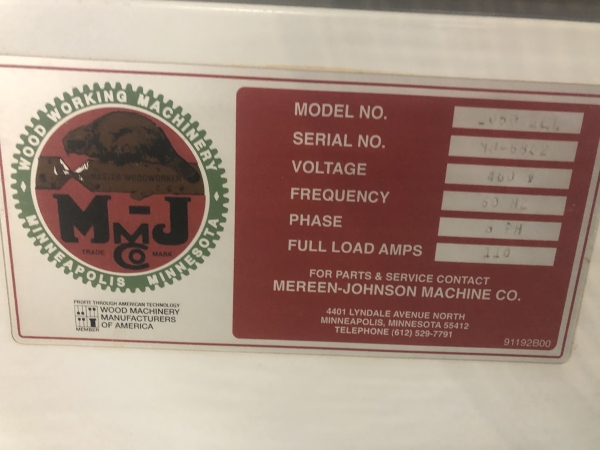

• Serial #: MJ-6852
