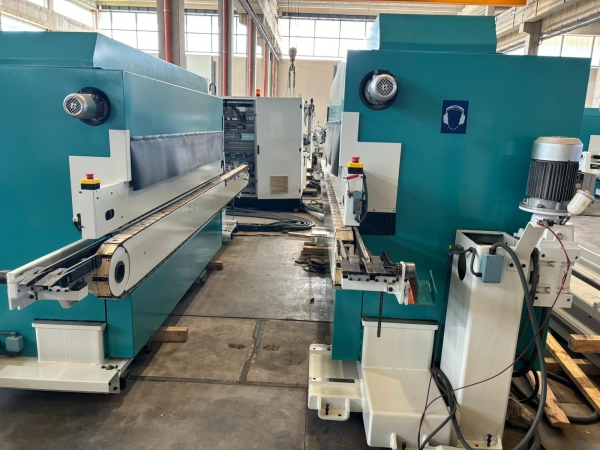

Celaschi Model TSA 480 + TSA 360 Double Side Complete Squaring Line
Machine Available
Stock #101174

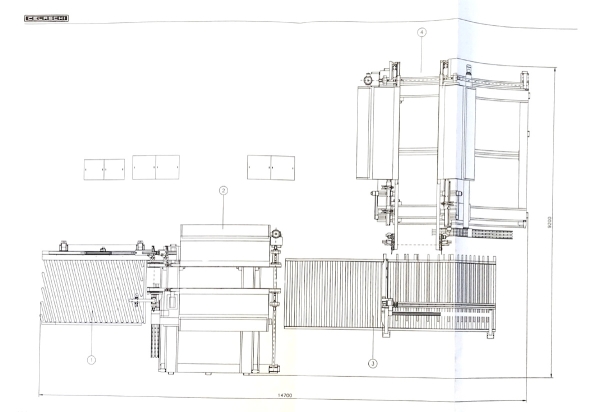

Used- 4-SIDED SIZING-SHAPING LINE (currently for Internal Doors).
Composed by of the following machines:

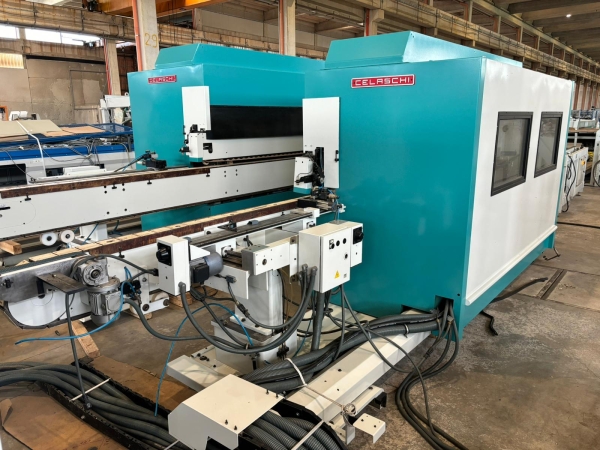

Double End Tenoner "CELASCHI" Mod. TSA 3 B 480 A - Capacity (width min/max): 300 - 2000 mm
- Capacity (thickness min/max): 6 - 60 mm
- Distance Between Pins: 400mm
- Adjustable Feed Speed (min/max): 4 - 24 m/min

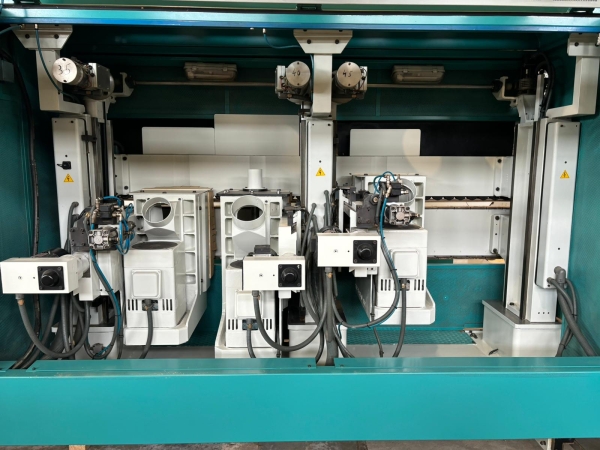

No. 4 Working Groups (left and right identical) - First: jumping vertical NC Milling Unit (useful height 300mm)
- Belt Drive Motor: 9.2 kW @ 3000 RPM
- Second: standard vertical NC Milling Unit (useful height 300mm)
- Belt Drive Motor: 9.2 kW @ 3000 RPM
- Third: jumping vertical NC Milling Unit (useful height 300mm)
- Belt Drive Motor: 9.2 kW @ 3000 RPM
- Forth: vertical Milling Unit, 1.5 kW @ 1470 RPM
- Installed power KW 60
Double End Tenoner "CELASCHI"" Mod. TSA 2 B 360 - Capacity (width min/max): 300 - 2500 mm
- Capacity (thickness min/max): 6 - 60 mm
- Distance Between Pins: 400mm
- Adjustable Feed Speed (min/max): 4 - 24 m/min

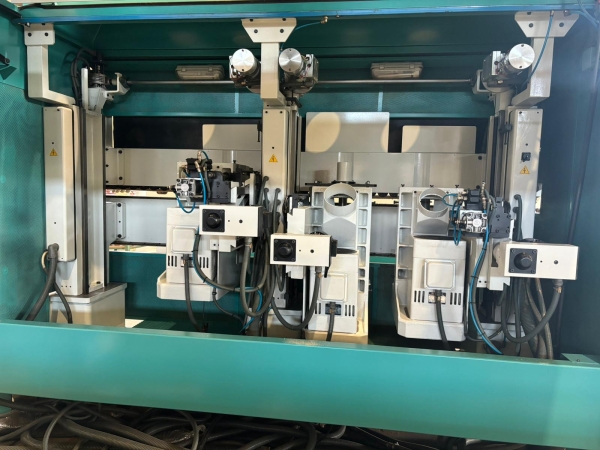

No. 3 Working Groups (left and right identical) - First: jumping vertical NC Milling Unit (useful height 300mm)
- Belt Drive Motor: 9.2 kW @ 3000 RPM
- Second: standard vertical NC Milling Unit (useful height 500mm)
- Belt Drive Motor: 9.2 kW @ 3000 RPM
- Third: jumping vertical NC Milling Unit (useful height 300mm)
- Belt Drive Motor: 9.2 kW @ 3000 RPM
- Forth: free space
- Installed power KW 65
Material Handling - Motorized infeed roller conveyor
- 90° transfer (L-shaped motorized conveyor)
