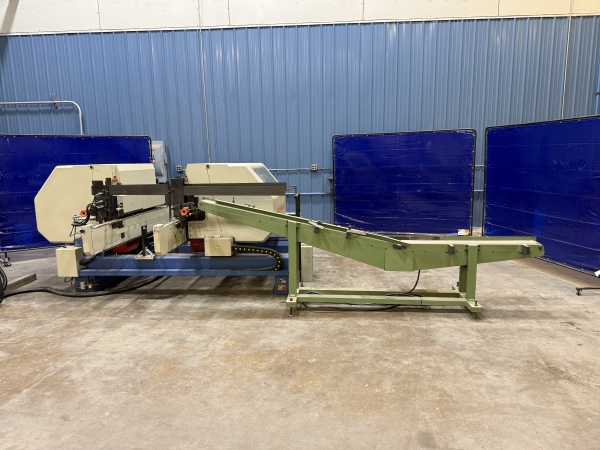

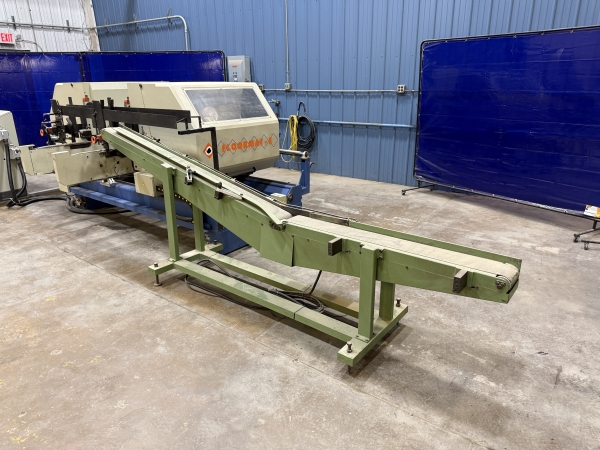

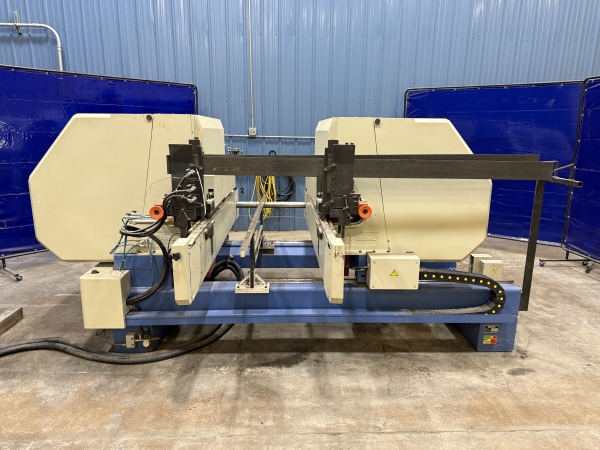

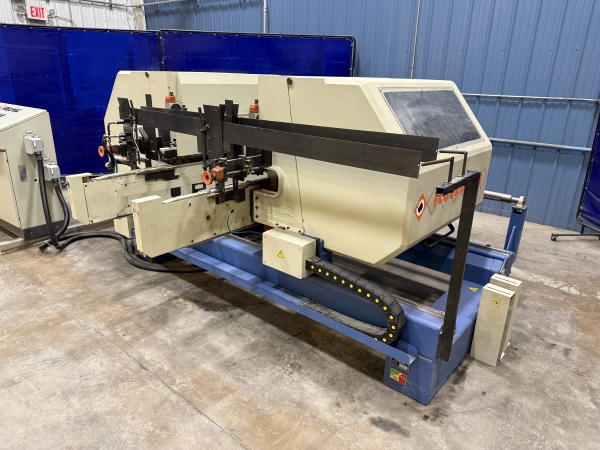

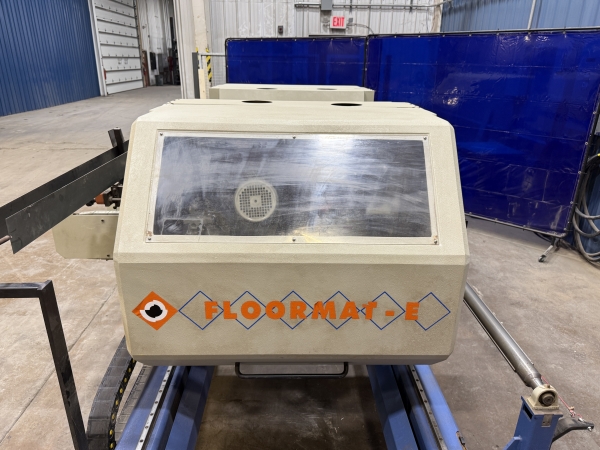

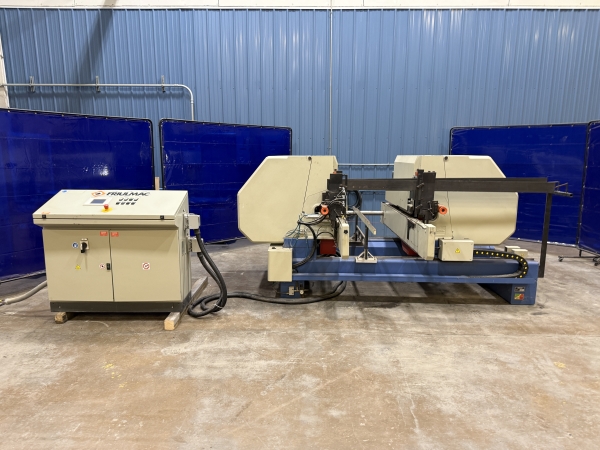

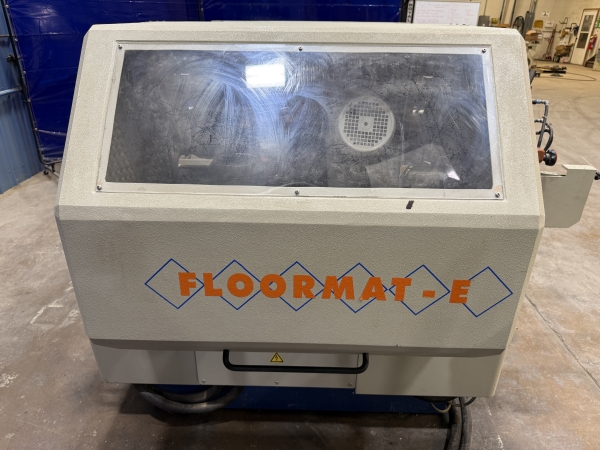

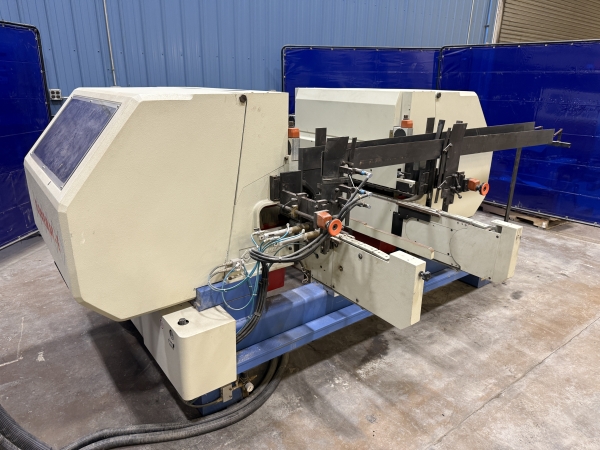

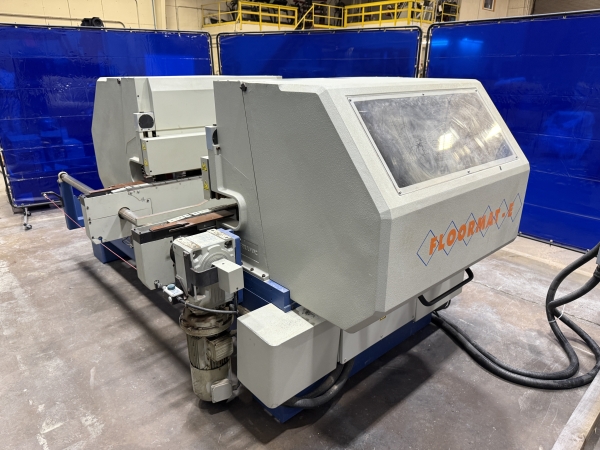

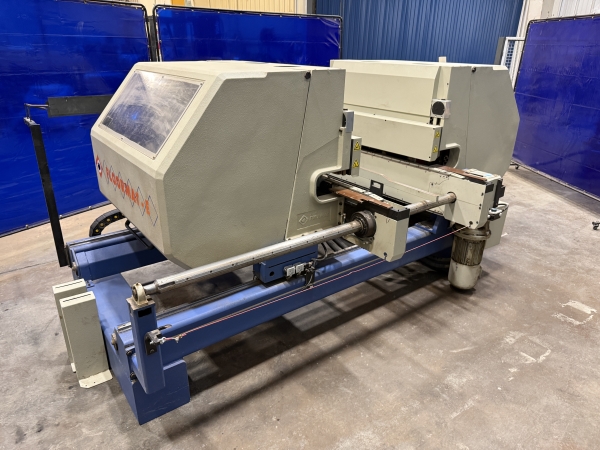

Friulmac Model Floormat/EQ Double End Tenoner

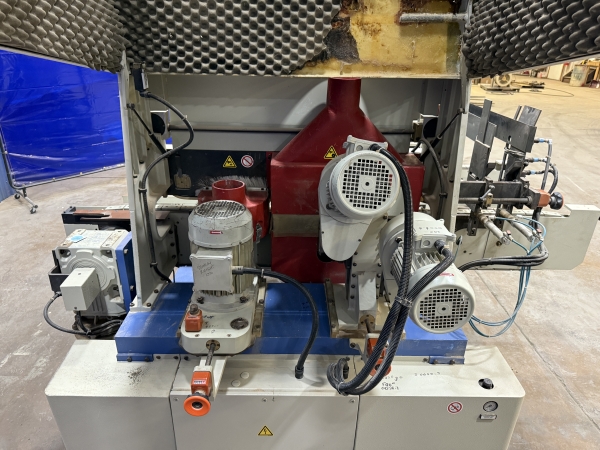

• Friulmac Model Floormat/EQ Double End Tenoner with Top and Bottom Scoring/Cut-off Units (Tilting) and one Fixed Profiling Unit each Side

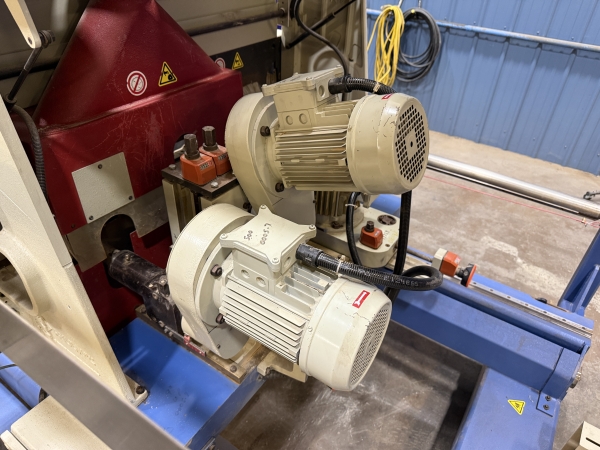

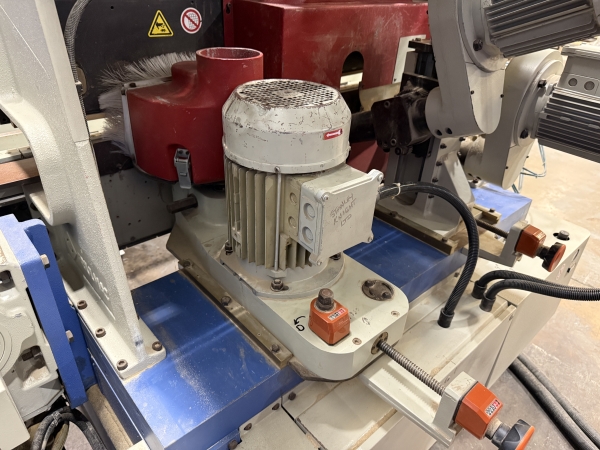

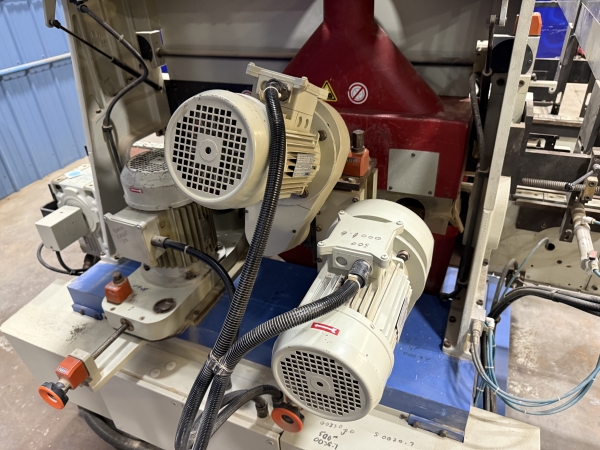

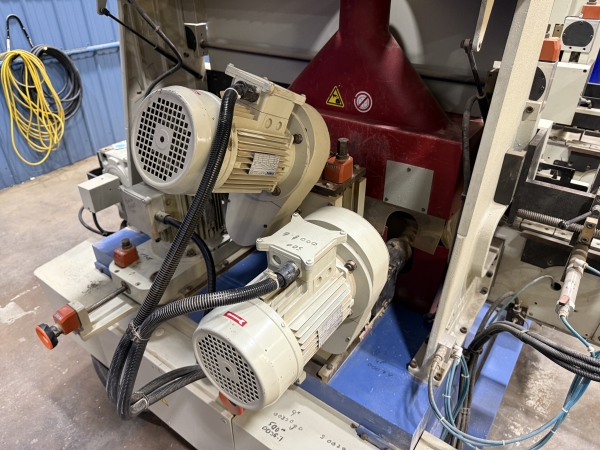

• Four 4 HP (3 KW)Trim/Cut-off Motors 2 (2 each side)
• 30mm Bore on Trim Units
• 150mm Saw Blade Dia.

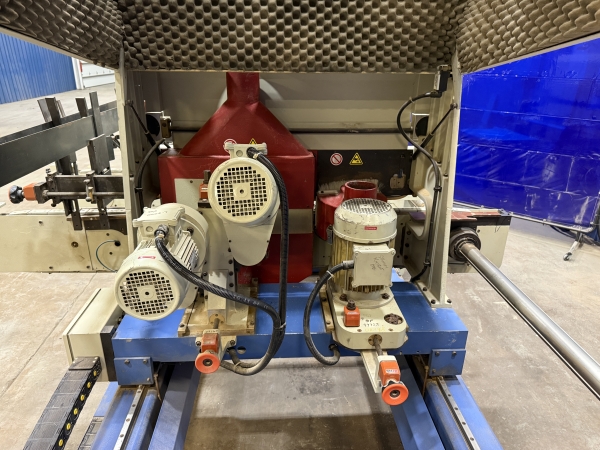

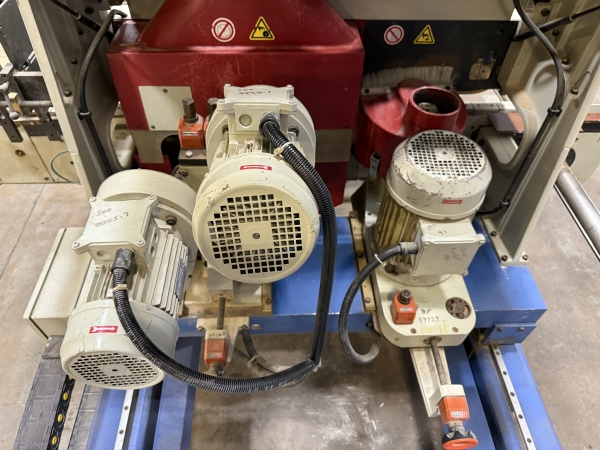

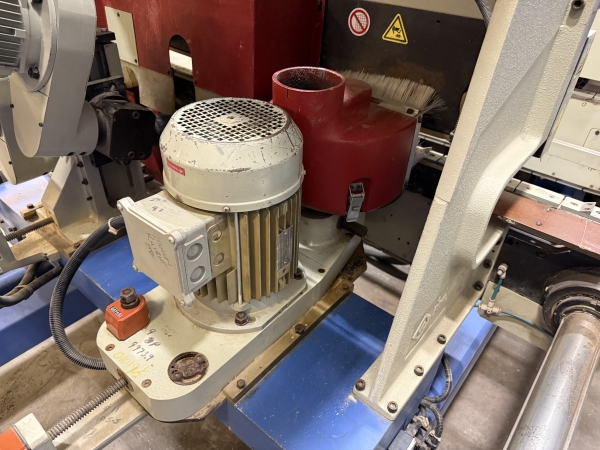

• Two 7 1/2 HP (5.5 KW) Fixed Profiling Units (1 each side)
• Profiling Units have 40mm Bore
• Profiling Tooling Min. Diameter 6-1/4" (160mm) Max Diameter 8-1/2" (220mm)
• Min. Workpiece Length 8.75" (225mm)
• Max. Workpiece Length 59" (1500mm)
• Min. Workpiece Width 1.18" (30mm)
• Max. Workpiece Width 9.75" (250mm)
• Min. Workpiece Thickness 0.39" (10mm)
• Max. Workpiece Thickness 1.37" (35mm)

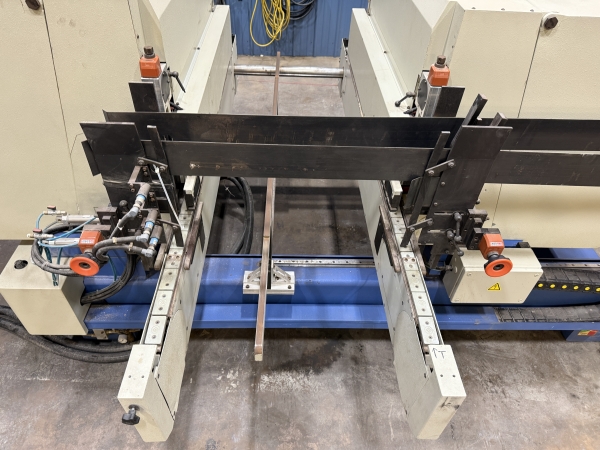

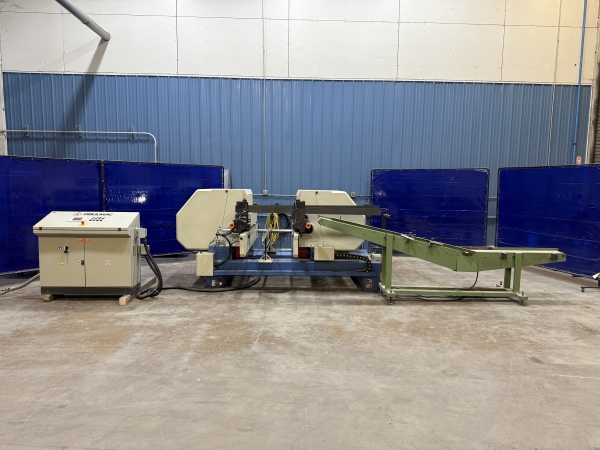

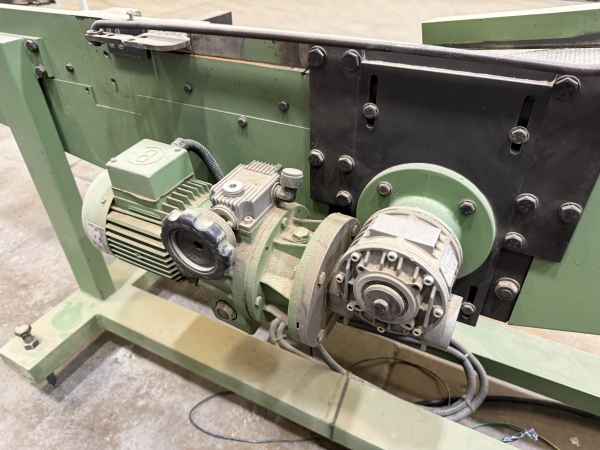

• Adjustable Hopper Feed

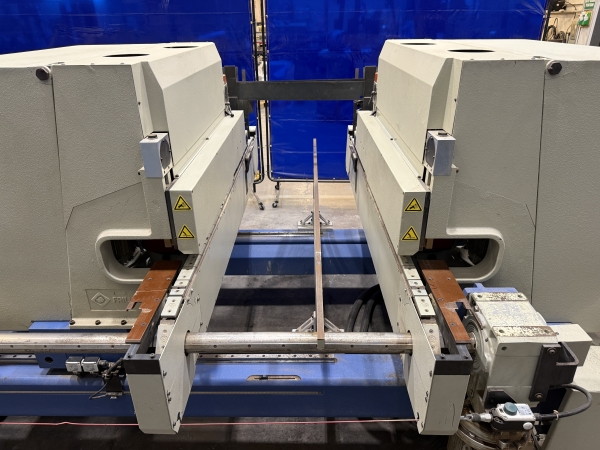

• Feed Chain with Dogs
• Rubber Belt Holddown

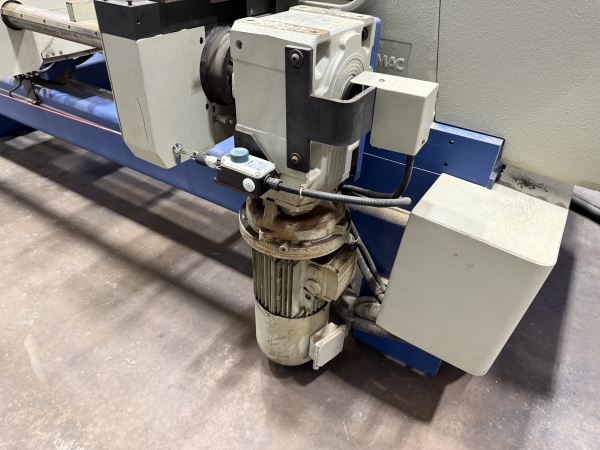

• Motorized Open/Close for Length Adjustment
• Four 4.75" (120mm) Dust Ports Each Side
• Right Side is the Moveable Shoulder

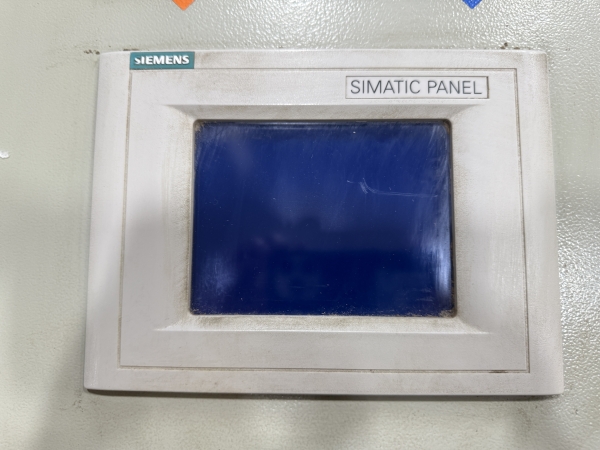

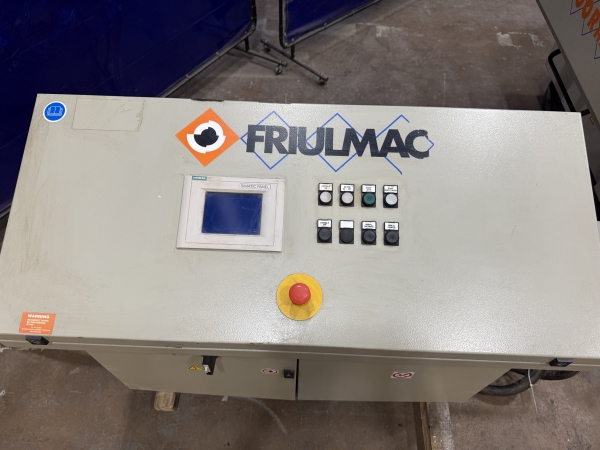

• Siemens SIMATIC Touch-Screen Control
• Transformer provided with the machine (transformer has some cosmetic damage)

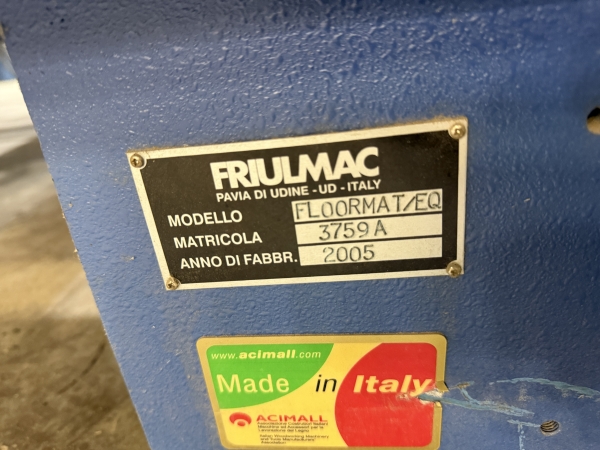

• Serial No. 3759A
