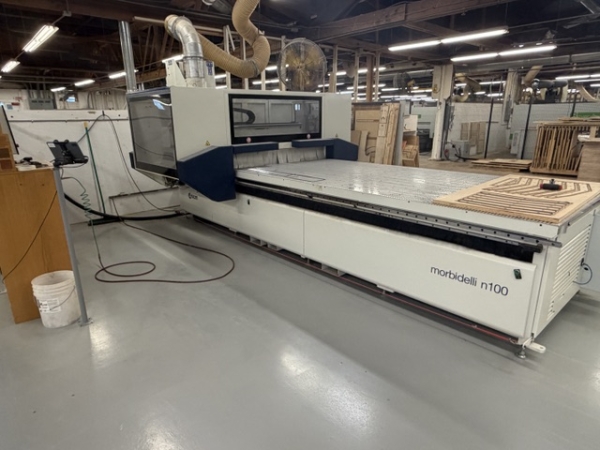

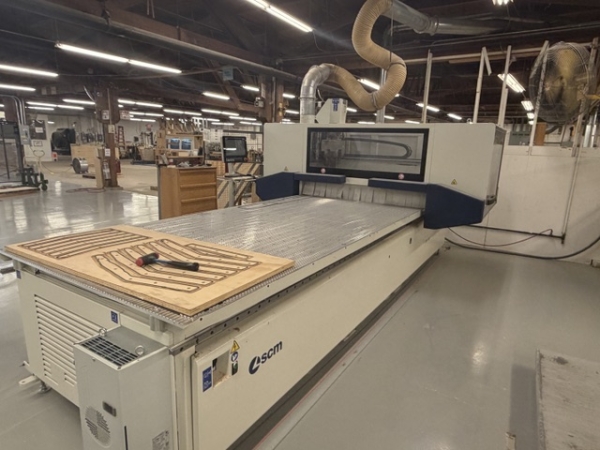

SCM 2019 Morbidelli Model n100 CNC Router

• 2019 Morbidelli Model N 100 Flat Table CNC Router with ATC and Boring Block
• 5' x 12' Worktable
• 13 HP (S6) air cooled electro spindle with HSK F 63 quick release tool holder
• 1,500 to 24,000 RPM inverter-controlled spindle speed
• Aluminum solid worktable that can nest full sheets or be used for routing smaller components

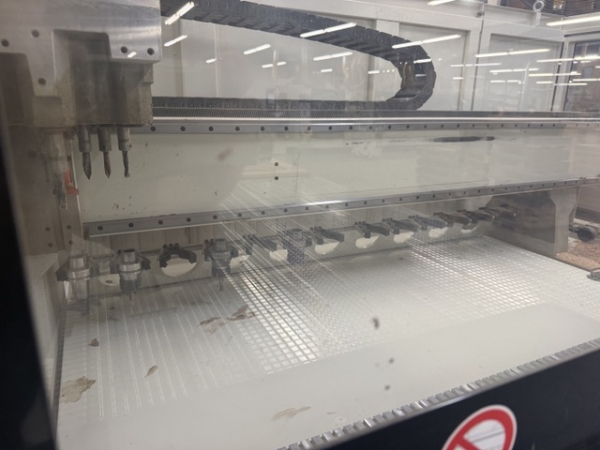

• 14-Position tool changer mounted to side of machine

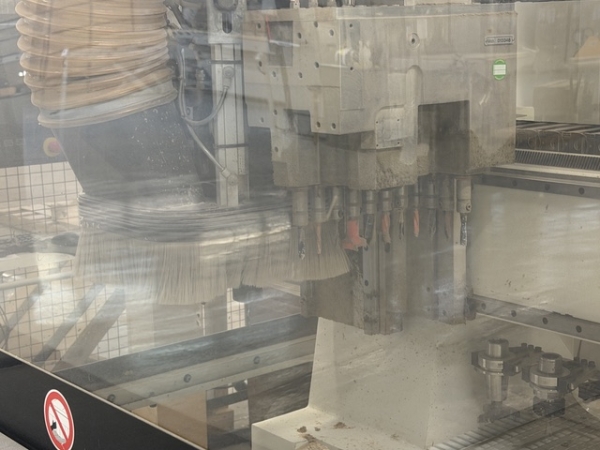

• 12 Vertical drills: 7 in X axis and 5 in Y axis
• X/Y maximum positioning speeds is 35 meters/min (115 feet/min)
• Z axis stroke 250 mm (9.84")
• Maximum panel passage 150 mm (5.90")
• (2) 300 m³/H vacuum pumps
• Mobile console with 17" LCD display with Maestro software
