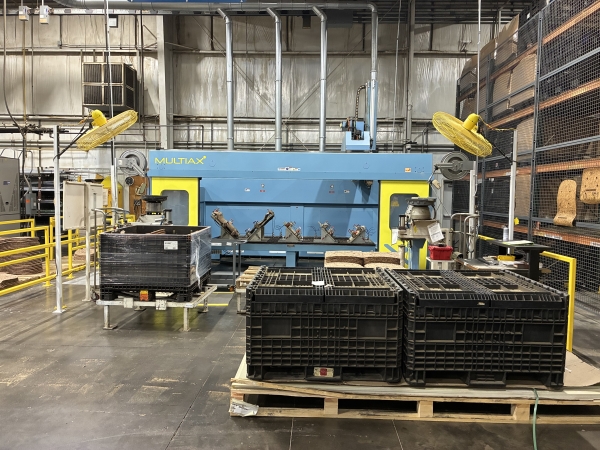

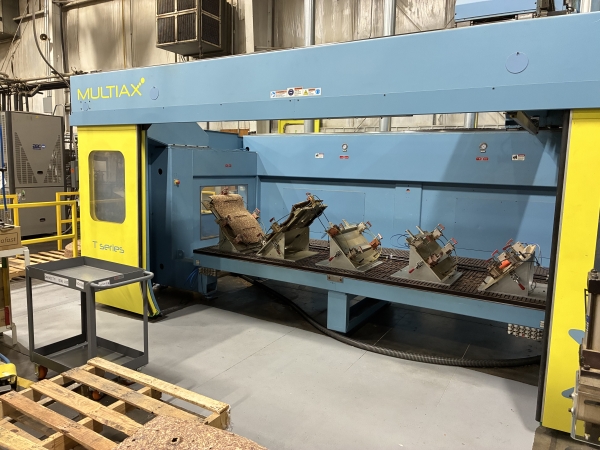

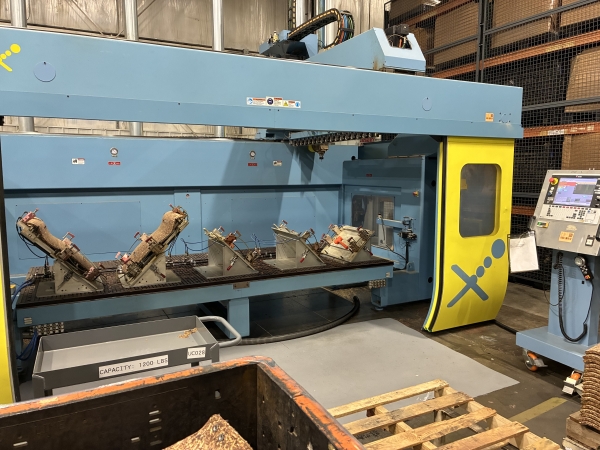

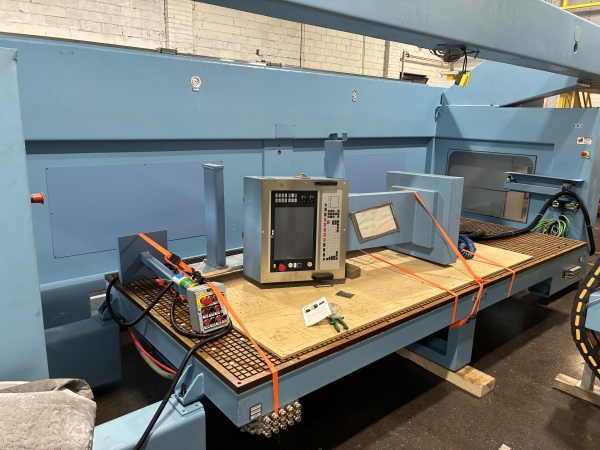

Multiax Model Multiax T, 6 Axis CNC Machining Center

• Multiax Model Multiax T Six Axis CNC Machining Center
• Table Size 3640mm (143.3") X 1540mm (60") with Two Vacuum Zones (Right and Left) 1820mm (72.65") X 1540mm (60")
• X Axis 3500 mm (138") Max Speed 84m/min
• Y Axis 1800 mm (71") Max Speed 84m/min
• Z Axis 900 mm ( 35.4") Max Speed 40m/min
• A Axis +/- 120 Degrees Max Speed 30 rpm
• C Axis +/- 365 Degrees Max Speed 30 rpm
• B Axis 2000 mm (78.74") Max Speed 40 rpm
• Electro-Spindle Model HSD ES779 H6161H1551, 10KW (13.5HP) Water Cooled
• Spindle Speed up to 24000 rpm
• Tool Holder HSK F63

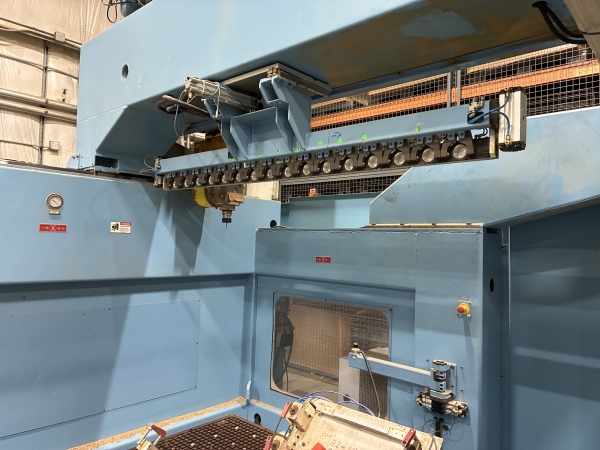

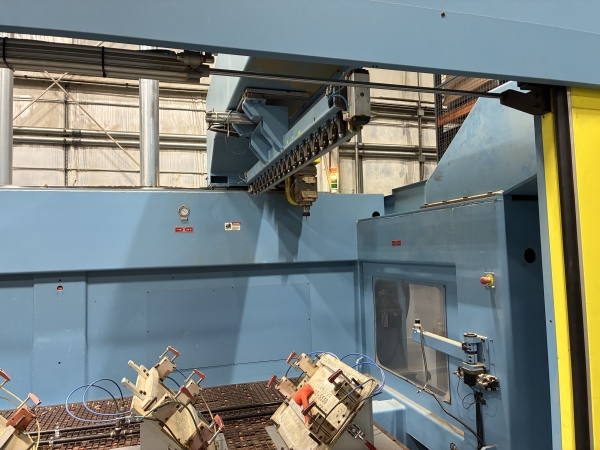

• Three Linear Tool Changers
• * First Under the Bridge 16 Position 110mm max dia. x 100 mm long
• * Second Left Side of Table - 2 Position 160mm max dia. x 400mm long
• * Third Right Side of Table - 2 Position 160mm max dia. x 400mm long
• Numeric Controller OSAI Open
