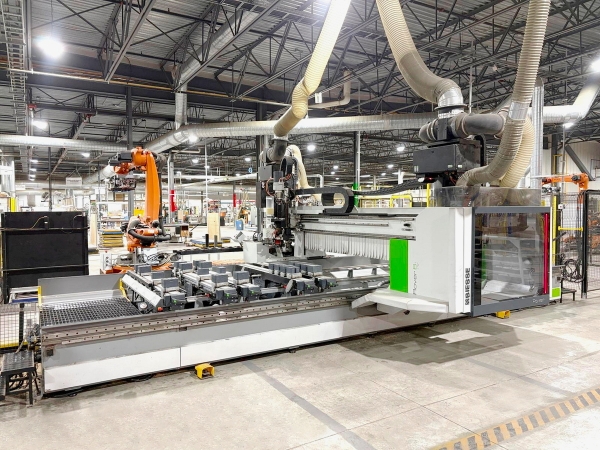

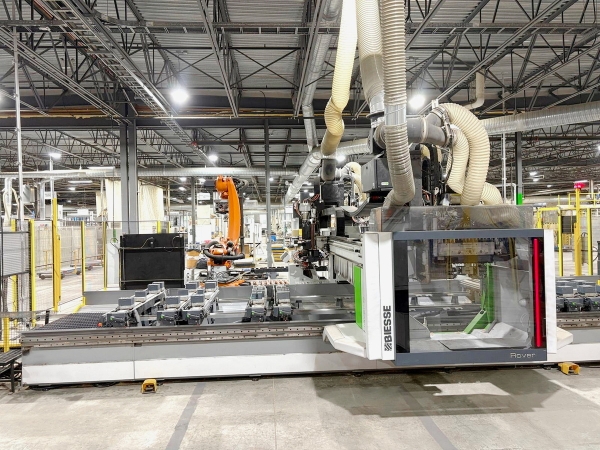

Biesse Model Rover B Edge 1967 CNC Router with Edge Banding & Kuka Robot
Machine Available
Stock #57294
Used- CN cell with automatic movement of pantographing, drilling, cutting, and edge banding:

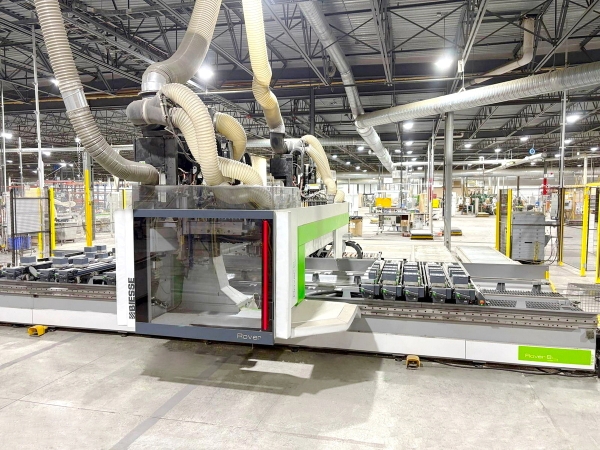

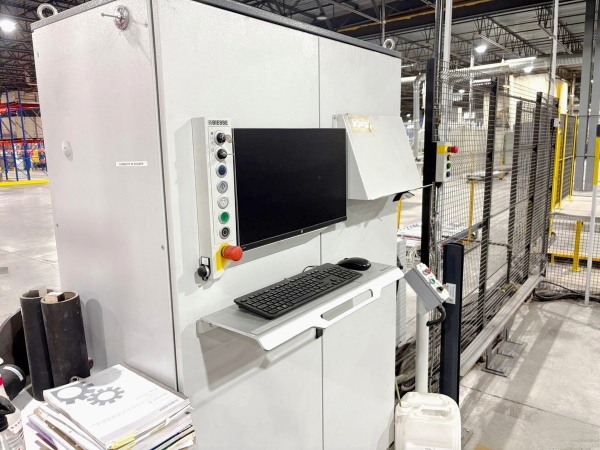

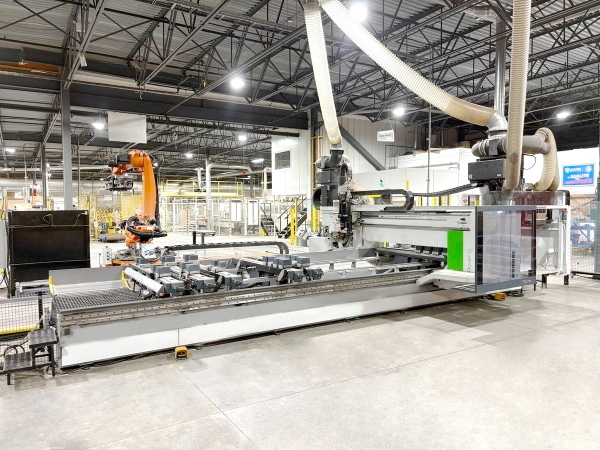

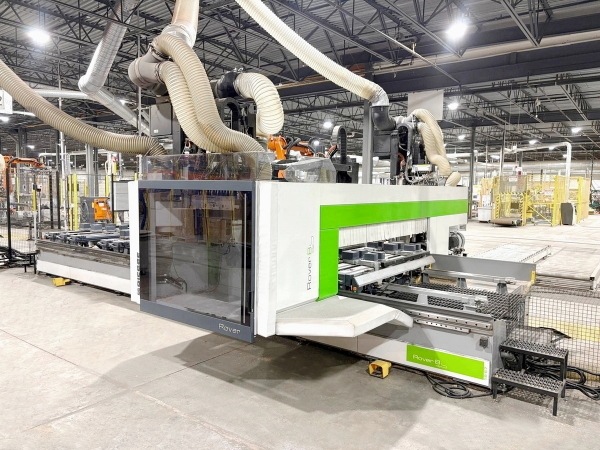

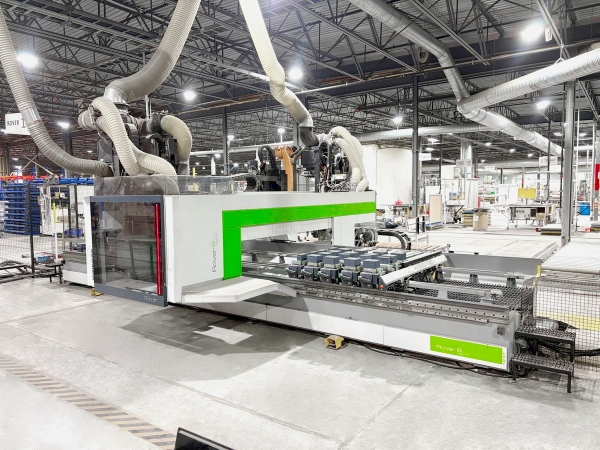

Biesse Rover B Edge 1967 (conf. 4): - Mobile Gantry on X-axis - CN with bTouch monitor and bPad wireless console
- Software: bSolid + bEdge, connection to SOPHIA, IoT platform
- No. 10 ATS supports (L=1800mm) automatic EPS (Electronic Positioning System)
- System for automatic tool change (magazine on X-axis / 16 positions)
- Useful Working Field Routing (X - Y - Z): 6,735 x 1,650 x 245 (290) mm
- Useful Working Field Edge Banding (X - Y - Z): 5,780 x 1,930 x 60 mm
- No. 2 Working Fields: vacuum pump / capacity 250 m3h - waste evacuation belt
- 1st Y-axis: No. 2 working heads (upper) in 4 slots
- Slot 1 + Slot 2: N. 1 HSK F63 vertical electrospindle (13.2 kW) with C-axis (360°) and air blowers
- Automatic tool change system (magazine on Y-axis, 6 positions)
- N. 16 (or 20) independent vertical drilling spindles + N. 6 (or 8) independent horizontal drilling spindles
- N. 1 circular blade diameter 120mm (on X-axis)
- Slot 11 + Slot 12: N. 1 HSK F63 vertical electrospindle (13.2 kW) with C-axis (360°) and air blowers
- Automatic tool change system (magazine on Y-axis / 6 positions)
- N. 16 (or 20) independent vertical drilling spindles + N. 6 (or 8) independent horizontal drilling spindles

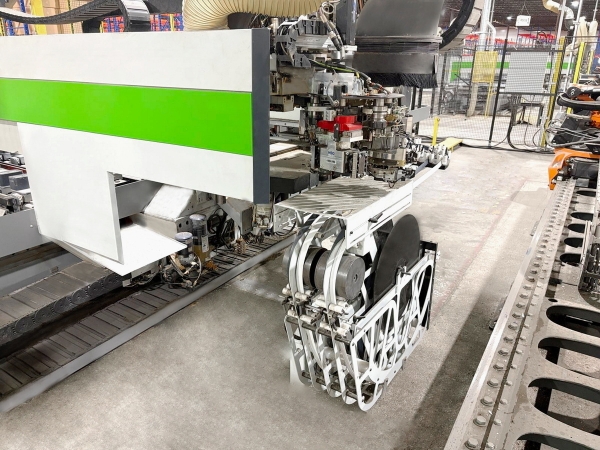

- 2nd Y-axis: edge banding unit GU60C
- Gluing System (EVA hotmelt glue): thickness of the edge in roll (min/max) 0.4-3 mm

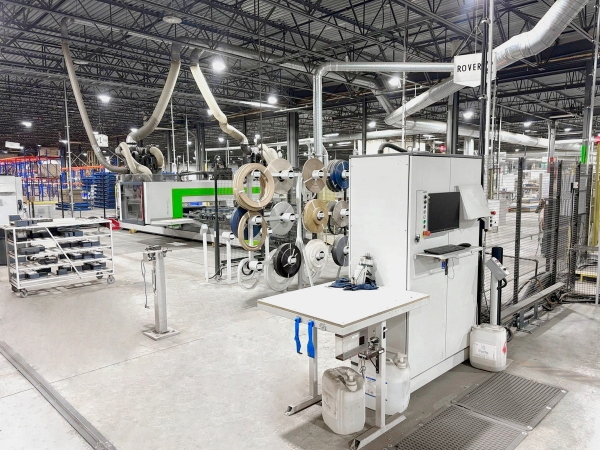

- Roll holder (for N. 2 + 2 = 4 reels)

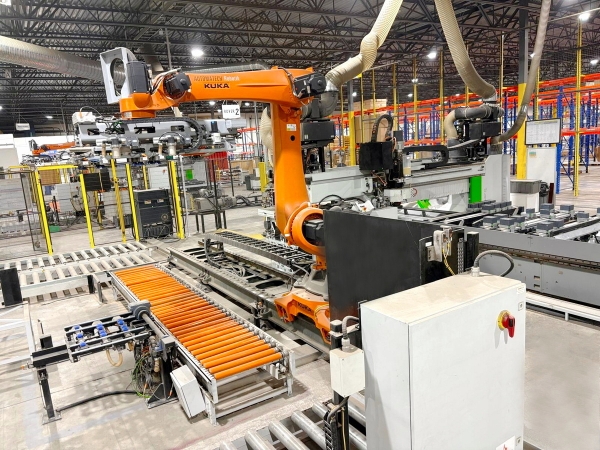

Kuka Robot - Automated panel loading and unloading, sliding on the X-axis
These machines are offered as a complete package and part of a plant liquidation. Call for details.
