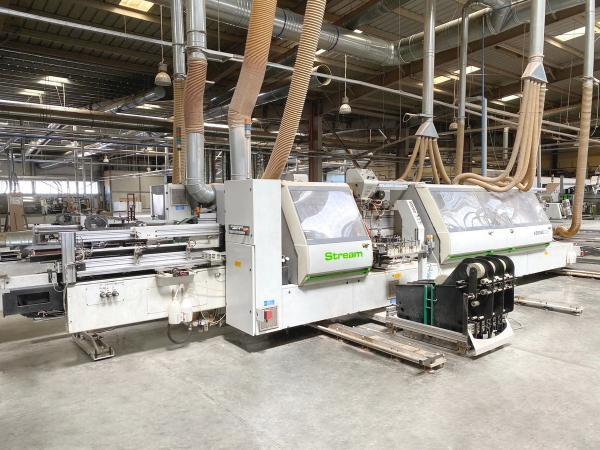

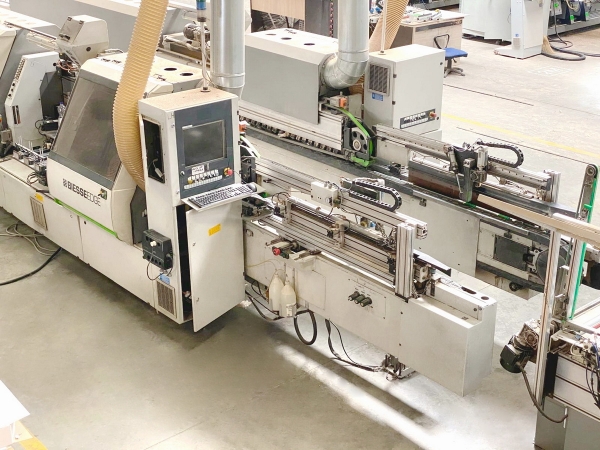

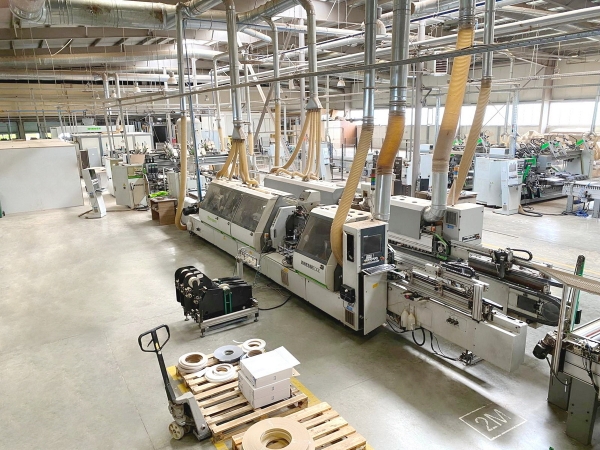

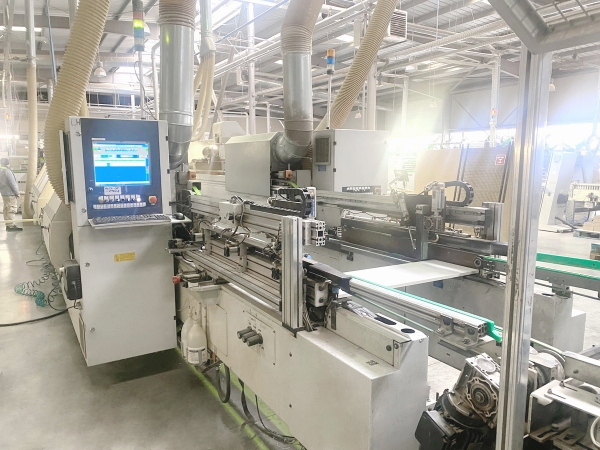

Biesse Model Stream SB2 9.5 Double-Side Sizing & Edgebanding Machine
Machine Available
Stock #25983
Used- Universal DOUBLE-SIDE SIZING & EDGE BANDING MACHINE (for both 1st and 2nd pass)
- Edges (tape) thickness in rolls (min/max) mm 0,3 - 3
- Panels thickness (min/max) mm 10 - 60
- Working width (min/max) mm 240 - 2700
- Numerical Control /Software SINITRA
- Adjustable feeding speed (m/min ) 10 - 40 (INVERTER C.N.)
- Safety and sound-proof enclosures/cabins
- Distance (center-axes) of the Disappearing Dogs (mm) 500
SIZING PART (for each side): - Anti-chipping Milling Unit AS 10 (Kw 5,8)
- N° 2 Hogging Units (1 Top + 1 Bottom) DT 10 (5,8 + 5,8) - Spraying unit (Anti-sticking liquid)
EDGE-BANDING PART (for each side): - Glueing Unit (Hot Melt + Quick Melt Unit) SP30 (High Melt + Edge Guide Z-axe)
- Band Pressure zone (N.C. adjustment) . Edge coils supporting unit (No. 6 reels)
- Snipping (end-cutting) unit IT 90-S (Kw 0,3 x 2) speed 28m/min. 0 - 25°. PNEU
- Fine Trimming unit (Multi-profile, by N.C.) RF 30 (Kw 0,65 x 2) 0 - 25°
- Multi Function Unit (Profile contour Trimming unit) AR 80 (Kw 0,3 x 2) max 25 m/min - ROTAX motors with automatic tool change (8+8 position store)
- Profile Scraping unit (Multi-profile, by N.C.) RB 30
- Glue scraping unit RC 20 + Spraying Unit (for polishing liquid)
- Buffing unit SZ 30 (Kw 0,37 x 2)
- With ‘hopper’ for panels (useful height mm 80), as a buffer, to speed up the work cycle (in the machine is in line and not stand-alone
