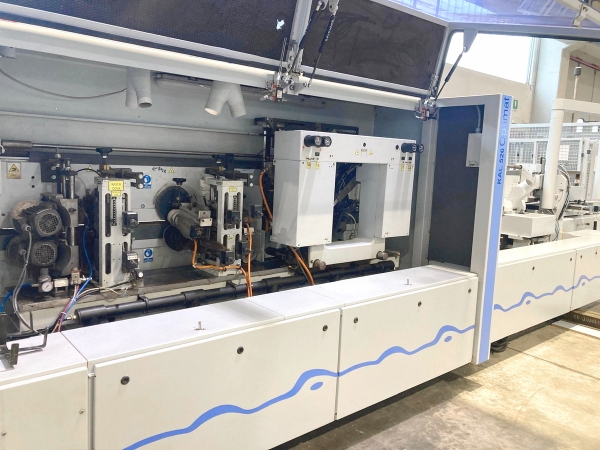

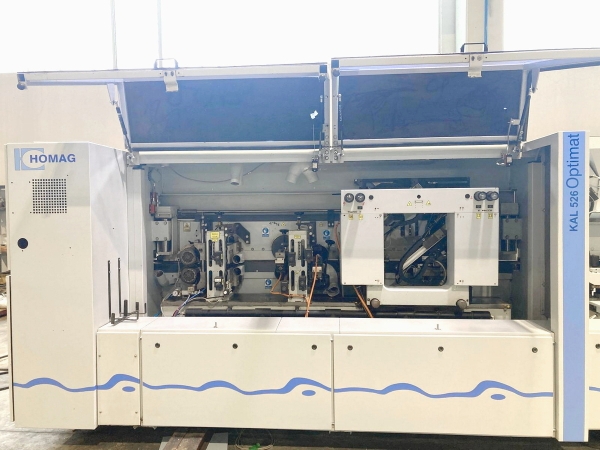

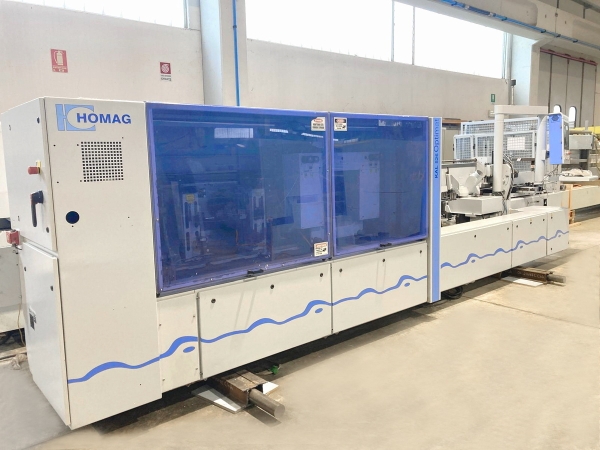

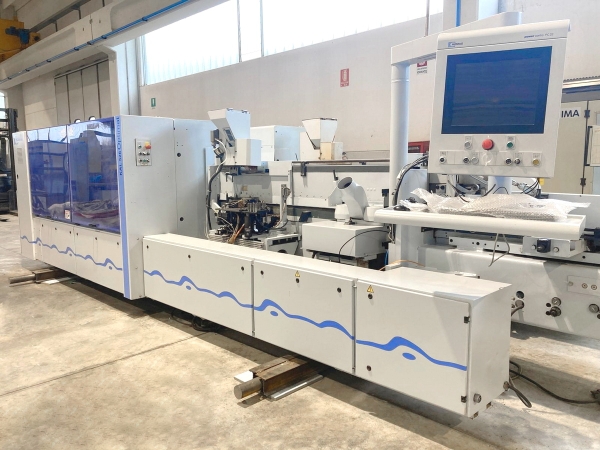

Homag Model KAL 526/5/A3/25/S2 Double-Side Edgebander

• Min/max edges (band) thickness in rolls mm 0,3 - 3
• Min/ max panels thickness mm 12 - 40
• Min /max working width mm 250 - 2500
• Numerical Control: Power Control PC 22
• Feeding speed (adjustable) m/min 10 - 32
• Top motorized pressure belt
• Anti-sticking liquid spraying unit
• Pre-Milling Unit (Vertical joint trimmers) 2 x Kw 4 at 9.000 RpM
• Glueing Unit (Hot Melt + Quick Melt system): A3
• Pressure Zone (manual adjustment): "A"
• Edge coils supporting unit with N. 2 coils
• Snipping Unit: HL 84 (2 x Kw 0,22 at 12.000 RpM)
• Fine Trimming Unit (2 x Kw 0,4 at 12.000 RpM)
• Finish processing unit (Glue scraper + Buffing unit): FA 11
• Spraying & polishing unit
