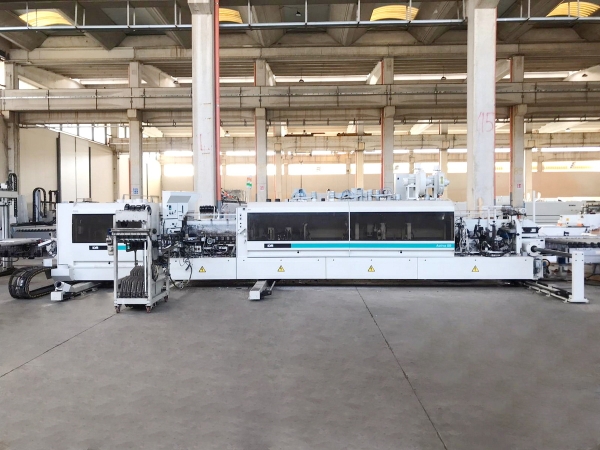

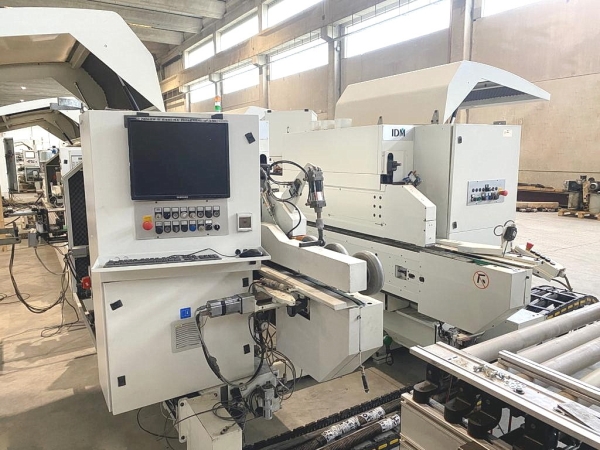

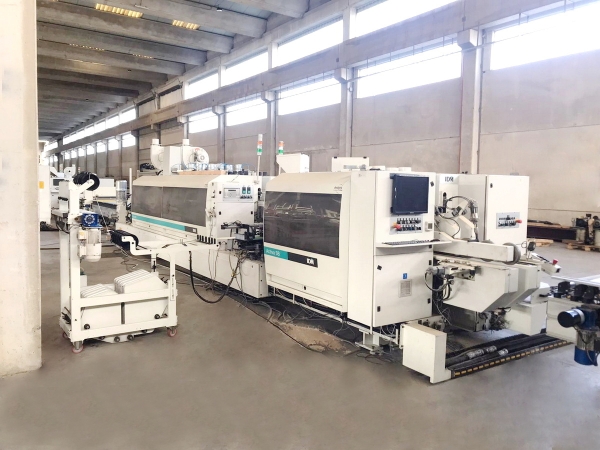

IDM Model Activa SB/1 Sizing & Edgebanding Machine

• Double-side Sizing-Milling & Edge Banding - First (1st) machine in a line
• Edges (tape) thickness in rolls (min/max) mm 0,3 / 3
• Panels thickness (min/max) mm 10 / 60
• Working width (min/max) mm 230 / 1600 (ca.)
• Numerical Control / Software WinEdge
• Adjustable feeding speed (m/min ) 10 - 30
• Safety and sound-proof enclosures/cabins
  SIZING PART (for each side):
• No. 2 Hogging Units (2 x Kw 5,8 ca.)
• No. 2 Milling units (2 x Kw 4 ca.)

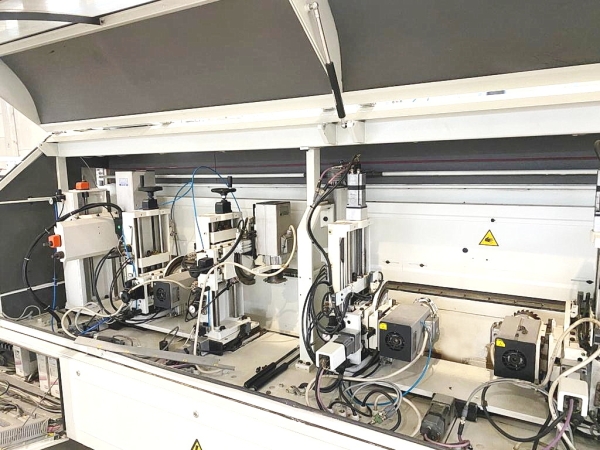

  EDGE-BANDING PART (for each side):
• Glueing Unit (Hot Melt glue + Multing Unit)
• Pressure zone (adjustable by CN)
• Edge coils supporting unit (No. 6 reels)
• Rough Trimming unit (2 x Kw 1 ca.)
• Fine Trimming unit 08.055 (2 x Kw 0,5 ca.) 0°-30°
• No. 5 Milling grooving units (5 x Kw 4 ca.)
• Profile Scraping unit
• Glue scraping unit
• Spraying Unit (for polishing liquid)
• Buffing unit + Hot Air Heater (to reactivate the color of plastic tape)
