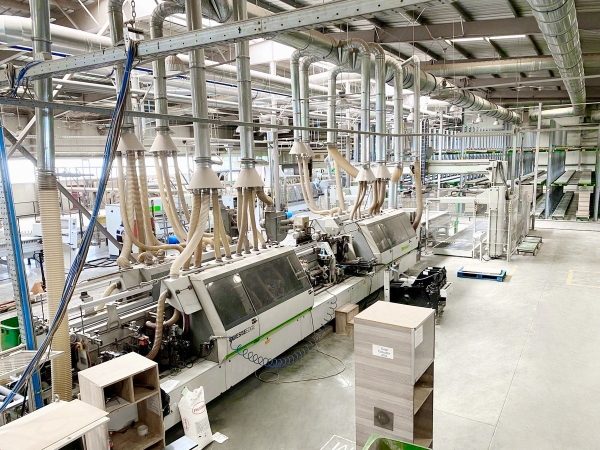

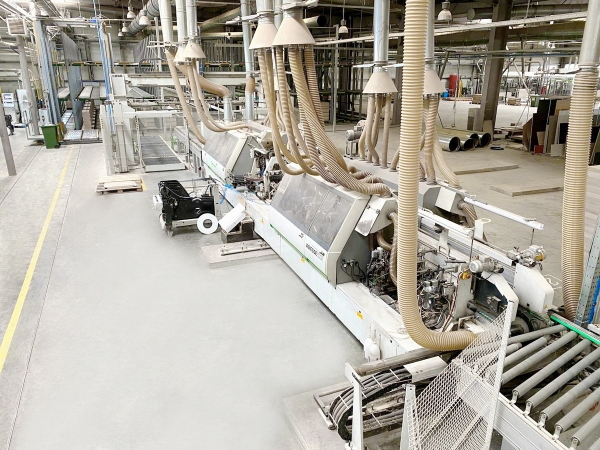

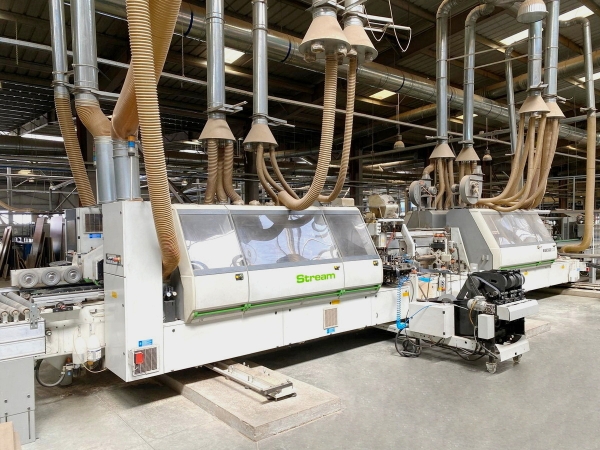

Biesse Model Stream SB11.0 Soft Edge Bander

• DOUBLE-SIDE SIZING & EDGE BANDING MACHINE - First (1st) machine in a line
• Edges (tape) thickness in rolls (min/max) mm 0,3 - 3
• Panels thickness (min/max) mm 10 - 60
• Working width (min/max) mm 270 - 1200
• Numerical Control /Software SINITRA
• Adjustable feeding speed (m/min) 10 - 40 (INVERTER C.N.)
• Safety and sound-proof enclosures/cabins, Working line (work units support tables), manual adjustment
• SIZING PART (for each side):
• No. 2 Hogging Units (1 Top + 1 Bottom) DT 10 (Kw 5.8 x 2), Free space for Milling unit FS
• Milling unit (vertical join trimming) ES30 + ER30 (Kw 5 x 2) 0° - 90°
• Softforming Milling unit SF 10 (2 x Kw 2,4) 0° - 45°
• Spraying unit (Anti-sticking liquid)
• EDGE-BANDING PART (for each side):
• Glueing Unit (Hot Melt + Quick Melt Unit) SP3/SF, SP40 (HighMelt + Edge Control EC 40)
• Lamps to heat the workpieces side (infrared heater) RP 10, Band Pressure zone (N.C. adjustment)

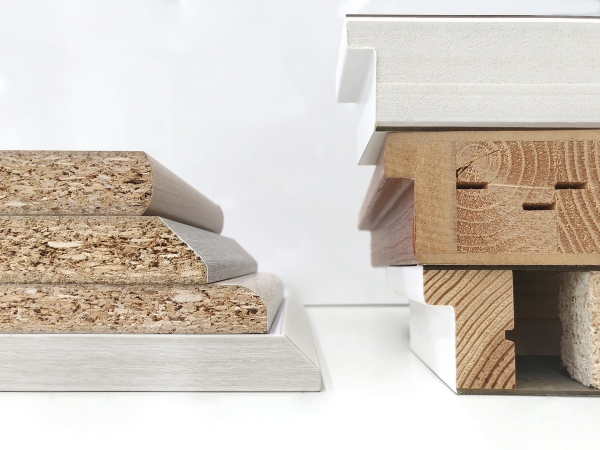

• Pressing rollers (revolver) both for straight and shaped edges (softforming) Soft PF40 (4 positions) mm 800 (Cesoia CI10+CS10+RL10) + Edge coils supporting unit (No. of reels) 6
• Rough Milling unit RS 10 (Kw 1,3 x 2)
• Fine Milling unit Softforming RF 10 / SF (Kw 0,65 x 2)
• Fine Milling unit (Multi-profile) RF 30 (Kw 0,65 x 2)
• Milling grooving Unit FB 30 (Kw 4,5 x 2) 0 - 90°
• Profile edge scraping unit (Multi-profile) RB 30
• Glue scraping unit RC 05 / Soft, Spraying Unit (for polishing liquid) + Buffing unit SZ 30 (Kw 0,37 x 2)
