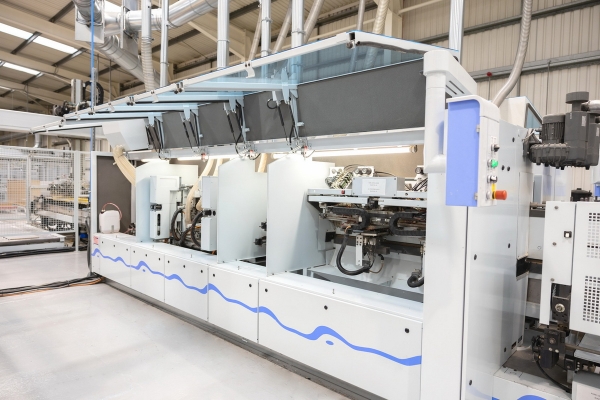

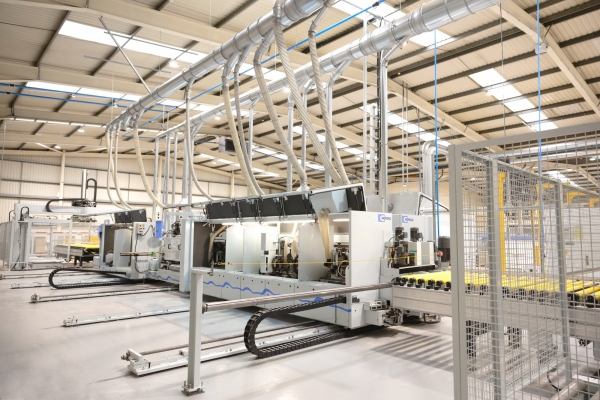

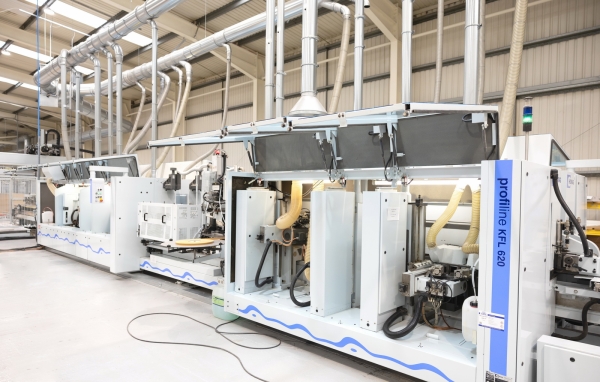

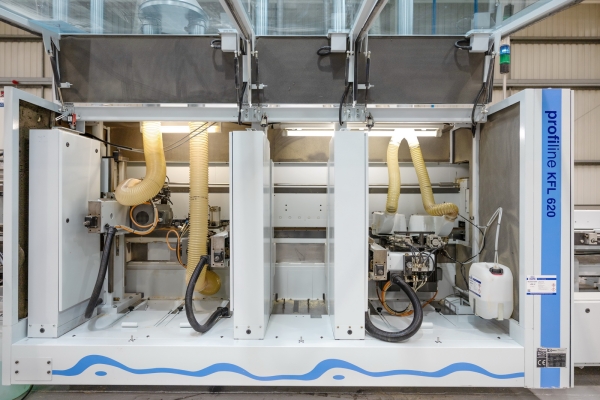

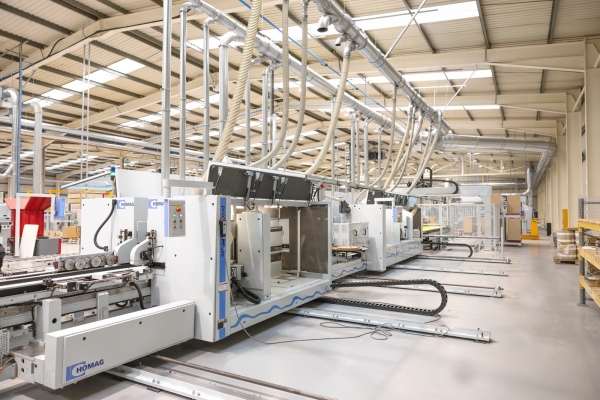

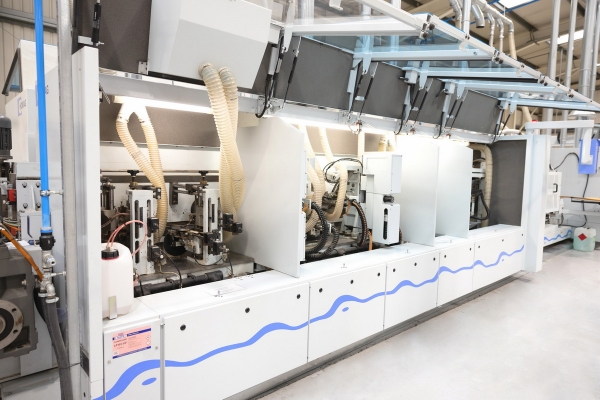

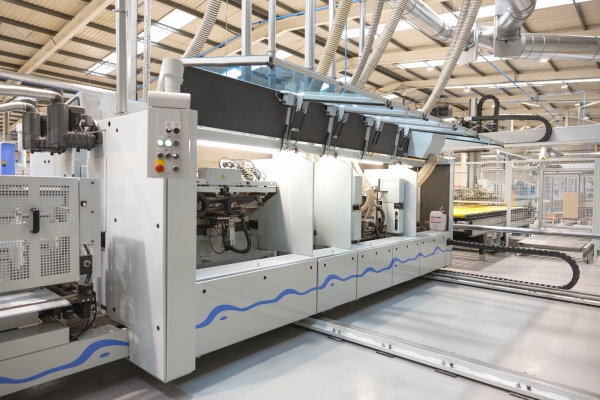

Homag Model KFL 620/23/QE/30 Double Side "Softforming" Edge Bander
Machine Available
Stock #25989
Used- Double-Sided Edgebander - Independent Machine (or 1st and/or 2nd in line)
- Thickness of rolled edges (min/max) 0.3 - 3 mm
- Thickness of strips/strips (min/max) 0.4 - 12 mm
- Panel thickness (min/max) 8 - 100 mm
- Working width (min/max) 240 - 3000 mm

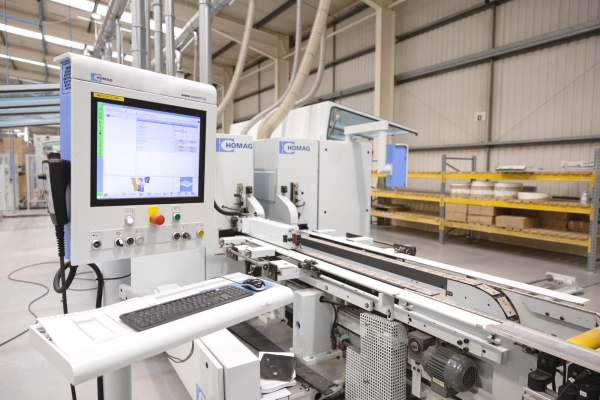

- Numerical control: Power Control PC22 (Windows XP)
- WoodCommander software
- Variable feed speed (m/min) 10 - 40
- Safety and soundproofing enclosures
- Distance between pawls (mm) 400
SQUARING PART (for each side): - Grinding unit (2 x 6.6 kW)
- Free space
- Left side only: 2 x Rotating spindle moulders (2 x 6.6 kW)

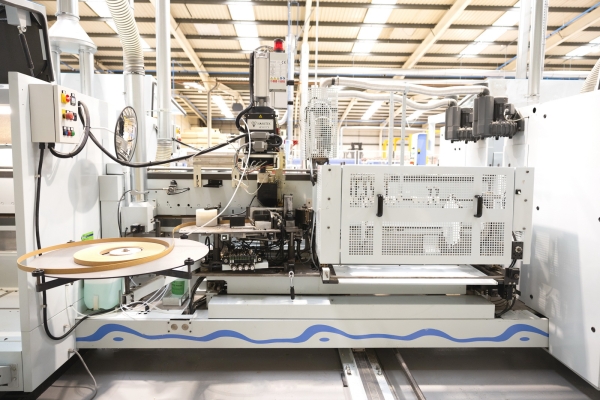

EDGEBANDING PART (for each side): - Gluing system (Hot melt glue + Pre-melting unit) E34

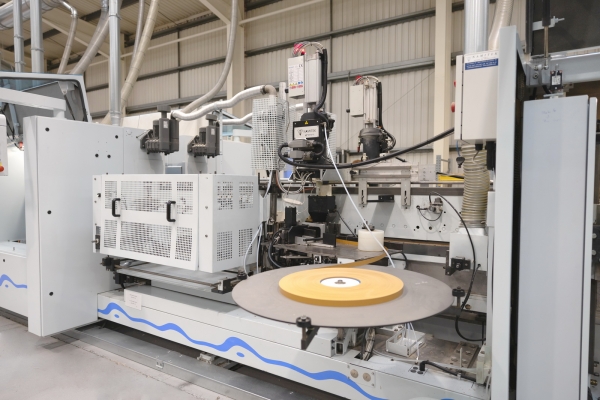

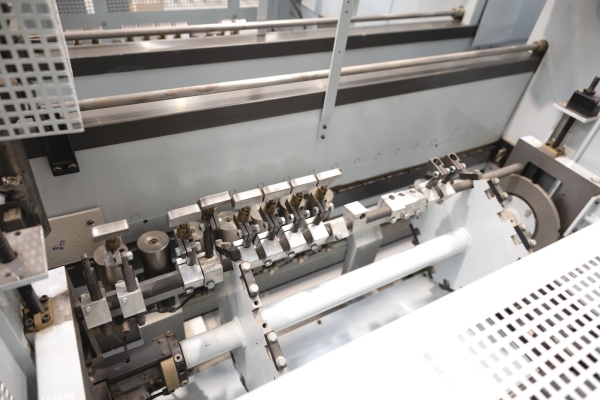

- Pressure roller conveyor (revolver) for straight and shaped edges (softforming) GL sextuple Roll holder (for 1 reel)

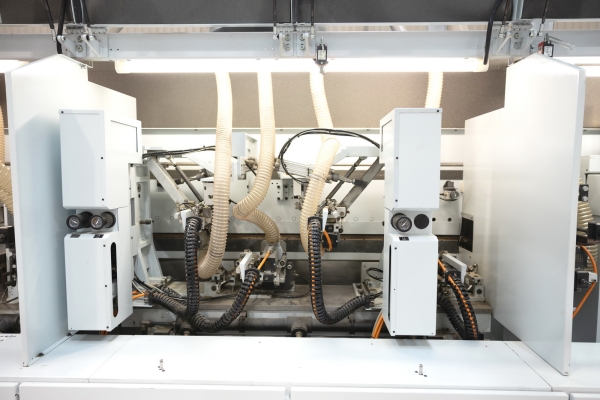

- WK14 end trimming unit (2 x 0.8 KW) 25 m/min (0°-30°)

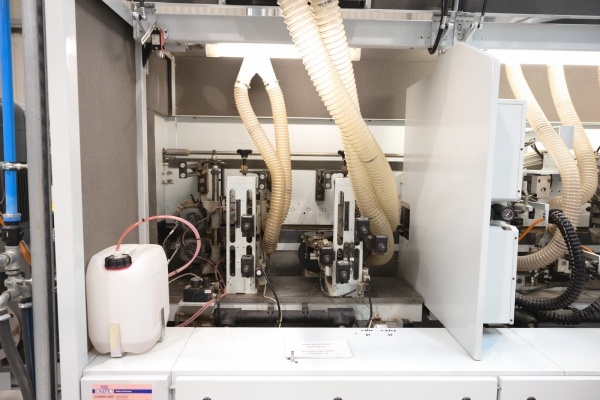

- Chamfering unit (2 x 0.55 KW) 0°-30° FF12 rounding unit (4 motors) WD70 20 m/min
- Edge scraping unit PN20
- Finishing unit (Glue scraper + Brushes) FA 11
