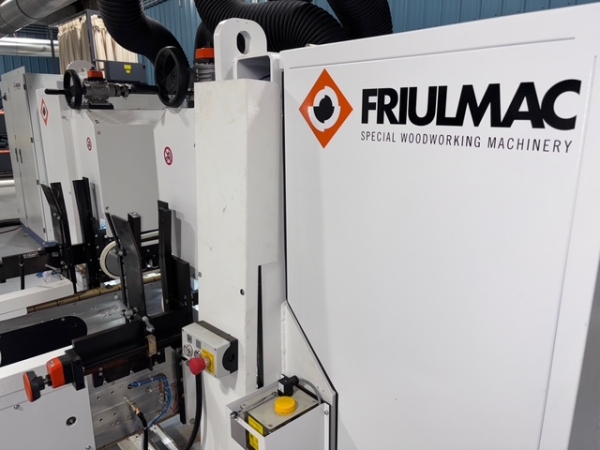

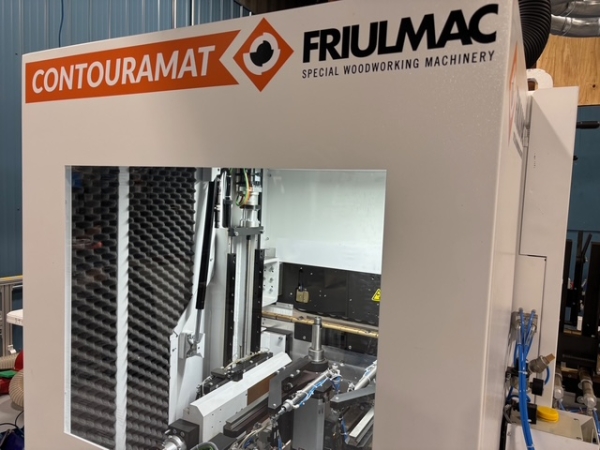

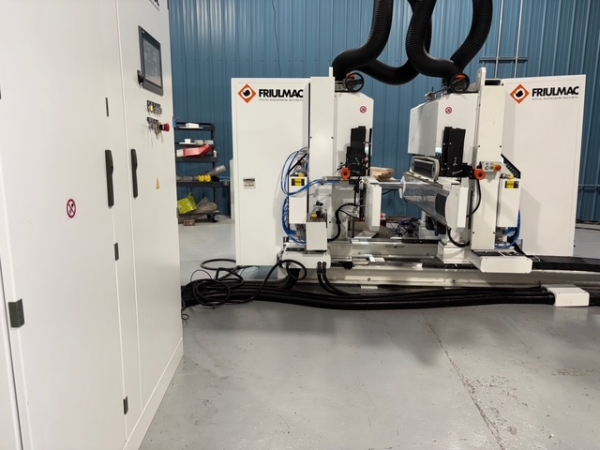

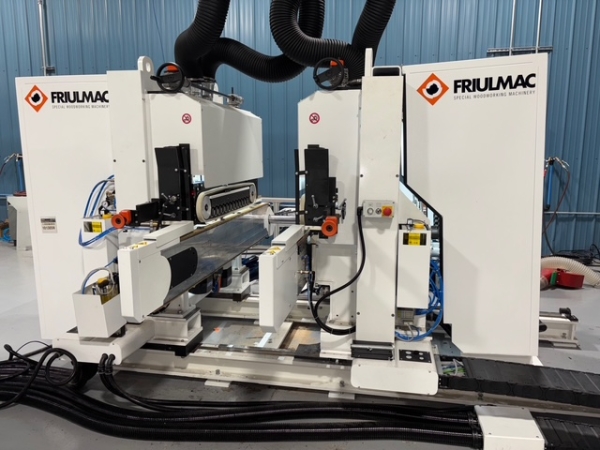

Friulmac Model Contouramat-HS 1.5 Automatic Double End Cut and Profiling Machine.

Machine Available
Stock #101305N
New
   CALL FOR PRICE

  • Friulmac Model Contouramat HS 1.5 Automatic Double End Cut & Profiling Machine.
  • Max. Capacity: 40 Pieces/Minute, Depending on Element Measures, Extra Material, Tooling, Etc.
  • Working Length: 5” – 59.05”
  • Working Width: 1.96” – 7.87”
  • Working Thickness: 0.47” – 1.37”
  • Moveable Shoulder Open/Close via Rack & Pinion with Inverter-Controlled Electric Motor
  • Magnetic Strip w/ Sensor to Indicate Position of Moveable Shoulder
  • Vertical Hopper/Magazine
  • Precision Feed Chains with Cast Steel Components
  • Non-Marking Top Pressure Feed Belts
  • Operator Control Offers Automatic Adjustment of Machine Opening, Feed Speed, In/Out & Up/Down Working Unit Positions, and On/Off of Working Units
  • Variable Speed Feed from 6 – 25 m/min
  • Station #1: Left & Right Jump Profiling Units, 40mm Diameter, 6kW Motor Power
  • Station #2: Left & Right Profiling Units, 40mm Diameter, 6kW Motor Power
  • Working Units Accept HSK63F Tool Holders
  • 460v, 3ph
