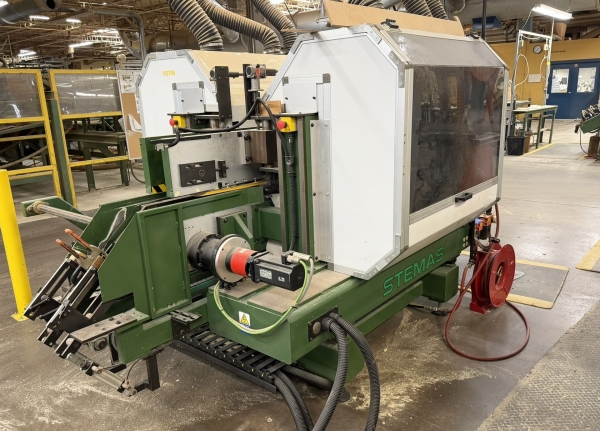

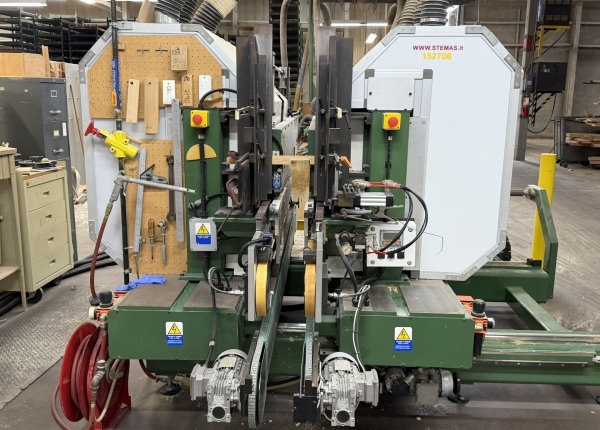

Stemas Model 07CLS Double End Tenoner
Machine Available
Stock #101173
Used- Stemas Model S311 Double End Tenoner
- Max working length 1000 mm (39.3")
- Min working length 120 mm (4.72")
- Max working thickness 50 mm (1.96")
- Min working thickness 12 mm (0.47")
- Max workging width 250 mm (9.84")
- Min working width 30 mm (1.18")
- Arbor diameter 40 mm (1.57")
- Spindle speed range 3000 to 6000 rpm
- Top gravity hopper part feeder arms

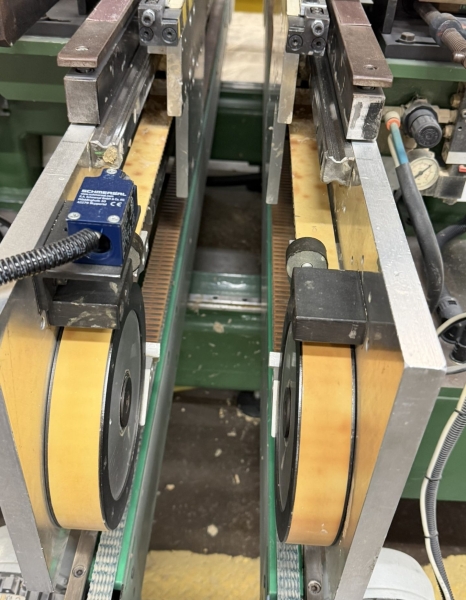

- Automatic push feeder fence
- Automatic machined part return conveyor system to the front of the machine

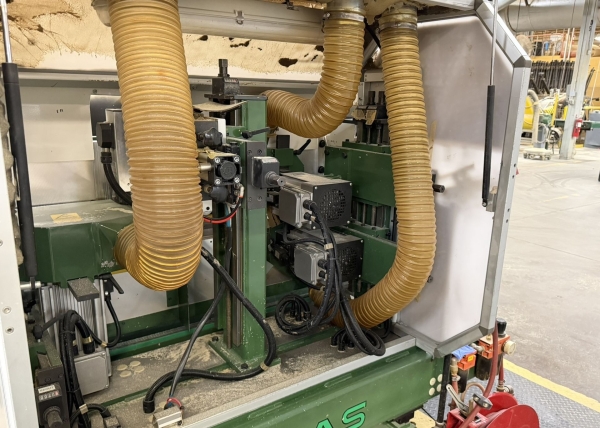

- 1st head: (left and right) top and bottom opposing saw trimmer heads

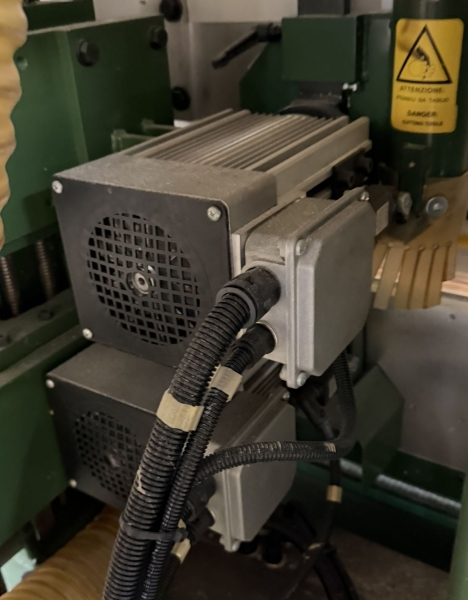

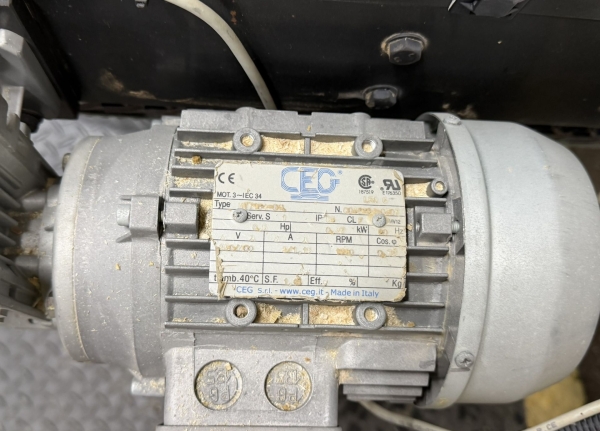

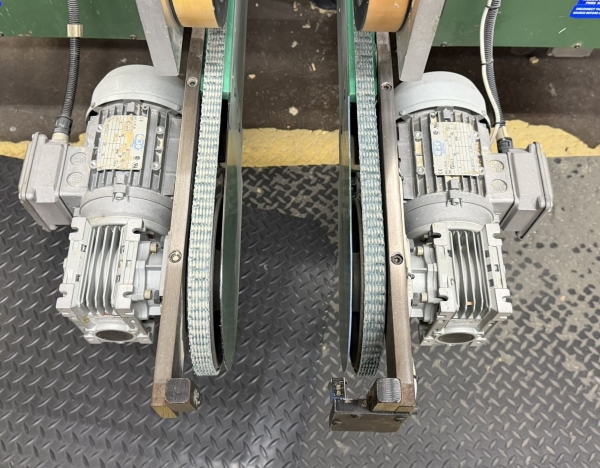

- 3 Hp, 220/440 volt three phase drive motors

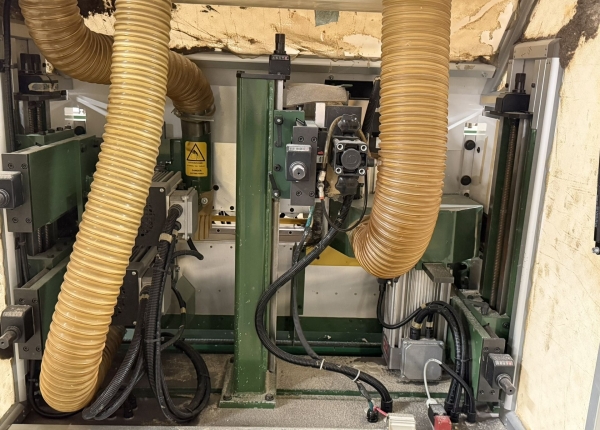

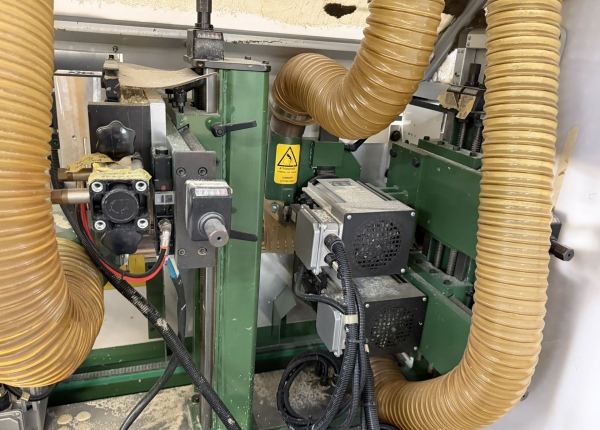

- 2nd head: (left and right) vertical shaper spindle
- 7-1/2 Hp, 220/440 volt three phase drive motor

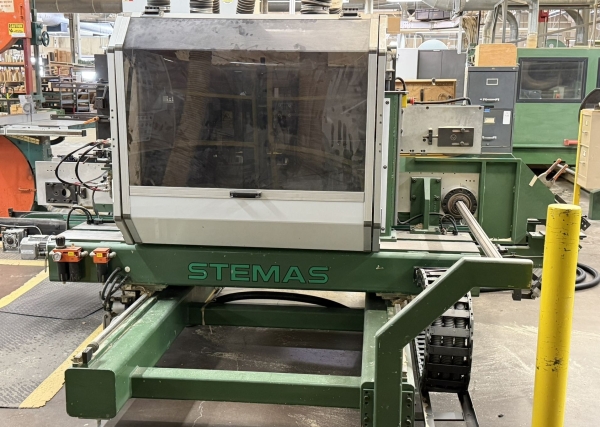

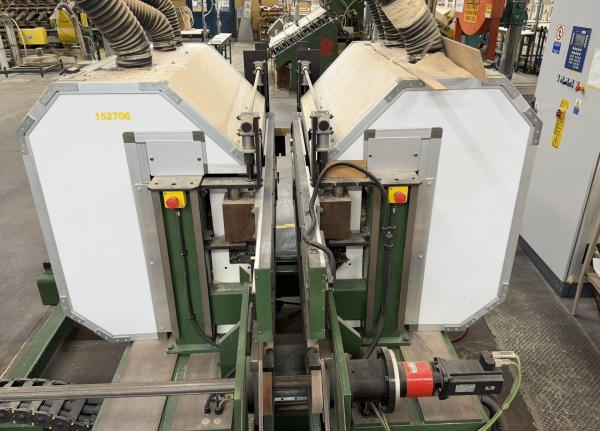

- Sound and safety enclosure around all stations
- Lift up access doors with inspection window

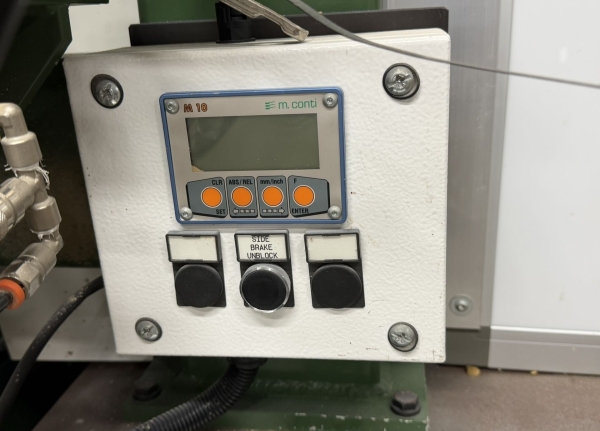

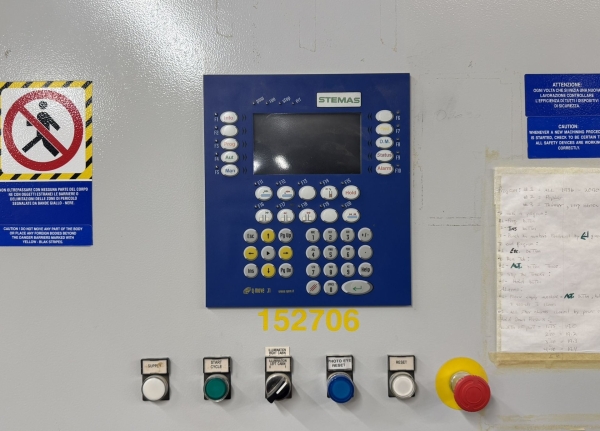

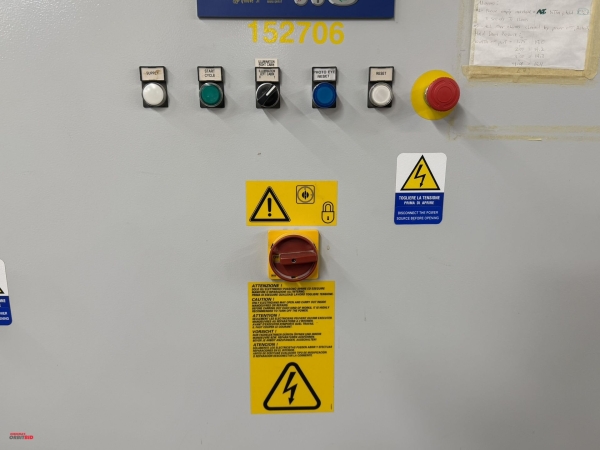

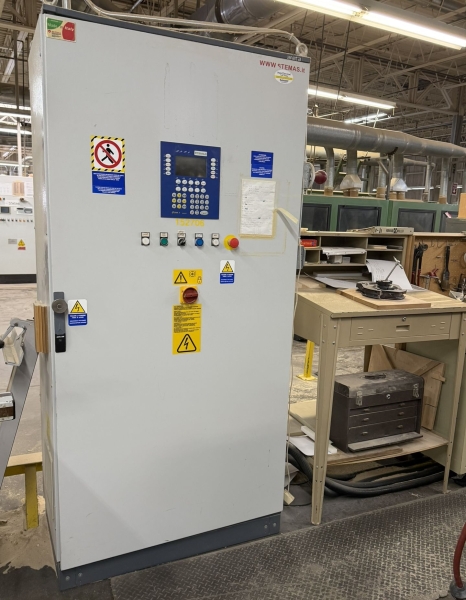

- Freestanding operator electrical and control cabinet
- Year: 2007
