Paul C14 Scan II w/ Paul Wood Scanning System

• Paul Optimizing Crosscut Saw C14 Scan II w/ Paul Wood Scanning System
• Optimizing Crosscut Saw and Scanner for Cedar, Hemlock, Pine, and Fir
• Timber Length (Min/Max): 6ft-20ft
• Timber Thickness (Min/Max): 1"/2-1/2"
• Min/Max Timber Cross-section: (2"x5/8")/(12"x2-1/2")
• Min/Max Cut Length: 36"/240"
• Scanner Working Height: 51"
• Crosscut Working Height: 31-1/2"

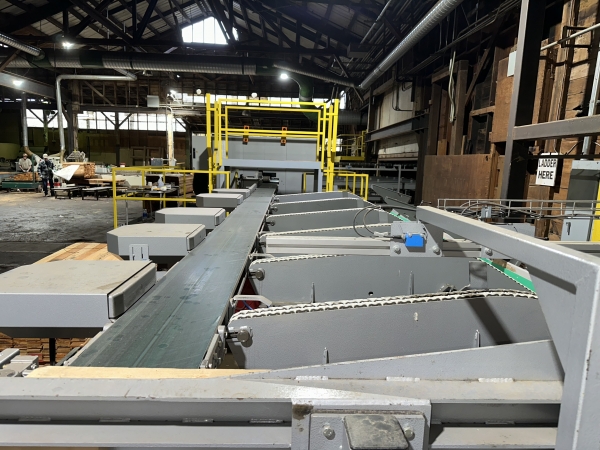

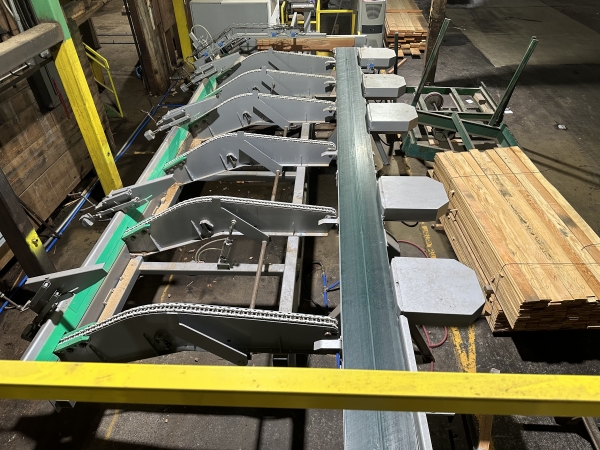

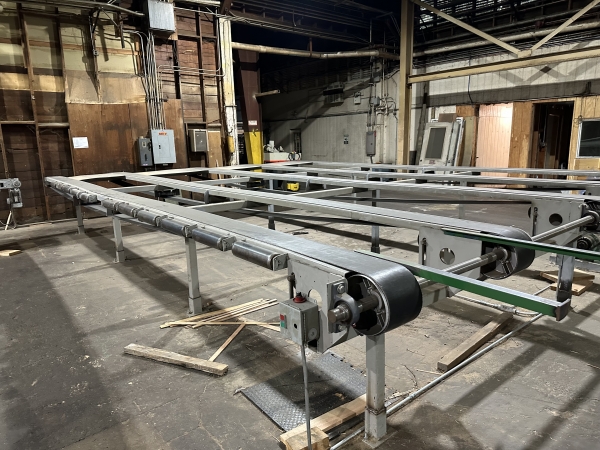

• 6-Chain Conveyor with Stops/Duckers:
• 4m Fixed Chain Section
• 1m Tilting Chain Section
• Lateral Plastic lugs
• 3 Pneumatic Buffer Stops with Sensor

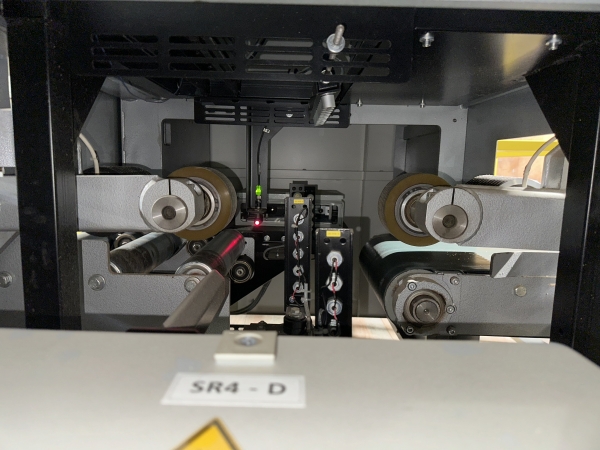

• Measuring Station
• 2 Overhad Measuring Station Rollers with integrated Rotary encoders for accurate Length Measuring
• Photocell for Precise workpiece Recognition
• Sturdy Pressure Rollers independently pressure-loaded via pneumatic cylinders
• 8m Belt Conveyor
• Centering Device

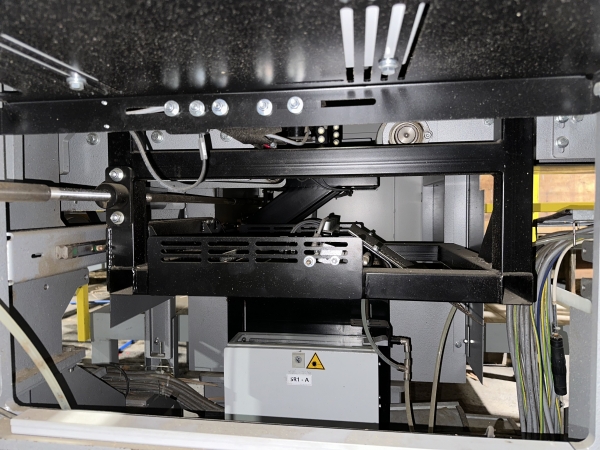

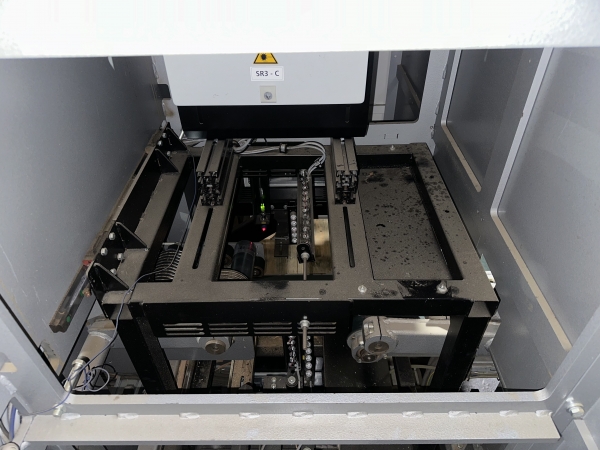

• Paul Wood Scanning System
• 4 Cameras for Defect Identification and Yield Improvement
• 4 Line Lasers for 3-D Profile Identification
• 4 Dot Lasers for Fiber Analysis
• Feed Speeds up to 300m/min
• Scanning Frequency: 3000 Line/Sec
• Camera Resolution: 1280 Pixels
• Recognition of Geometric Defects
• Recognition of Wood Characteristics, such as Knots, Cracks, Resin Pockets, ETC.
• Highly Efficient, Effective Full Optimization
• Value Optimization of different quality zones in longitudinal and transverse direction
• Inferface/communication with Maxi Control of Crosscut Saw

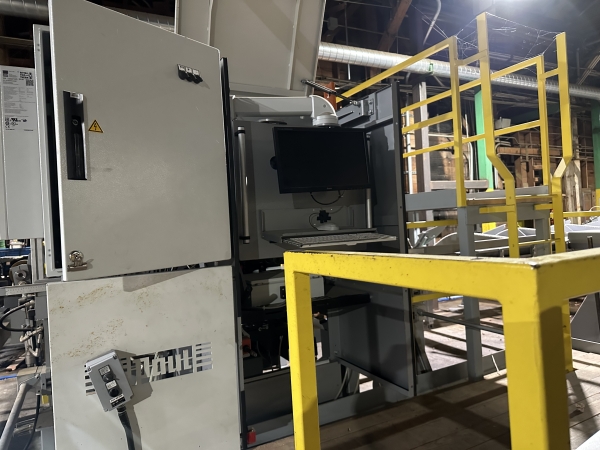

• Operating Terminal with User-Friendly Interface incorporated in scanner casing
• Customized System Solutions for Economical Processes and Maximum Yield Optimization

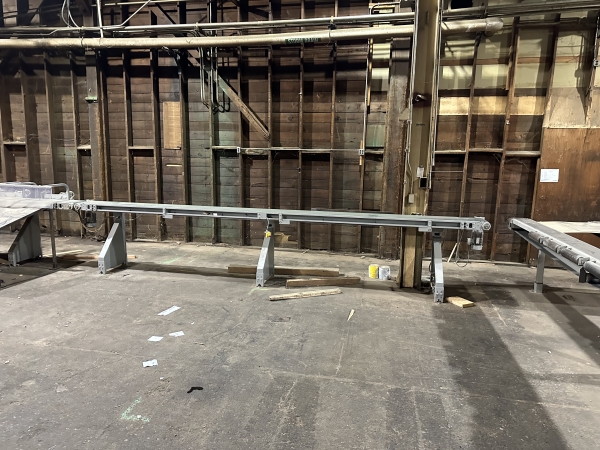

• Scanner Outfeed Belt Conveyor
• 8m Belt Conveyor with guided belt, Powered by 1.5HP
• Fixing Rail: 1m
• Set of guide rails
• Frequency Converter for stemless feed speed control of the outfield station and indeed conveyors ahead of the Paul Wood Scanning System
• Basic Ejection equipement, Including Filter Pressure Regulator and reflex light barrier with light band of 50mm in height
• Fixed End Stop, Spring Loaded
• Pneumatic Ejector/Stroke:320mm with 24v Solenoid Valve, Safety Enclosed

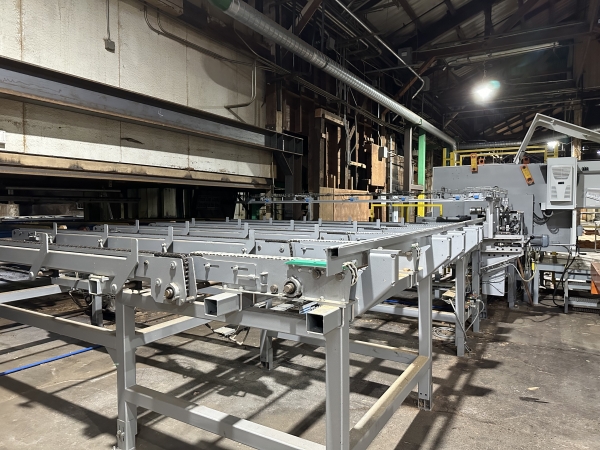

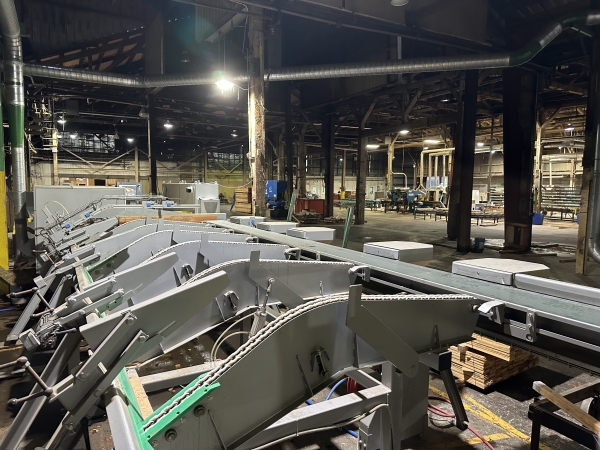

• Combined 6 Chain Conveyor
• Fixed Chain Conveyor: 1m Long
• Fixed Chain Conveyor: 0.4m Long

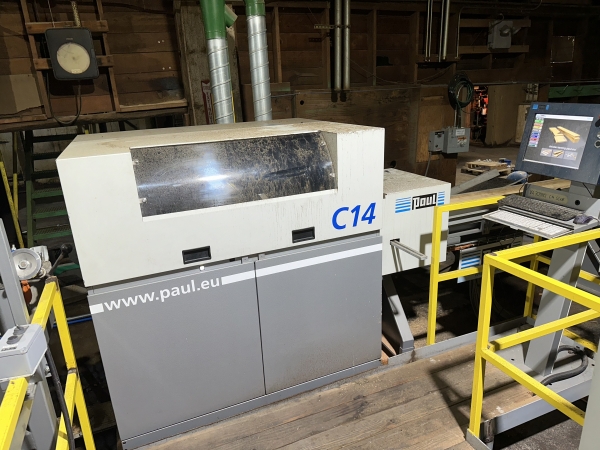

• C14 Cross Cut Saw
• Saw Motor: 10HP
• Saw Blade: 600mm
• Feed System with Highly Dynamic infinitely Variable Servo Drive
• Six Large Diameter, Precision Hard-Chromed Plated Bottom Rollers with Spiral-Fluted surfaced for accurate workpiece guidance, driven by a wear-resistant, Maintenance Free and non-stretching Timing Belt
• Six Top Feed Roller Coated with a easily replaceable polyurethane segments, Independently Pressure-loaded by Pneumatic Cylinders.
• Cutting Stroke Activated via Pneumatic Cylinder

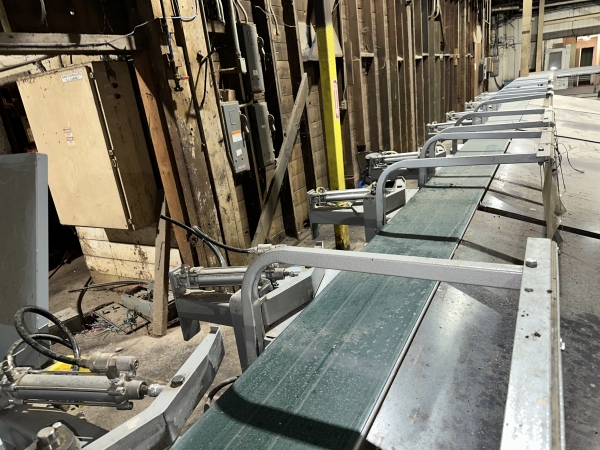

• Outfeed
• 6.5m Belt Conveyor with guided belt
• 11.5 Belt Conveyor with guided belt
• 7m Long Fixed Fence
• 2m Guide Rail
• 2.5m Guide Rail
• 2.5m Guide Rail

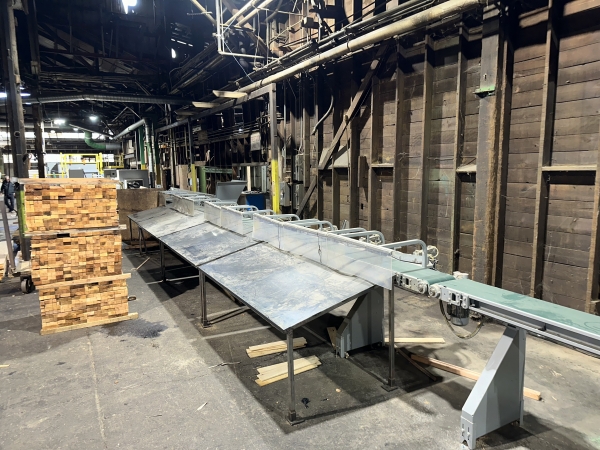

• Length Sorting to the Right side
• 9 Pneumatic Ejectors with 320mm Stroke, w/ Solenoid Valve
• Basic Sorting Equipment including Filter Pressure regulator, and reflex light barrier w/ 50mm band width
• Control System

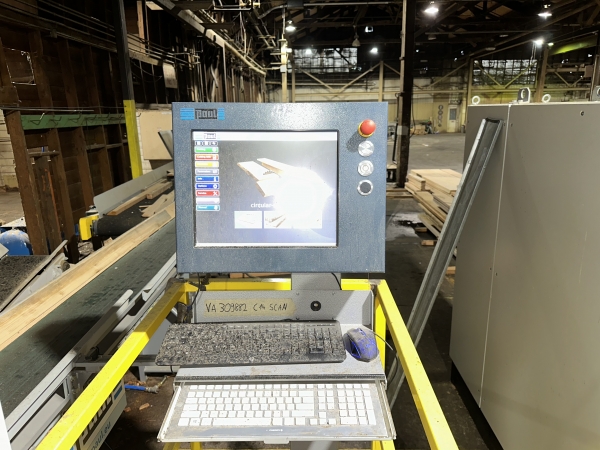

• Operator Control, Maxi 7 Premium with 17" Touch Panel - Free Standing Operator Terminal
• PC Based System w/ Linux Operating System
• Current Voltage: 480V 3ph
