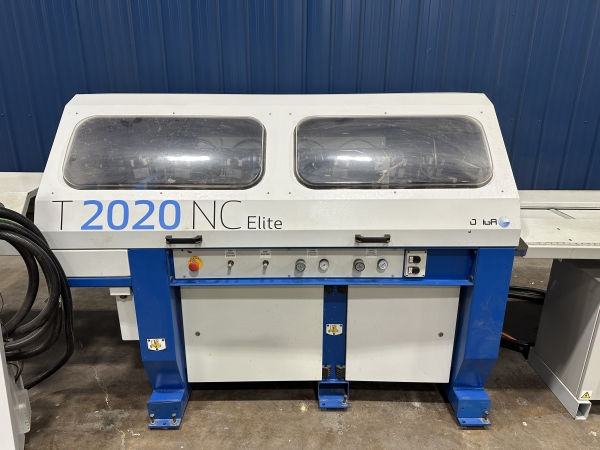

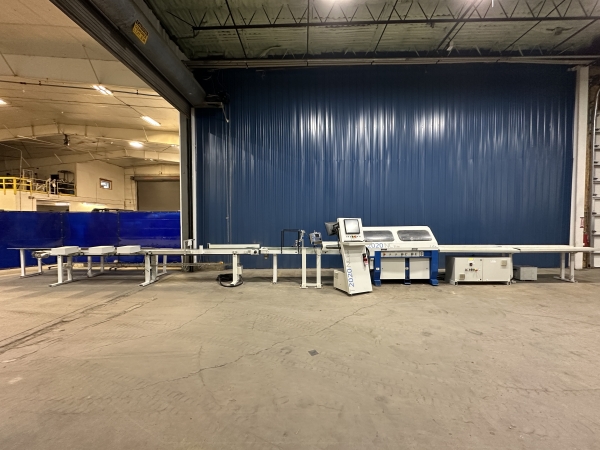

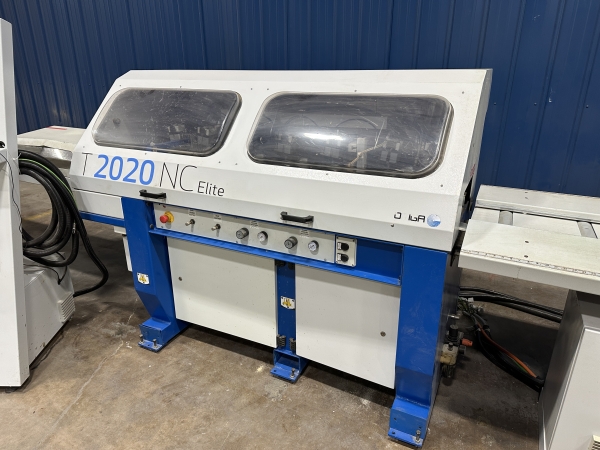

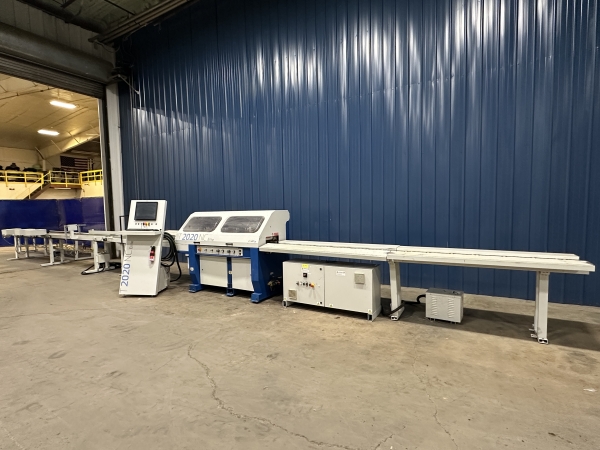

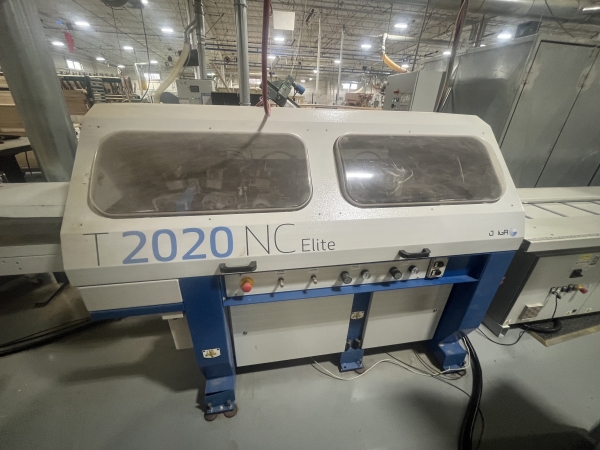

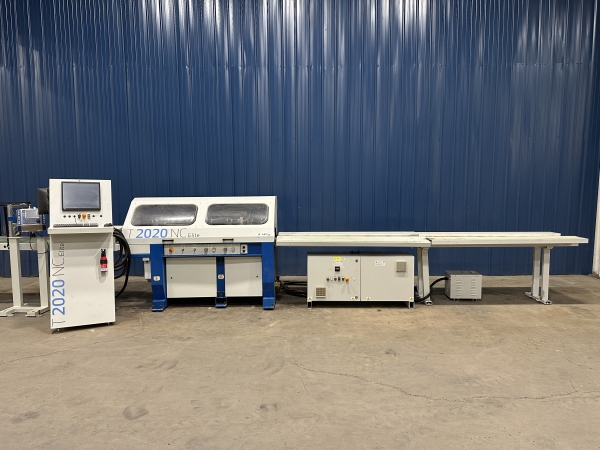

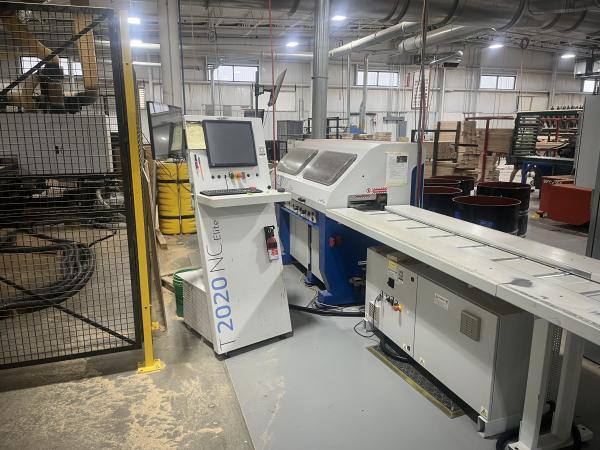

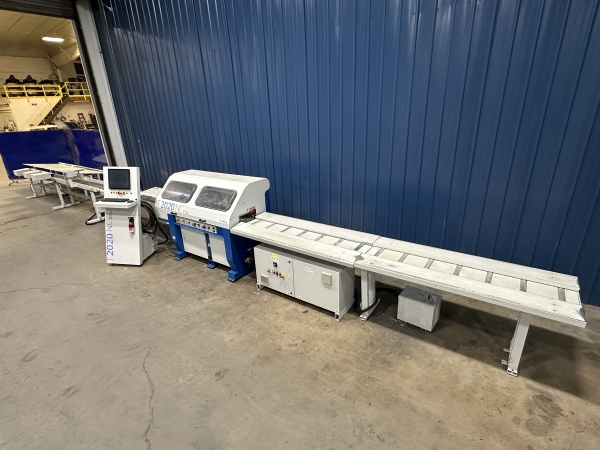

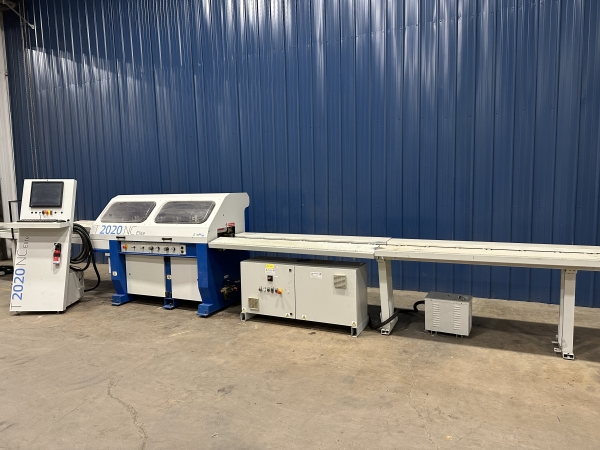

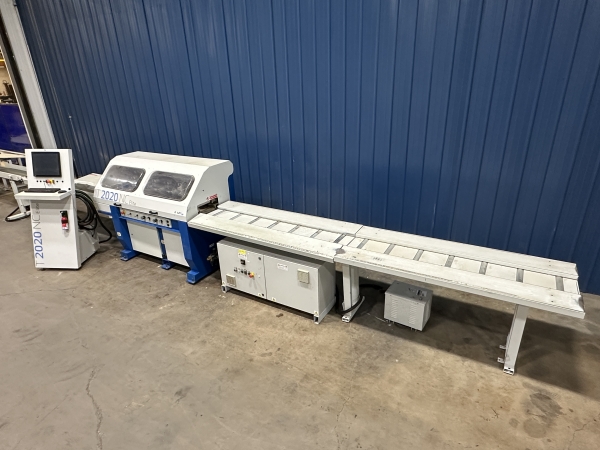

Omga T2020 NC Elite Throughfeed Optimizing Saw

• 2020 Omga T2020 NC Elite Through Feed Optimizing Chop Saw!
• Last Generation automatic programmable cut-off saw for optimized cutting of wood stock and defect removal
• Particularly suitable for high production requirements given its very high maximum feed speed of 800 FPM

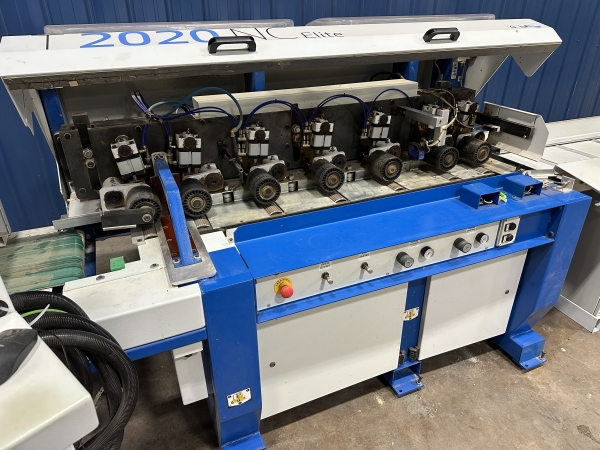

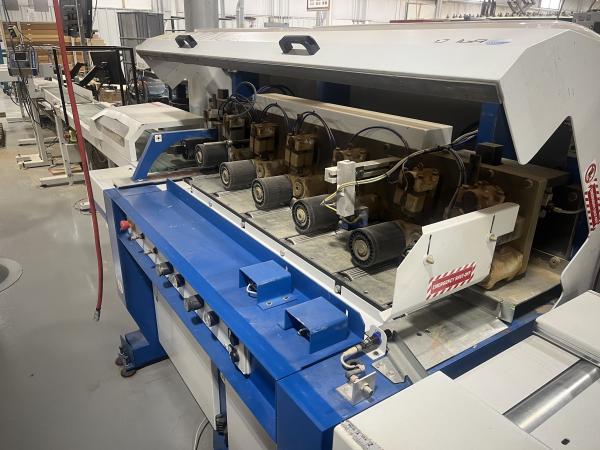

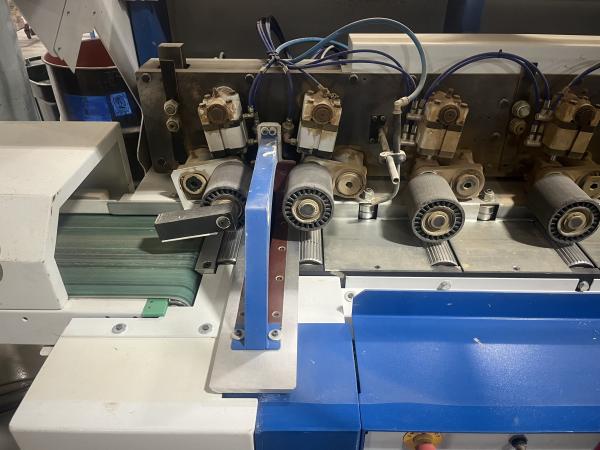

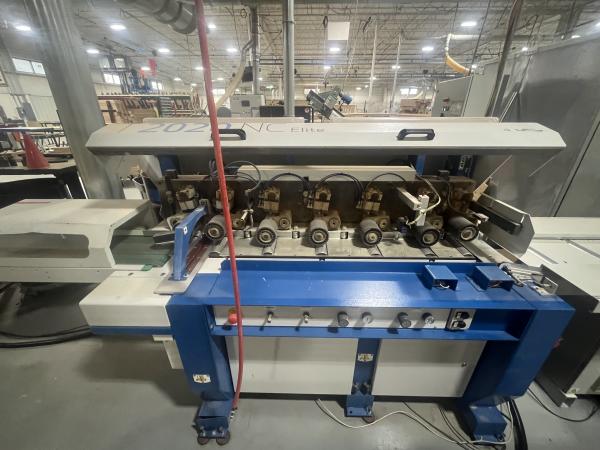

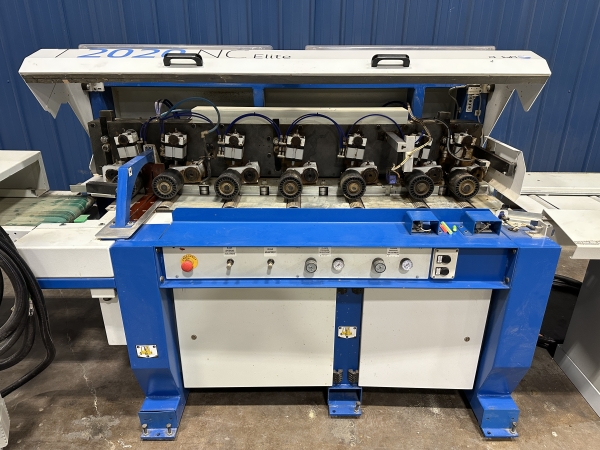

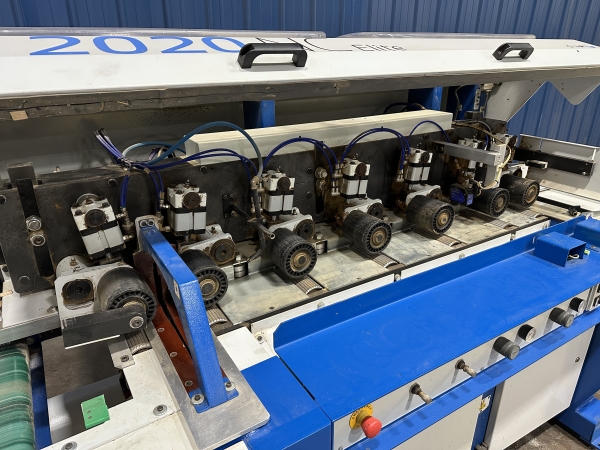

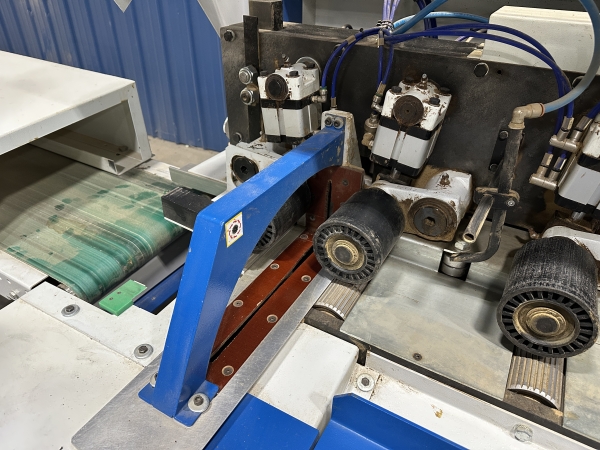

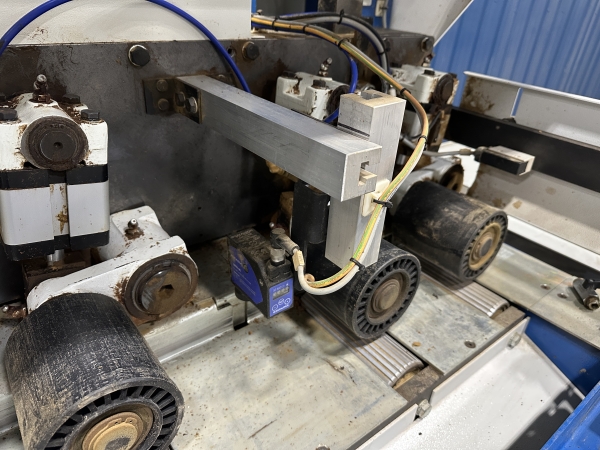

• The set of 7 top pressure rollers are able to compensate for dimensional variations of rough mill stock

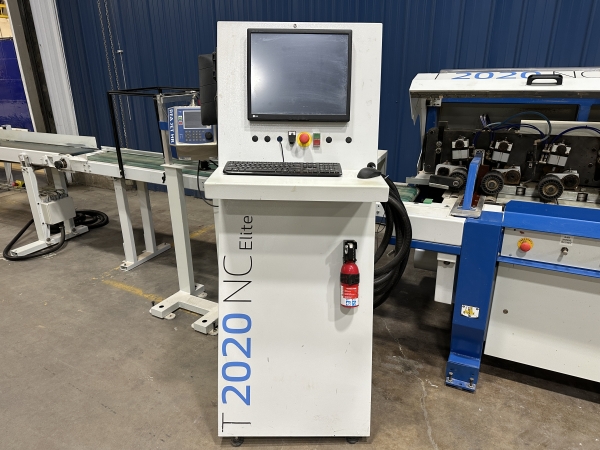

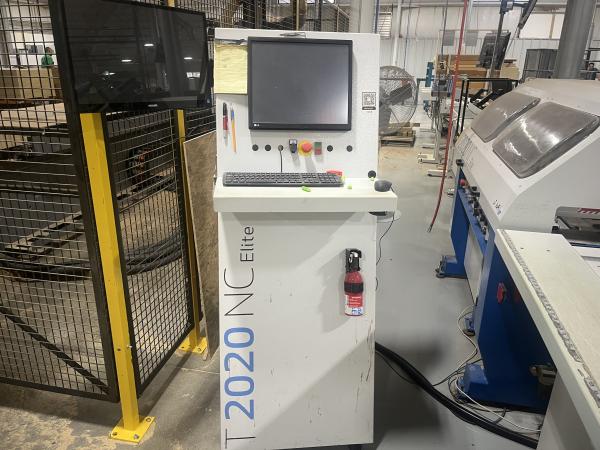

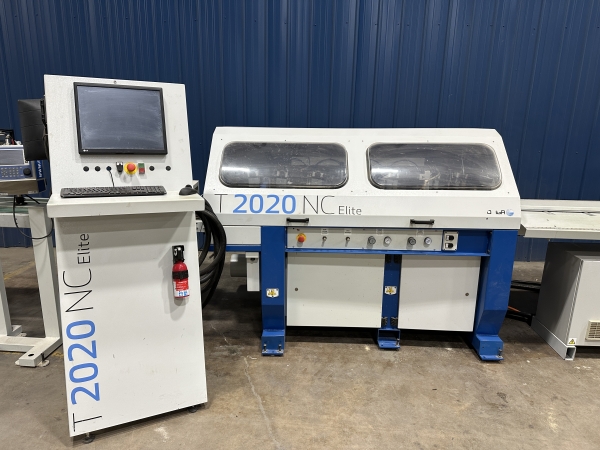

• The machine is equipped with a PC based computer capable of performing eleven work cycle programs
• The numerical control is able to store cutting lists with lengths divided in several different grades and the relevant quantity of parts
• Cutting lists can be input direct from the PC keypad, USB, or directly through the network
• The software is complete with diagnostic and can also provide the following information: - Stock in cubic feet, required to produce the number of pieces in each list. - Number of pieces produced of each length. - Amount of stock in cubic feet divided into: first, second, third grade and waste - Cubic feet required to produce remaining parts. - Yield as a percentage of the total
• The system can perform simulated cutting to verify the result before processing the wood and allowing the user to decide whether to use the chosen parameters for the required production or change it
• The T 2020 NC can cut and handle up to 3 different grades within the same cutting list
• Maximum Thickness: 4 3/4"
• Maximum Width: 12 5/8"
• Minimum part in-feed length: 23 5/8"
• Saw Blade Motor Power : 7 1/2 HP
• Feed Motor Power: 10HP
• Maximum Acceleration: 50 feet per second
• Cutting Speed: 0.2-1 seconds
• Average Number of Cuts : 80-90 per minute
• Specifications are written to the best of our knowledge with some being sourced from literature, we encourage you to inspect the machine and verify

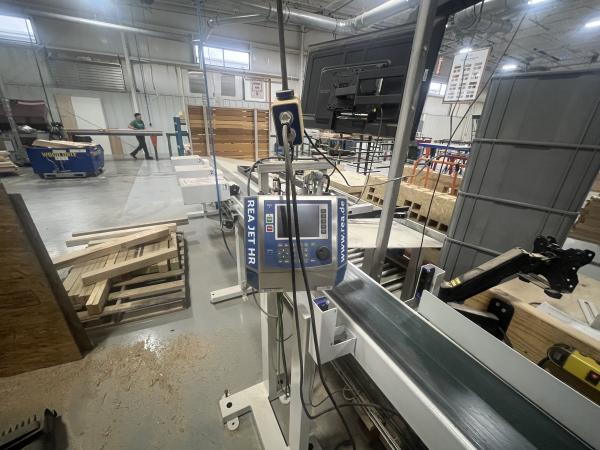

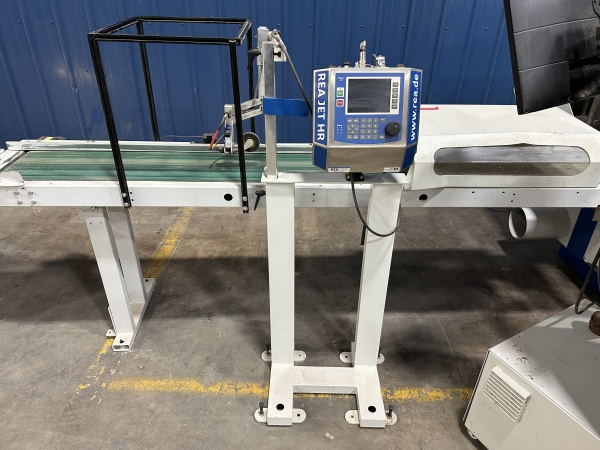

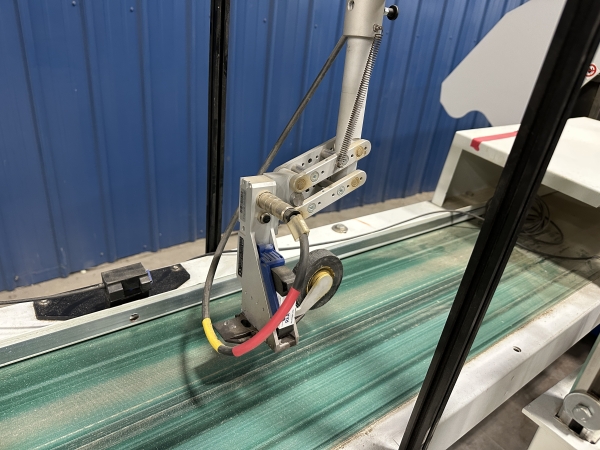

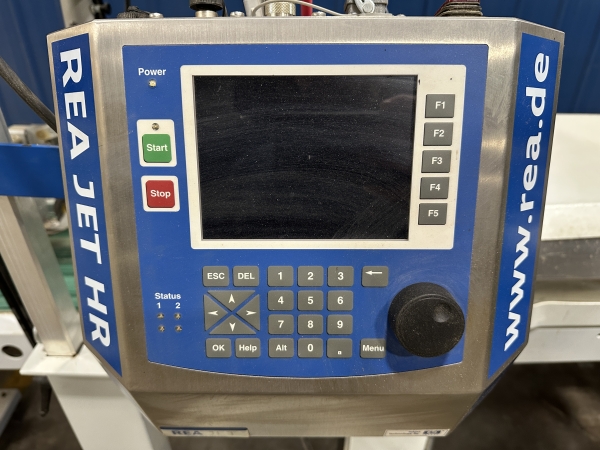

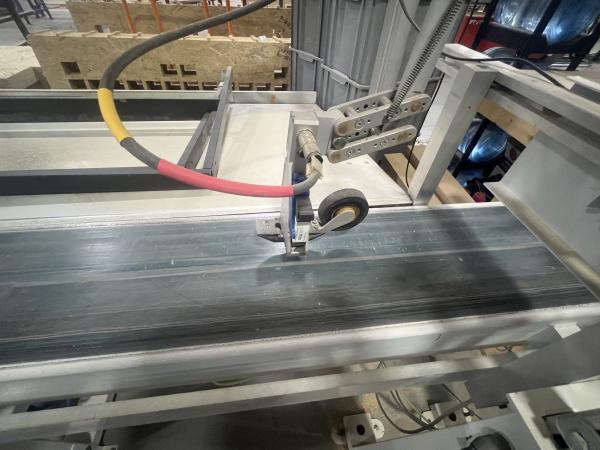

• Ink Jet Printer

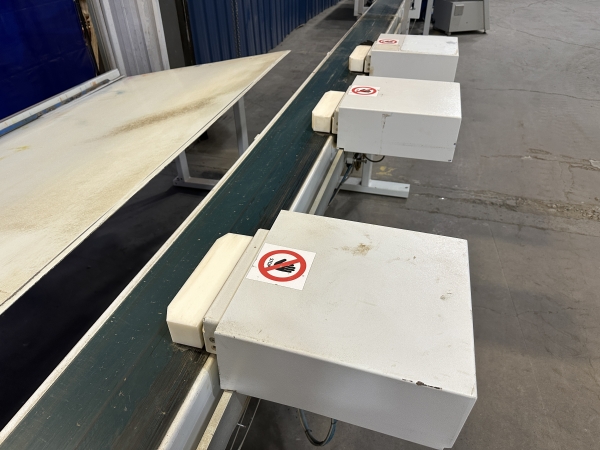

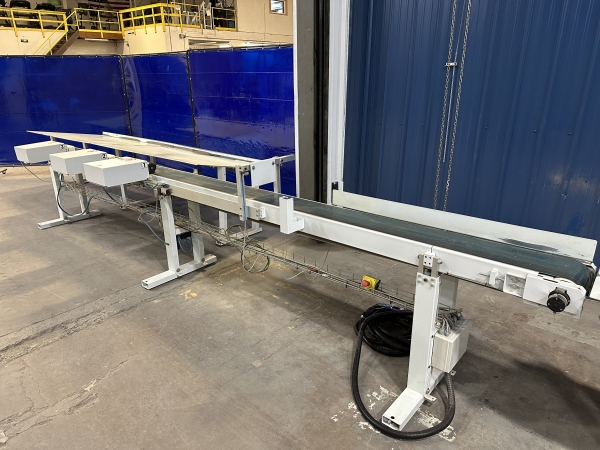

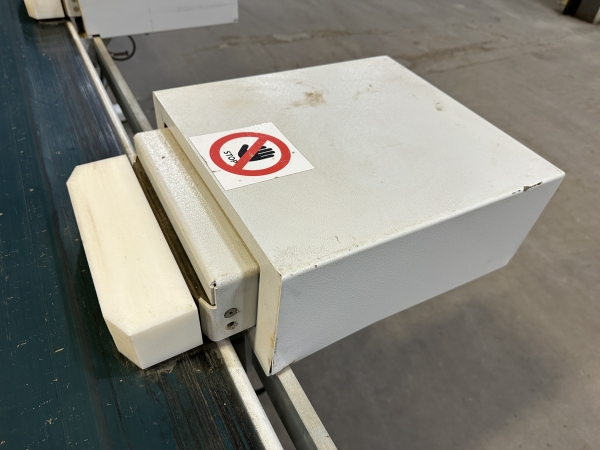

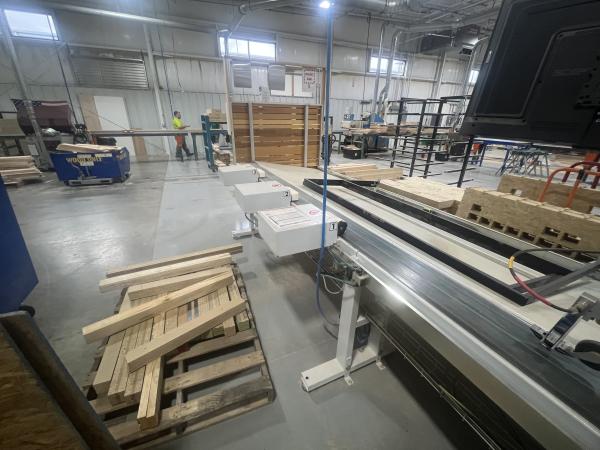

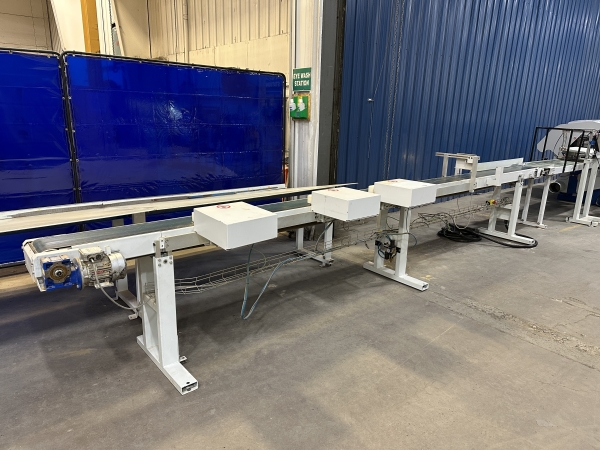

• 3 kicker stations - Currently oriented to the rear of the machine
