Weinig Optisaw System with Luxscan Combiscan and 3 Opticut 450 Quantum
Machine Available
Stock #813842
Used- Weinig/Dimter Optisaw System with Luxscan Combiscan and 3 Opticut 450 Quantum
- This Line was Designed by Weinig to process up to 67 boards per minute
- The Example Presents is 8’ Long Material 3” x 1” with 6 Cuts Per Board
- This Line will Cut Multiple Widths with a Separate Cutting Bill for Each Width
- Incoming Lengths 4’ – 12’
- Incoming Widths 1.5” – 6.5”
- Incoming Thickness 1” – 2”

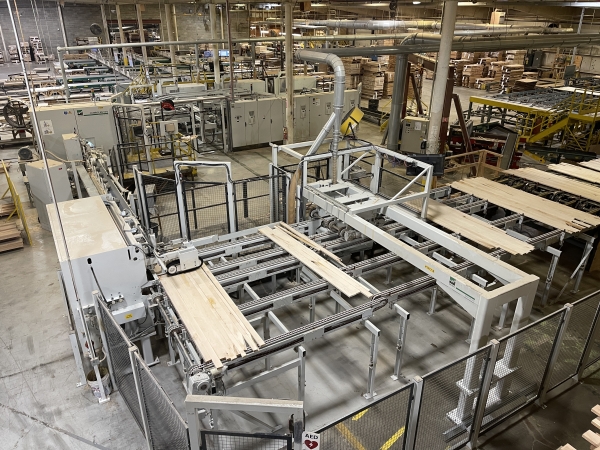

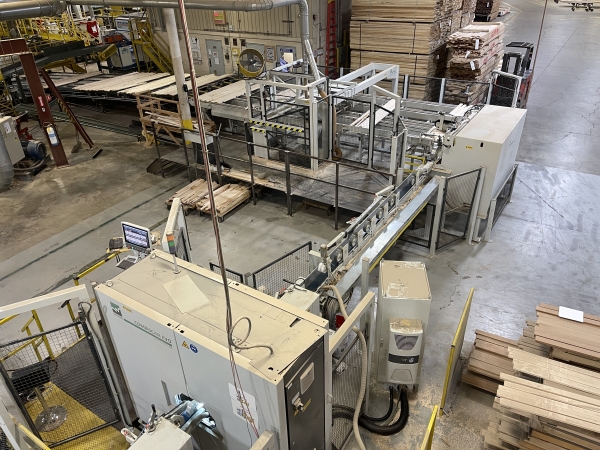

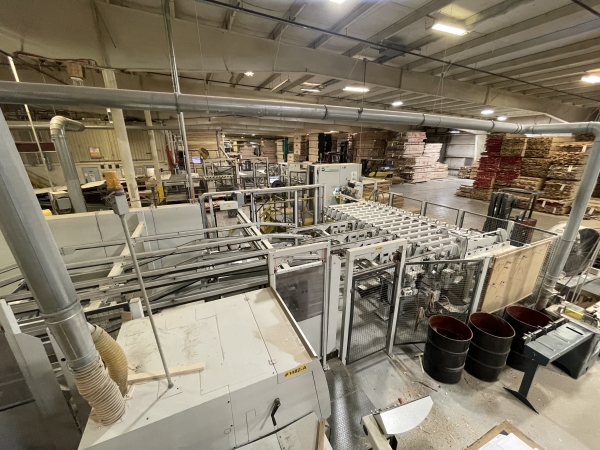

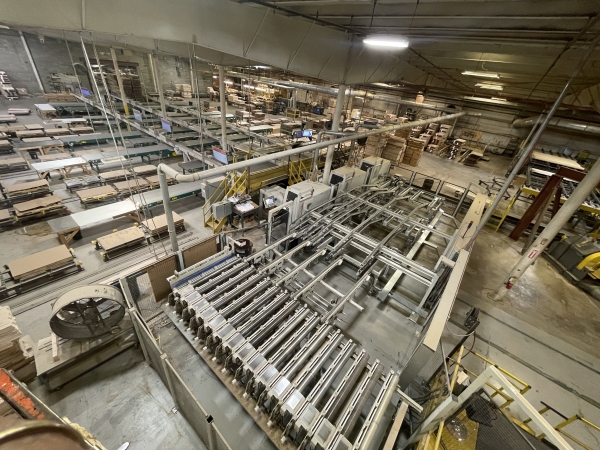

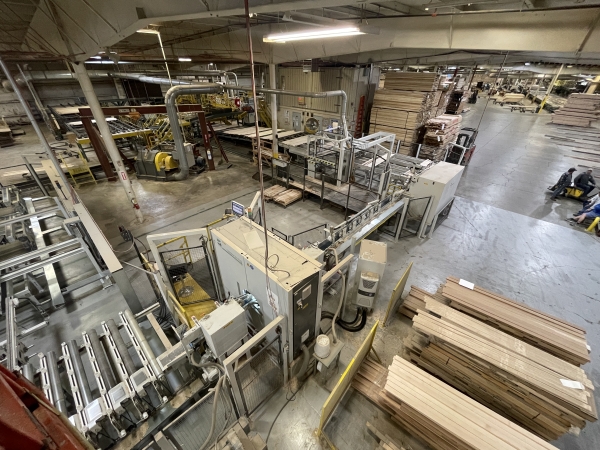

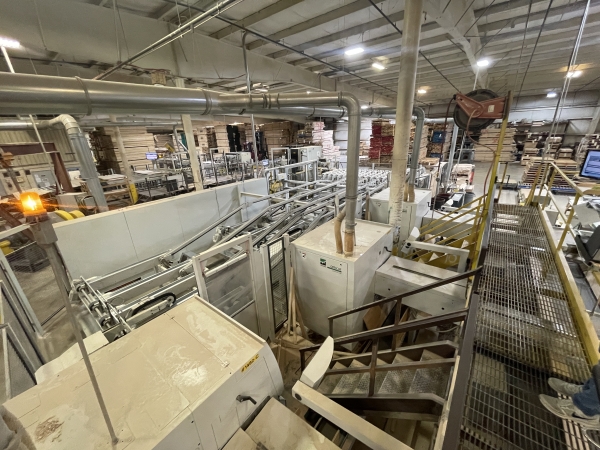

- Line Consists of:

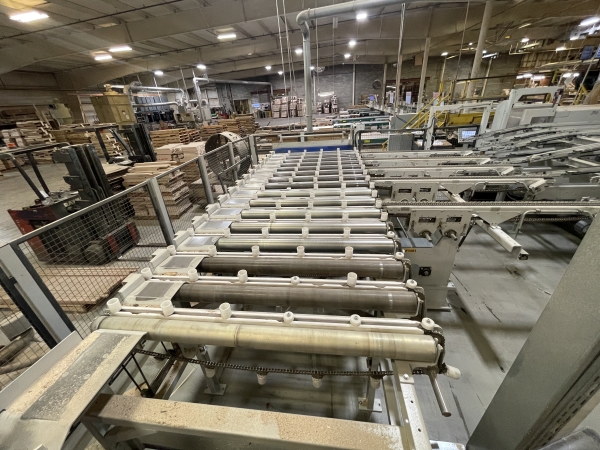

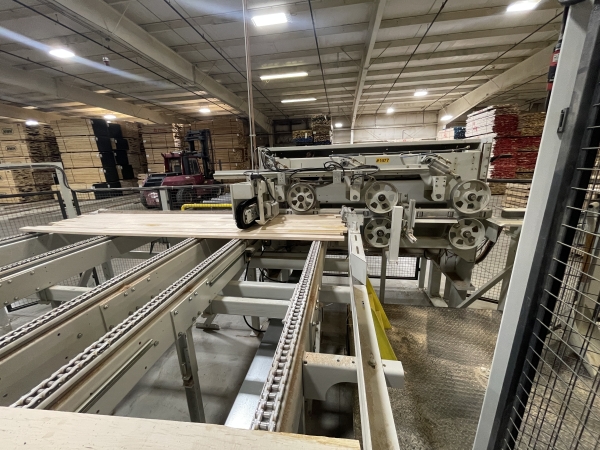

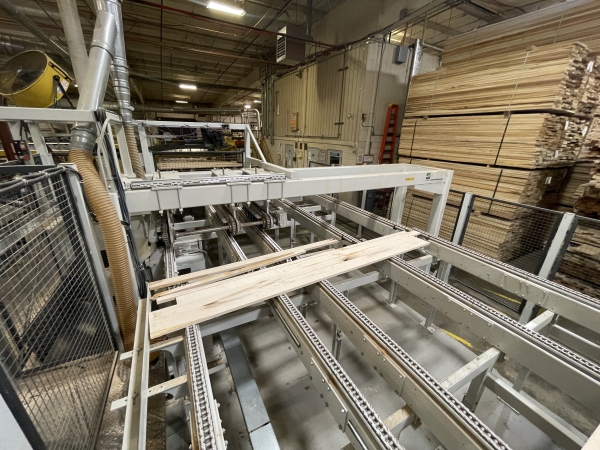

- Cross Conveyor 60" Long with Trim Saw for Speared Ends Before Scanner Infeed, Includes Approx 24 ft. of Infeed Transfer Chain

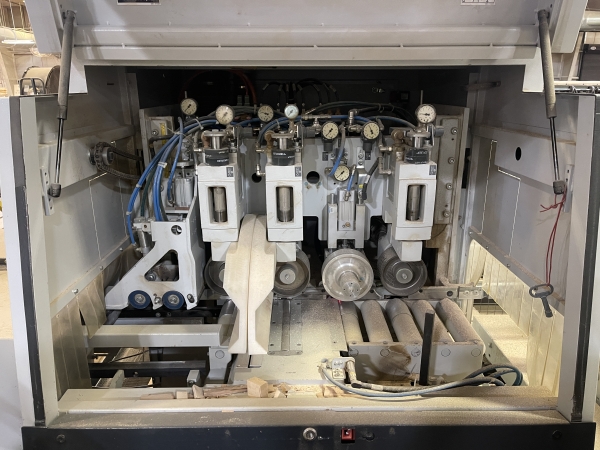

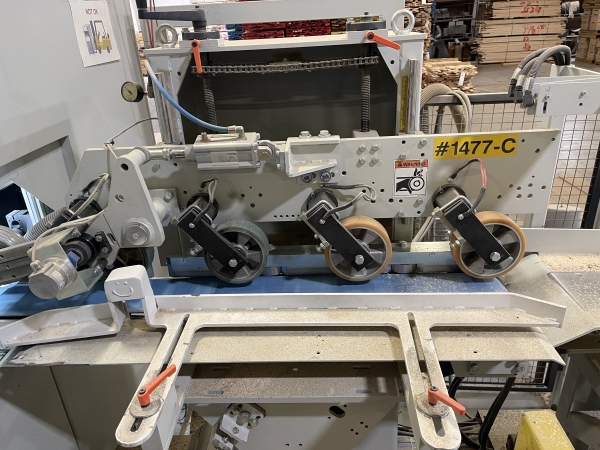

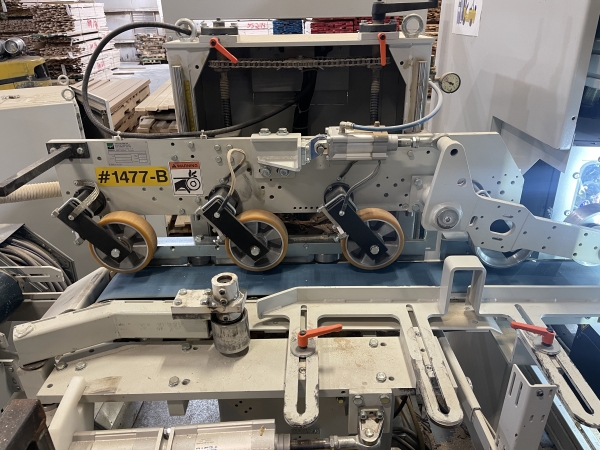

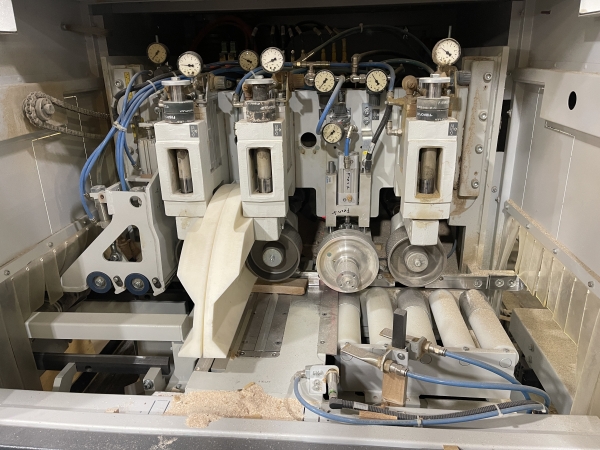

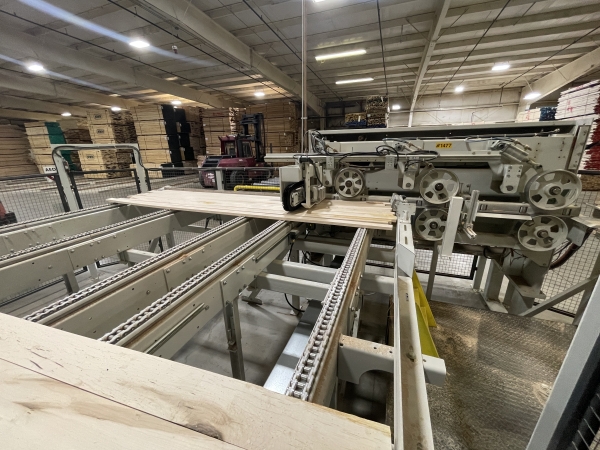

- Accelerator A4 with Top and Bottom Rollers to Minimize Board Gap

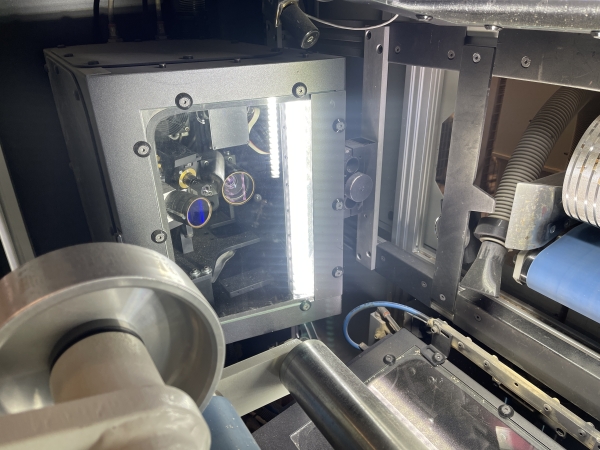

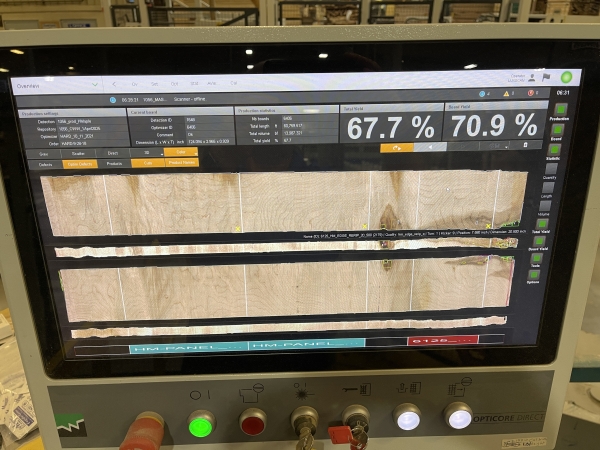

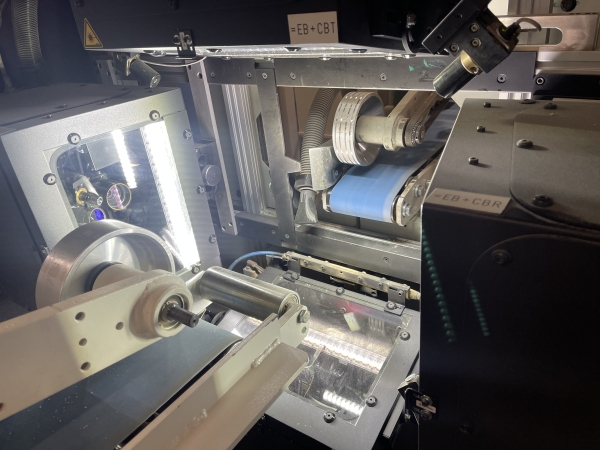

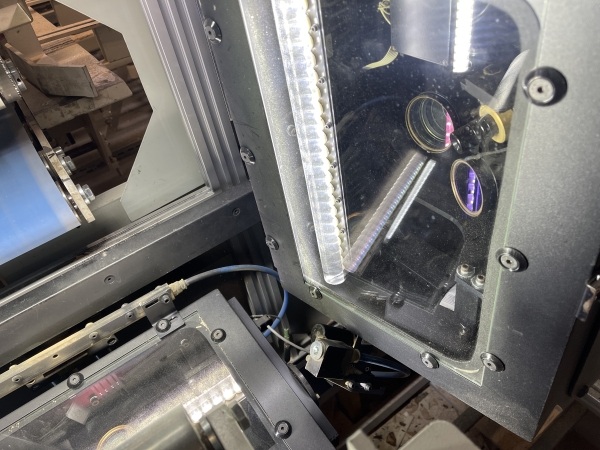

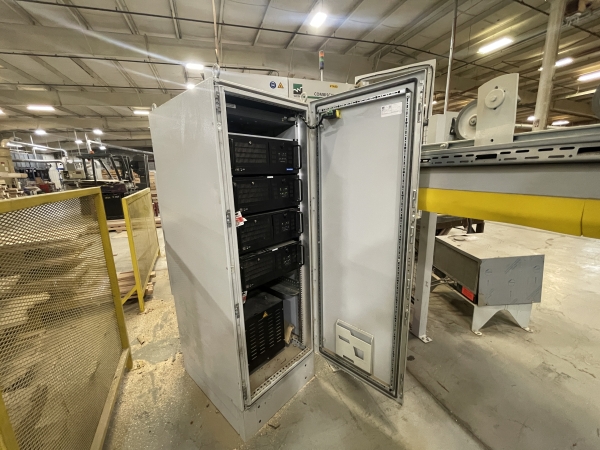

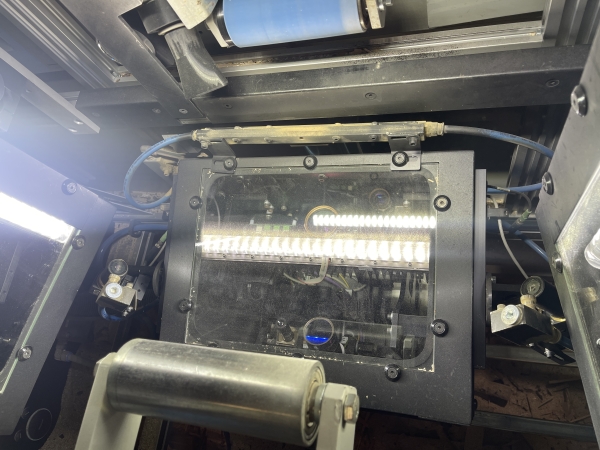

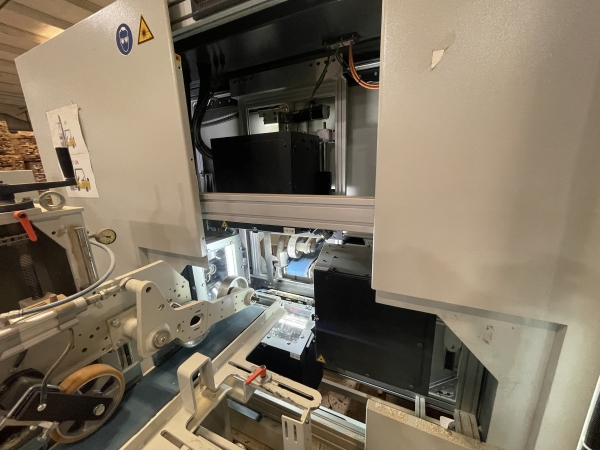

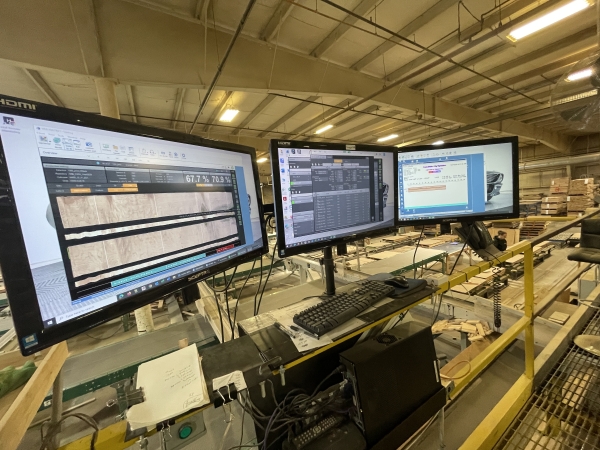

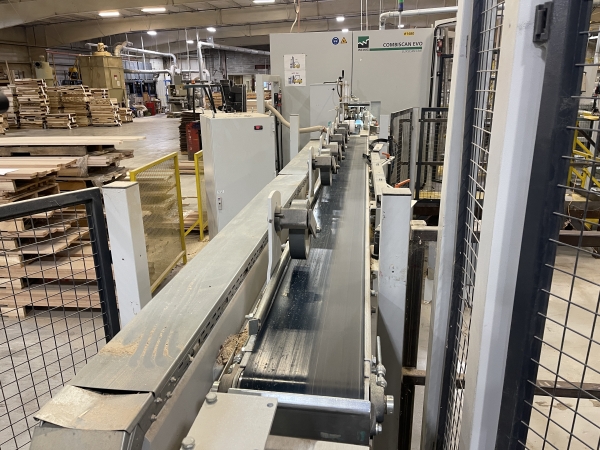

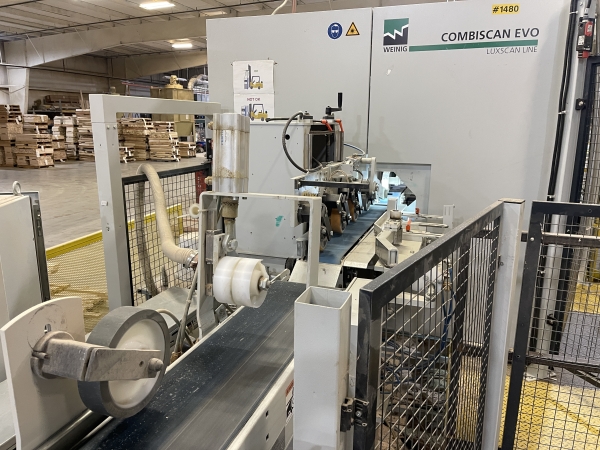

- Scanner Luxscan Combiscan Evo C600. Includes 4 Side Detection with Laser Cameras, 4 Side Detecton of Color Defects, 4 Side Detection with Dot Laser, 4 Side Scatter, Angle Cracks Detection on Top/Bottom Side, Optimizing Software

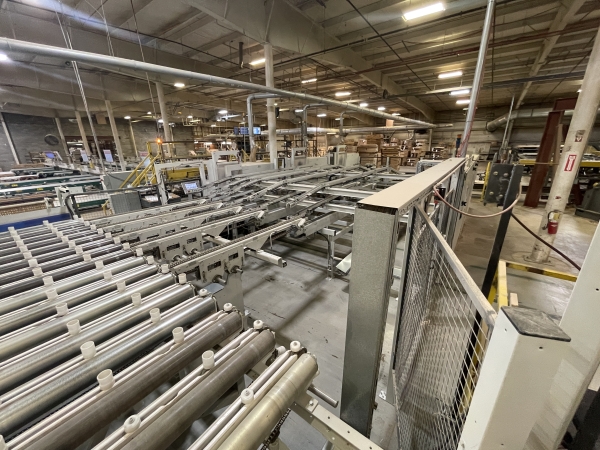

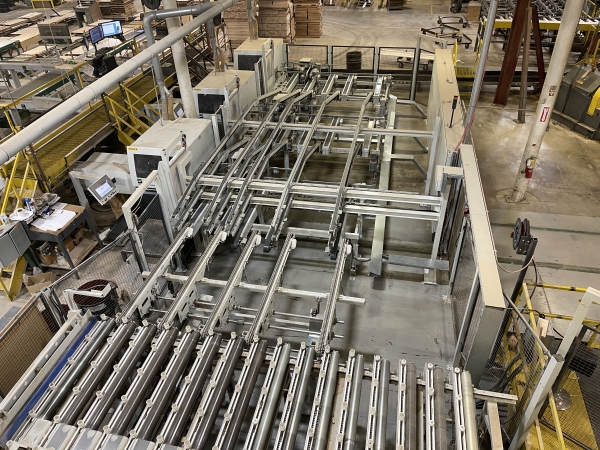

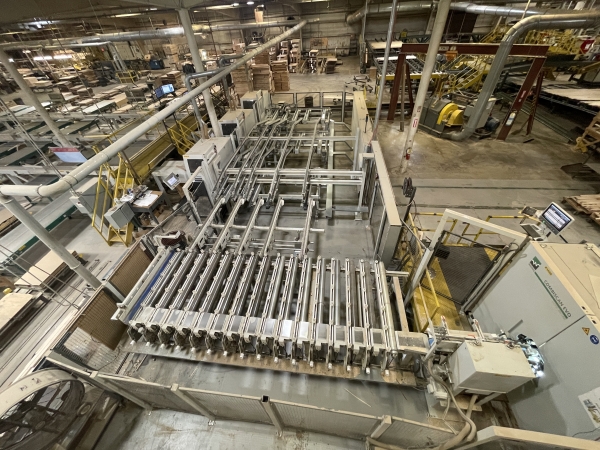

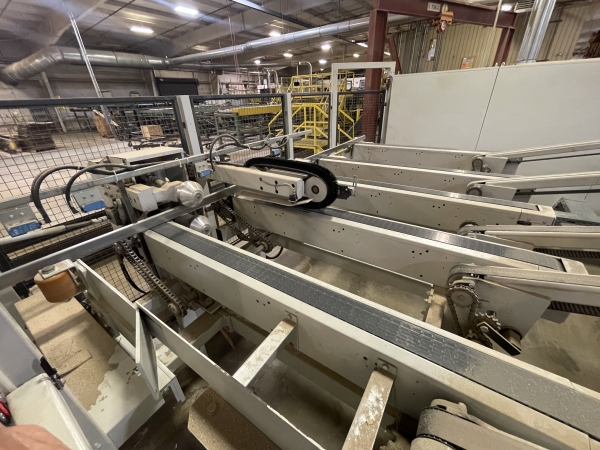

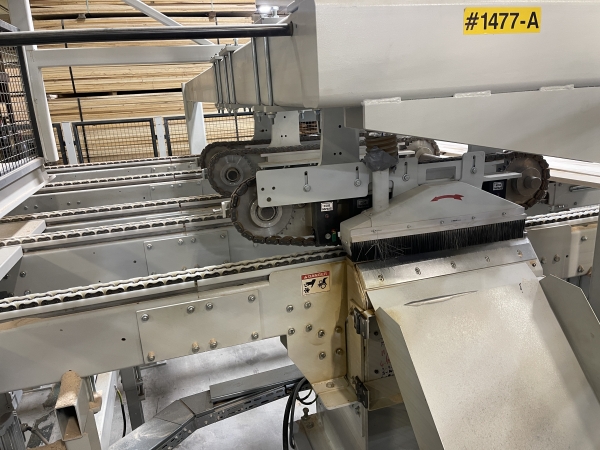

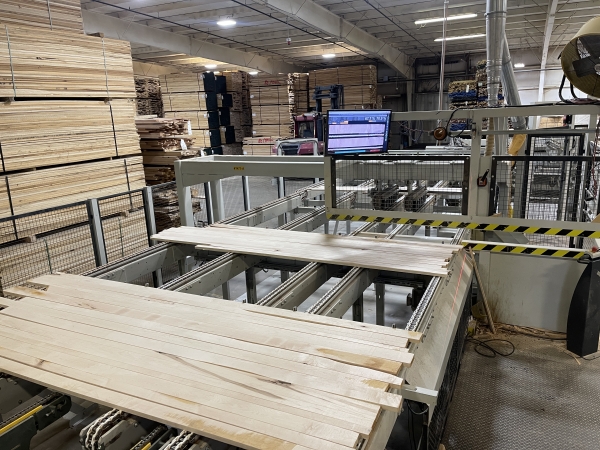

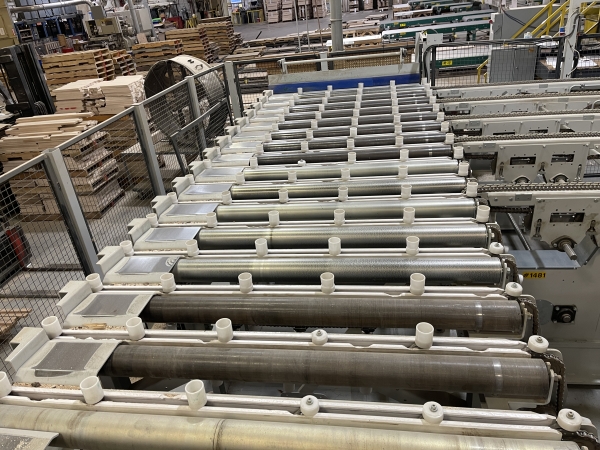

- Transfer Station and Board Distriburtion: 5 Compartment Cross Conveyor with Rollers to Change Even End for Feeding Saws
- Boards are then Collected Together to one Layer for transfer to each Saw

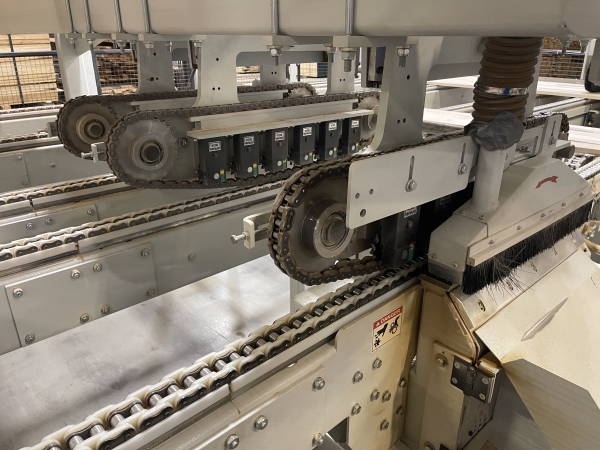

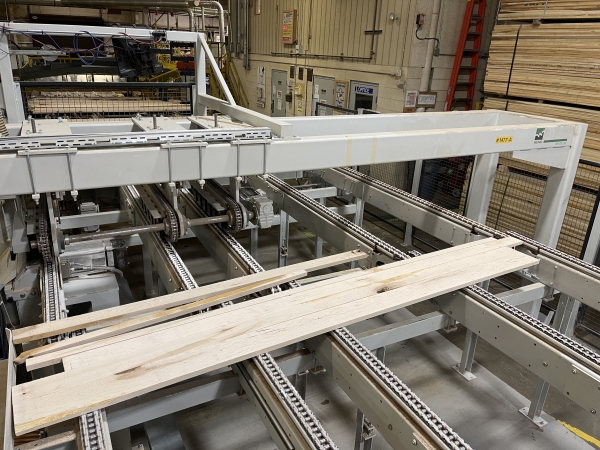

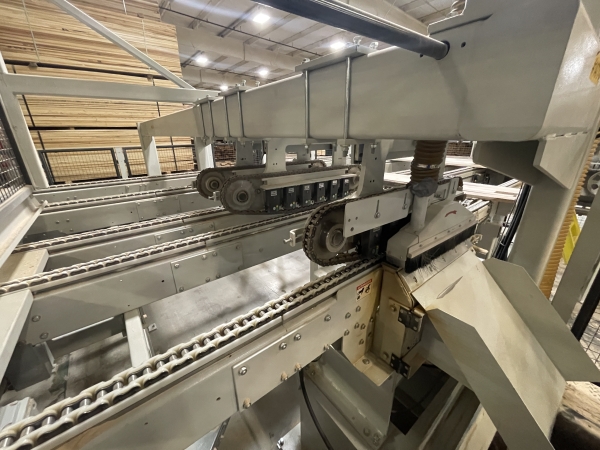

- Cross Conveyor C1-2000 Lateral Feeder for Opticut #1
- Transfer Station from Distributor to Cross Conveyor 2 with Lateral Feeder for Opticut #2 and #3

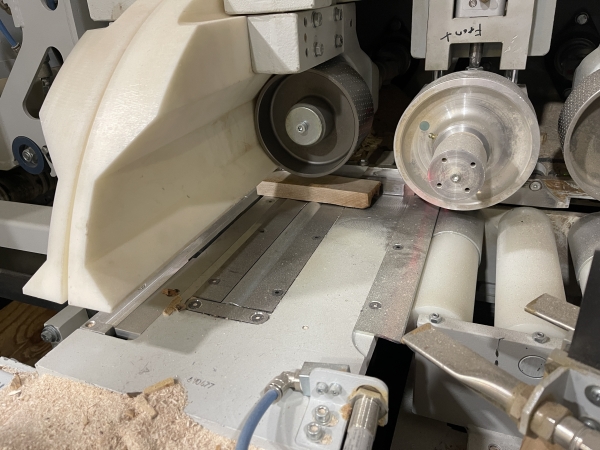

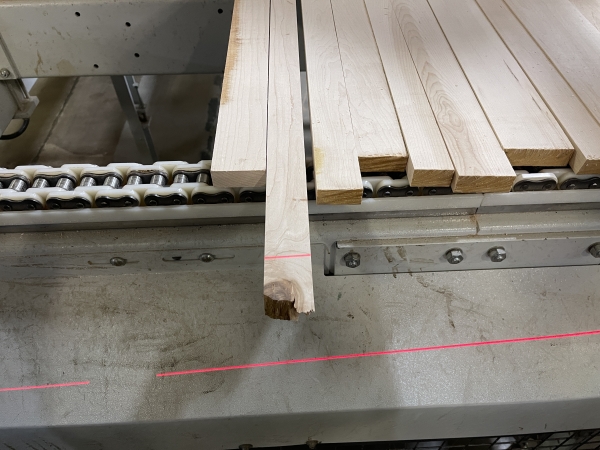

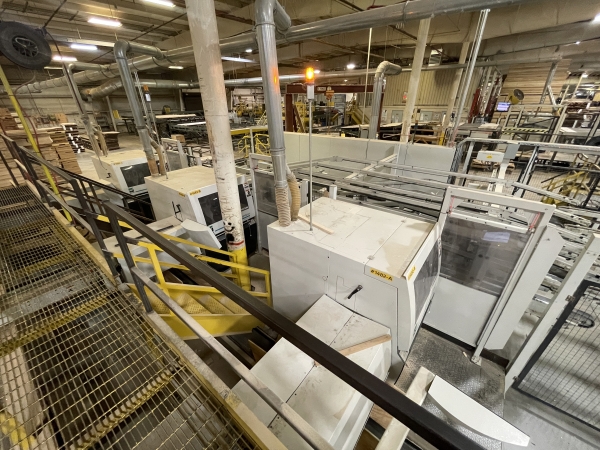

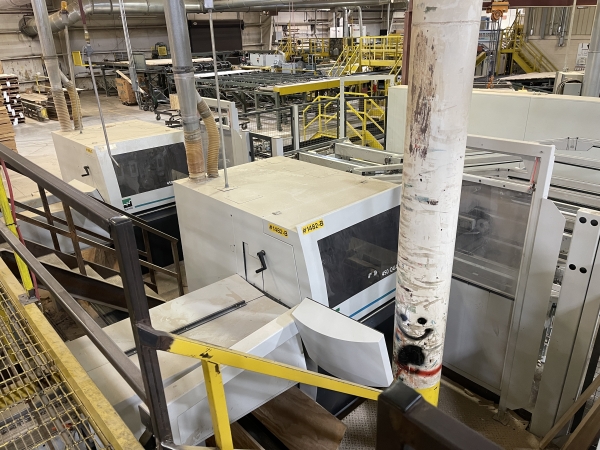

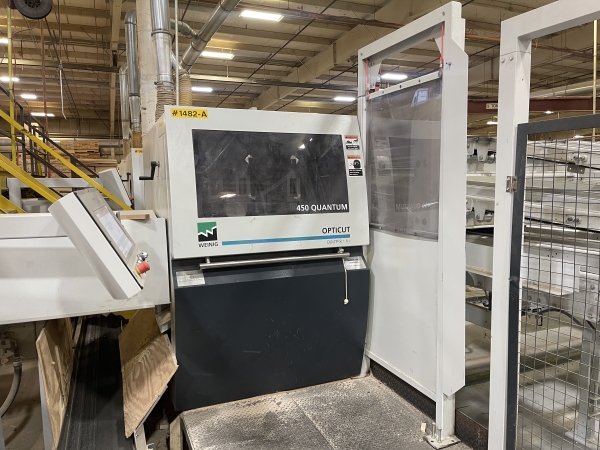

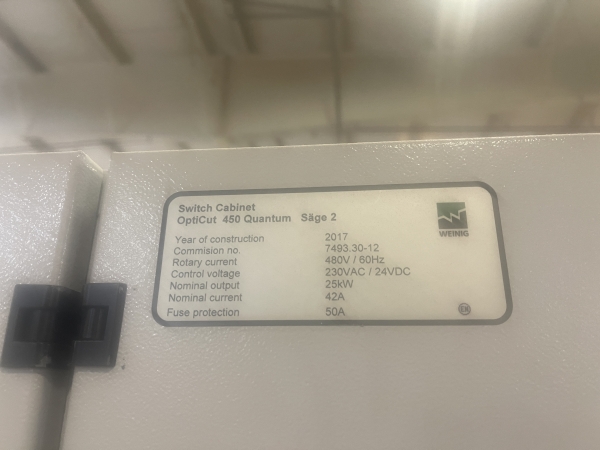

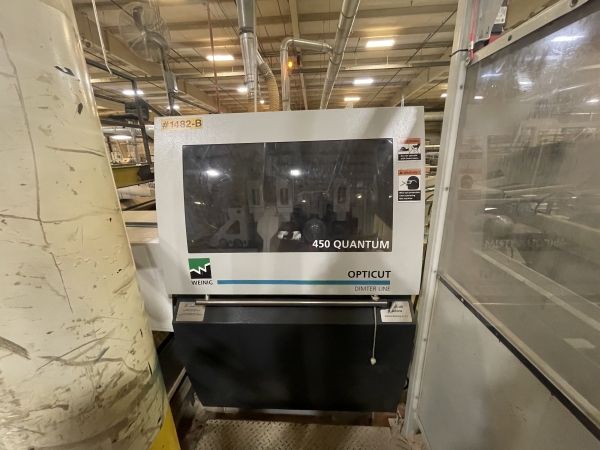

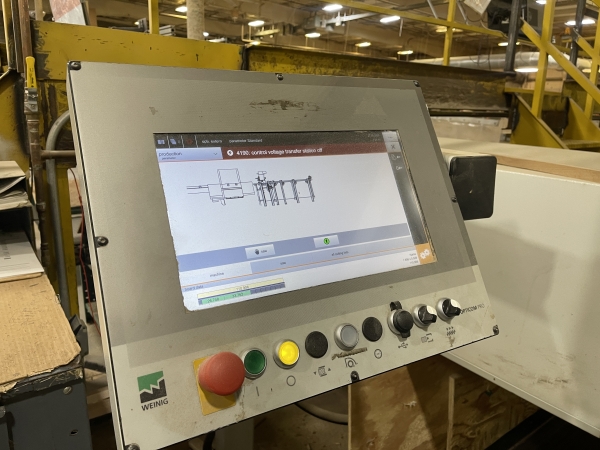

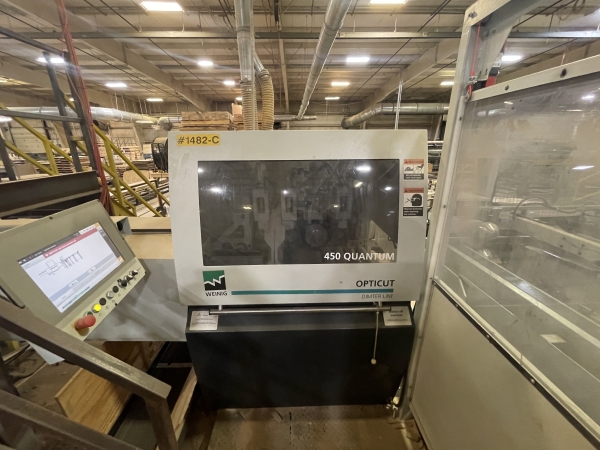

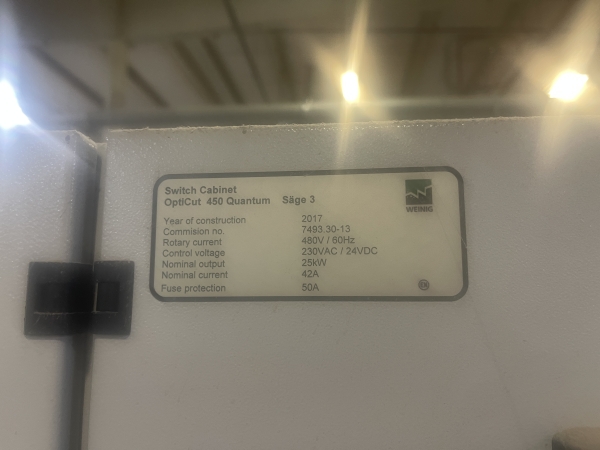

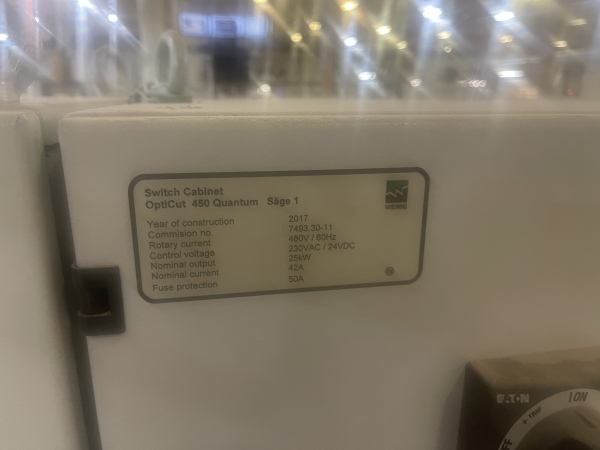

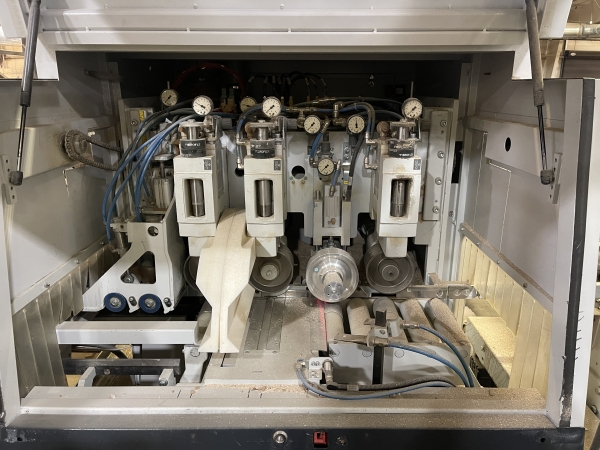

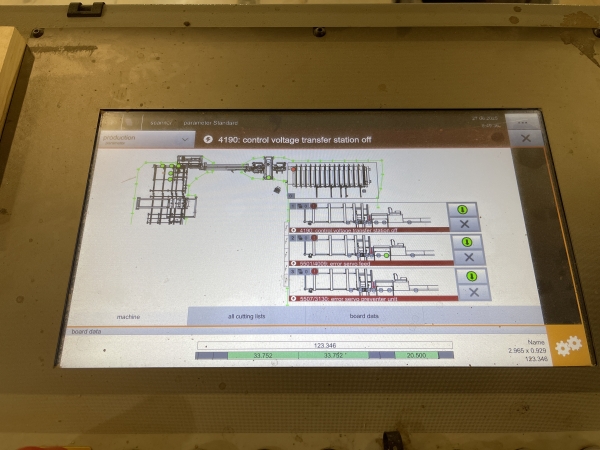

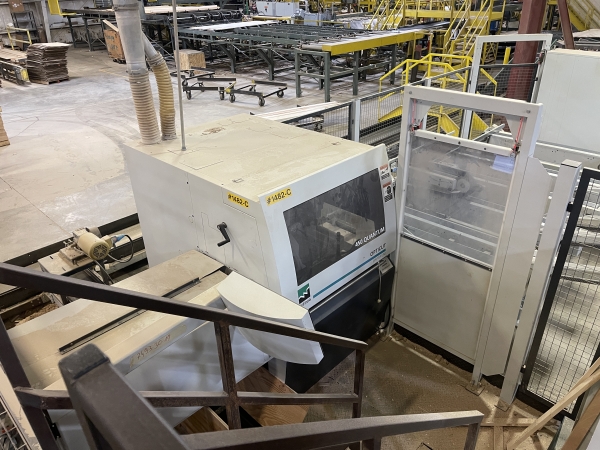

- Three (3) OptiCut 450 Quantum Optimizing Saws, Right Hand Version, Servo Controlled Saw Stroke for Short Cutting Cycle Times, OptiCom 7” Control Panel, Integrated Waste Gate for Sorting Belt Width 250mm, Maximum Waste Length approximately 200mm

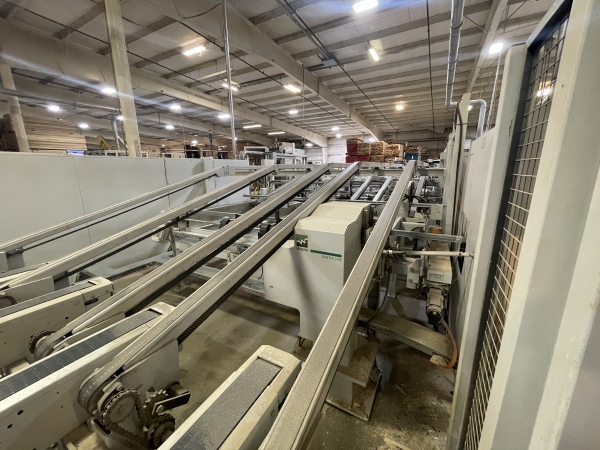

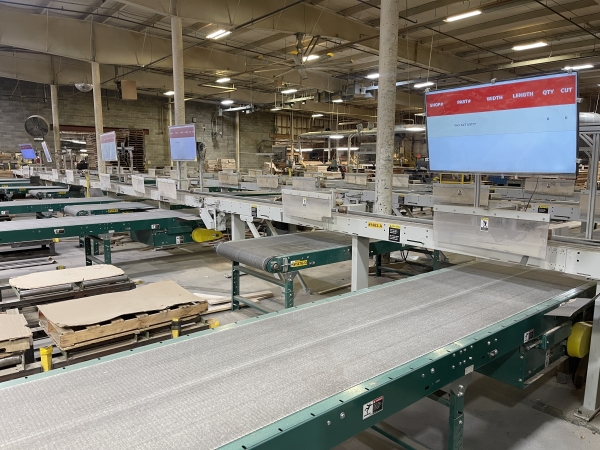

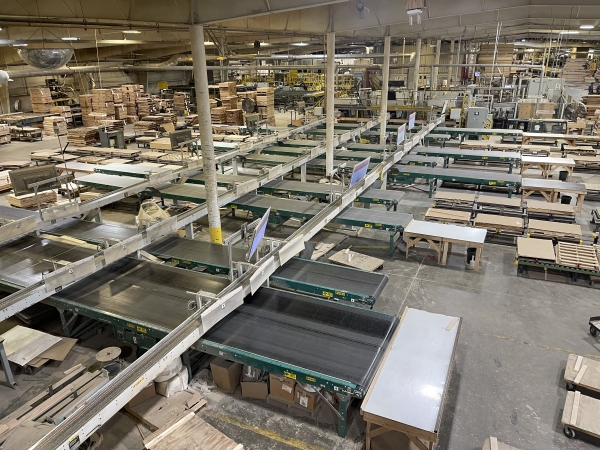

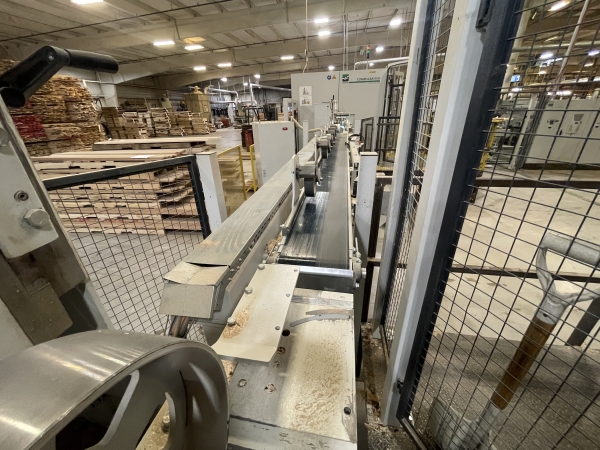

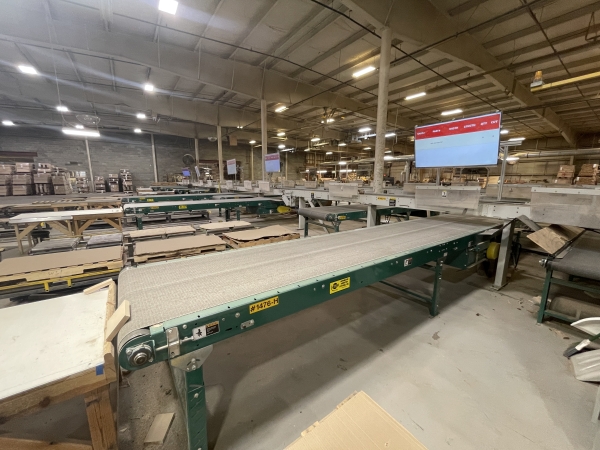

- Outfeed Conveyor Belt/Sorting Stations 10” Wide x 65’ Long with 10 Kickers for each saw

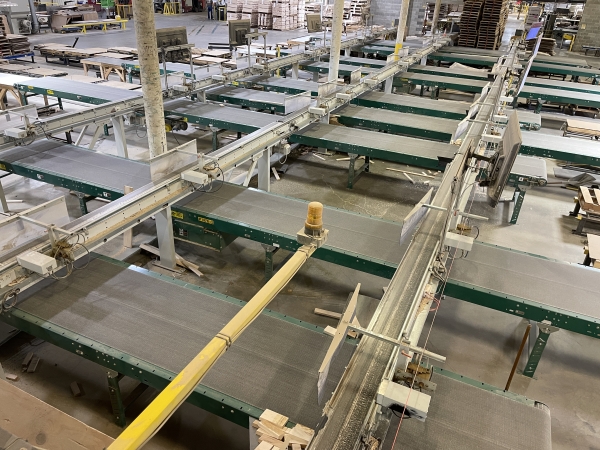

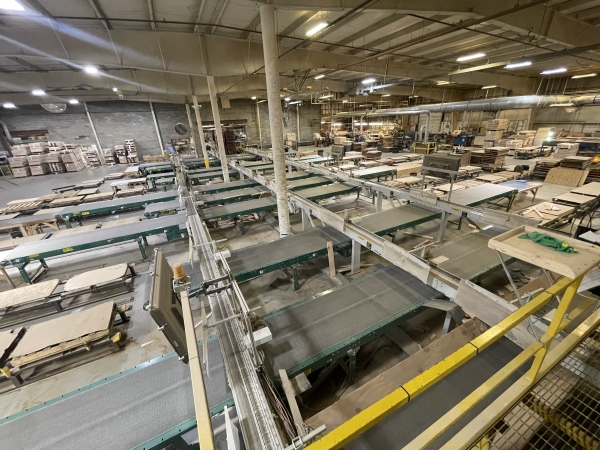

- 8 Sort Belts 36" Wide and 1 Sort Belt 60" Wide
- Built in Late 2017, Installed Spring of 2018
- DETAILED SPECIFICATION SHEET FROM MANUFACTURER AVAILABLE UPON REQUEST
