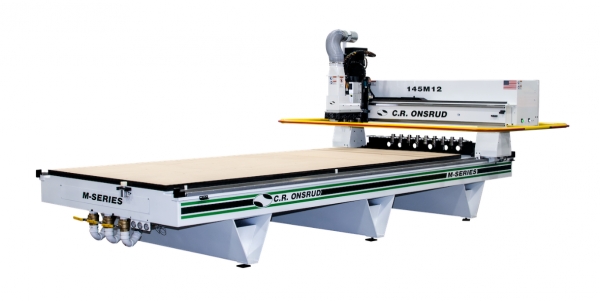

C.R. Onsrud Model 3100M CNC Router

• C.R. Onsrud Model 3100M CNC Router
• The M Series may be the smallest moving gantry CNC router in the C.R. Onsrud line-up, but don't be fooled into thinking it's any less of a workhorse than bigger machines in our product line. C.R. Onsrud incorporates the same detailed engineering, workmanship and quality of materials into every machine we manufacture – no matter how small or large. The M Series CNC router boasts rigid frame construction, highly responsive drive mechanisms, and many more of the top-end features you'd expect to find on our bigger models. Our competitors may say we've over-engineered this model, but we just happen to think they've under-engineered theirs. We want you to have a CNC machine you can grow your business with, not just get by for now. With the M-Series, we give you the power, precision, speed and strength to do big things with this robust CNC platform, without any fears your machine gives out before you do.
• Standard Features
• Full 2 Year Warranty Factory Provided 24/7/365 After Hours Emergency Tech Support
• Factory Provided Onsite Machine Installation and Training
• Factory Provided Advanced Technical & Applications Support
• Factory Provided In Depth Remote Online Diagnostics

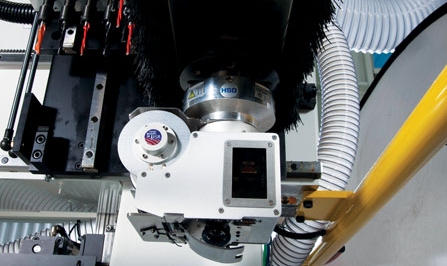

• 4-Pole, reversible, 24,000 RPM High Torque Spindle
• HSK-63F Spindle Taper and Tool Holders, with 1 inch (25mm) collet capacity

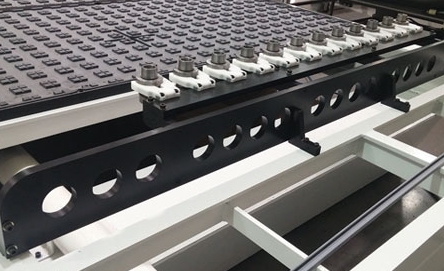

• Over 10 Inches of Z-Axis Clearance & 9 inches of Z-Axis stroke Finite Element Analysis used in Engineering entire frame FEA Engineered, Heavy-wall, All-Steel Bridge, Vertical Columns, & Table Support Base Std. 10 Position, Aggregate Ready, Fixed Rack Style, Automatic Tool Changer
• Dual Support, Direct Drive, Independent Channel, Design Enhances Accuracy & Rigidity
• Compact Design Saves Valuable Shop Floor Space
• Intelligent Design Allows for Easy and Unrestricted Access to All Sides of the Machine
• Efficient and Effective Integrated Dust Transition that Only Requires a 6 inch Dust Hose

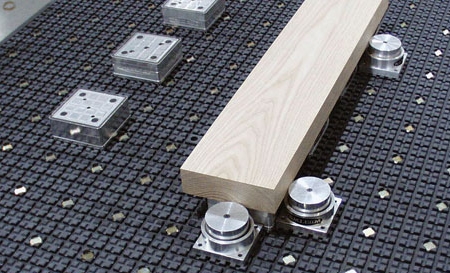

• C.R. Onsrud High-Flow Universal Vacuum Table System with Low Vacuum Sensing
• Comes Equipped with Choice of Flow Through or Dedicated Spoil Board
• FANUC, OSAI, and B&R control options
• 4-Port Ethernet Connection, USB, and Serial Connectivity, for Easy Network Integration
• Full 3D capability with Helical Interpolation
• Machine Specifications
• Table Size: 2.1M x 3.1M
• Z Clearance: 8.9"
• X-Axis Travel: 152"
• Y-Axis Travel: 99"
• Z-Axis Travel: 9"
• Aproximate Footprint: 17' x 11'
• Machining Speed: 1400ipm
• X & Y Rapid Traverse: 2500imp
• Standard Spindle: 12HP, 24,000rpm
• Tool Shank: HSK 63F
• Standard Tool Capacity: 12
• Standard Vacuum Zones: 4
