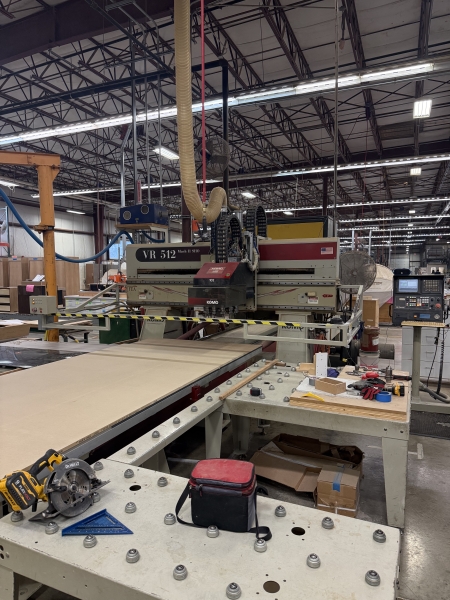

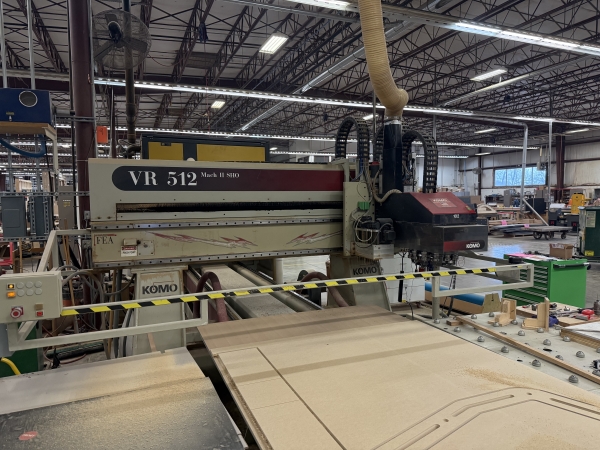

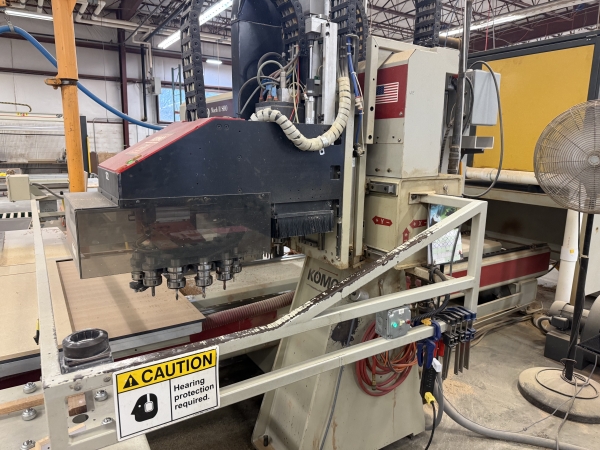

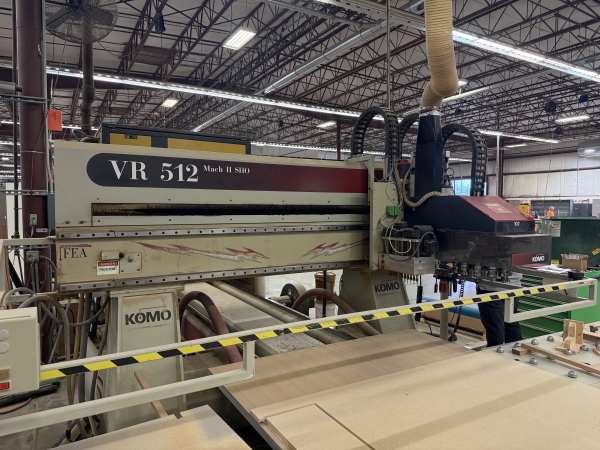

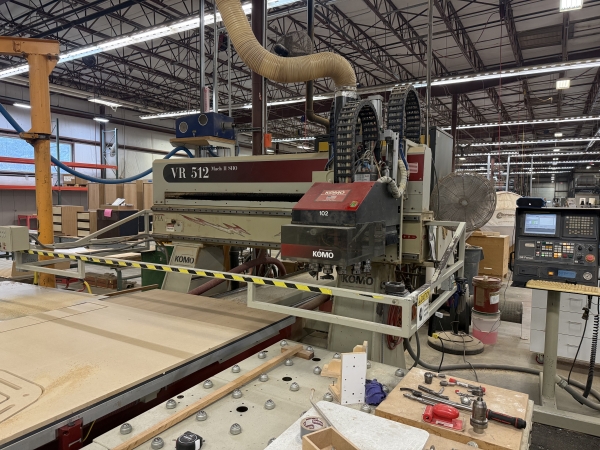

Komo Model VR512 MACH ll SHO, CNC Router

• Standard Features
• 11” (279mm) Programmable Z Axis

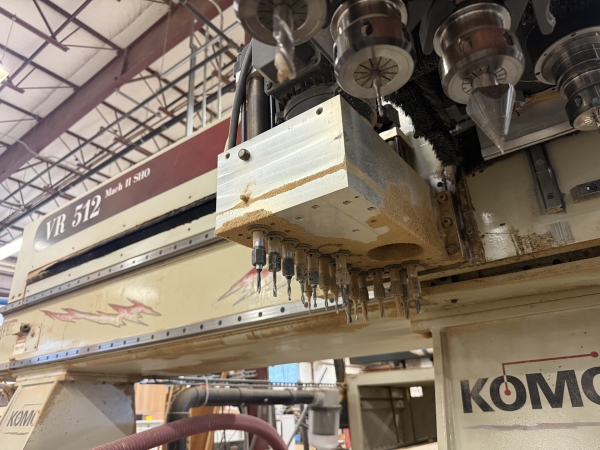

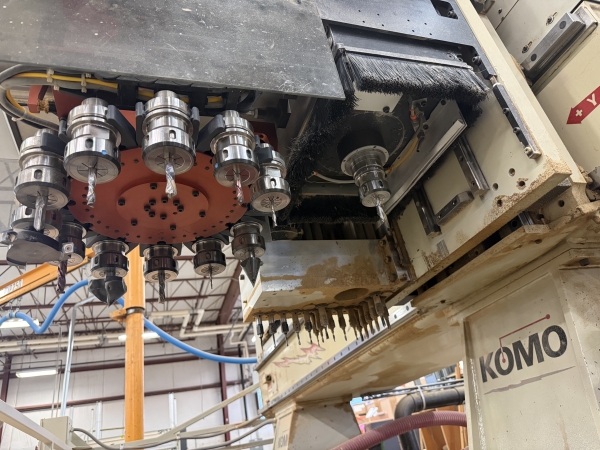

• 12 Pocket Automatic Toolchanger with Aggregate Capability
• Automatic Tool Length Measurement
• Universal Grid Fixture Table

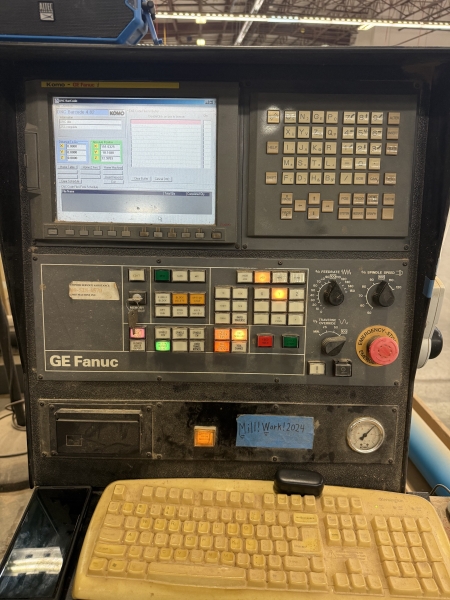

• Komo-GE Fanuc Panel i Control with HVI Servo System and Integrated PC
• Closed-loop Counterbalance System (minimizes air consumption) Construction
• Trapezoidal, Finite Element Analysis -designed columns for superior rigidity in cut
• Heavy-duty contour linear rail system with matched bearing trucks
• Non-rotating ballscrew system for maximum acceleration and deceleration at high cutting feedrates
  Technical Data
• Following information taken from product literature

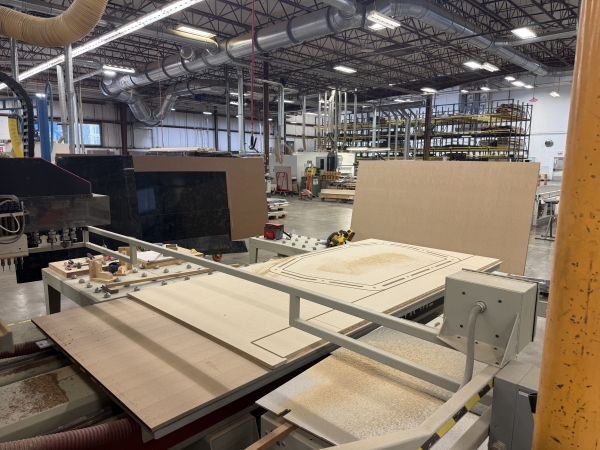

  Tables
• Number of Tables: 1
• Table Dimensions: 144” x 60” (3658mm x 1524mm)
• Material: cast precision machined aluminum vacuum plenum with four 1” part locating pins
  Axis Travels
• X Axis: 159” (4038mm)
• Y Axis: 84” (2133mm)
• Z Axis: 11” (279mm)
  Feedrate/Traverse
• X & Y Axes: up to 3150 IPM (80,000 mm/min.) with standard HSHP
• Z Axis: 600 IPM (15,240 mm/min)
  Positioning
• ± 0.0004” (0.01mm) unidirectional repeatability
• ± 0.0008” (0.02mm) unidirectional accuracy
  Spindle
• Quantity: 1
• Type: 20 HP peak, 16 HP continuous duty, 4-pole
• RPM: up to 24,000, fully programmable
• Taper: HSK 63F

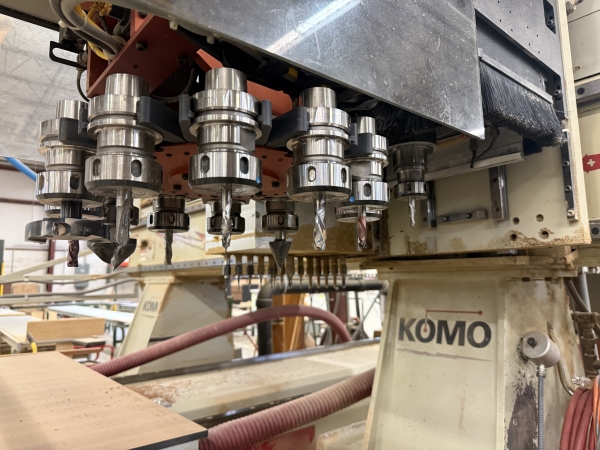

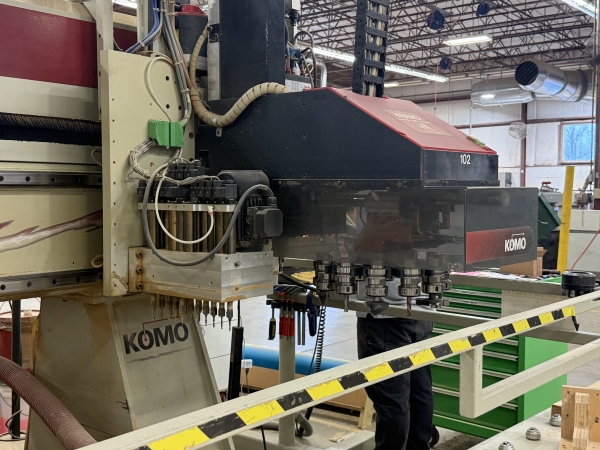

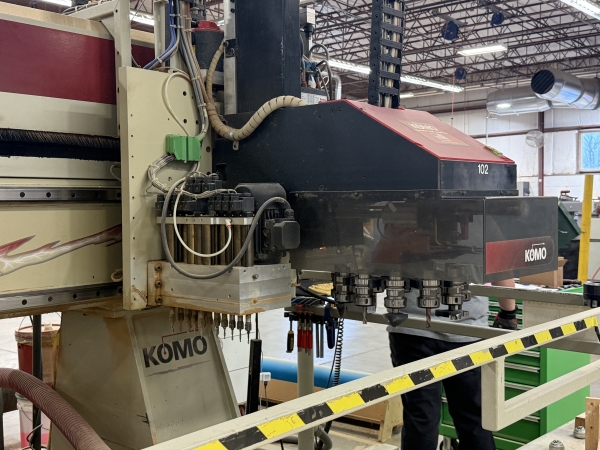

  Aggregate-Capable Toolchanger
• Maximum Number of Tools: 12
• Maximum Diameter: 6.5” (165mm)
• Maximum Weight: 12 lbs / 96 lbs total (5.4 kg / 43.5 kg)
  Part Programming Solution
• One seat of router-CIM CAM Companion software
  Space (with guarding)
• Height: 110” (2794mm)
• Width: 142.75” (3626mm)
• Depth: 314” (7976mm)
  Vacuum System
• Kaeser Compressor model CSV 150
• PSIa: 14.5 / 0.145 vac
• Power: 40 HP, 230/460V, 3 Ph
