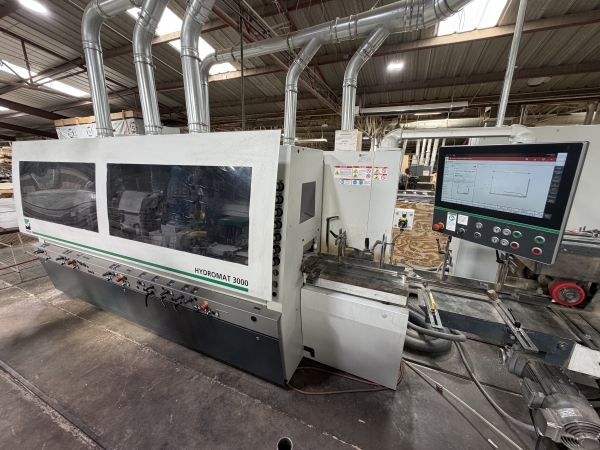

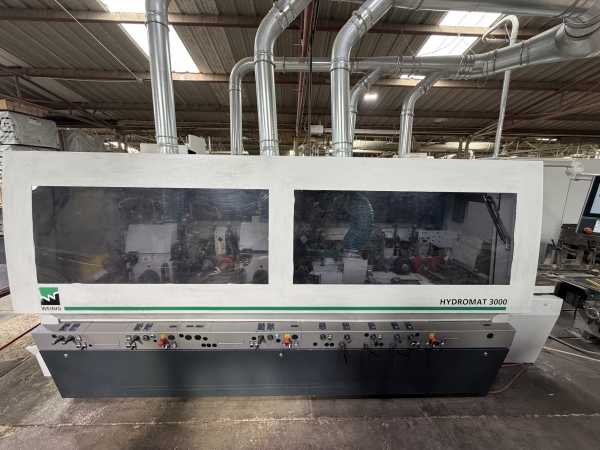

Weinig Model Hydromat 3000 Six-Head Moulder w/ Lateral Infeed
Machine Available
Stock #471025
Used- Weinig Model Hydromat 3000 Six-Head Moulder w/ Lateral Infeed - 2023!
- Moulder Working Width: 20 - 230mm
- Moulder Working Height: 10 - 160mm

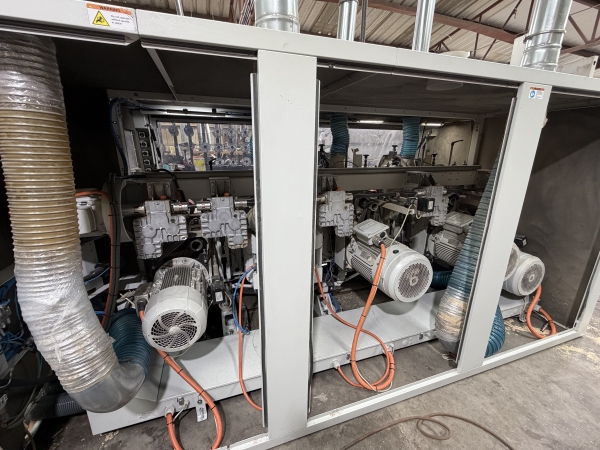

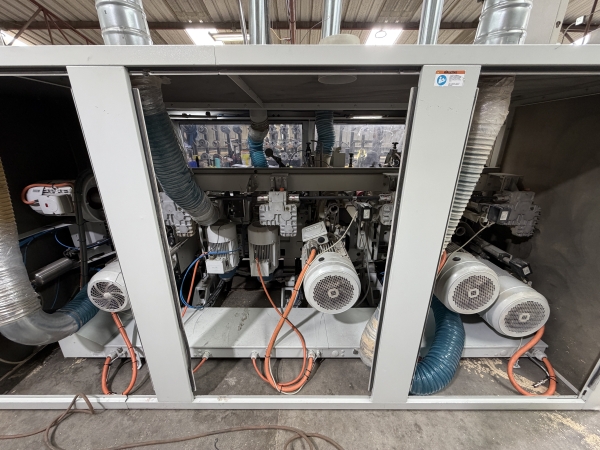

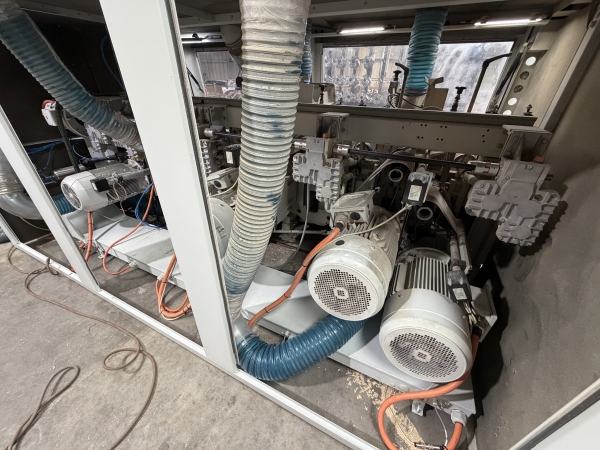

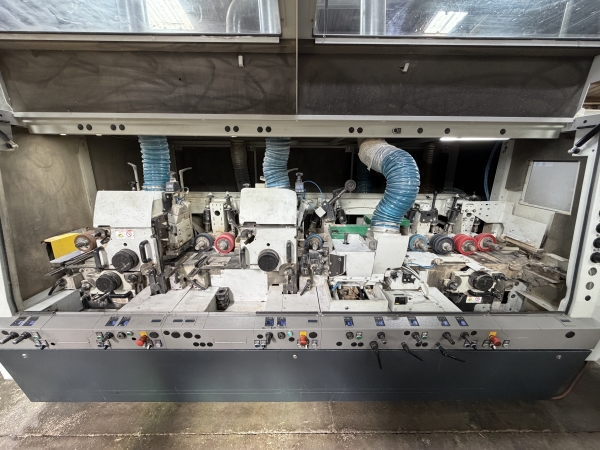

- Spindle Configuration: Bottom, Right, Left, Top, Top, Bottom
- Spindle #1: Bottom, 25 HP, w/ Straight Jointer
- Spindle #2: Right, 15 HP, Profile Jointer
- Spindle #3: Left, 15 HP, Profile Jointer
- Spindle #4: Top, 30 HP, Straight Jointer
- Spindle #5: Top, 30 HP, Straight & Profile Jointers
- Spindle #6: Bottom, 30 HP, Straight & Profile Jointers
- Spindle Speeds: 6,000 RPM
- Spindle Diameters: 1-13/16"
- All Horizontal Spindles Have Hydro - Outboard Bearings w/ HydroLock
- Start and Stop of Spindle Drives via Frequency Converter

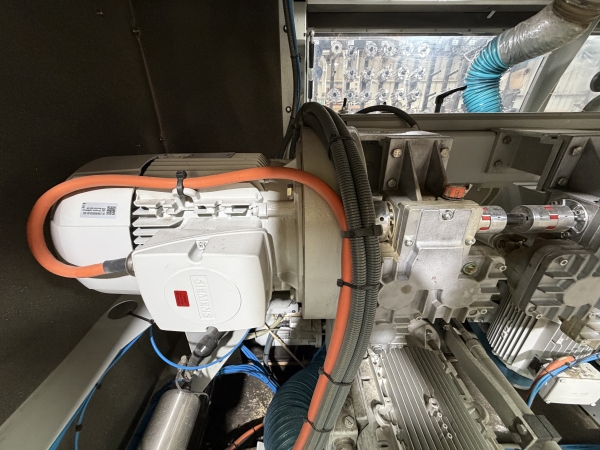

- Feed Motor: 12.2 HP
- Variable Speed Feed from 6 - 60 m/min (20 - 196 FPM )

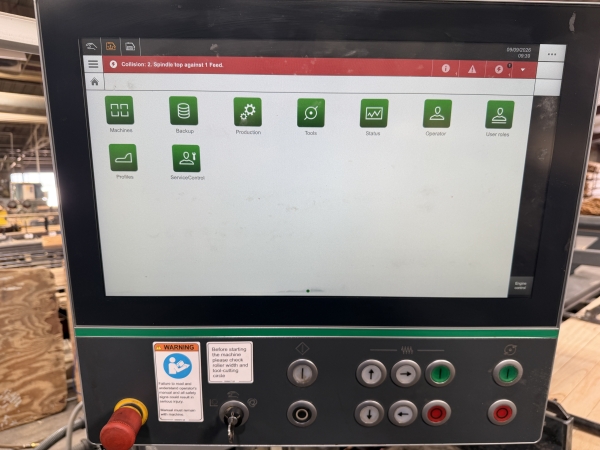

- Weinig Machine Control Pro, 21.5" Touchscreen
- Control Panel Mounted on Swivel Arm
- Automatic Bed Lube

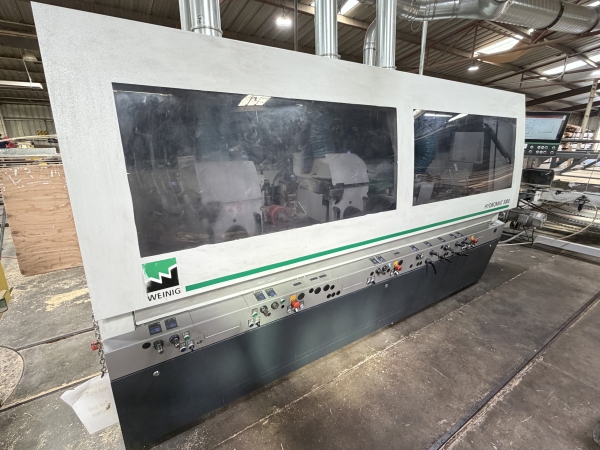

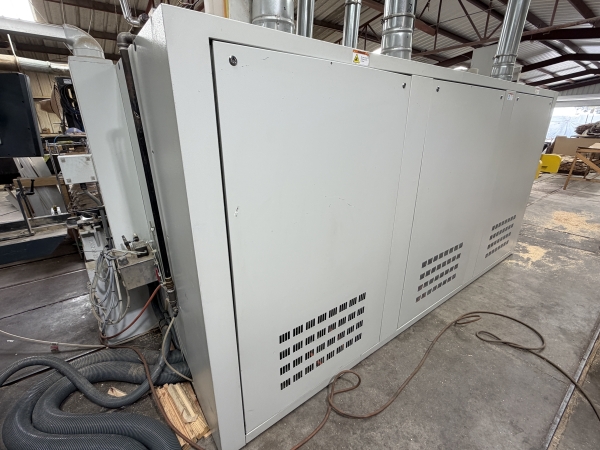

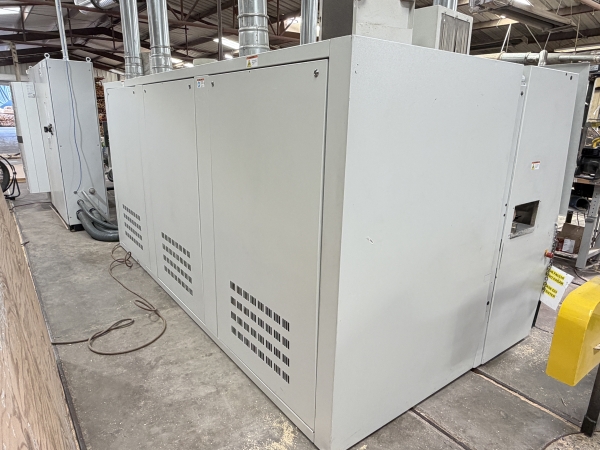

- Sound/Safety Enclosure
- 460v, 3ph
- Moulder is a 2023 Machine

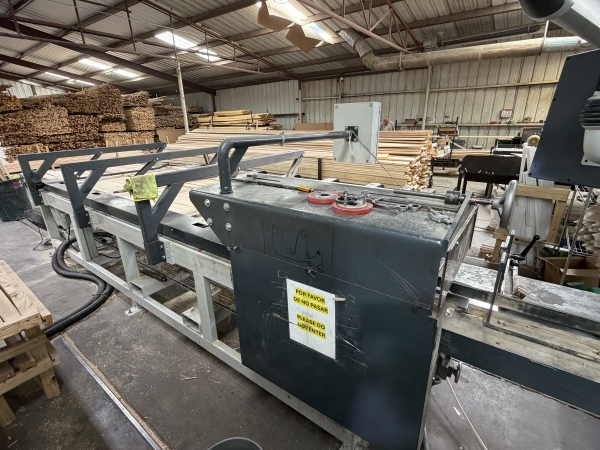

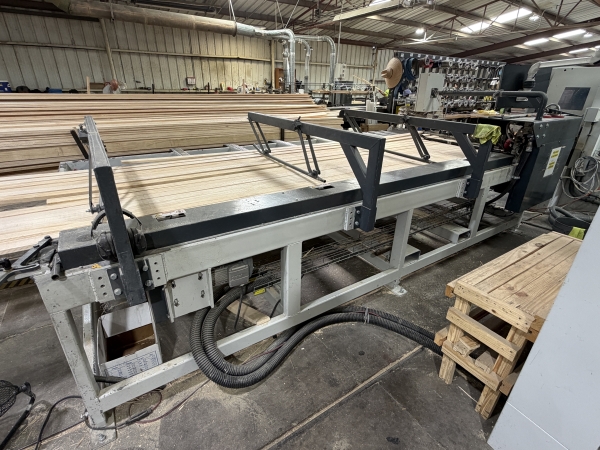

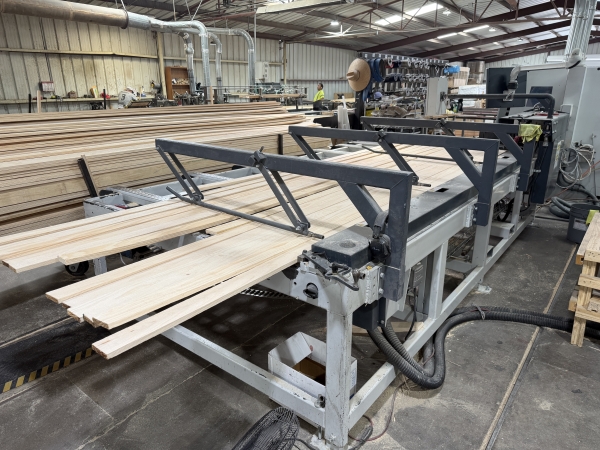

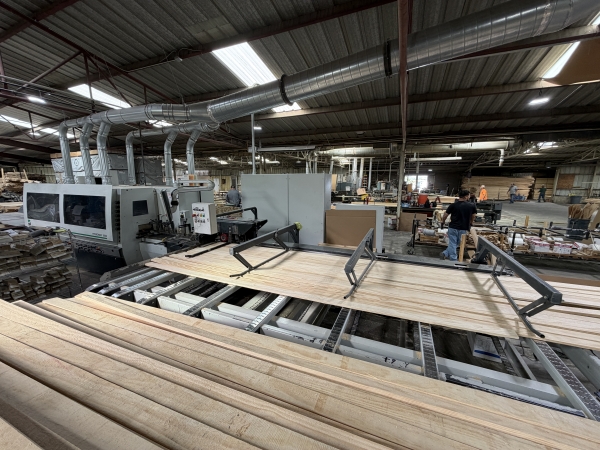

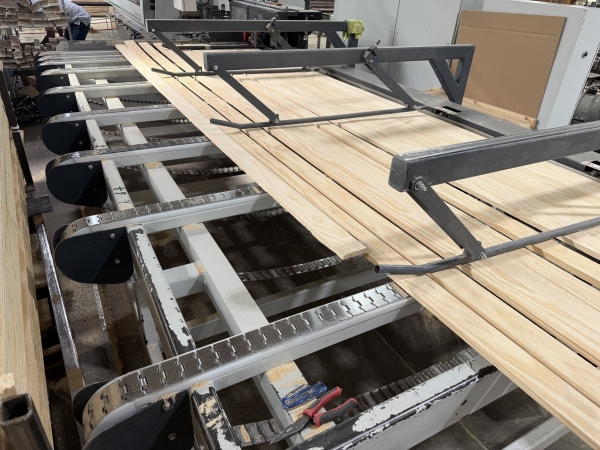

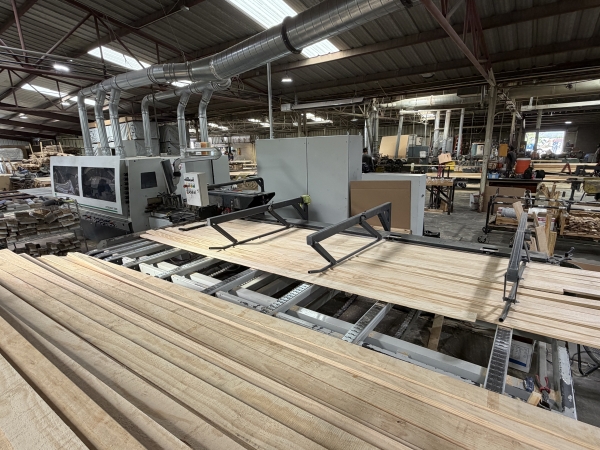

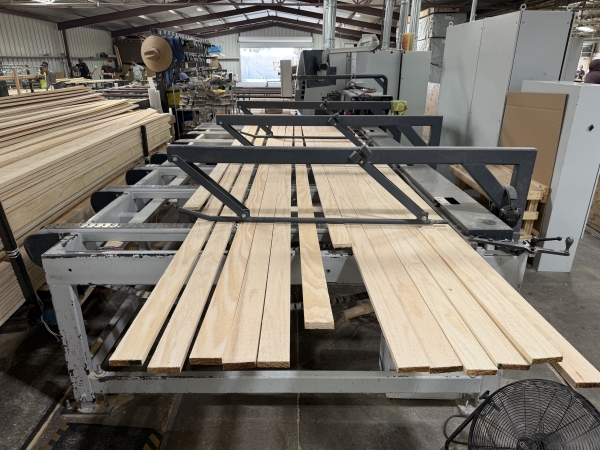

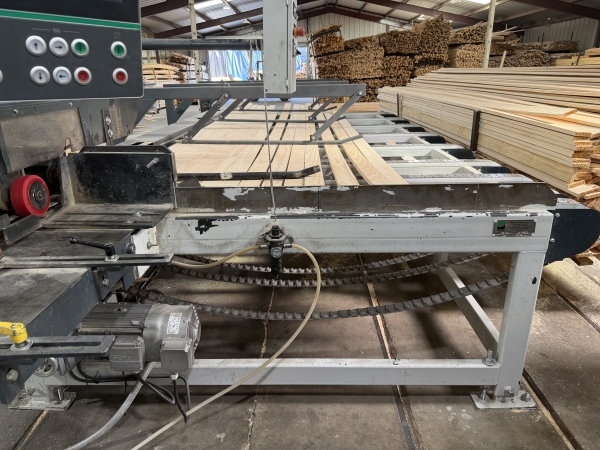

- Weinig Lateral Infeed, Total Deck Size of 13.5' L x 76" Deep

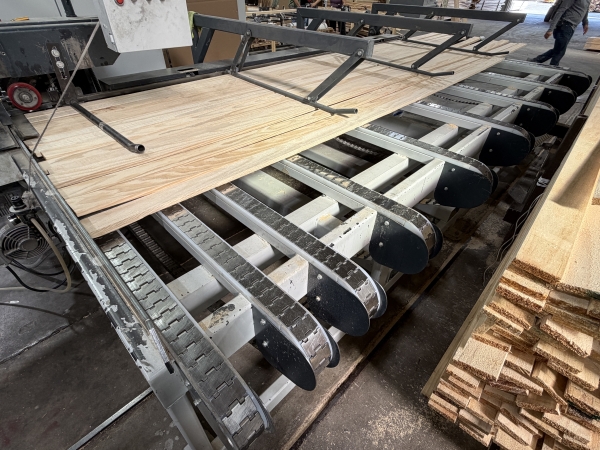

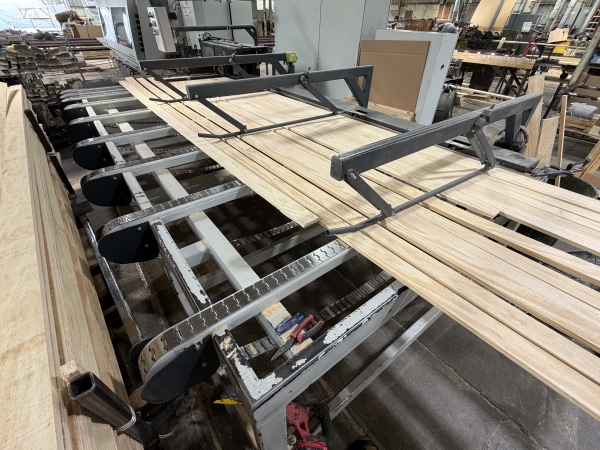

- Nine Steel Chains Spaced at 2", 10", 18", 32", 54", 77", 102", 126" & 154"

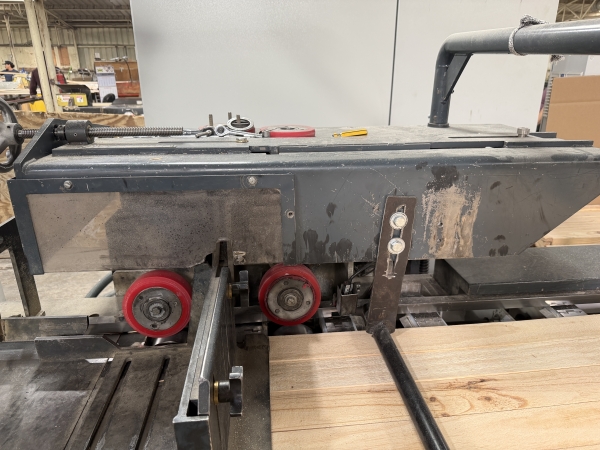

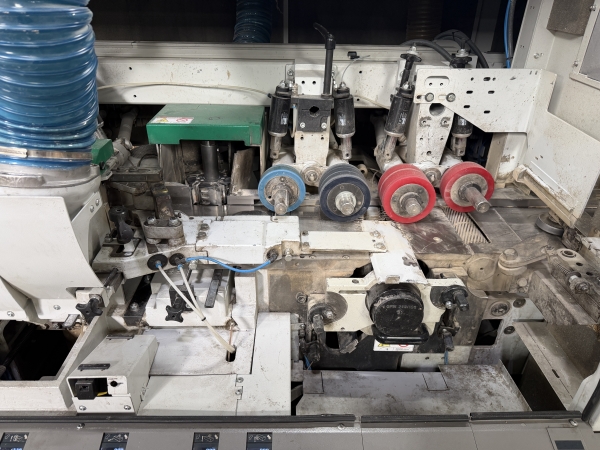

- Two Upper & Lower Pneumatically Actuated Feed Wheels
- Torque Sensing Feature Ensures a Smooth Butt-to-Butt Feed Into the Moulder

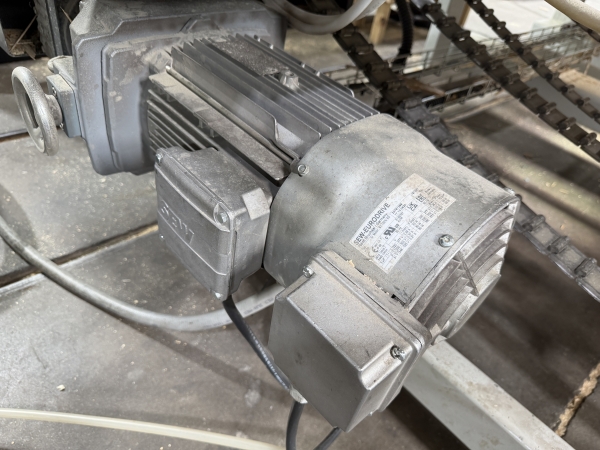

- Electronic Inverter Feed Motor: 5 HP

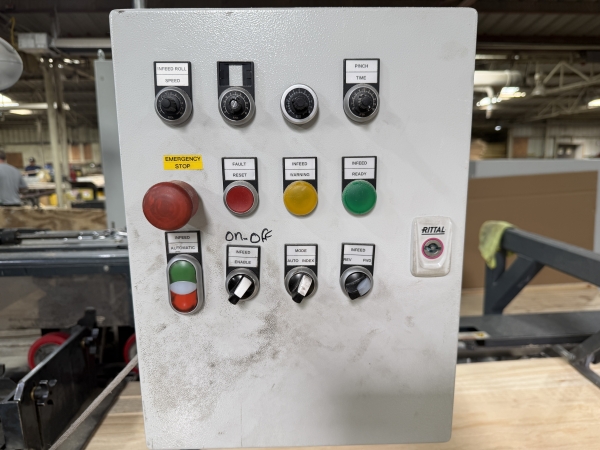

- Swiveling Operator Control
- Lateral Feeder Built in 2024

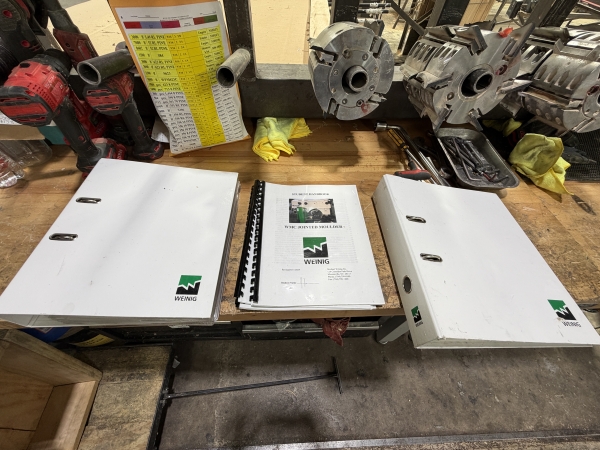

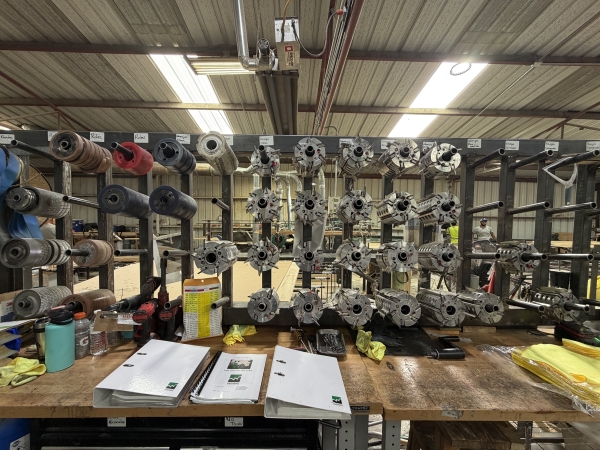

- Includes a Nice Collection of HydroLock Cutterheads: (18) 4" Six-Knife, (6) 4" Four-Knife, (8) 6" Six-Knife, (4) 6" Four-Knife, and (4) 9" Six-Knife

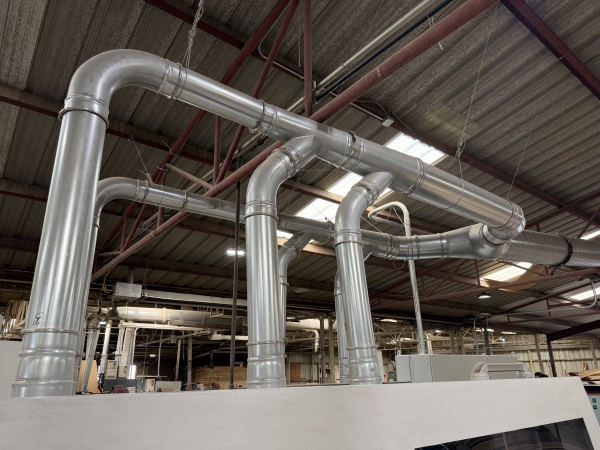

- Dust Collection Manifold can be Included with the Sale of the Machine
- Excellent Machine with Low Hours!
