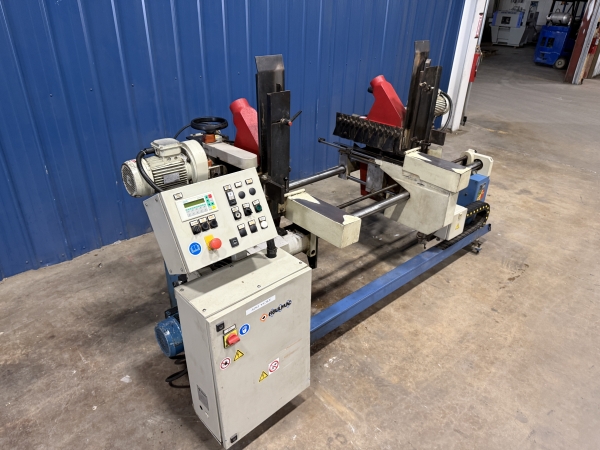

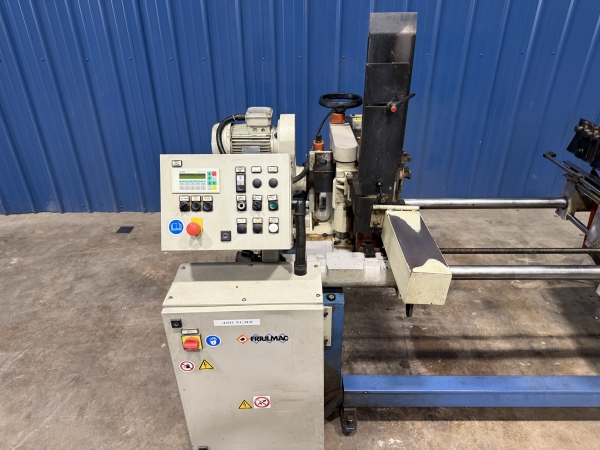

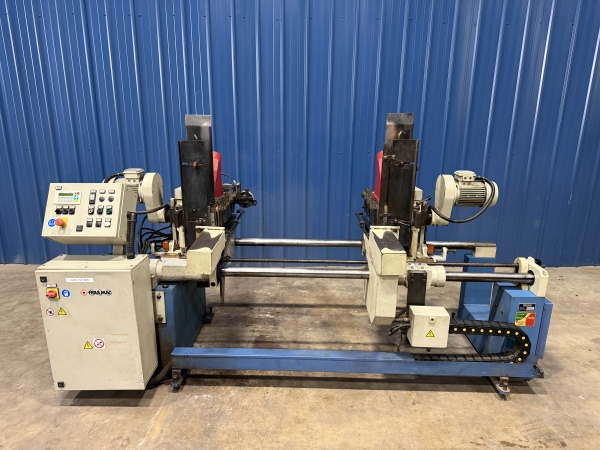

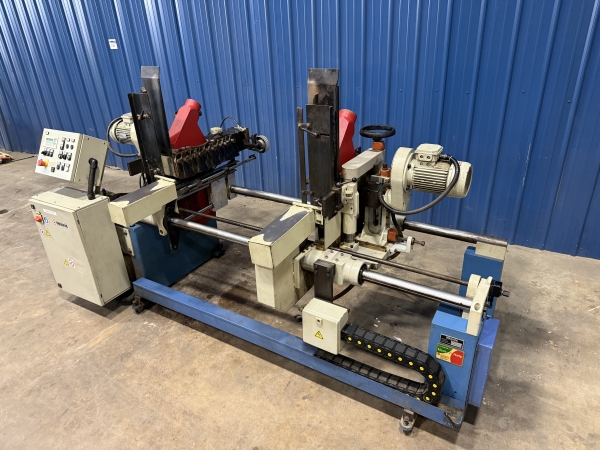

Friulmac Model Dualfeed Double-End Trim and Moulder Feeder
Machine Available
Stock #471003
Used- The Dualfeed Precision End Trims Work Pieces and Automatically Feeds Them to a Moulder

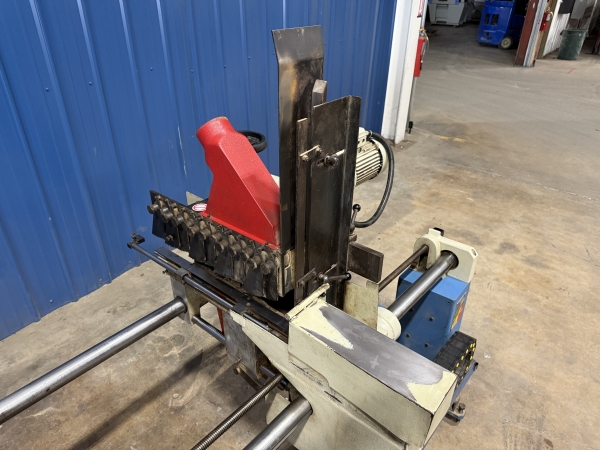

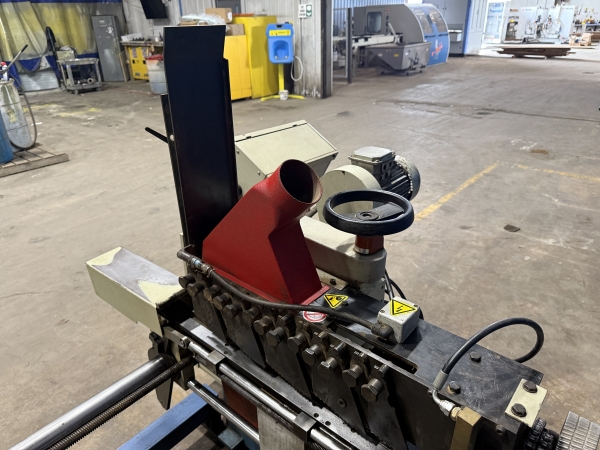

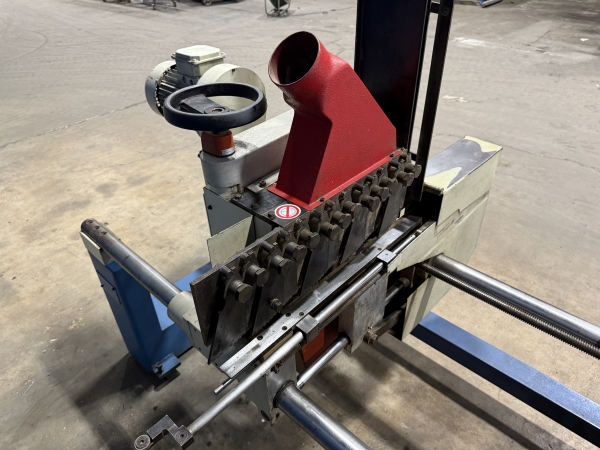

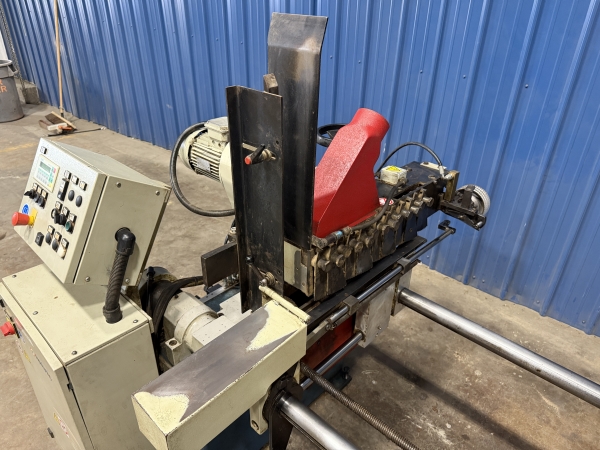

- Work pieces vertical hopper-feeder, adjustable in width, provided with pneumatic equalizer for the correct positioning of the parts before the entrance into the working stations; max. tolerance allowed in the work pieces length: 70 mm

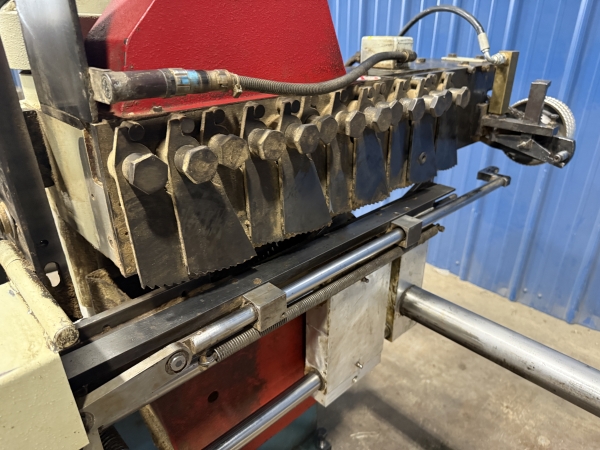

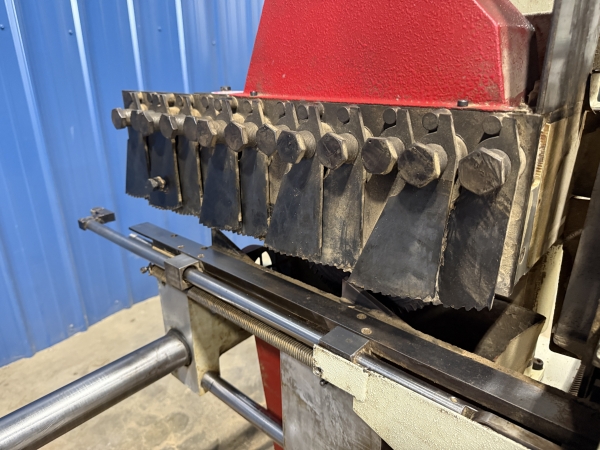

- Work Pieces is Advanced via Pusher Arms Hydraulically driven

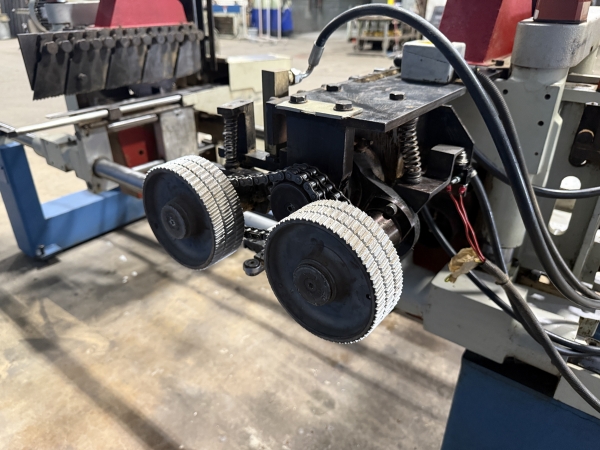

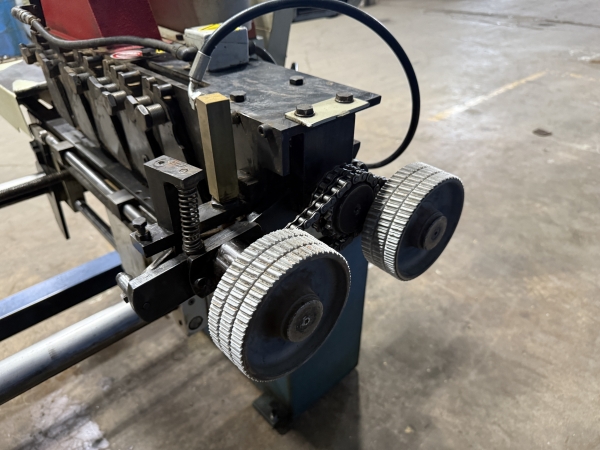

- Work Pieces by Two Rollers driven by Hydraulic Motor
- Working Length: 7.87” - 59" (200 - 1500mm)
- Working Width: 1.18” - 4.33" (30 - 110mm)
- Working Thickness: 0.59” - 2.37” (15 - 60mm)

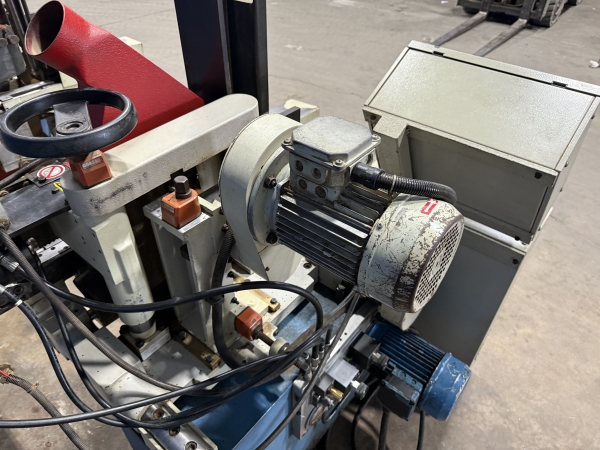

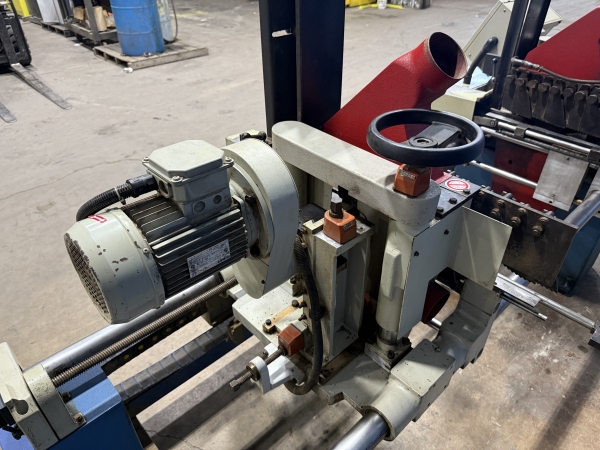

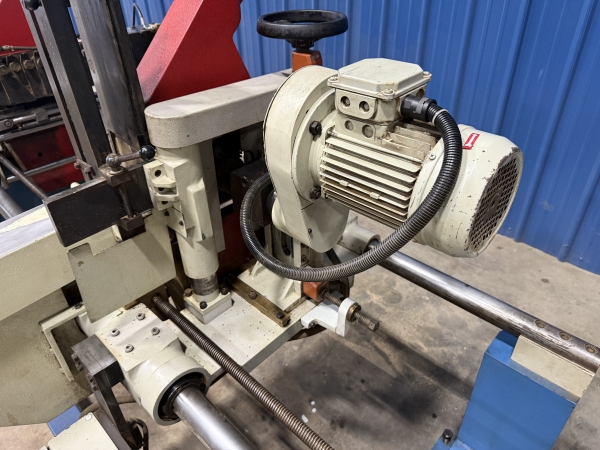

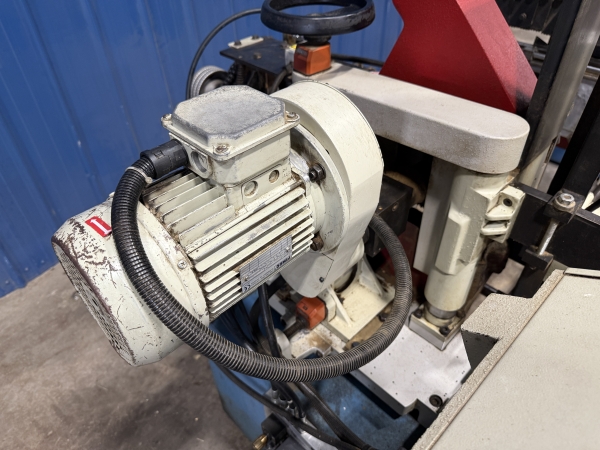

- Two Trim Saw Motors: 4HP (3kW) Each
- Blade Diameters: 250mm
- Blade Bore: 30mm
- Hopper Fed

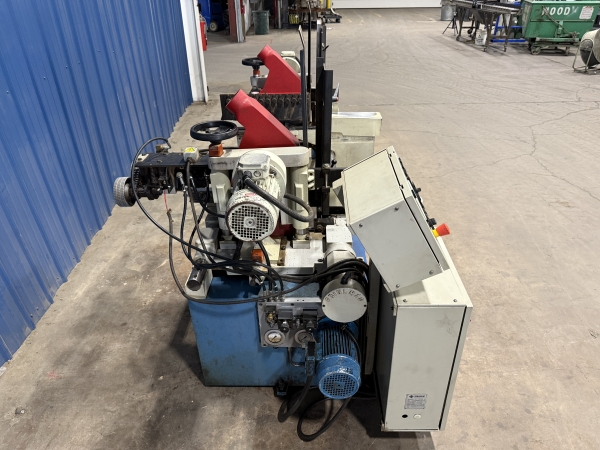

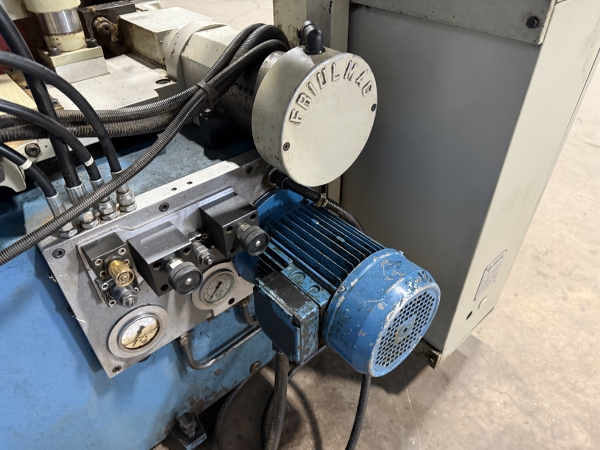

- Hydraulic Feed Unit: 3 HP
- Motorized Open/Close
- Maximum Production Capacity: 40pcs/min

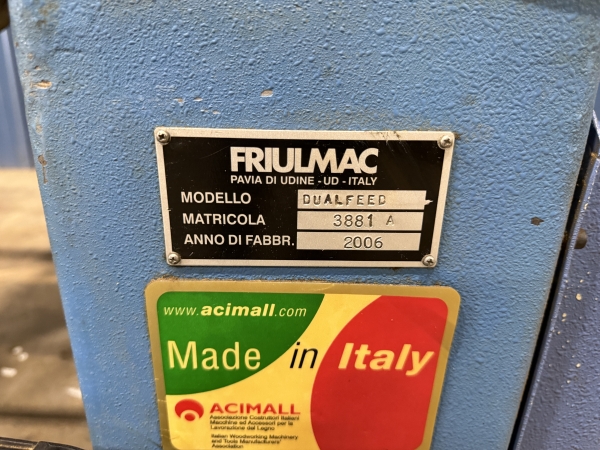

- 2006 Machine
- Serial No. 3881A
