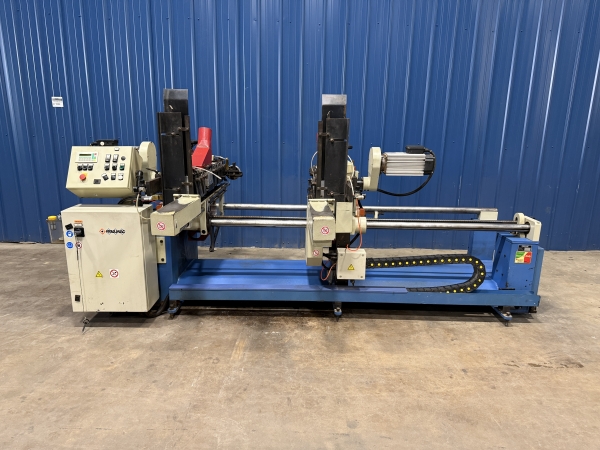

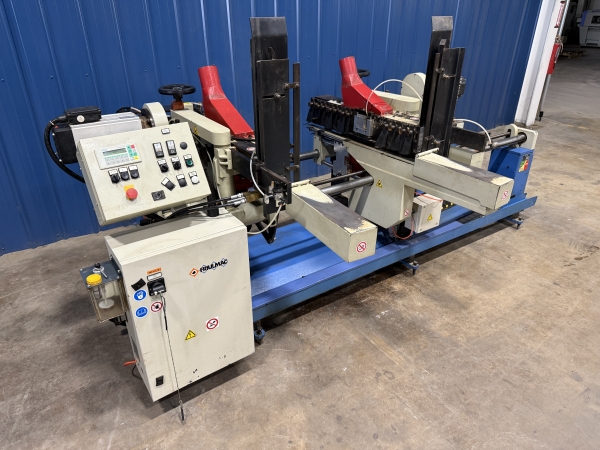

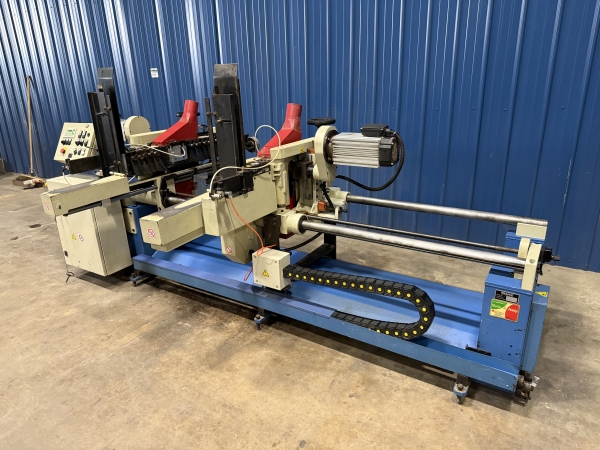

Friulmac Model Dualfeed Double-End Trim and Moulder Feeder
Machine Available
Stock #471004
Used- The Dualfeed Precision End Trims Work Pieces and Automatically Feeds Them to a Moulder
- Work pieces vertical hopper-feeder, adjustable in width, provided with pneumatic equalizer for the correct positioning of the parts before the entrance into the working stations; max. tolerance allowed in the work pieces length: 70 mm
- Work Pieces is Advanced via Pusher Arms Hydraulically driven

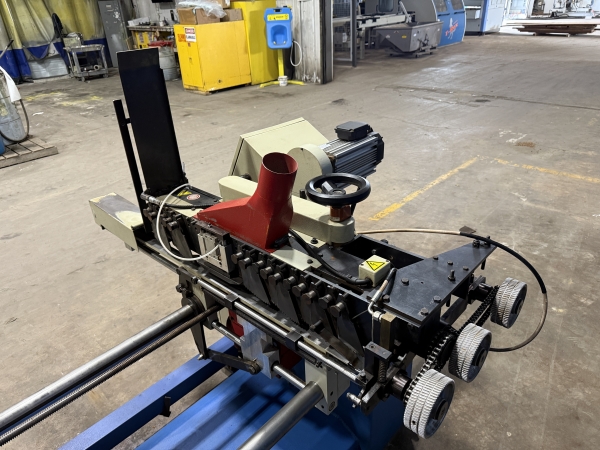

- Work Pieces by Three Rollers driven by Hydraulic Motor
- Working Length: 7.87" - 78" (200 - 2000mm)
- Working Width: 1.18" - 9.05 " (30 - 230mm)
- Working Thickness: 0.59" - 2.36" (15 - 60mm)
- Two Trim Saw Motors: 5.36 HP Each
- Blade Diameters: 250 mm
- Blade Bore: 30mm
- Hopper Fed

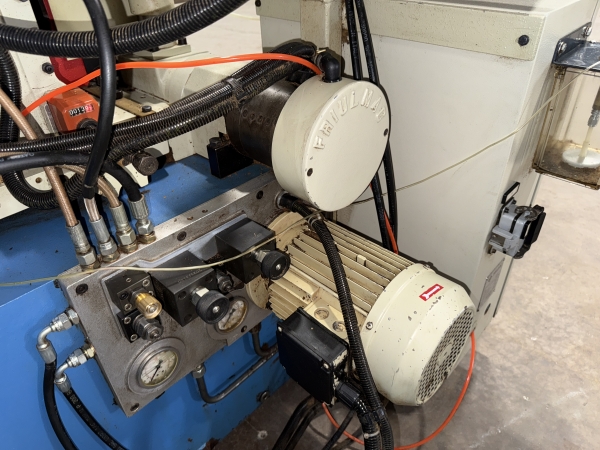

- Hydraulic Feed Unit: 4 HP
- Motorized Open/Close
- Maximum Production Capacity: 40pcs/min
- Serial No. 3956A
