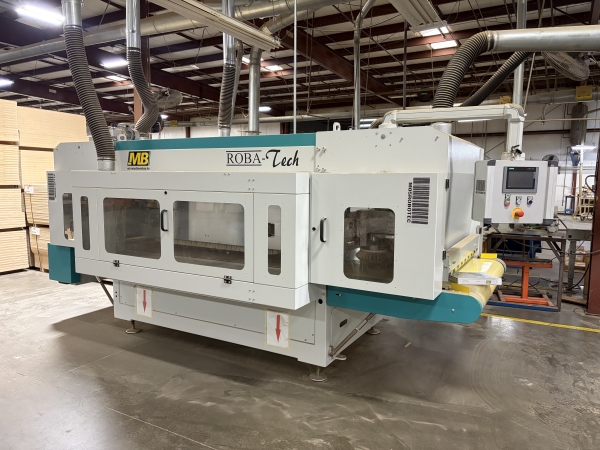

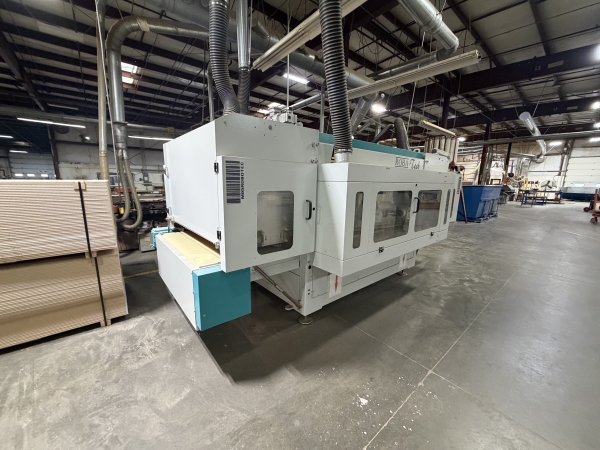

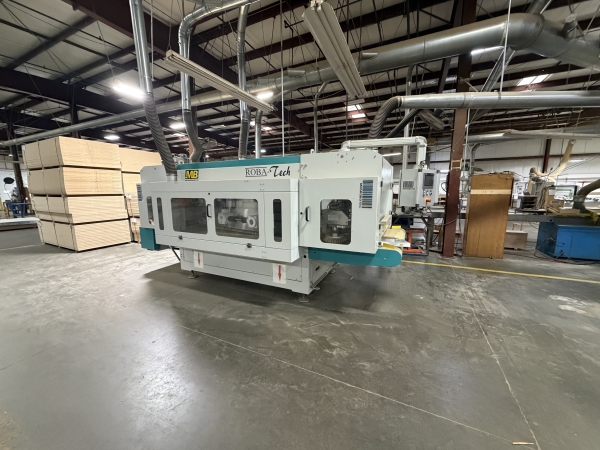

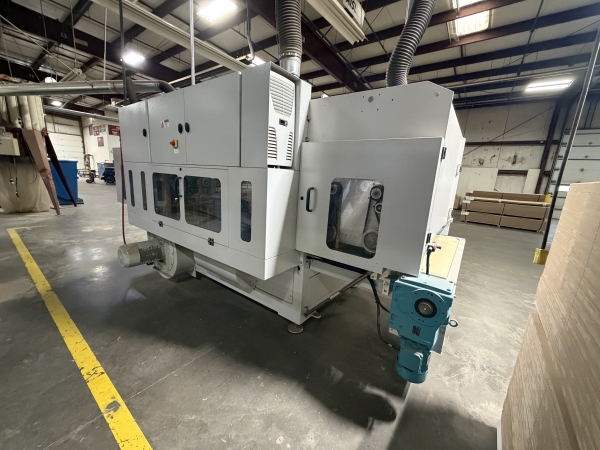

MB ROBA Tech Model RT13-D4-RT-DB Surface Sanding Machine
Machine Available
Stock #62206
Used- Model RT13-D4-RT-DB Surface Sanding Machine
- Feed Belt: 1300mm (51") Working Width
- Feed Speeds: 3.5-12m/min (11.5-36FPM)
- Vacuum Bed System with Cleaning Brush for Conveyor Belt
- Head Configuration:

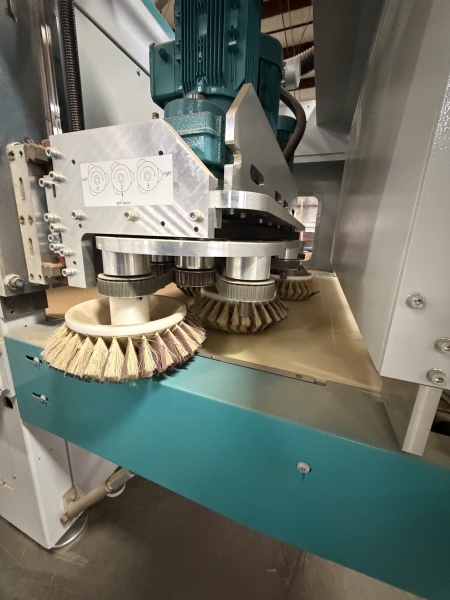

- First Head is: Roba Profi Disc sanding aggregate D4, 3 Pcs Master Disc, each equipped with 2 or 4 disc tools, Electronic Speed Regulation for the Disc Tools, Pneumatic Oscillation of the Whole Sanding Unit.
- Drive Motor of Rotaion Unit .75KW
- Three (3) Drive Motors For Disc Tools 1.5KW Each
- Equipped with Six(6) Conical 45 Disc Tools with 30 Keyways
- Second Head is: Rotational Brush Belt Sanding Aggregate Consisting of:
- Plug-in receptacle System for Equipping 174 Sanding Segments
- Drive Moto 5.5KW
- Sanding Speed 30-140 m/min Infinitely Variable

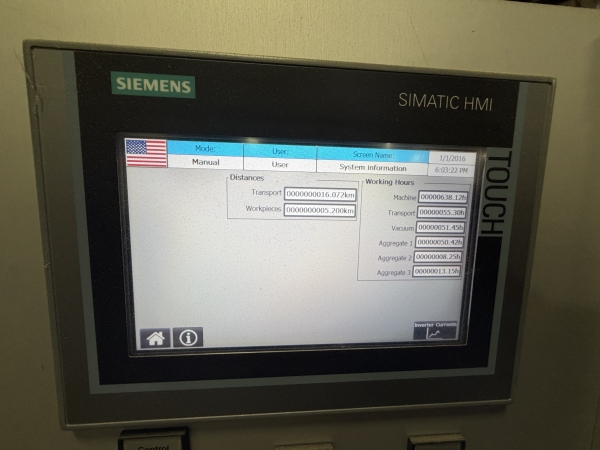

- Programmable Control for Different Sanding Procedures:
- a) Oscillation with free selectable oscillation angles between 10 degrees to 45 degrees for opposed sanding against feed direction
- b) 360 degree rotation of the main sanding belt with automated adjustment to the feed speed
- c) Belt sanding function for opposed sanding against the feed direction

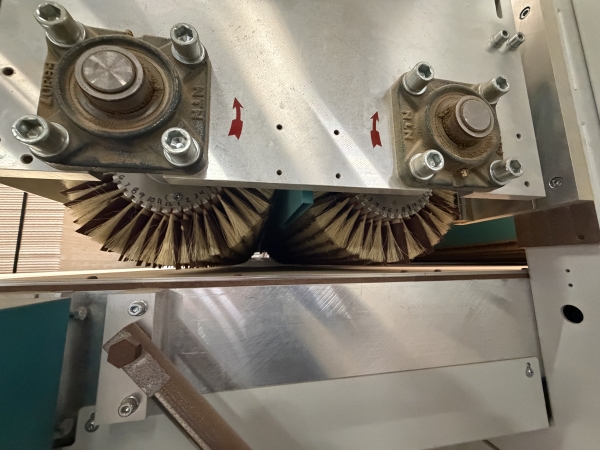

- Third Head is: Double brush sanding aggregate
- Sanding direction: synchronous-rotational and counter-rotational
- Brush diameter: 310 mm
- Brush width: 1320 mm
- Drive: 2 Motors, 1.1 KW Each infinitely variable between 300 - 700 rpm

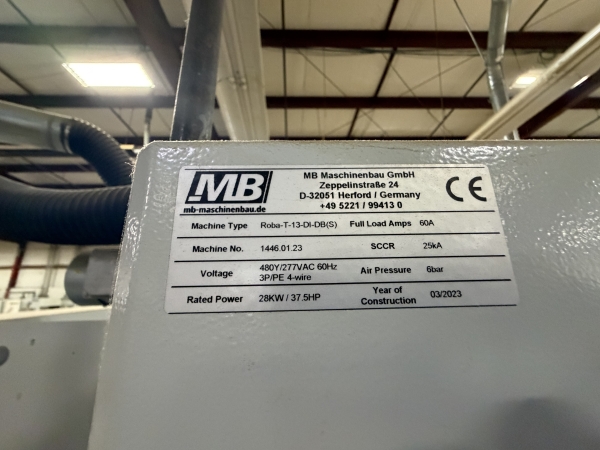

- Serial No. 1466.01.23
- NEW IN 2023
