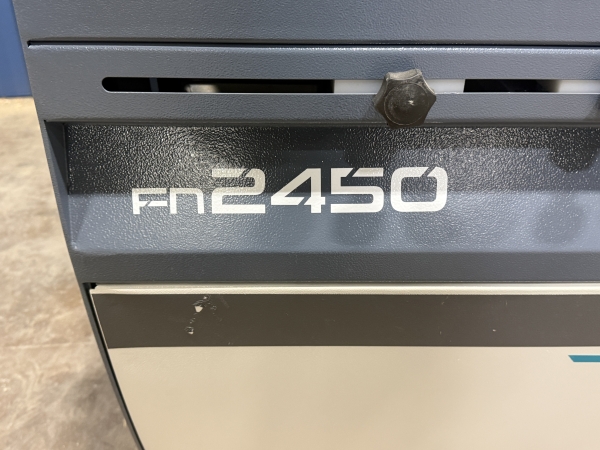

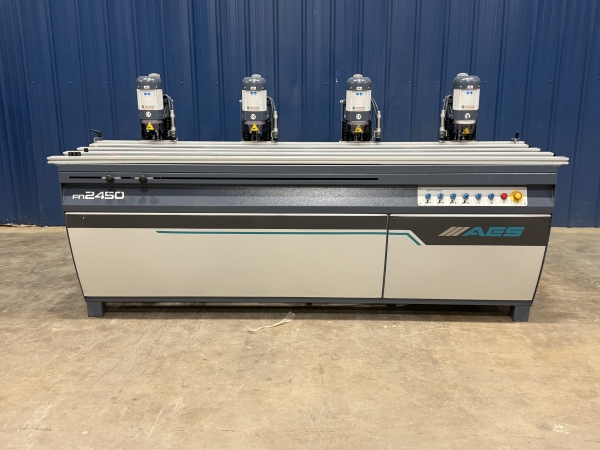

AES Model FN 2450 Multi-Head Hinge Boring Machine

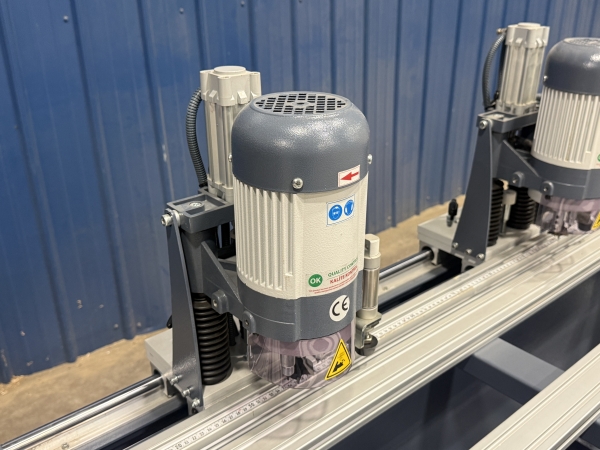

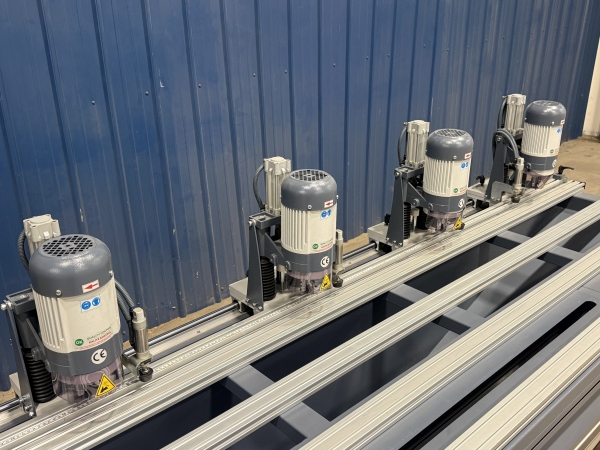

• The FN 2450 is a 4 head hinge and handle slot drilling machine used for drilling 4 hinge holes, reference holes, and handle slots simultaneously on wooden materials with precise pneumatic motion.

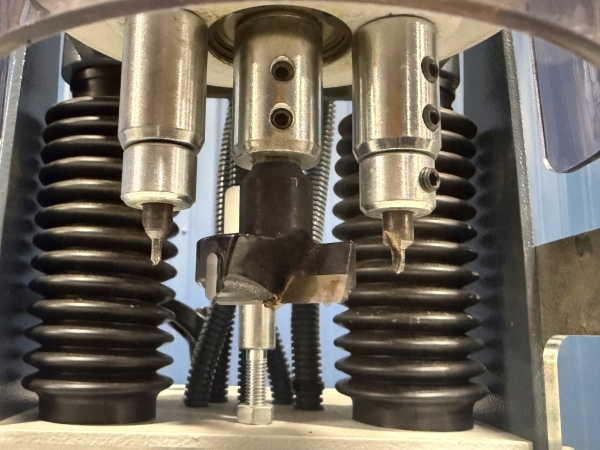

• 4 cup bits, 35mm
• 8 screw reference bits, 2mm
• 2 bits for handle slots

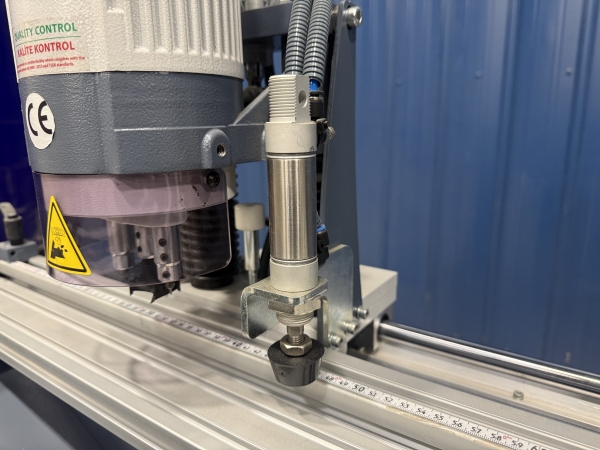

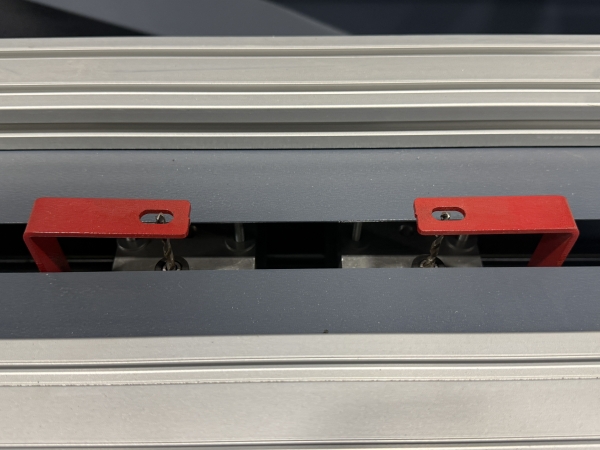

• 4 pneumatic vertical clamps

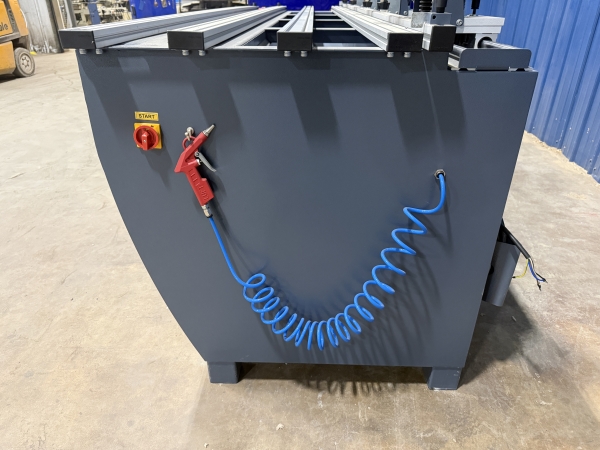

• Airgun

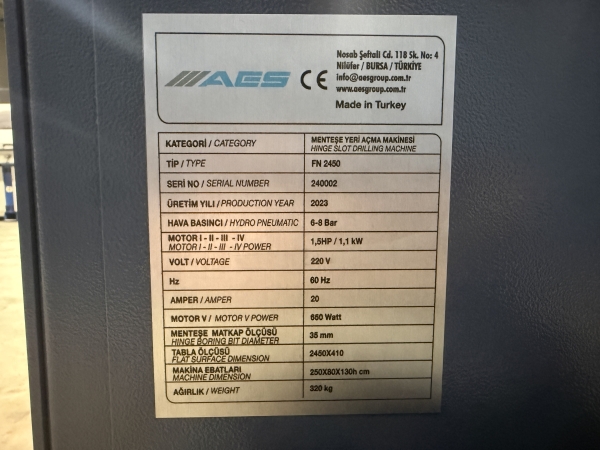

• Electrical: 220V, 60Hz, 20A

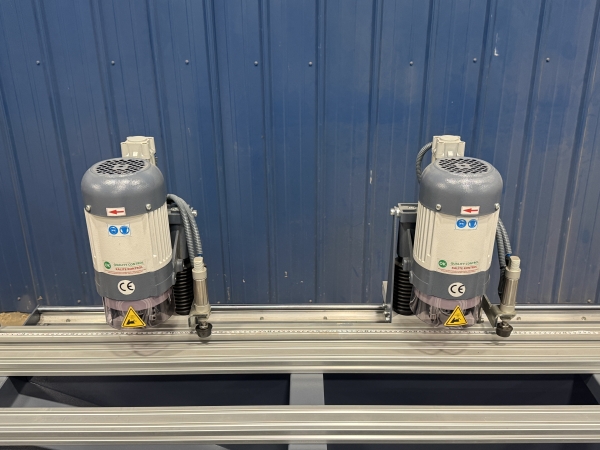

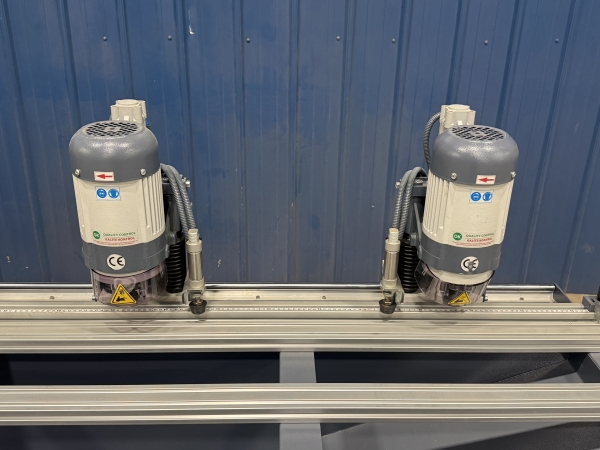

• Motors 1,2,3,4: 1.5 HP (1.1 kW)
• Motor 5: 650 W
• Table Size: 2450 x 410 mm
• Air Requirement: 6/8 Bar
• Weight: 320 kg
