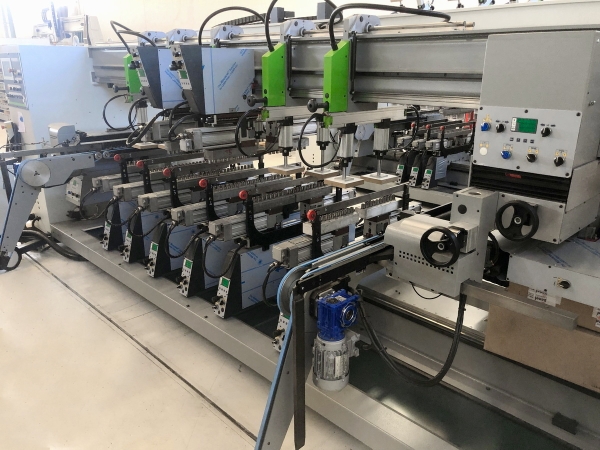

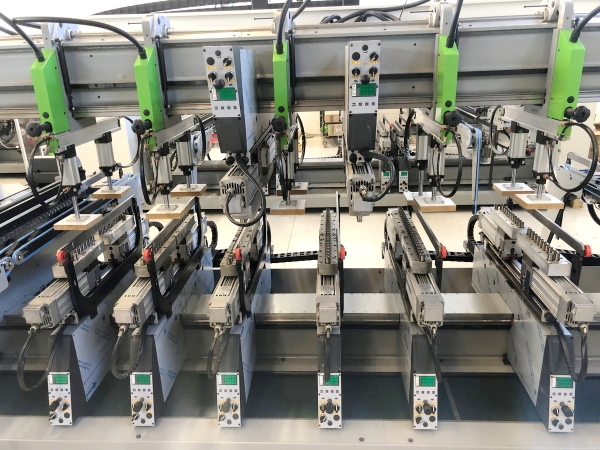

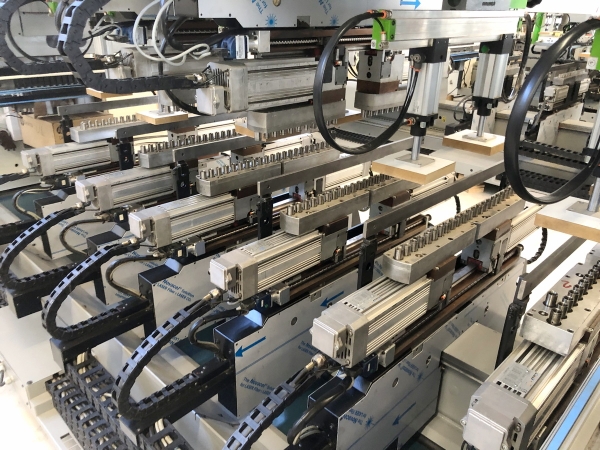

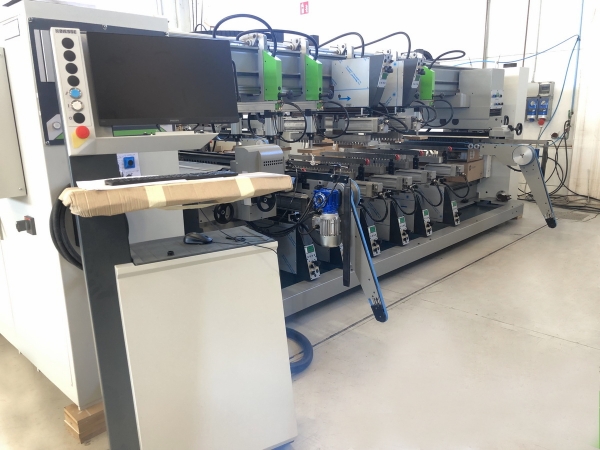

Biesse Model Techno FDT Automatic Thru-Feed Drilling Machine
Machine Available
Stock #2137
Used- Numerical Control Type NC 400
- Through-feed motorized conveyoring belts (No.) 2
- No. 2 Horizontal units/supports
- Drilling heads for each horizontal unit (N°) 2
- Splindles for each horizontal drilling head (N°) 11
- Max. working width (mm) 3200
- Min. working width (mm) 205 (ca.)
- No. 6 Bottom vertical units/supports
- Drilling heads/blocks for each bottom vertical unit (N°) 2
- No. 2 Top vertical units/supports
- Drilling heads/block for each top vertical unit (N°) 2
- Vertical top pressure clamps (N°) 5
- Transport belt to evacute chips (wastes)
- Digital quota (axes) display
- Total installed power (Kw) 59,1
- The CNC controls the movement (X axe) of the mobile horizontal unit
- The CNC controls the movement (Y axe) of the stops
