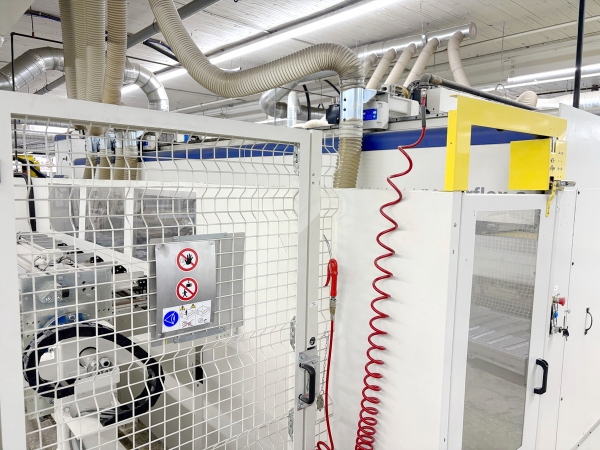

SCM Model PowerFlex + Brush Automatic Boring Line

• Flexible CNC pass-through drilling line
• Width of Workable Panels (X-axis) with PWX S: 250 /3000 mm (min/max)
• Thickness of Workable Panels (Z-axis) wih PWX S: 12 / 60 mm (min/max)
• Length-depth of Workable Panels (Y-axis) with PWX S: 100 /1200 mm (min/max) or 600+600

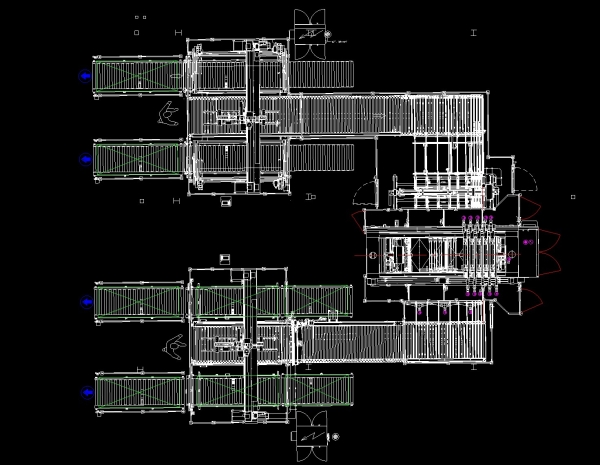

  Complete line components:

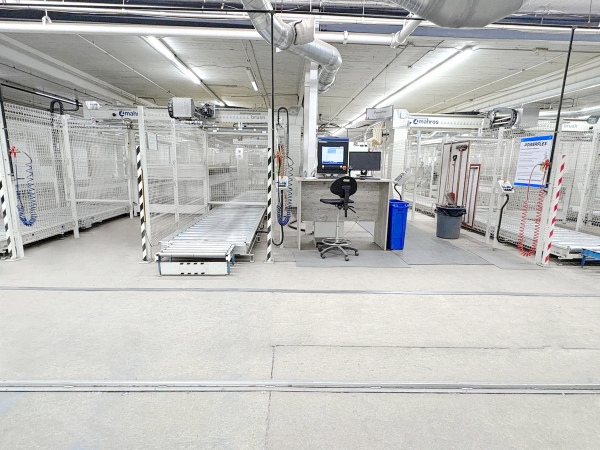

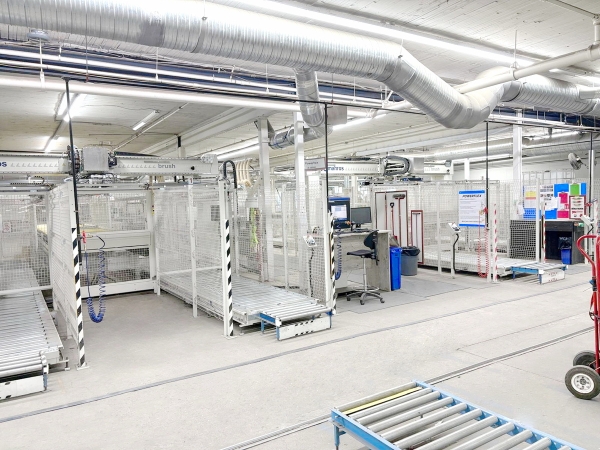

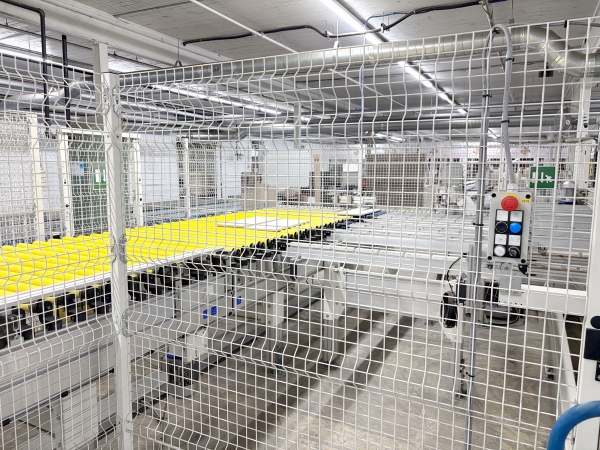

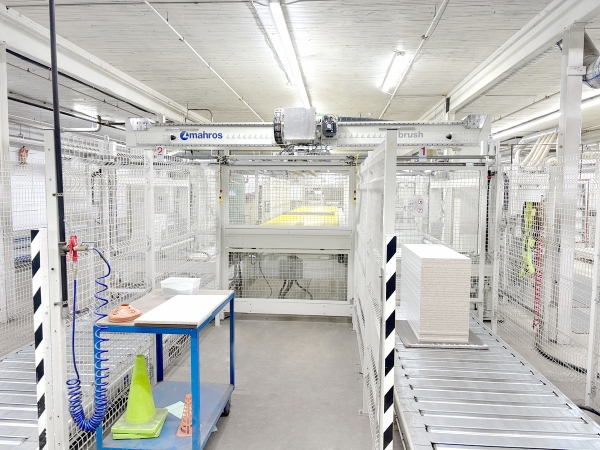

• Mahros Mod. Brush CDL bridge loader, double station

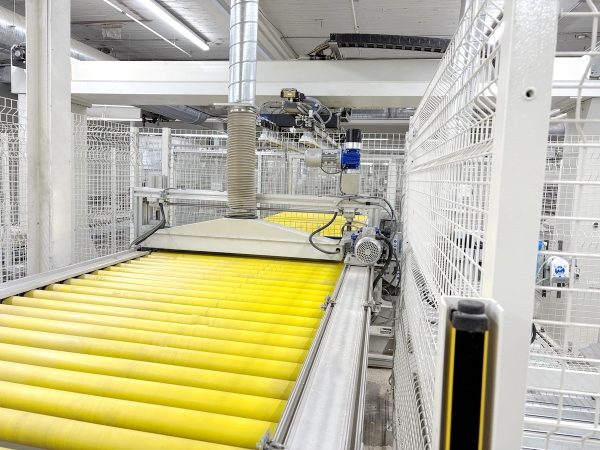

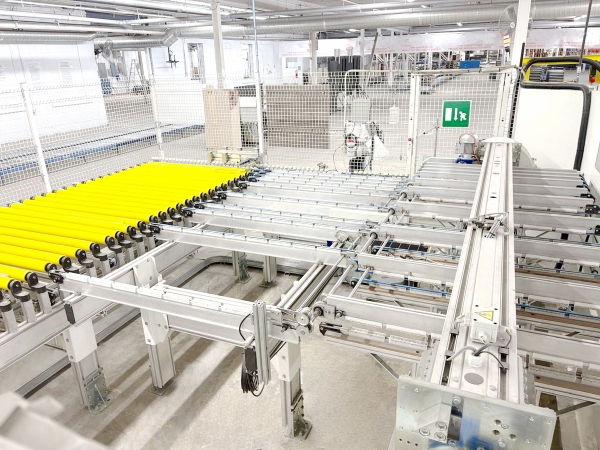

• Mahros motorized roller conveyor with 90° motorized belts (from longitudinal to transversal)

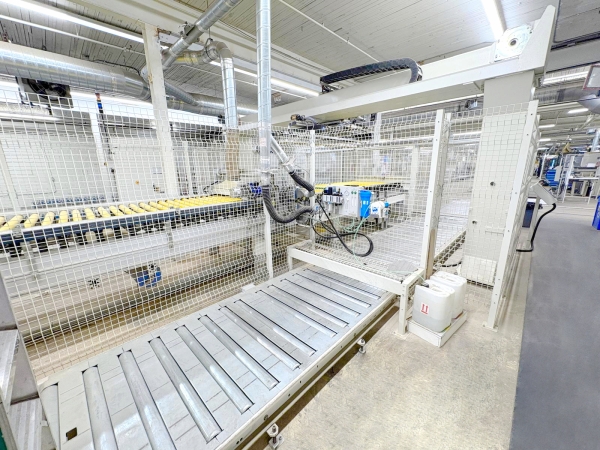

• Mahros Mod. Rib/C HS/C connection transfer, with tilter (180°)

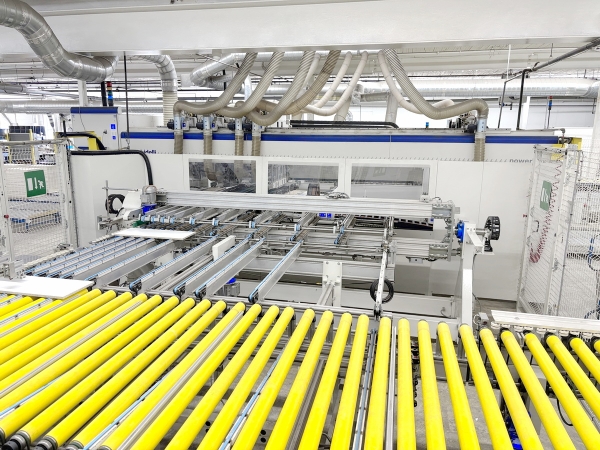

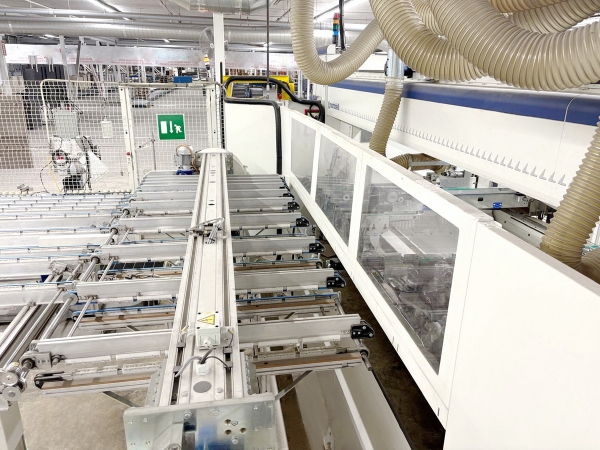

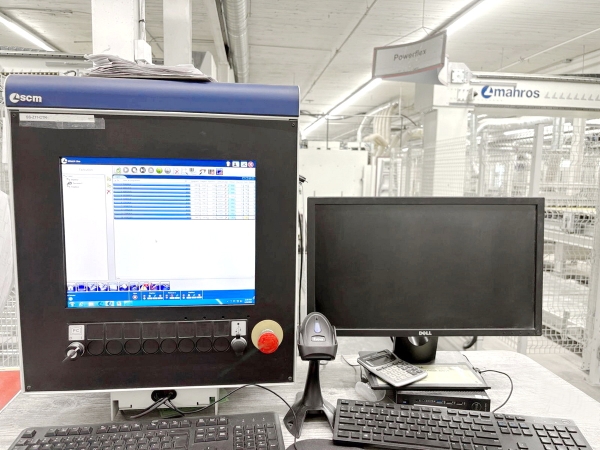

• Morbidelli PowerFlex (PWX) S Portal CNC drilling machine
• Mahros motorized roller conveyor with 90° motorized belts (from longitudinal to transversal)
• Mahros Mod. Brush SDL bridge unloader, double station, with Wandres panel cleaner

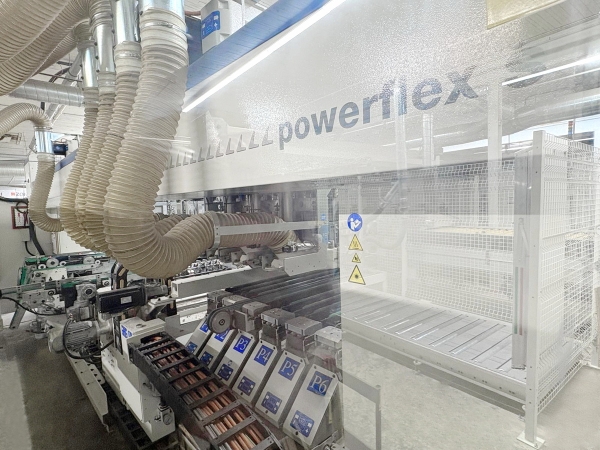

  Morbidelli PowerFlex (PWX) S Portal CNC drilling machine:

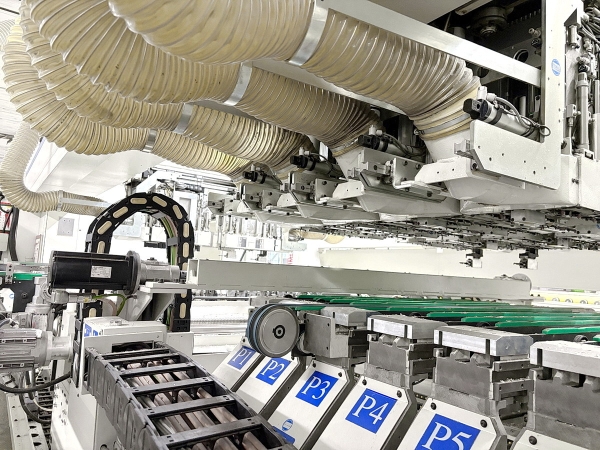

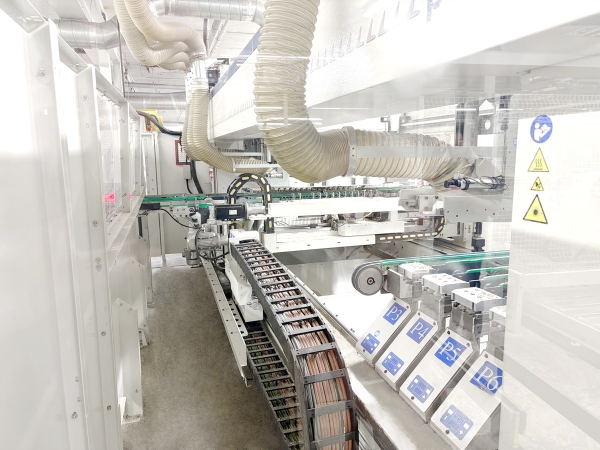

• No. 6 mobile CNC consoles (workbenches) on X-axis
• No. 4 upper work groups
• No. 2 horizontal work groups (1 R+1 L) with 1 head with 21 spindles (21 + 21 = total 42)
  These machines are offered as a complete package and part of a plant liquidation. Call for details.
