SCM Model PowerFlex + Brush + SPL Automatic Boring Line
Machine Available
Stock #201680
Used- Flexible CNC pass-through line for drilling and cutting (splitting):
- Width of Workable Panels (X-axis) with PWX100: 250 / 3000 mm (min/max)
- Thickness of Workable Panels (Z-axis) with PWX100: 12 /60 mm (min/max)
- Length-depth of Workable Panels (Y-axis) with PWX100: 100 / 1200 mm (min/max) or (600 + 600)

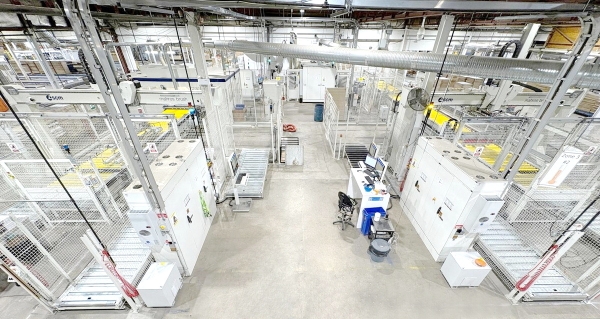

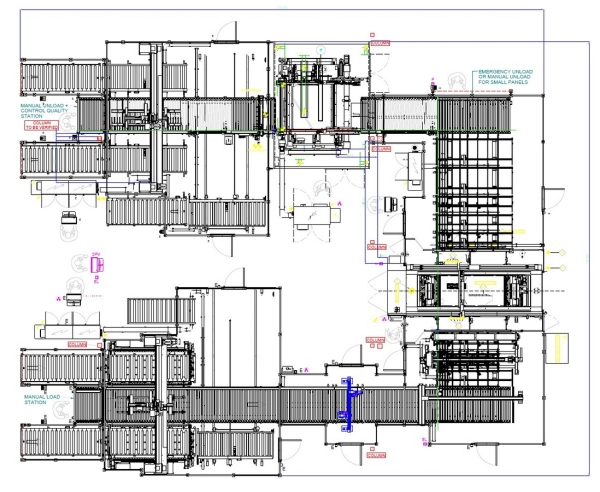

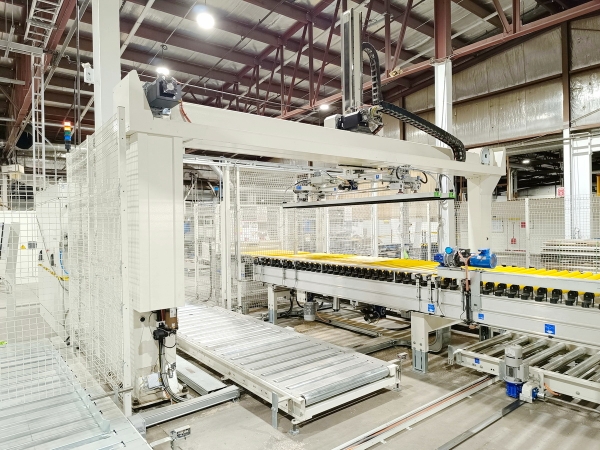

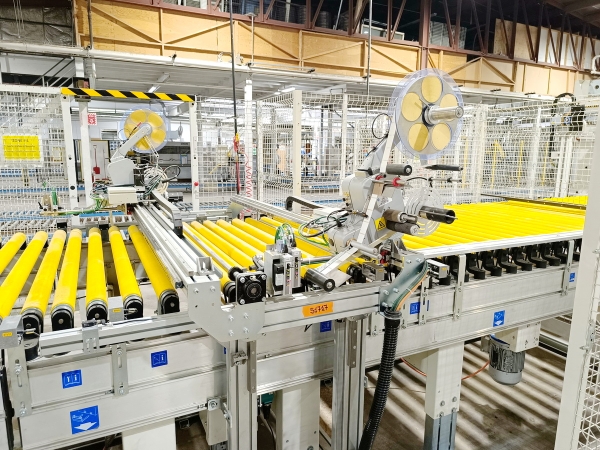

Complete line components: - Mahros bridge loader, double station Mod. Brush CF-SX/D (with automatic management system for the martyr panels) and with double Weber labeler

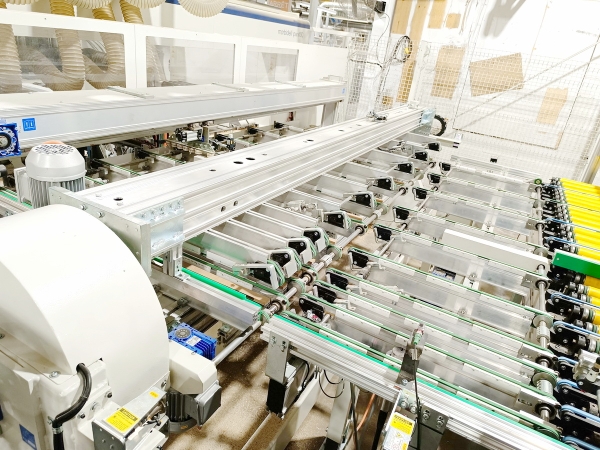

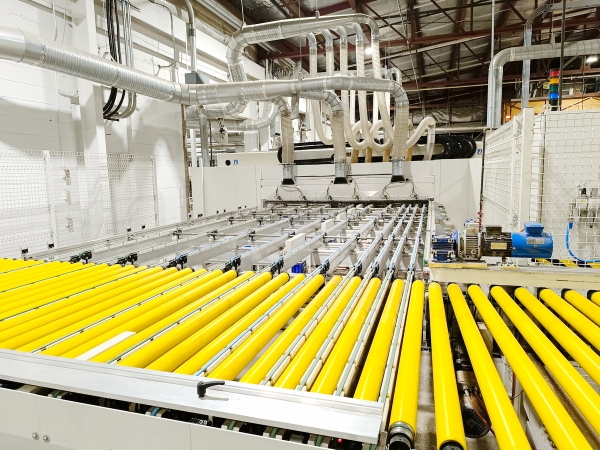

- Mahros LS motorized roller conveyor with 90° motorized belts (from longitudinal to transversal)

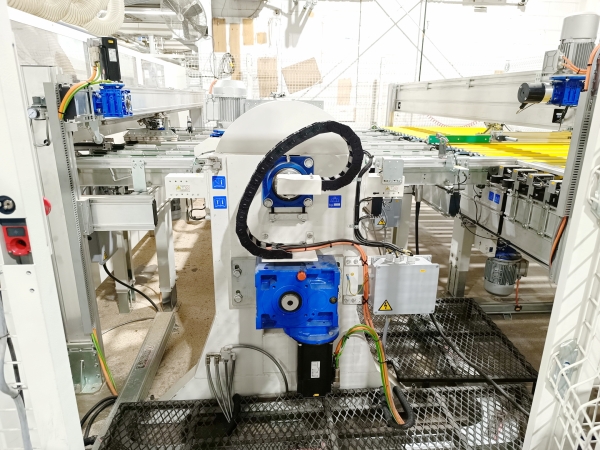

- Mahros Mod. Rib/C HS-C connection transfer with tipper (180°)

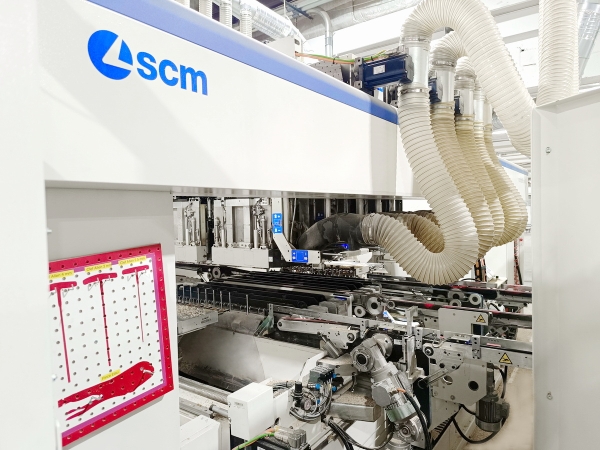

- Morbidelli PowerFlex (PWX) 100 Portal CNC drilling machine

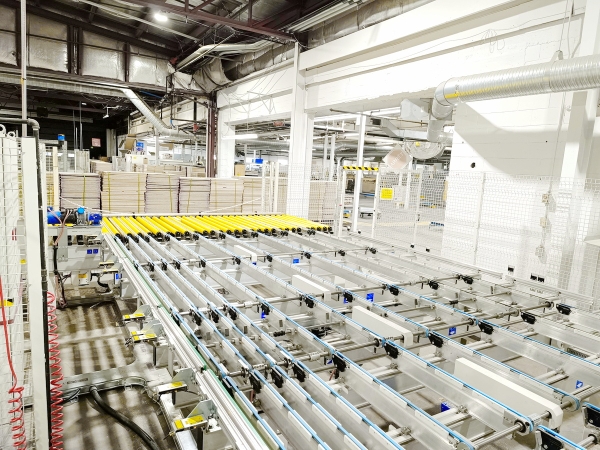

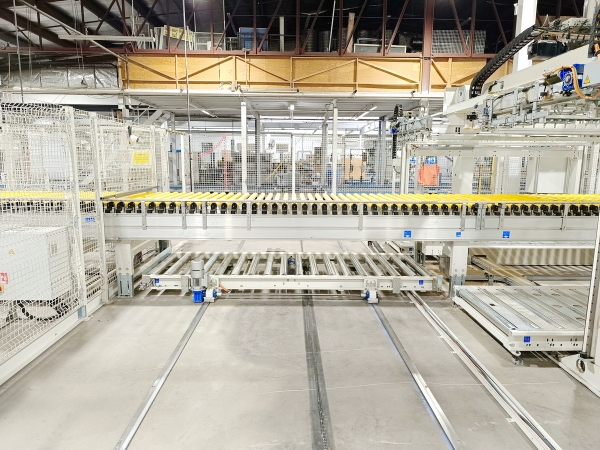

- Mahros Mod. TR-C motorized roller conveyor with 90° motorized belts (from longitudinal to transversal)

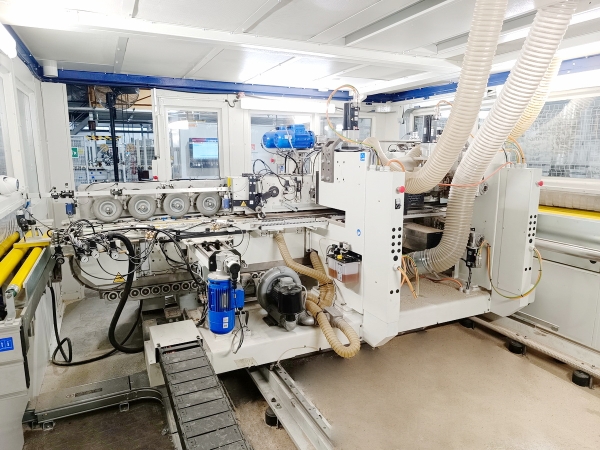

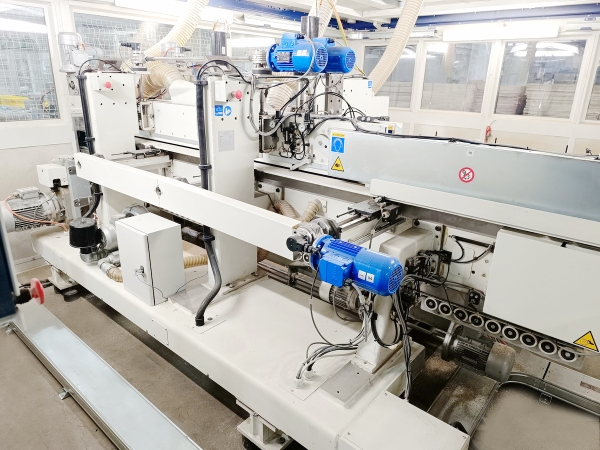

- Celaschi Mod. SPL Base 2 (for dividing panels into 2) splitter (longitudinal cutting)with 3 working groups. After cutting, panel width (Min 70+70, Max 600+600 mm)

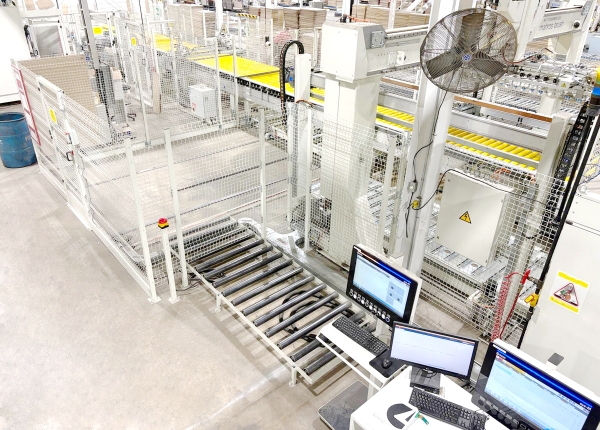

- Mahros bridge unloader, double station Mod. Brush SSL/D (with automatic management system for martyr panels) with Wandres panel cleaner
Morbidelli PowerFlex (PWX) 100 Portal CNC: - No. 5 mobile NC consoles (workbenches) on X-axis

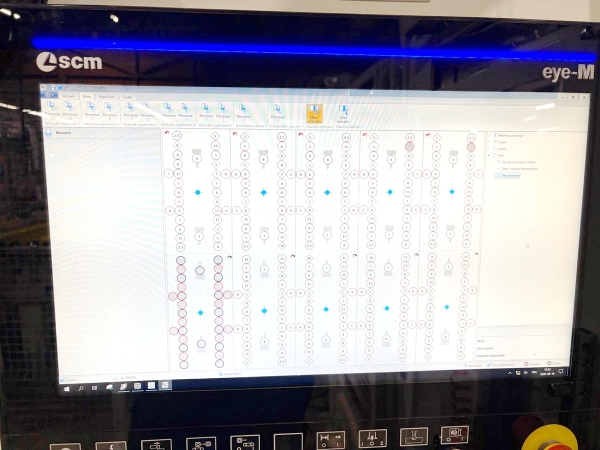

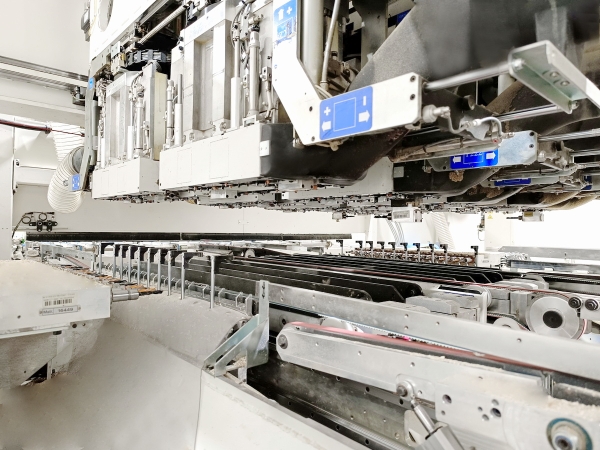

- No. 5 upper drilling groups B, each composed of 2 heads with 30 vertical spindles (total 60 per group) rotating 0-90° (X and Y axes), and 2 horizontal spindles (total 4 per group) rotating 0-90° (X and Y axes), and 2 horizontal groups (1 R+1 L) with 1 head with 21 spindles (21 + 21 = total 42)
- Total 300 vertical spindles + Total 20 horizontal drilling spindle (X and Y)
These machines are offered as a complete package and part of a plant liquidation. Call for details.
