Mereen-Johnson 524-DC/SR4-J Moveable Arbor Gang Rip Saw w/ Scout 16' Optimizing Infeed
Machine Available
Stock #201624

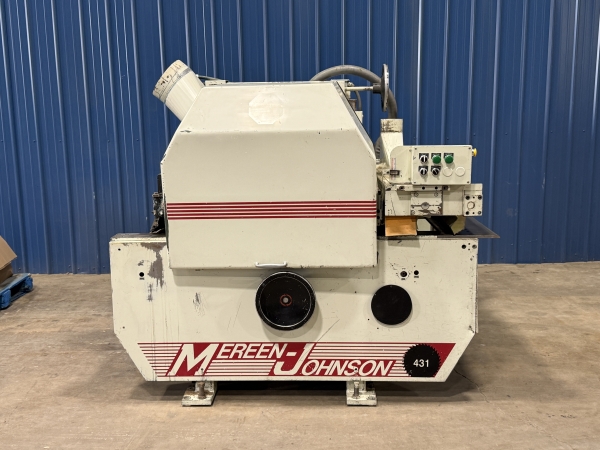

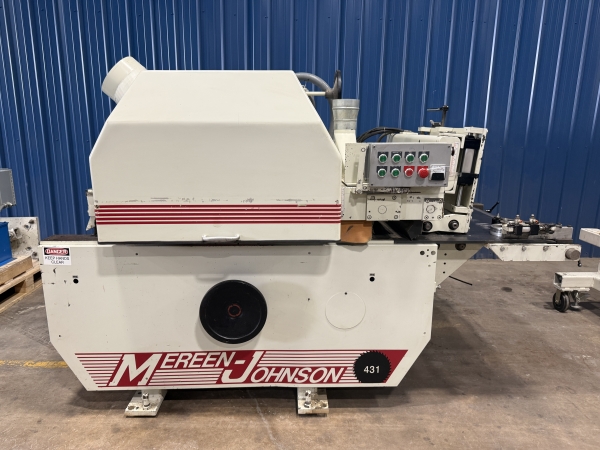

Used- Mereen-Johnson Model 524-DC/SR4-J Moveable Arbor Gang Rip Saw w/ Scout 16' Optimizing Infeed
- 75HP Arbor Motor - 3600RPM
- Arbor size: 2-9/16" x 24" w/ 1/2"x1/8" Double Keyway
- Cutting Thickness: 1-3/4" w/ 12" Blade, 2-3/4" w/ 14" Blade
- Top/Bottom Anti-Kickback Fingers
- (4) 4" Pneumatic Hold-down Rolls (#1#2,and #4 - Smooth Steel, #3 - Rubber Covered
- Dust Collection: 10" Main, 5" Anti-Kickback, 5" Lower

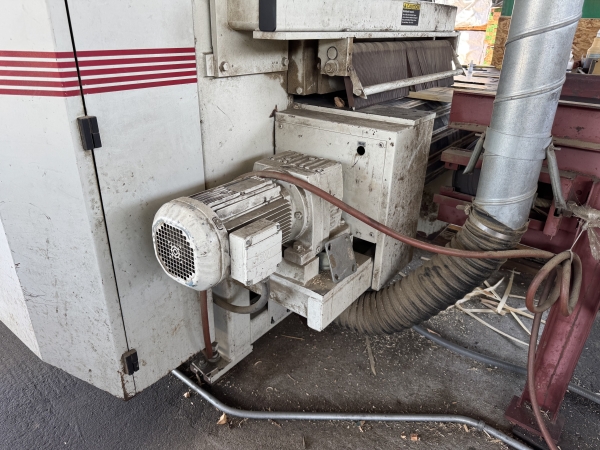

- 3hp Feed Motor - 30-235 FPM
- Mereen-Johnson Model PT-255-LP-SC Power Table

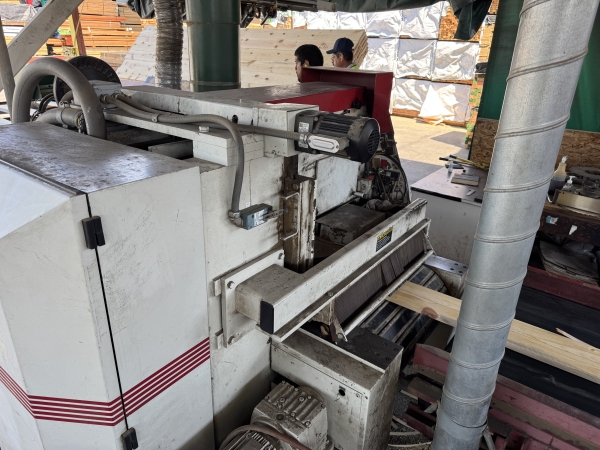

- Infeed Nip Roll Assembly
- Width Capacity: 25.50"
- 6" Throat Capacity
- 1st Upper Roll: 4" (Pneumatic) / 2nd Upper Roll: 2-1/2" (Pneumatic)
- (2) 4" Bottom Rolls
- Feed Speed: 30-235 FPM

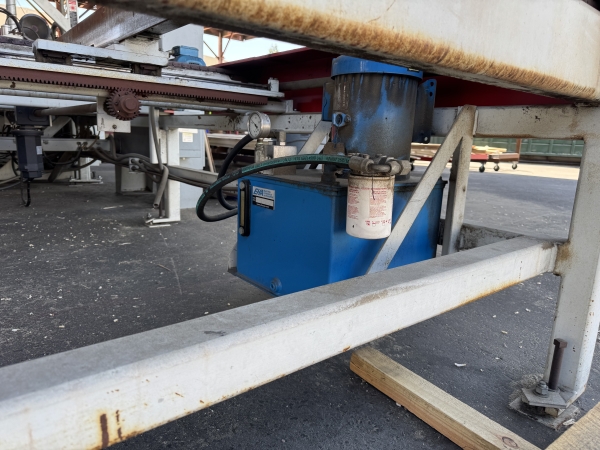

- 3HP Hydraulic Unit

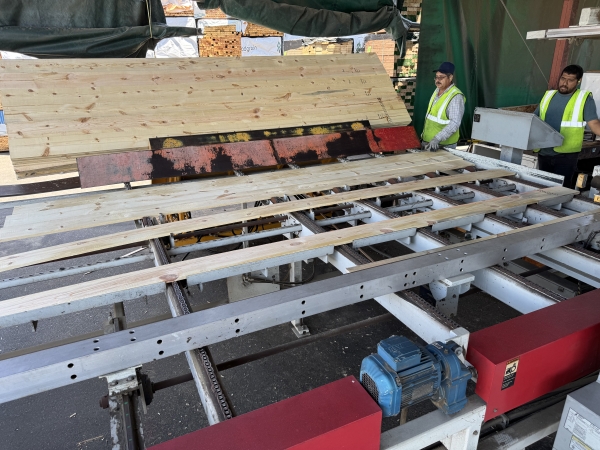

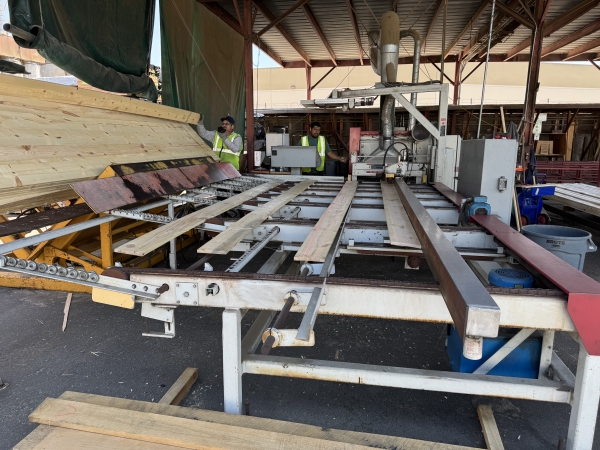

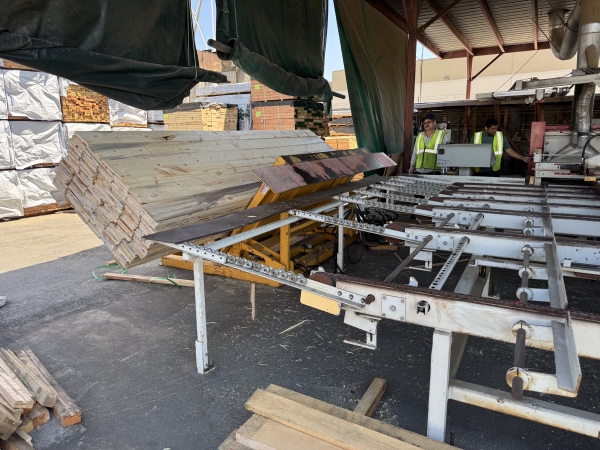

- Mereen-Johnson Rip Navigator 16' Scout Deck
- Min/ Max Board Length: 30" / 17'6"
- 12" Landing Shelf attached to 36" Arms with 1-15/16 skate Wheels
- (7) Chain Beams with #60 Flat-top Roller Chains
- Max Feed Speed: 111 FPM
- Feed Motor: 2HP

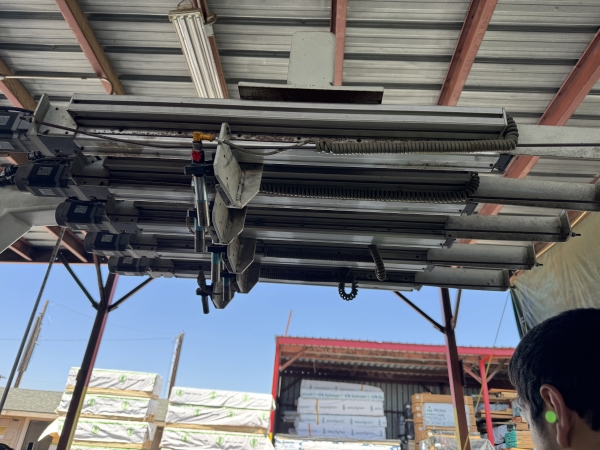

- Mereen-Johnson Model LZ-5 Servo-Laser Stand
- 5 Diode Lasers on Servo-Controlled Carriages
- Wired for 460V 3PH
