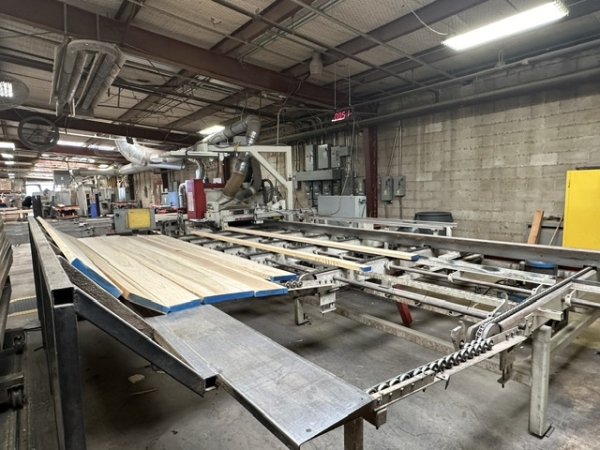

Mereen-Johnson Model 524-DC/SR4 Select-A-Rip Multiple Rip Saw w/ Scout Infeed
Machine Available
Stock #201618
Used- Mereen-Johnson Model 524-DC/SR-4 Moving Blade Gang Rip Saw w/Mereen-Johnson Rip Navigator Scout Optimizing System
- Rip Saw is Set up for Four (4) Select Saw (Moving) Blades and One Fixed “Center-Splitter” Blade
- 24” Arbor Space
- Thickness to 1-1/2" with 12" Tooling or 2-1/2" Using 14" Tooling

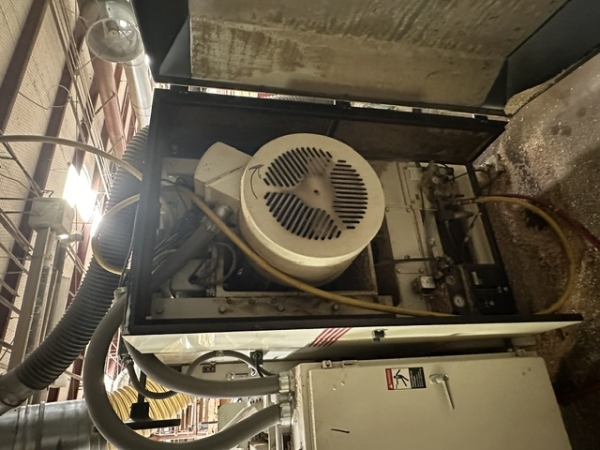

- Arbor Drive Motor: 75 HP, 3600 RPM MJ Direct Drive Motor
- Feed Drive 5 HP TEFC Heavy Duty Feed Drive Assembly with Variable Frequency Drive, 30' to 235' Per Minute
- Infeed “Power Table” Pinch Roll Assembly
- Single Bottom and Double Upper Infeed and Single Upper Outfeed

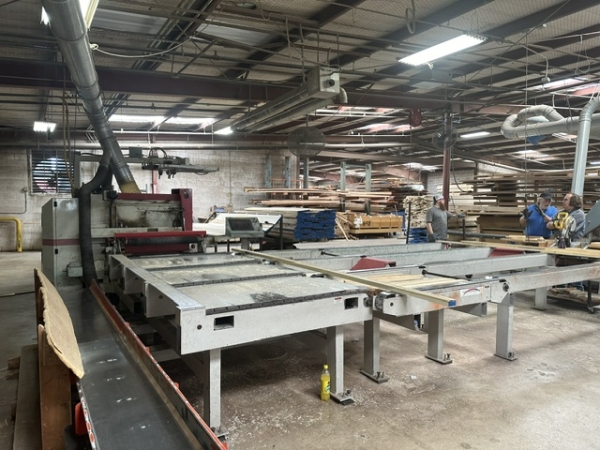

- Rip Navigator Scout Infeed Deck Arranged to Receive Boards from 30” - 17’ 6” in Length
- Board Dealer

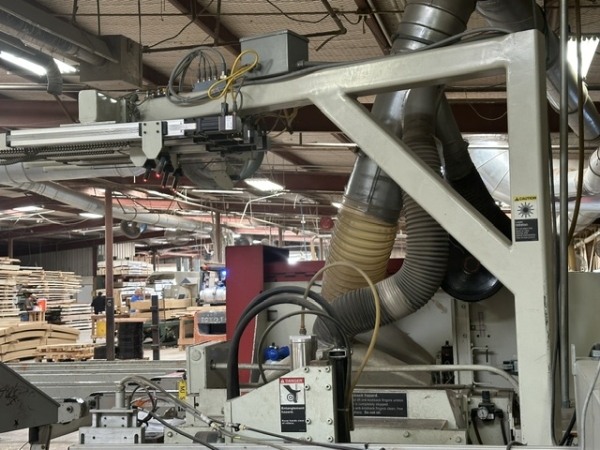

- Individual Boards are Automatically Queued to “Disappearing Fence” For Laser-Light Rip Solution Reference
- Automatic Adjusting Fence Positions Boards for Advancement into Saw
- Rip Navigator Software Senses Board Shape and Provides Solutions Based on Yield, Value, Cut-Bill, or Operator Intervention

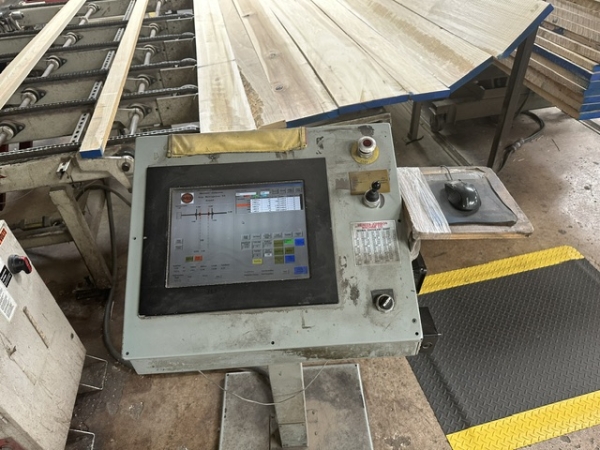

- Color Touch-Screen Operator Interface
- 2008 Machine
- System Was Upgraded in 2013 with Automatic Board Turnover Device, Rip Navigator 3.0, and Ink Jet Sorting Printer
- Note: Outfeed Chain Decks Shown are not Included (Seller is keeping these)
