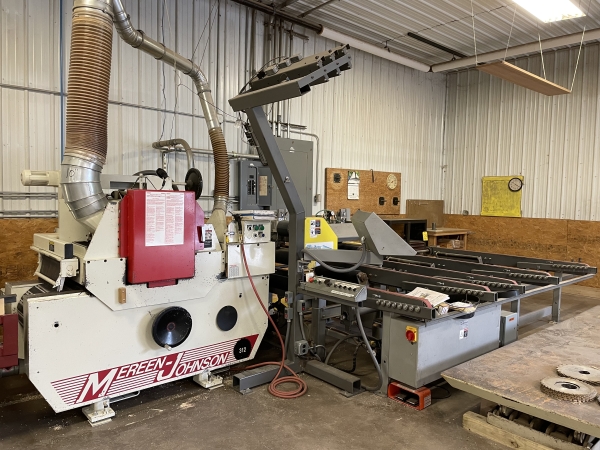

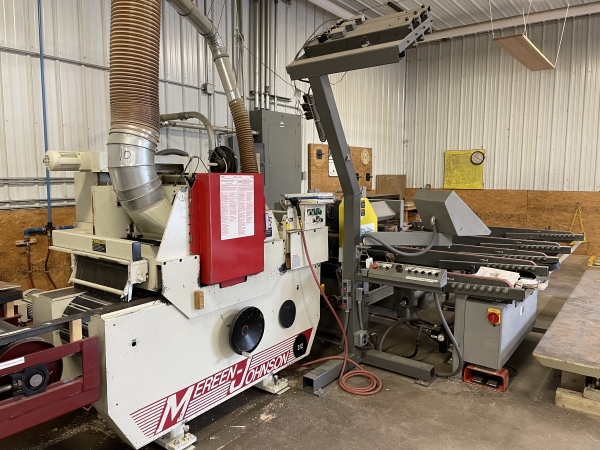

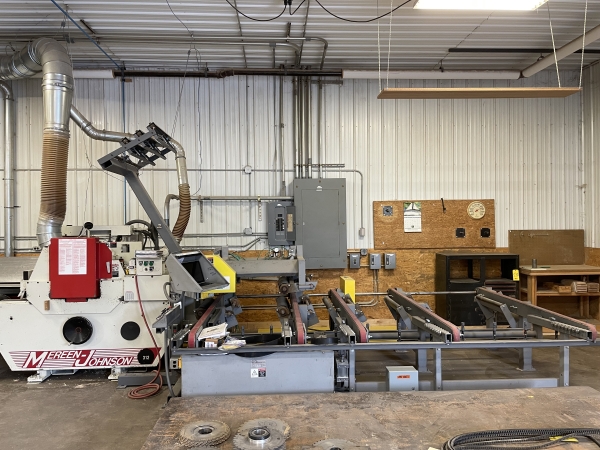

Mereen-Johnson Model 312-DC/SR2 Two Moving Blade Gang Rip Saw w/Cameron Quick Rip
Machine Available
Stock #201630

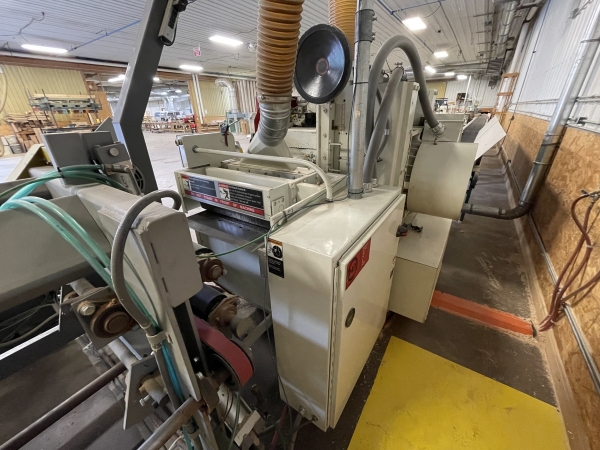

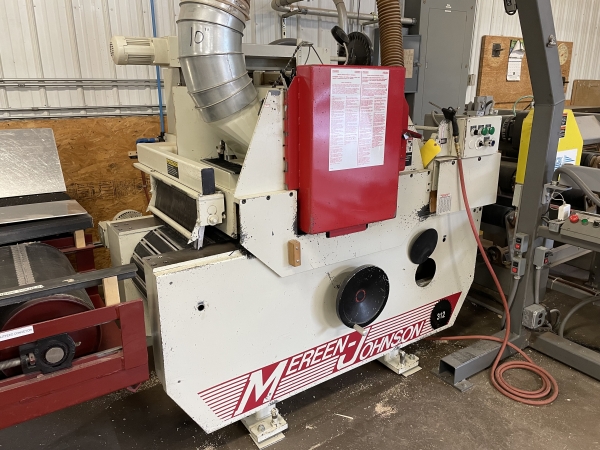

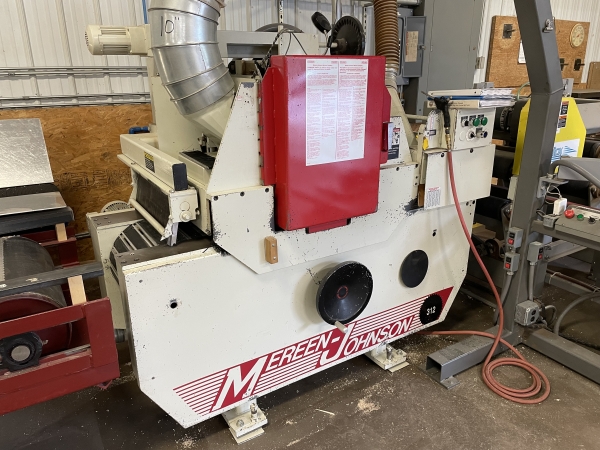

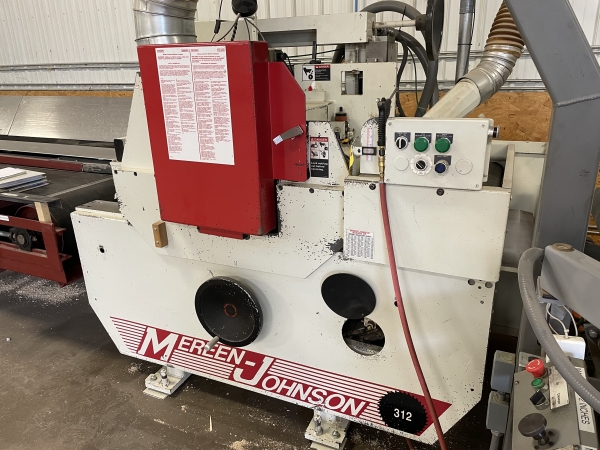

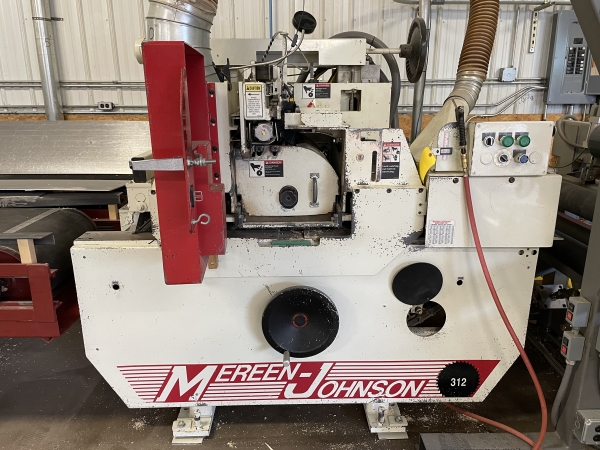

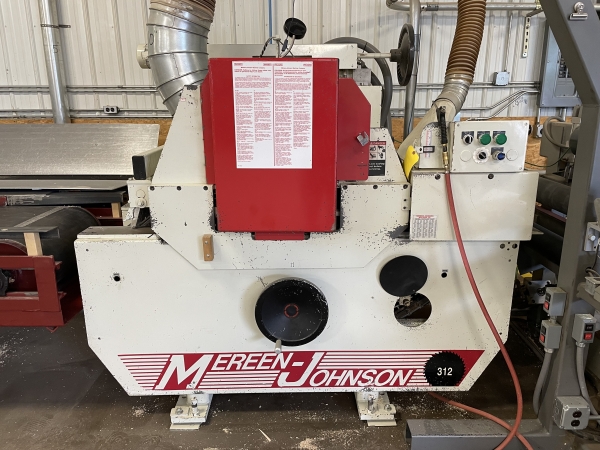

Used- Mereen-Johnson Model 312-DC/SR2 "Select-A-Rip" Multiple Rip Saw

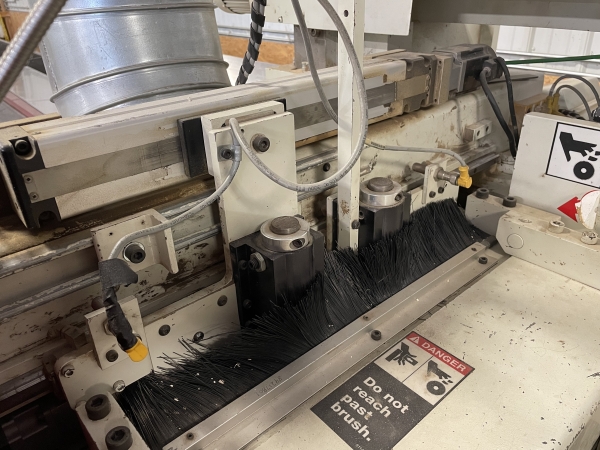

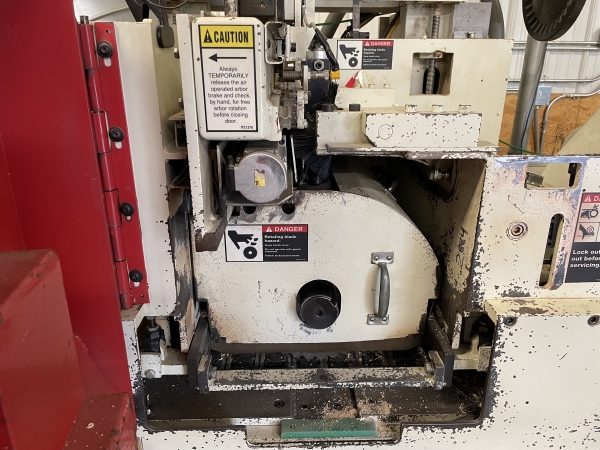

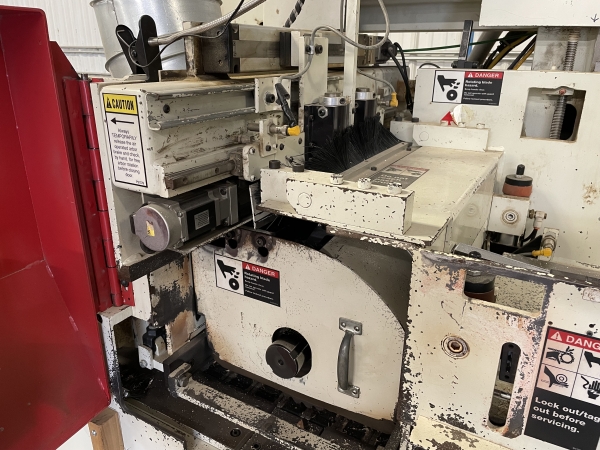

- Two "Select-A-Rip" Shifting Blade Assemblies w/ Moving Laser Guides
- 12" Arbor Space
- 2-3/4" Max. Thickness using 14" Dia. Tooling
- 6" Throat

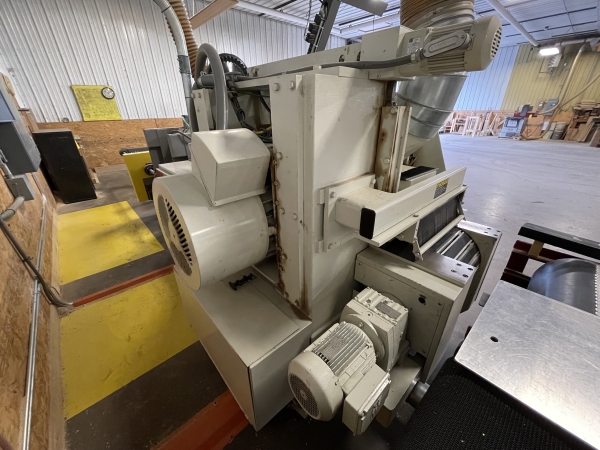

- 50 HP 3600 RPM TEFC Mereen-Johnson Direct Arbor Drive

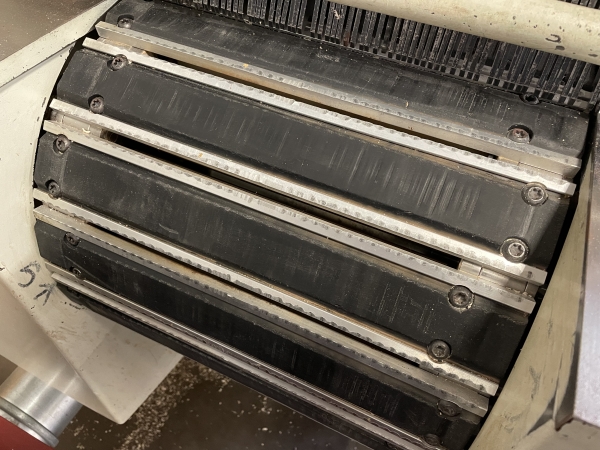

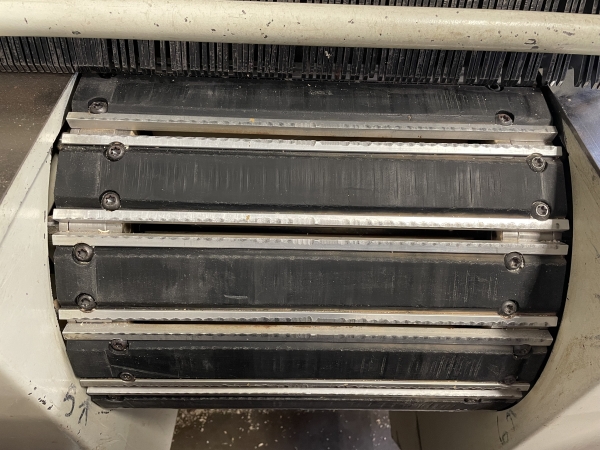

- POSI-FEED Dip Bed Carried on Precision Mereen-Johnson 5" Pitch
- DOUBLE-VEE Feed Chain, Contoured Hardened Dip Cams, Extruded Structural Aluminum Feed Bed Slats with Replaceable Steel Backed Rubber Insert Strips
- Year: 2010
- 230v, 3ph

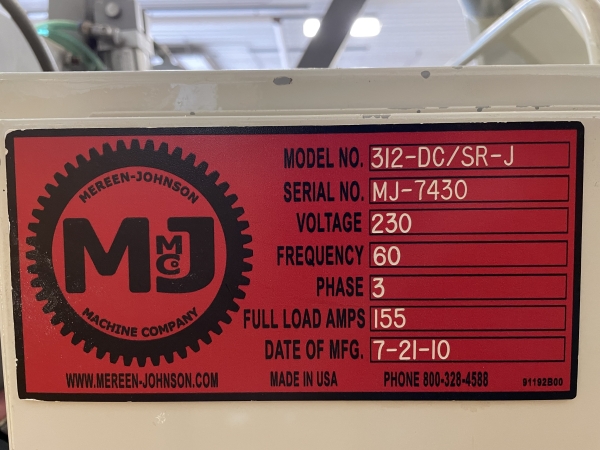

- Serial #: MJ-7430

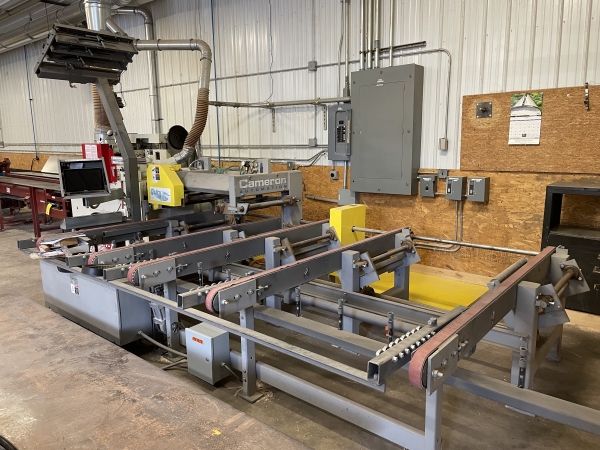

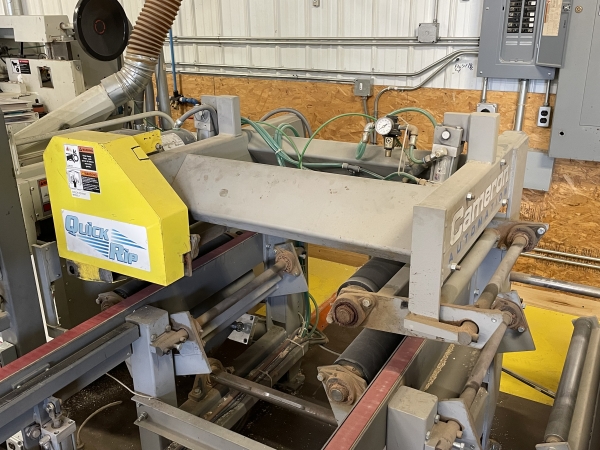

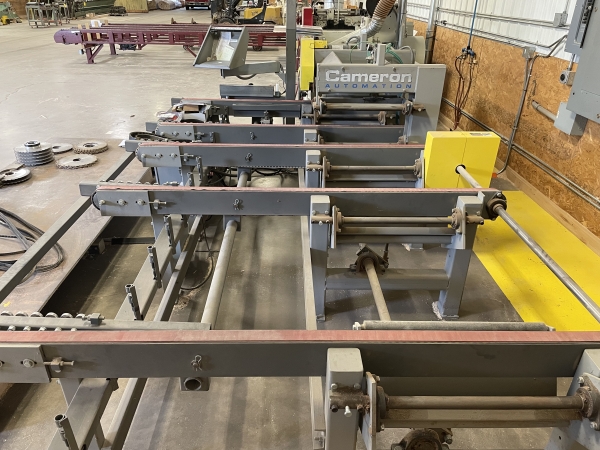

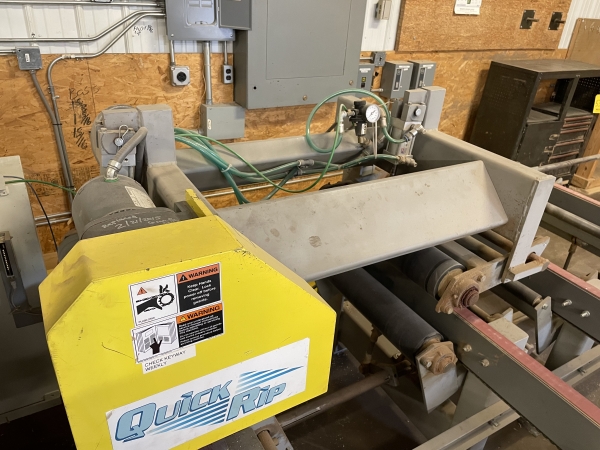

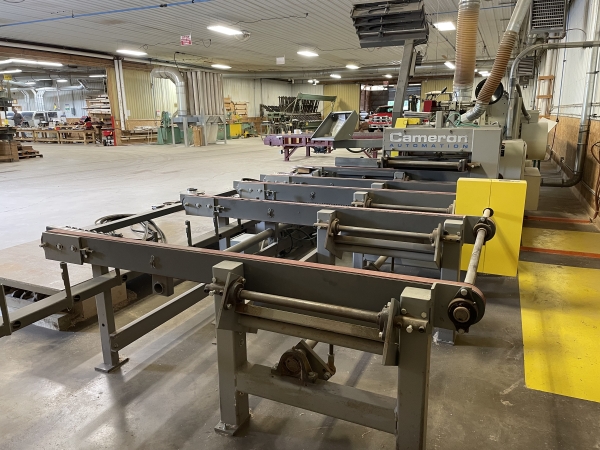

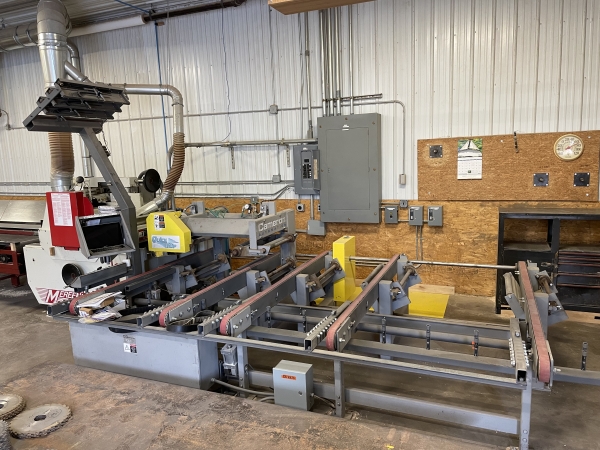

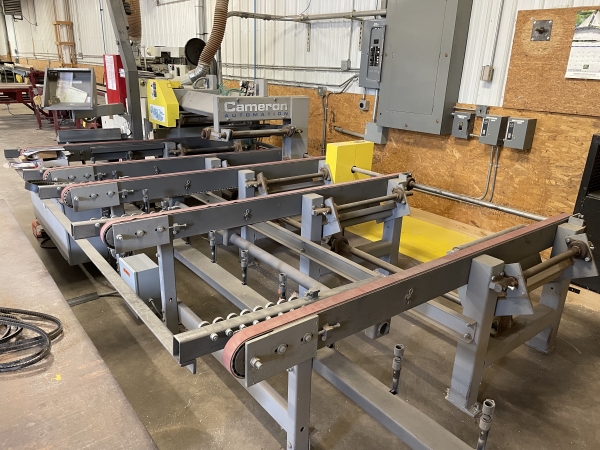

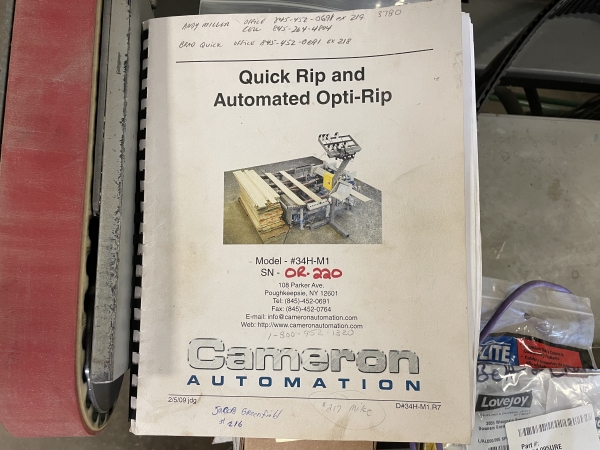

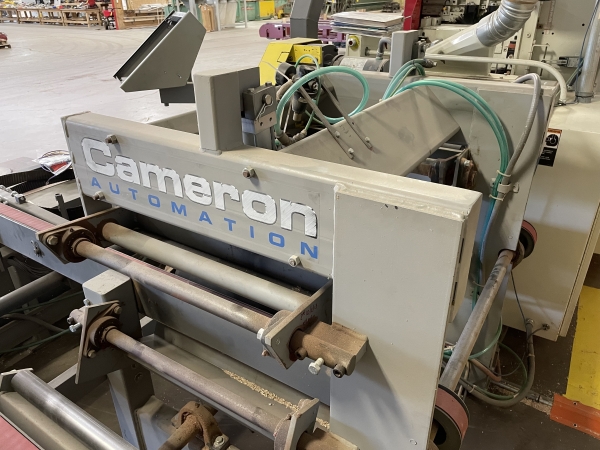

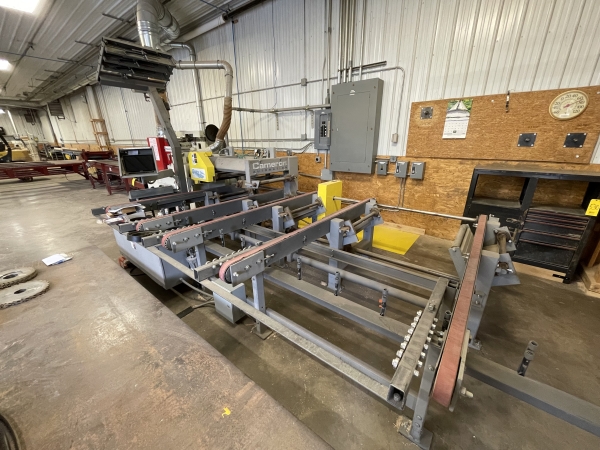

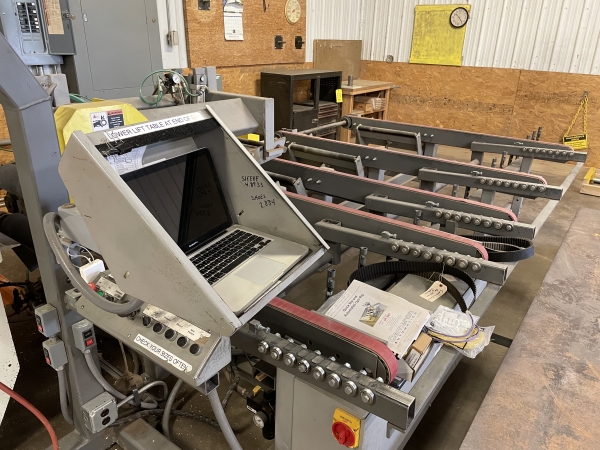

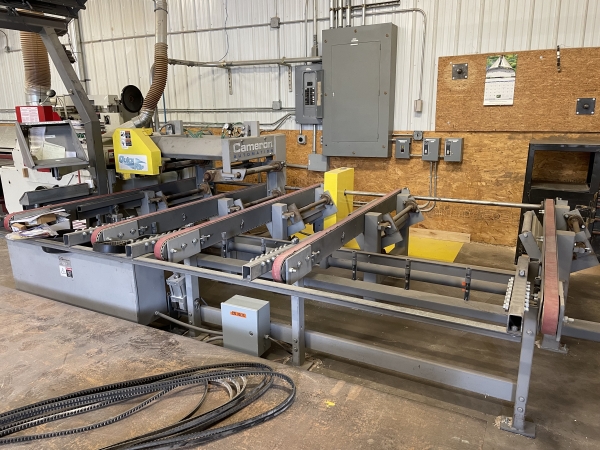

- Cameron Automation Model 34H-MI Quick Rip and Automated Optic-Rip Feed System - 12' Capacity
- Fence-Less Gang Rip Saw Optimizer
- Five Lateral Feed Belts Accelerate the Board past Several Sensors which Measure the Profile Every Foot for the Length of the Board

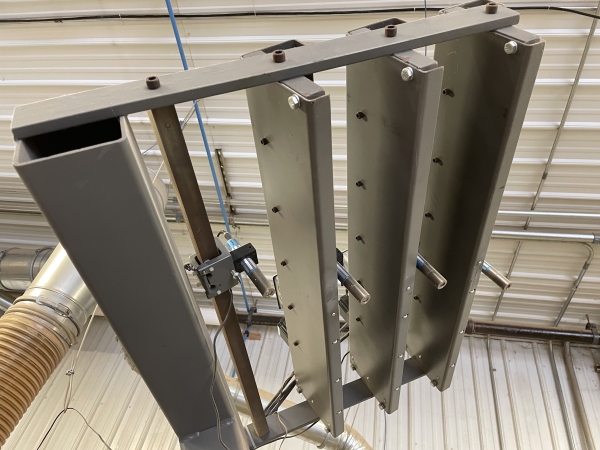

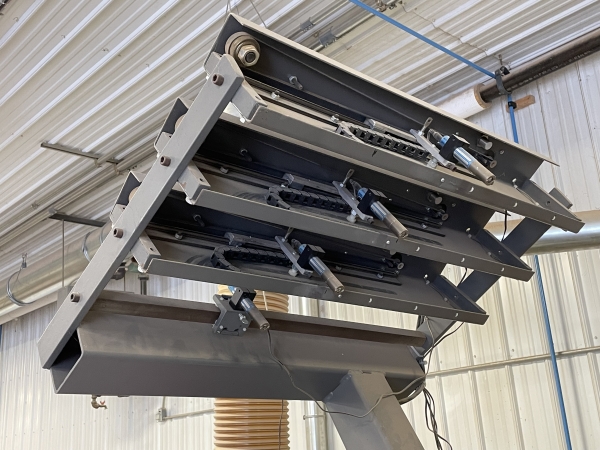

- Belts then Position the Board Under the Laser Lights, which Mimick the Arbor Set-Up on the Rip Saw

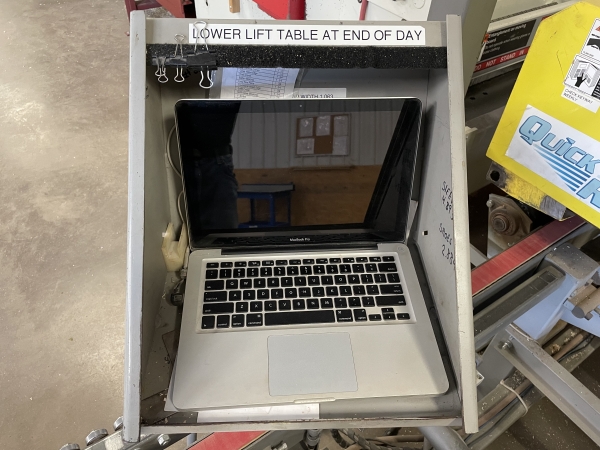

- Operator is Presented with the Optimum Rip Combination Based on the Boards Measurements
- Operator is Able to Over-Ride the Computers Chosen Cut (Positioning or Skew)

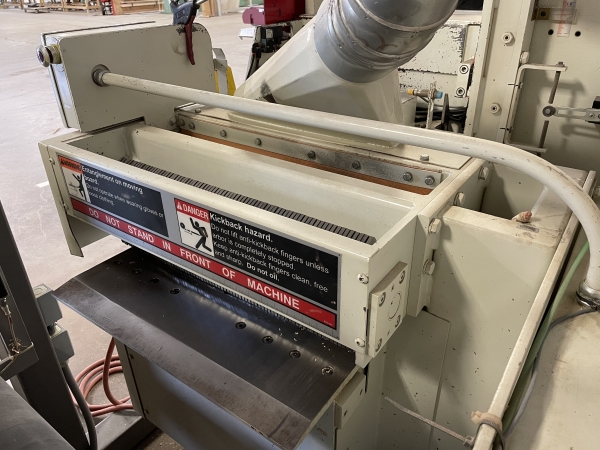

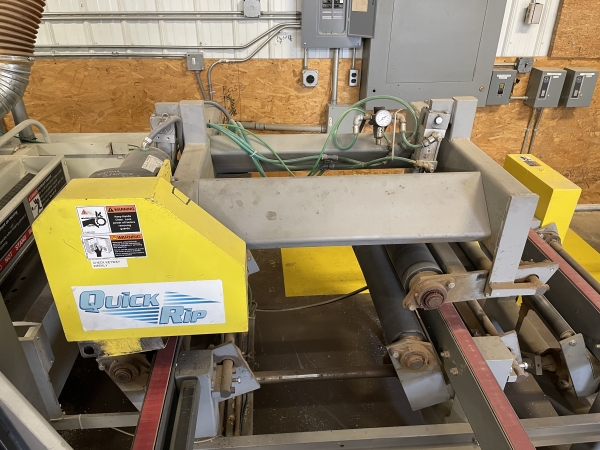

- Pinch Rollers Feed the Board into the Saw
- Single Operator Loads and Defects
- Can feed 8-10+ Boards/Minute

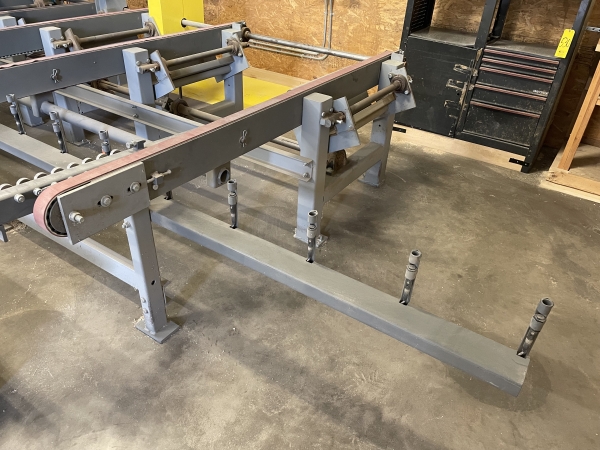

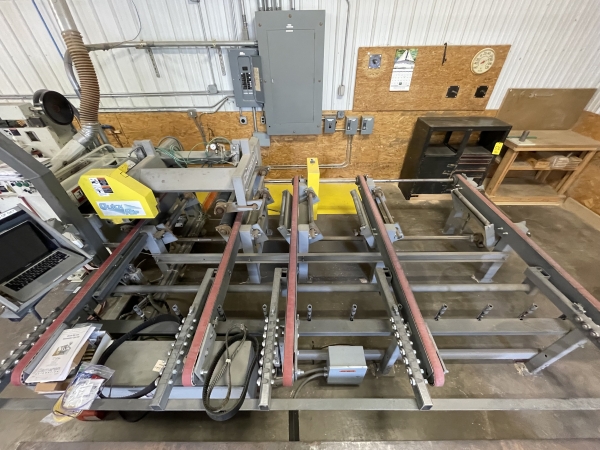

- Five Rubber Lateral Feed Belts
- One Driven Top Pinch Roll (3/4 HP Motor)

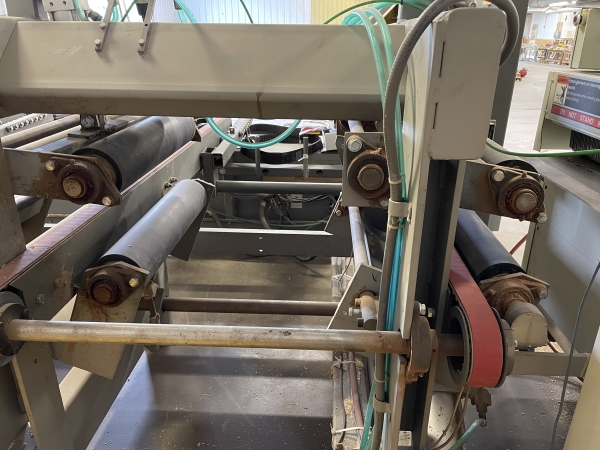

- Top & Bottom Idle Rollers
- 220v, 3ph

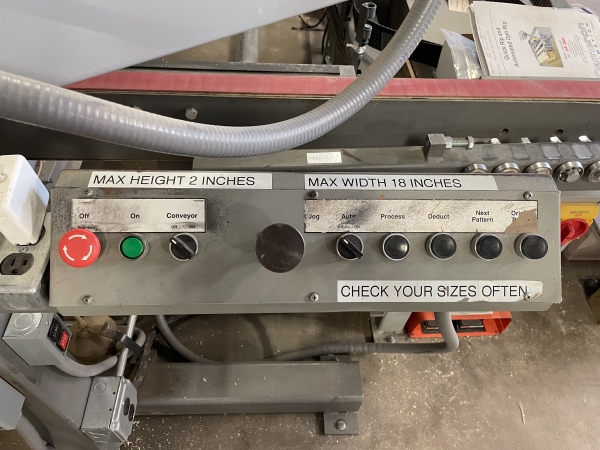

- Push-Button Controls
- 2011 Machine

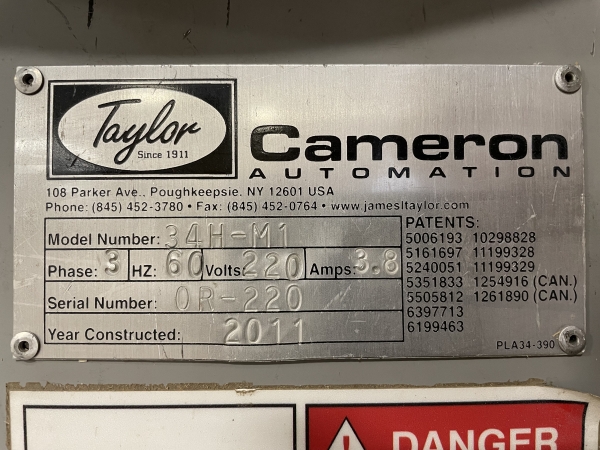

- Serial #: OR-220
