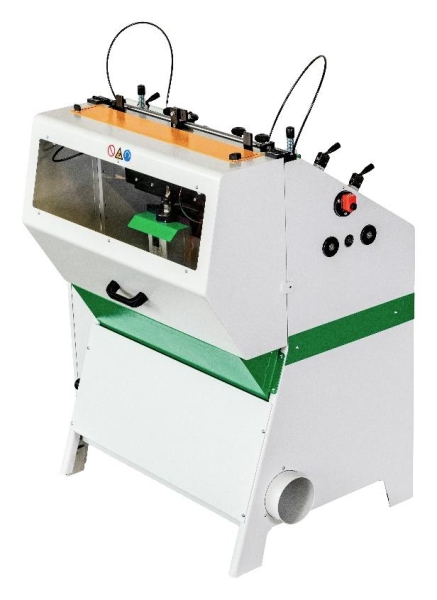

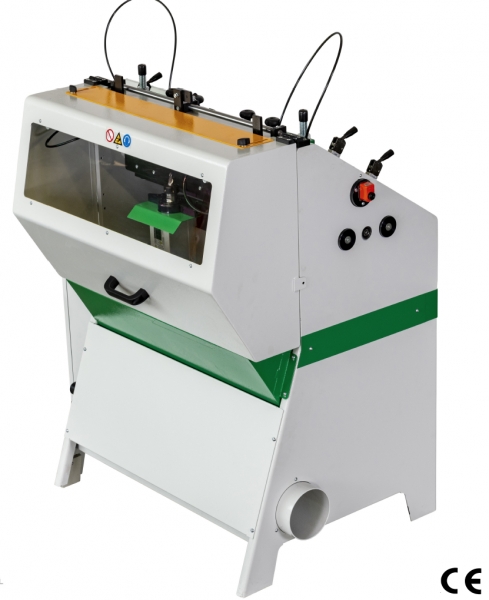

Omec Model 750 CN-C Automatic Dovetail Machine

• Omec Model 750 CN-C Automatic Dovetail Machine
  The two-axis automatic mill cutter with numerical control,OMEC 750CN-C, is designed to indent dovetails and parallel indents for drawers and several furniture elements. Model 750CN-C is equipped with a spindle and a mill cutter that allow the production of indents of different heights. The machine is designed to cut single male or female workpieces, or both simultaneously. Pieces can be clamped and released in manual mode by means of pneumatic valves. Controls are issued from a numerically controlled push button panel. Model 750CN-C is controlled by a numerical control system that is programmed to guarantee the utmost machining flexibility and to change the machining limits within the following variables:
• pitch of indents
• number of indents
• depth of indents
• dimensions of the pieces
• cutting speed and tool feeding
• compensation of the tool radius variation
• All the adjustments can be easily carried out following the software instructions of the machine displayed on the monitor.
  Technical Characteristics:
• On board machine installed power: 4 HP (2.7 kW)
• Working Pressure: 0.7 MPascal
• Electrical spindle revolutions: 18,000 RPM
• Center to center of indents: variable or fixed
• Drawers production: 60 per hour
• Machine weight: 739 lbs. (335 kg)
• Packed machine weight: 933 lbs. (423 kg)
• Over-all dimensions (L x W x H): 44 x 32 x 48 in. (112 x 80 x 120 cm)
• Packing dimensions: 55 x 38 x 58 in. (140 x 96 x 147 cm)
