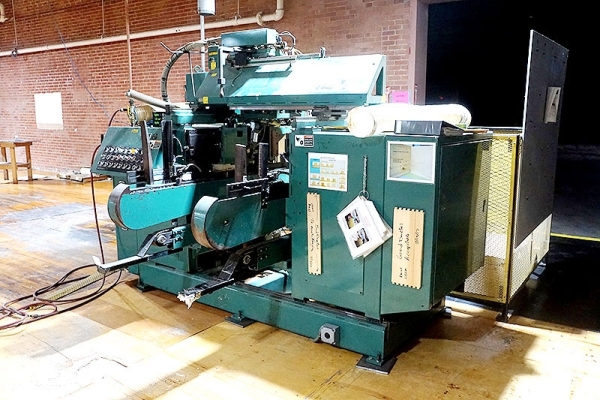

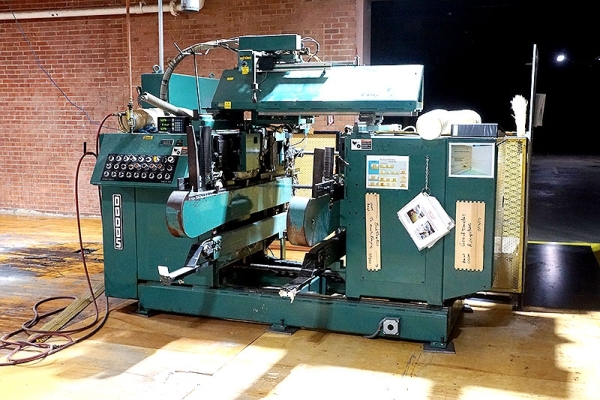

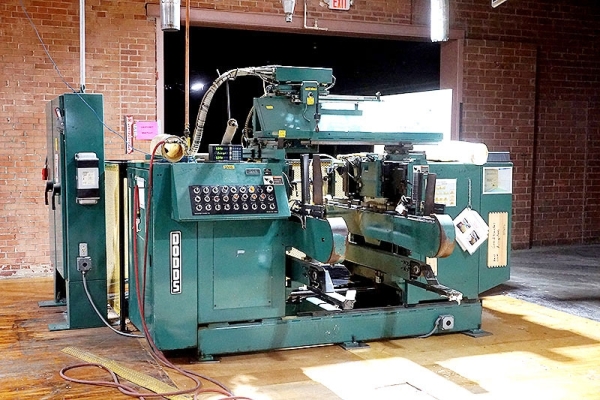

Dodds DE-760H Double End CNC Automatic English Drawer Dovetailer With Notching
Machine Available
Stock #2188
Used- Please note that this machine processes drawer sides only
- Product length (left to right) 7-3/4" to 36"
- (7-3/4" length must be 6" wide for processing)
- Product depth (front to back) 1-3/4" to 12"
- Product thickness 5/16" to 3/4"
- Machine foot print 10' wide x 9'-4" long (suggested area 16' x 14')
- Double end machine design
- The machine process (2) matching drawer sides at one time

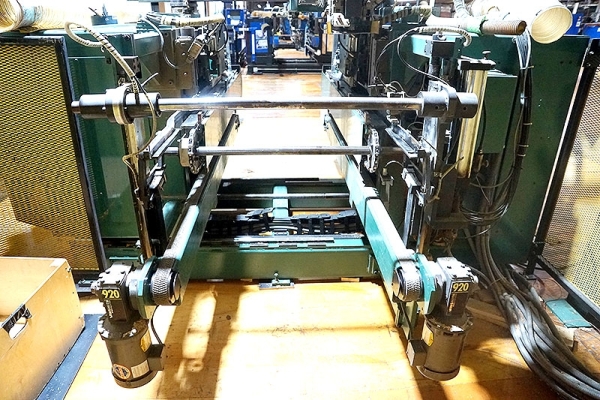

- Infeed gravity hopper part feeder arms

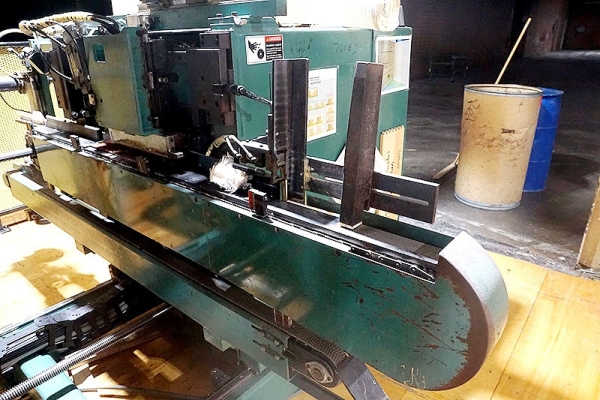

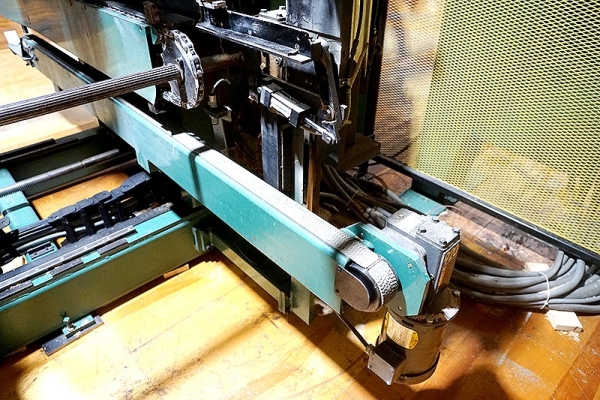

- Feed through drive chain with push type feeder dogs

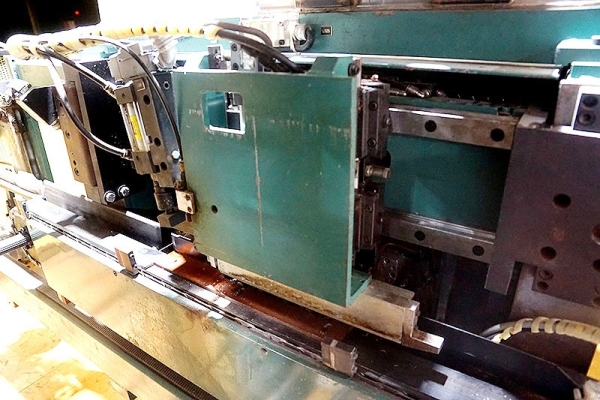

- Pneumatic stock clamping at process station

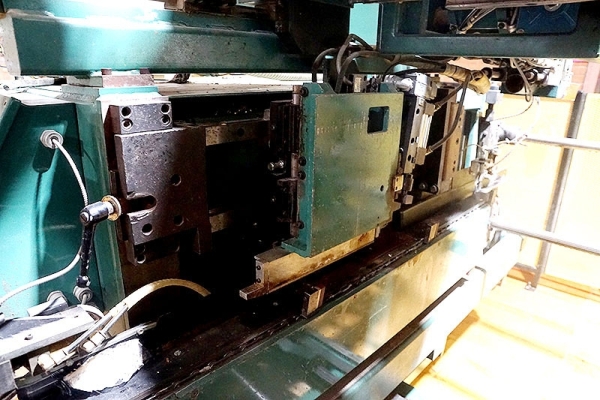

- 1st station: (right and left hand) 15 spindle dovetailer heads
- 1" spindle centers machines english type dovetails
- Automatic CNC control of spindle heads

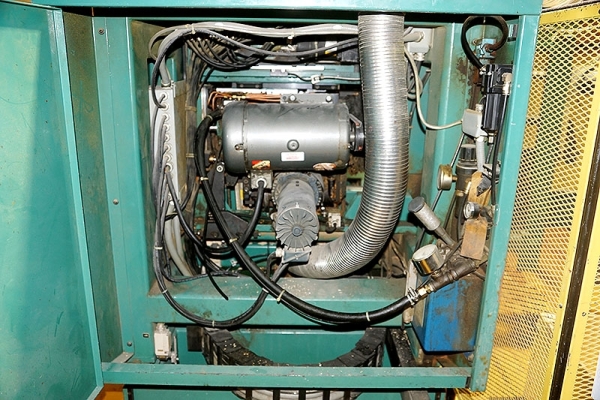

- 7-1/2 Hp, 230/460 volt three phase spindle drive motors

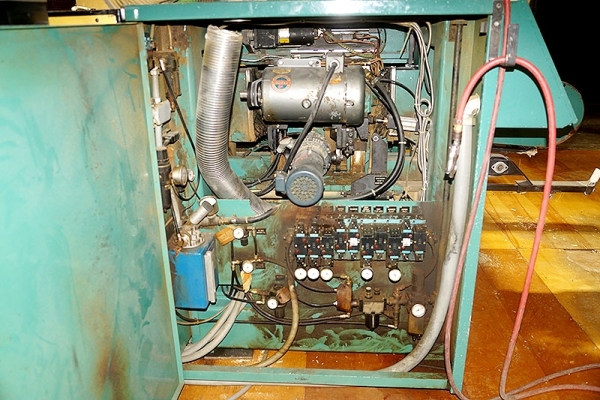

- Oil mist spindle lubrication system

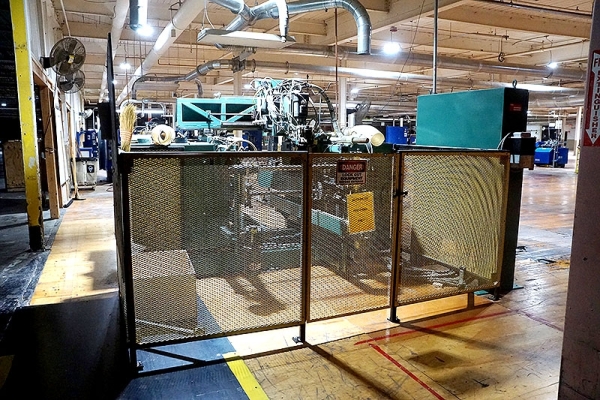

- Enclosed machine area with side access doors

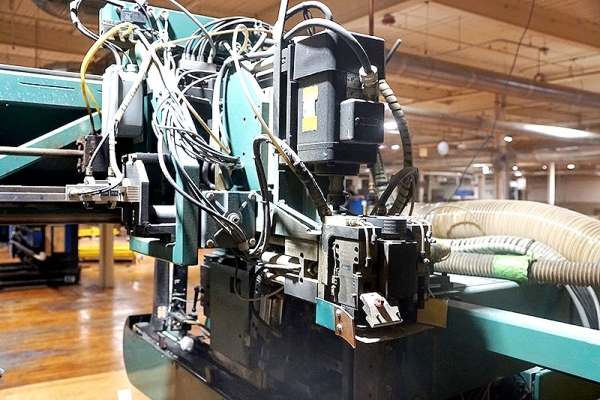

- 2nd station: overhead mounted drawer notching head

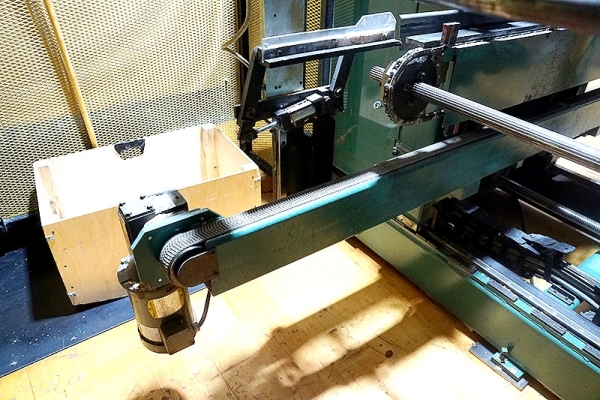

- Automatic part advancement with conveyorized part return to the front of the machine

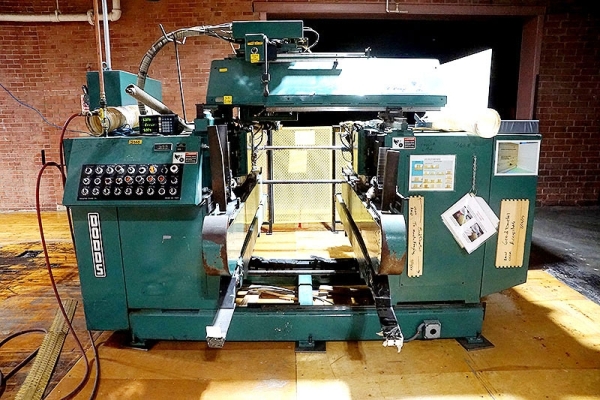

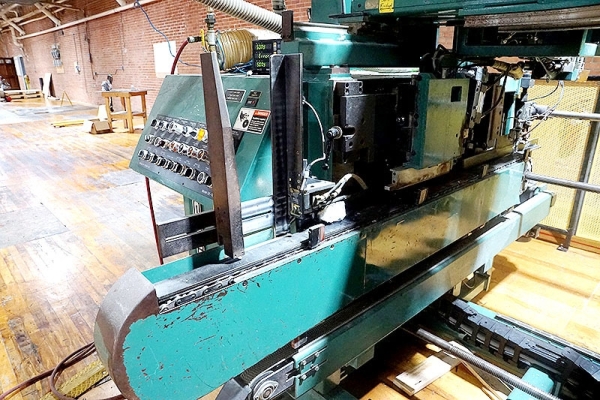

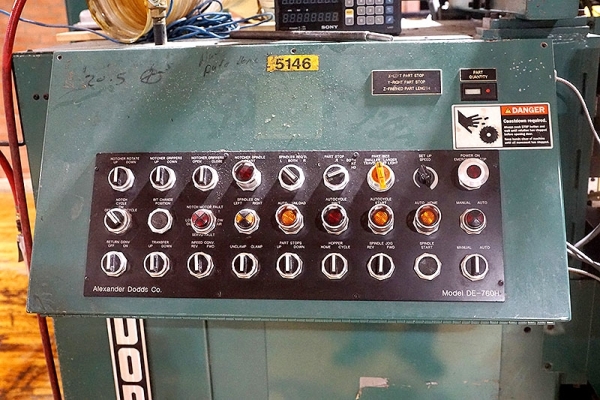

- Front left hand operator control station
- Sony DRO display
- Push button/flip switch master machine controls

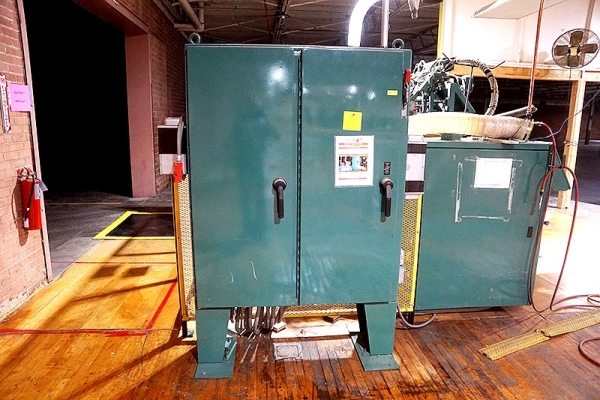

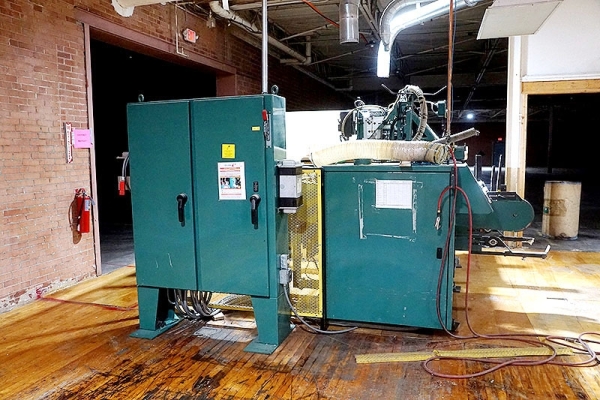

- Freestanding electrical control cabinet
