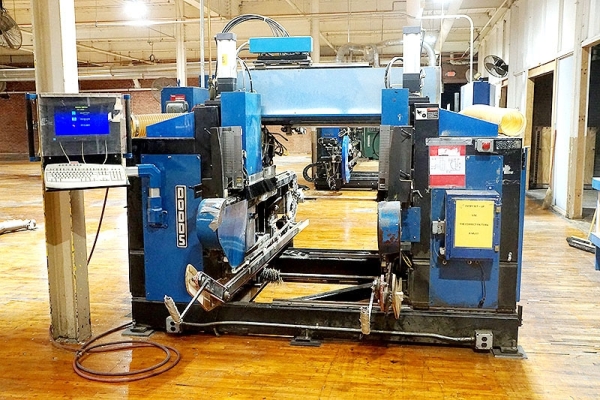

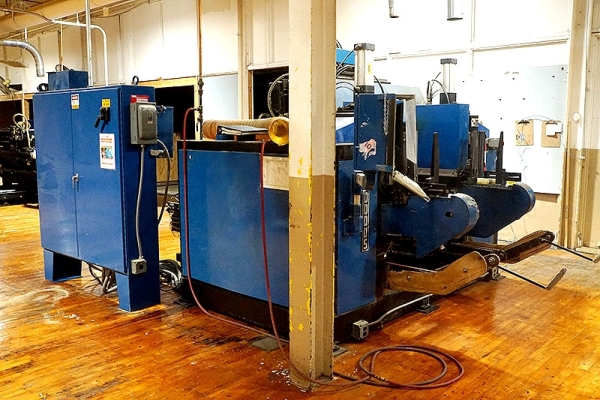

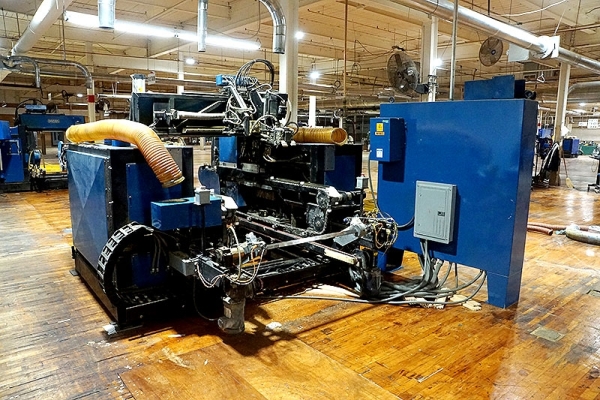

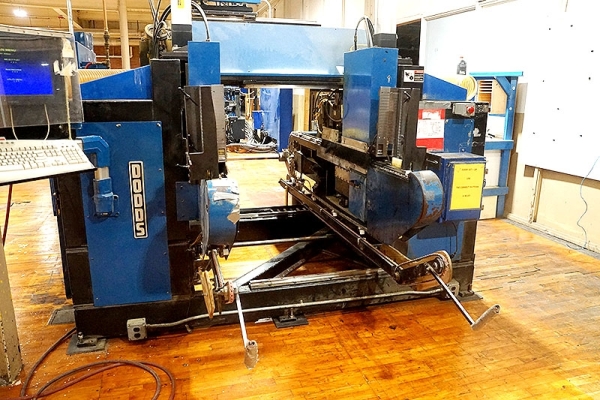

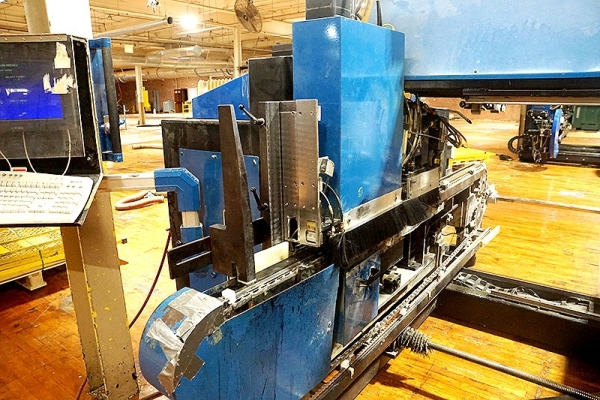

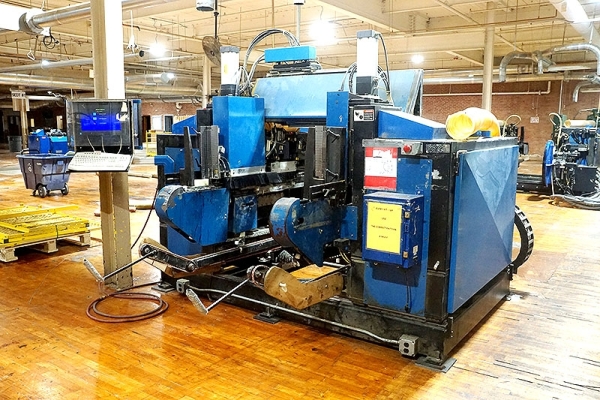

Dodds DE-790CNC Double End CNC Automatic English Drawer Dovetailer With Trimming And Notching
Machine Available
Stock #2187
Used- Product length (left to right) 8-7/8" to 42"
- (8-7/8" length must be 6" wide for processing)
- Product depth (front to back) 1-3/4" to 12"
- Product thickness 7/16" to 1-3/4"
- Machine foot print 14'-4" wide x 14'-2" long (suggested area 18' x 18')
- Double end machine design
- Infeed gravity hopper part feeder arms

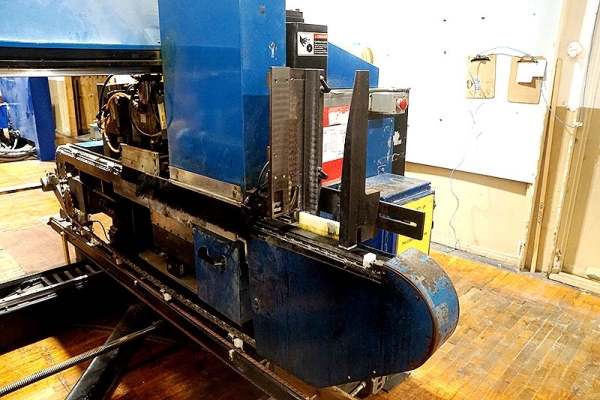

- Feed through drive chain with push type feeder dogs
- Pneumatic stock clamping at process station
- 1st station: (left and right hand) trim saw heads
- Pneumatic cylinder stroke of saw heads
- 2nd station: (left and right hand) 15 spindle dovetailer heads
- 1" spindle centers machines english type dovetails
- Automatic CNC control of spindle heads
- 7-1/2 Hp, 230/460 volt three phase spindle drive motors
- Oil mist spindle lubrication system
- 3rd station: top mounted CNC controlled drawer edge notching head
