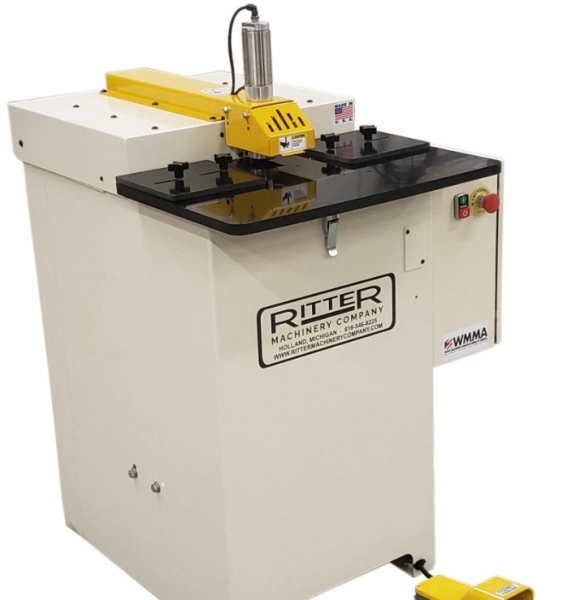

Ritter Model R2063 Low Angle Pocket Cutter 230V 3PH

• Ritter Model R2063 Low Angle Pocket Cutter

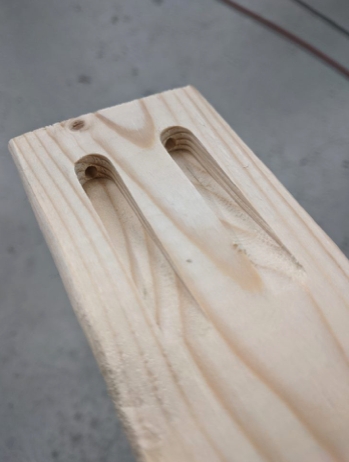

• The R2063 is used for routing a single pocket hole for cabinet face frame assembly.
• Standard Features
• 6° Low angle
• PLC controlled cycle
• Foot pedal operated
• Adjustable Material Stops
• Up to 2" thick material
• Cycle Time: 1.75 - 2 Sec
• Tooling Included
• Technical Data and Specifications
• Router Bit: 3/8" Solid Carbide, Rough Mill
• Drill Bit: 9/64" Brad and Spur TiN-Coated Bit
• Router: 24,500 RPM, 11 A, 1.75 HP
• Drill: 31,000 RPM, 4.5 A, 7/8 HP
• Air: 2 CFM at 80 - 100 PSI
• Work height: 36"
• Footprint: 27.75" x 20.5"
• Table Area: 15.75" x 23.75"
• Dust Port: 4"
