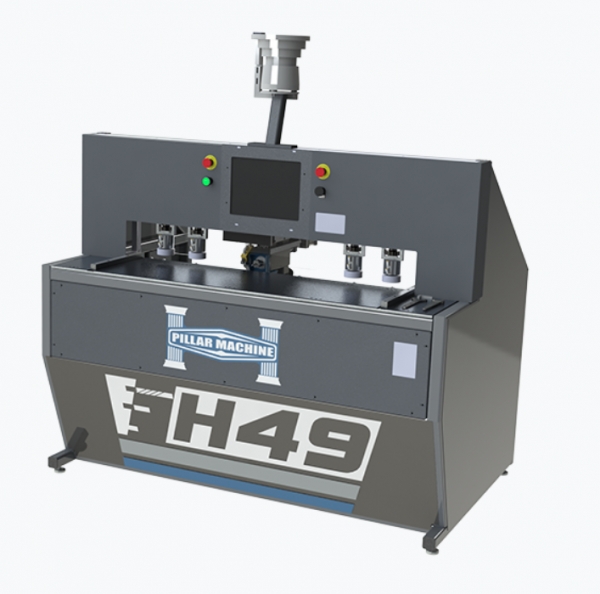

Pillar Model H49 Horizontal Bore and Dowel

• Pillar Model H49 Horizontal Bore and Dowel
• The H49 is a horizontal bore and dowel CNC machining center used for case construction in cabinet or furniture manufacturing
• With the H49, you get quick and accurate assembly, gaining production times on CNC routers and point to points by shifting horizontal boring to this machine
• It is designed to CNC position the spindle, bore a hole, then CNC position the inserter, inject glue or water, then insert a dowel into the hole
• There are 2 working zones on the standard H49 model allowing for pendulum processing
• While one part is being machined, the other zone can be loaded and queued for machining
• All of this is done during a cycle time of less than one second
• The H49 has a 49” working table with 2 work zones
• One 3" dust port
• 350 CFM
• Standard Features
• CNC controlled X-Axis
• Digital Readout for Z-Axis
• 1 HP 18,000 RPM Direct Drive Spindle
• 49” Work Area
• 15” Color Touch Screen
• 8mm Dowel Inserter
• Sealed Glue System
• Options
• 96” Work Area
• Barecode Reader
• Dowel Length from 30mm to 35mm
• 6mm Dowel Inserter
• Larger capacity dowel bow
