Biesse Model FTT 800 + FTT 800 R8 + RD Automatic Thru-Feed Flexible Drilling Routing Dowel Insertion Line
Machine Available
Stock #2257

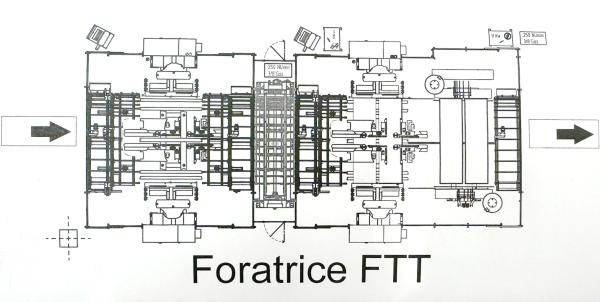

Used- BIESSE+ RBO Model:FTT 800 + FTT 800 R8 + RD
CNC Flexible Automatic through-feed ROUTERING, DRILLING and DOWELS INSERTING LINE - Min/Max workpieces (panels) width (X axis) with FTT: mm 240 / 3100
- Min/Max workpieces (panels) thickness (Z axis) with FTT: mm 12 / 60
- Min/Max workpieces (panels) length-depth (Y axis) with FTT: mm 140 /1550 (or 800+800)
- A) Motorized Roller table "RBO" with 90° conveyoring belts

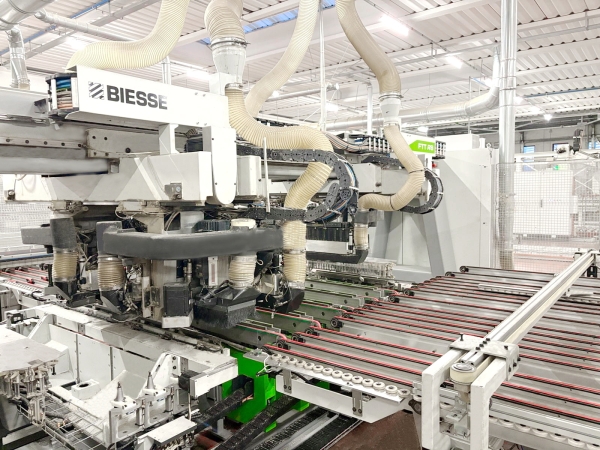

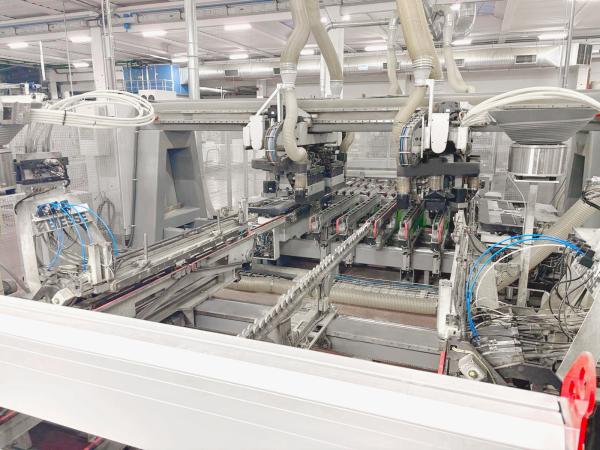

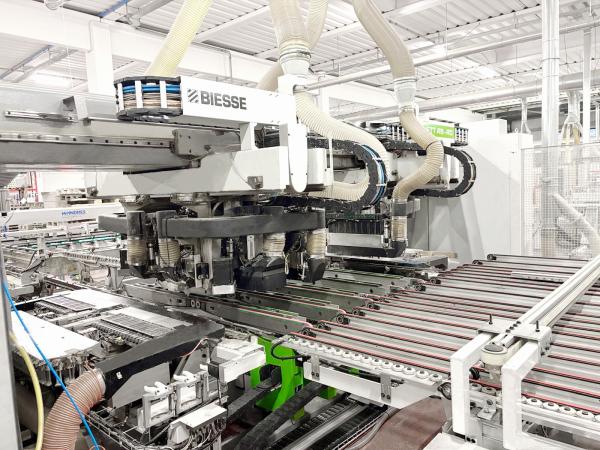

- B) Gantry (Portal) CNC (Routering and Drilling) machine "BIESSE" FTT 800
- slot A: No. 2 vertical Electro-spindles ISO 30 (Kw 4.5 each) with 2 tool-holder stores 3 places each (tot. 6)
- slot B: No. 2 predispositions for the installation of other 2 electro-spindles
- No. 4 upper drilling units (4x32 = total 128 vertical spindles + 4x4= tot. 16 horizontal spindles in Y-axis)
- No. 2 drilling spindles stores/magazines (revolver) with 60 positions each (total 120)
- C) Connection system, with up-side-down turning machine (180°) "RBO" Mod. Ribaltatore
- D) Gantry (Portal) CNC (Routering and Drilling) machine "BIESSE" Mod. FTT 800 R8
- No.2 horizontal units (1 left+1 right) with 4x BH18 heads with 18 spindles each (36 right + 36 left) total 72
- slot A: No. 2 vertical Electro-spindles ISO 30 (Kw 4.5 each) with 2 tool-holder stores 3 places each (tot. 6)
- slot B: No. 2 predispositions for the installation of other 2 electro-spindles
- No. 4 upper drilling units (4x32 = total 128 vertical spindles + 4x4= tot. 16 horizontal spindles in Y-axis)
- No. 2 drilling spindles stores/magazines (revolver) with 60 positions each (total 120)
- E) "BIESSE" RD dowels insertion machine
- No.2 horizontal units (1 right+1 left) with 5 insertion nozzles each (5 left + 5 right), total 10 nozzles
- F) Brush-cleaning machine "WANDRES"
