Homag Model ABD050 Bore, Glue, and Dowel Machine
Machine Available
Stock #2256

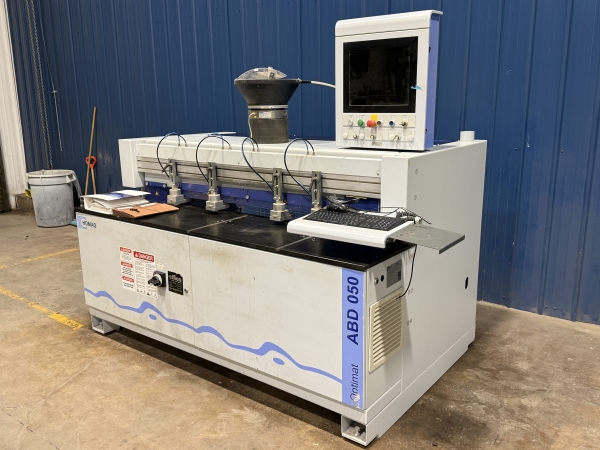

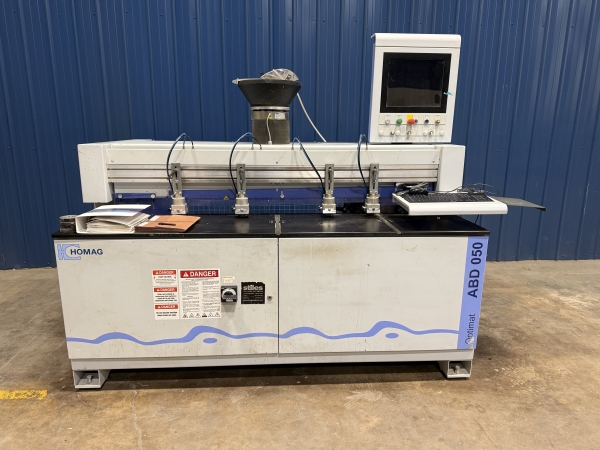

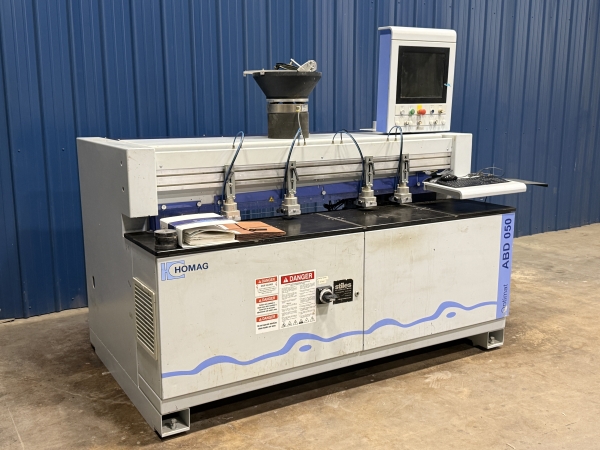

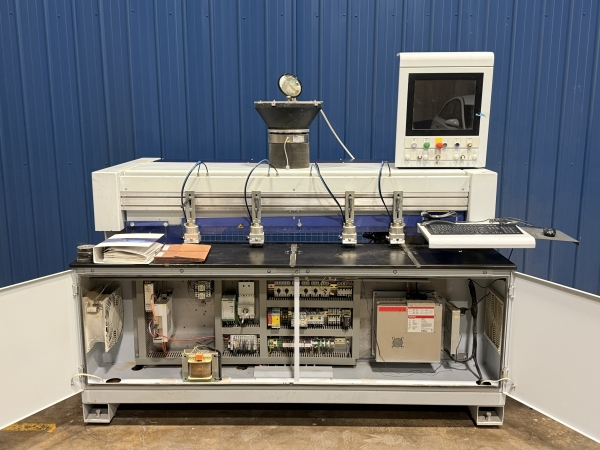

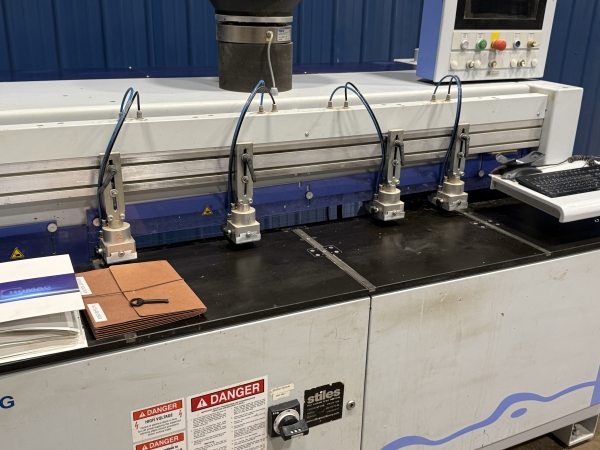

Used- 2017 Homag ABD050 Bore, Glue, and Dowel Machine
- Supported Workpiece length (min/max): 20 / 1250 mm (0.79"/ 49.2")
- Workpiece width (min/max): 50 / 800 mm (1.97" / 31.5")
- Workpiece thickness (min/max): 10 / 60 mm (0.39" / 2.36")
- Vertical Drilling Thickness (min/max): 10 / 30mm (0.39" / 1.25")

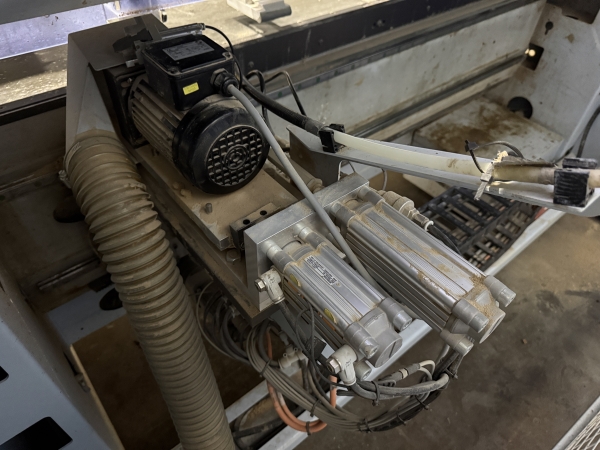

- Horizontal spindle Qty.: 1
- Rotational spindle speed: max. 7500 rpm
- Drill shank diameter: 10 mm
- Total length of drill bit: 70 mm
- Dowel driver: 1

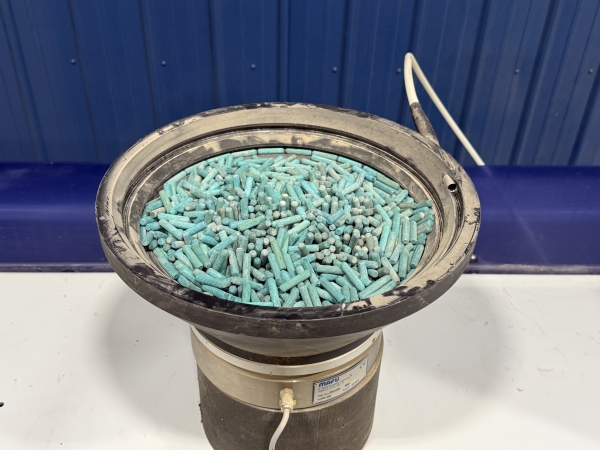

- Dowel diameter: 8 mm
- Dowel length: 30 mm / 35 mm
Tolerances required for wooden dowels: - Dowel length: ±1 mm
- Dowel diameter: ±0.2 mm
- Dowel projection: Fixed according to dowel length
- Dowel adhesive: Low Viscous Glue (approx. 350 mPas)

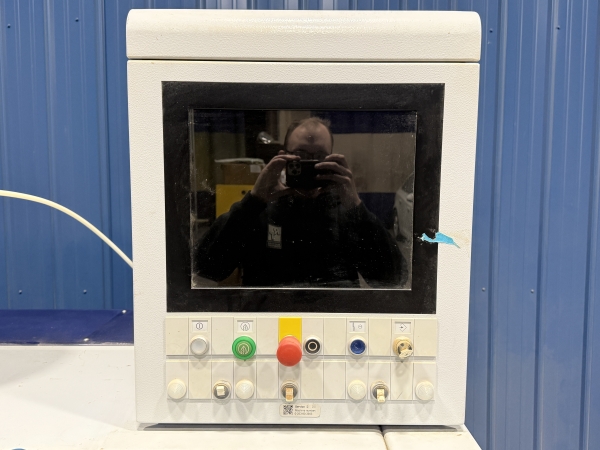

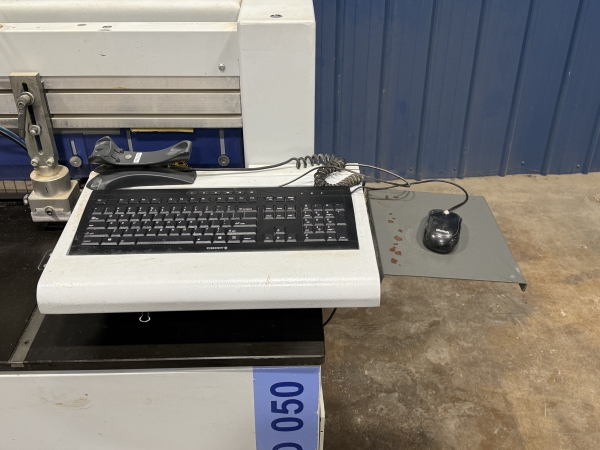

- CNC control: PC-based with WoodWOP programming
- Serial # 0-250-80-3903
