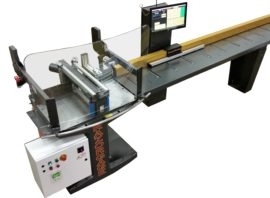

Razorgage Model APS Automatic Optimizing Cutoff Saw System
Machine Available
Stock #80500N
New- APS Automatic Optimizing Cutoff Saw System
Specifications - Saw Motor Specs: 7.5 hp (enclosed fan cooled), available in 208-230-460Vac 3-phase
- Power Requirement: 10 Amps 120 VAC plus one of the following: 230 VAC, 3 phase, 30 Amps OR 460 VAC, 3 phase, 20 Amps
- Dust Collection Ports: Two 4" diameter (102 mm) requiring 600 cfm (17 m3) minimum for dry light materials. Other material may need higher velocity/pressure
- Compressed Air: Requires 80 psi (5.5 bar) at 5 cfm (0.14 m3) air filtered to 2.5 microns (oil and moisture free). Use industrial air dryer, rated for cfm (CM) flow. No lubrication required for air components. Air must be lubricant free.
- Motor RPM: Variable from 2200 to 3450
- Arbor: 1.000 inch
- 500 mm Blade for Wood: 500mm x 120T x 1” Bore x 23°ATB/5°ASF x Plate .128 x Kerf .172
- 500mm Blade for Aluminum: O/D 500mm or 19.68” x Kerf 3.5mm or .137” x Plate 3.0mm or .118” x Bore 25.4mm or 1.00” x Teeth 140 D Type Tip Grade Sash Pro X Expansion Slots Five.
- 24" Blade for Wood: 24" Dia. x 144T x 1" Bore x 23°ATB/5°ASF x Hook 22° Plate.138 x Kerf.186
- 24" Blade for Aluminum: 24" Dia. x 200 Teeth x 1" Bore x TCG x Hook 6° Plate.138 x Kerf.174
- Push Force: 200 lb at 10 inches per second
- Maximum Push Speed: 50 Inches per Second
- Stock Length Capacity: Up to 60 feet
