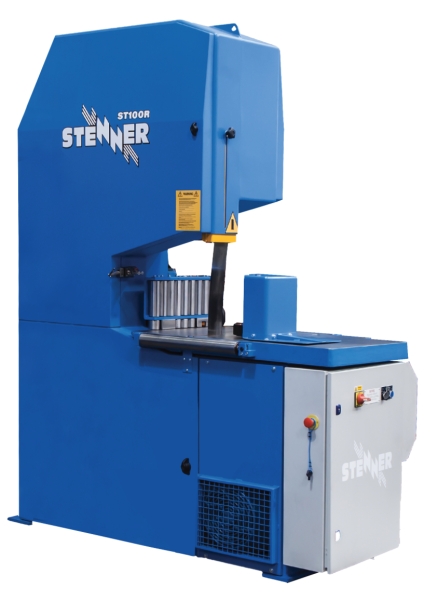

Stenner Model ST100R Resaw
Machine Available
Stock #751004N
New- A production vertical resaw with compact dimensions
- Pressure saw guide system with easily changeable guides requiring no setting or adjustment
- Infinitely variable feed speed 5 - 60m/min.
- 18.5kW (25hp) main motor drive with an automatic starter with two emergency stop buttons

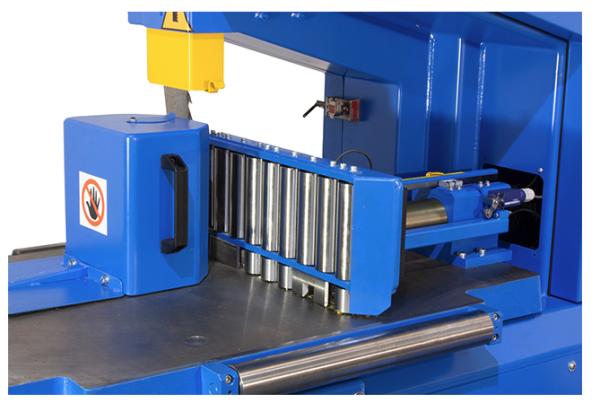

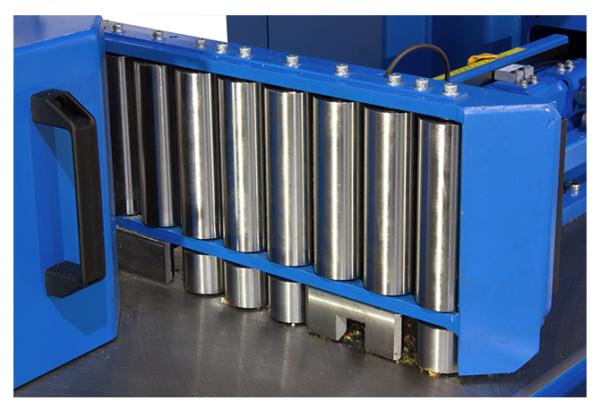

- Handwheel setting of the inward position of the feed rollers

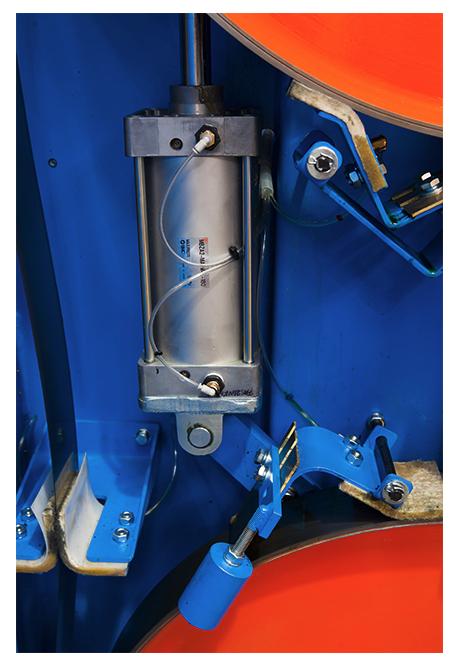

- Pneumatic movement of the feed rollers activated by photocell
- Selector switch to activate/deactivate photocell
- Electronic Operator interface with digital readout of fence position

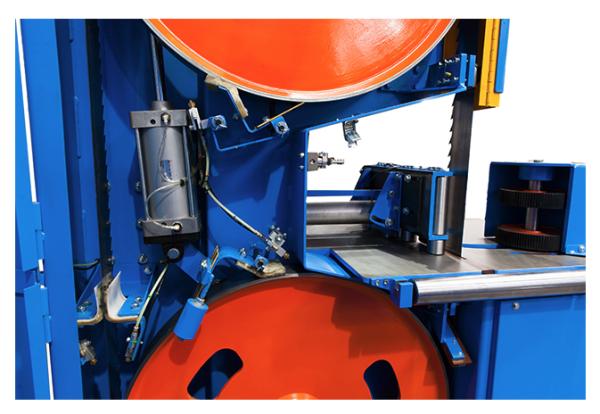

- Pulley diameter 915mm (36")
- Bandsaw thickness Max: 1.0mm (19g), Min: 0.8mm (21g)
- Blade width Max. 100mm (4")
- Depth of cut Max. 400mm (15.75")
- Max Opening (roller fence to saw line) 300mm (12")
- Max Opening (feed rollers to saw line) 230mm (9")
- Feed Speeds 5 – 60 meters/min (16 – 200ft/min)
- Main motor 18KW / 25HP
- Working height (table from floor) 955mm (37.5")
- Cleaner fluid capacity 3 litres (0.66 gallon)
- Dust extraction outlet 1 x 150mm + 1 x 100mm (1 x 6" + 1 x 4")
- Electrics 460V/3/60
- Overall Dimensions: 2175 x 1790 x 900 mm (7’2" x 5’10" x 3’0")
- Approximate Weight: 3,530 lbs
