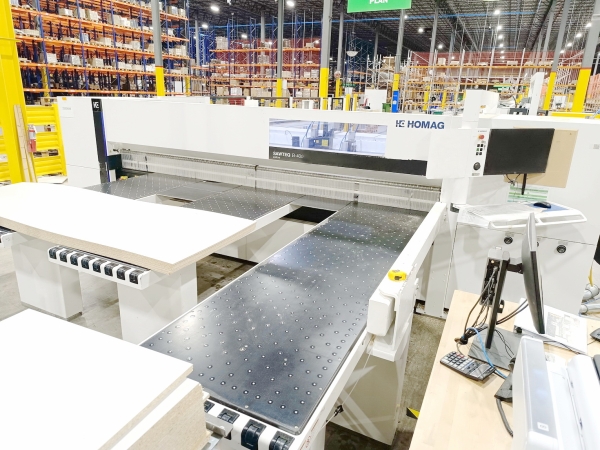

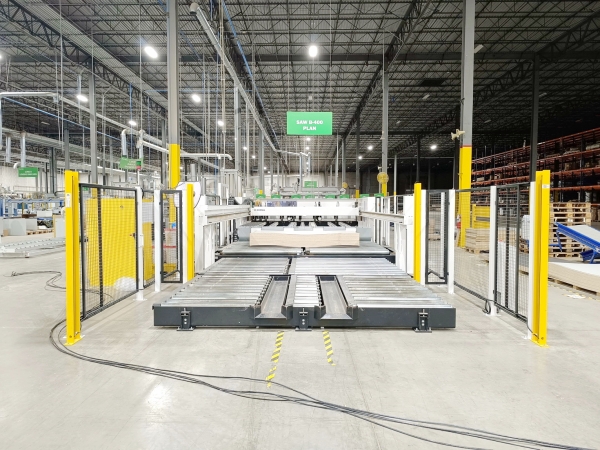

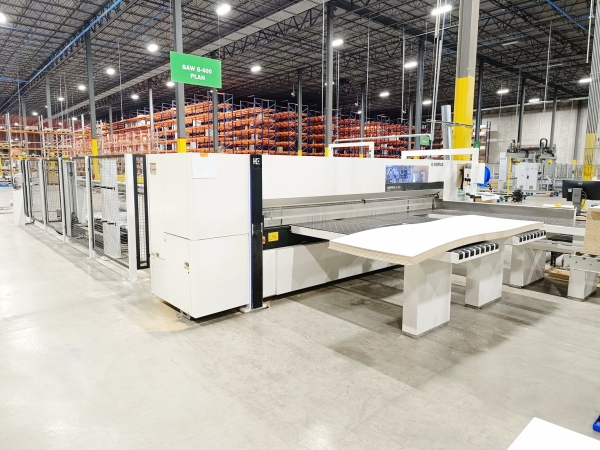

Holzma Model SawTeq B-400 (HPL 400/38/22) Profiline Panel Saw with Rear Lifting Table
Machine Available
Stock #82175
Used- TECHNICAL DETAILS:

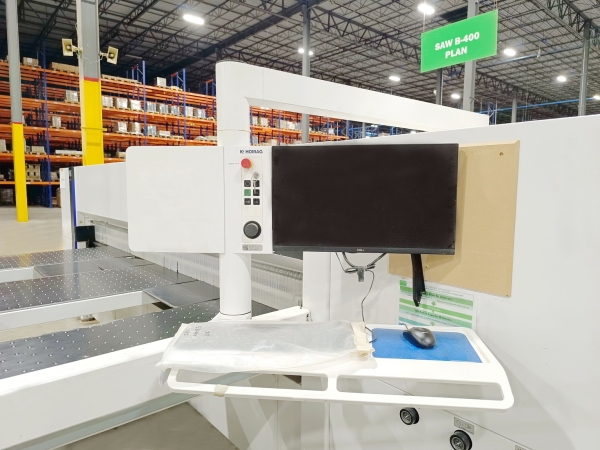

- Numerical Control POWER CONTROL V2.1 (Power TOUCH)
- CADmatic 5 Software (TAPIO READY)
- Lifting table (mm) 3800 x 2200
- No. 1 Rear pusher, with (7 + 2) clamps
- Max cutting width (mm) 3800 - Useful stroke of the pusher (mm) 3800
- Max blade projection (mm) 125
- Scoring unit (max blade diameter / power) mm 180 / Kw 2.2 (approx.)
- Main blade unit (max blade diameter / power) mm 450 / Kw 28
- Adjustable speed of the blade carriage (m/min) 1 - 150
- Front air cushion benches (N.) 3 (2 x 2160mm x 800mm + 1 x 2810mm x 800mm)
- Total power (Kw) 34
