Eagle Y-Transfer, Talon 3000, and Paul C14E Optimizing Chop Saws

Machine Available

Stock #813873

Used

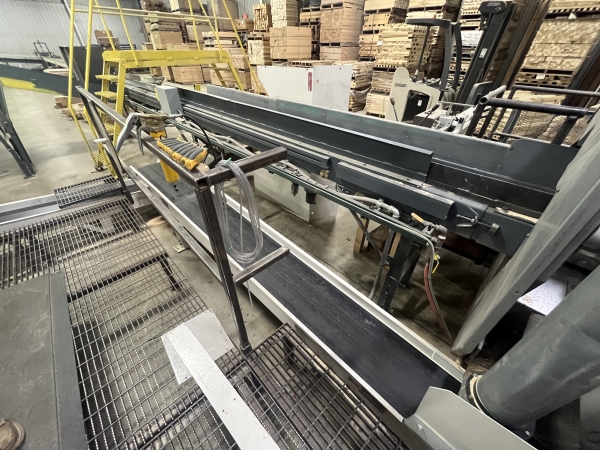

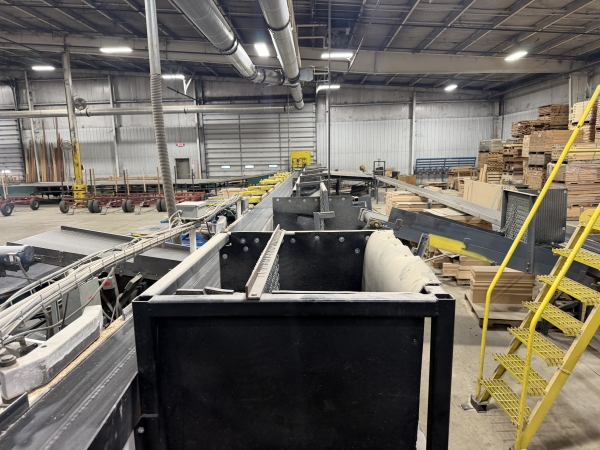

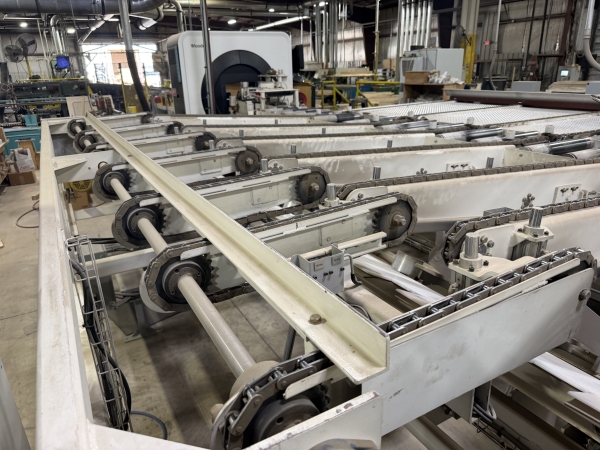

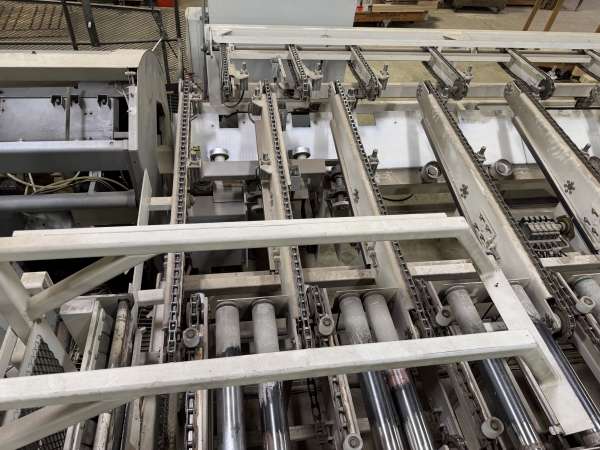

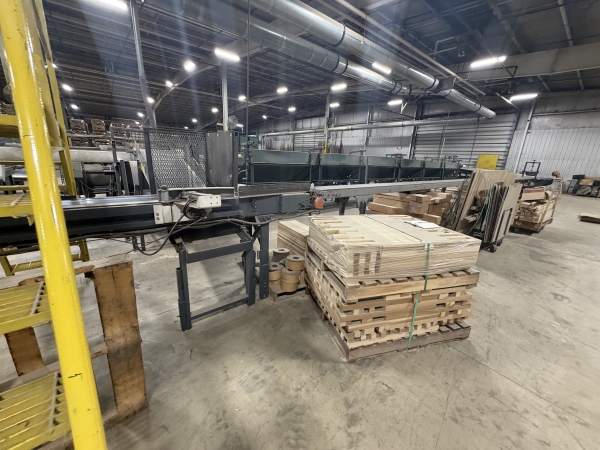

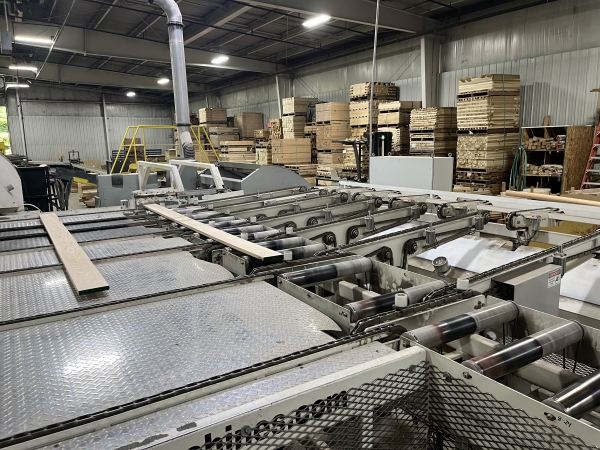

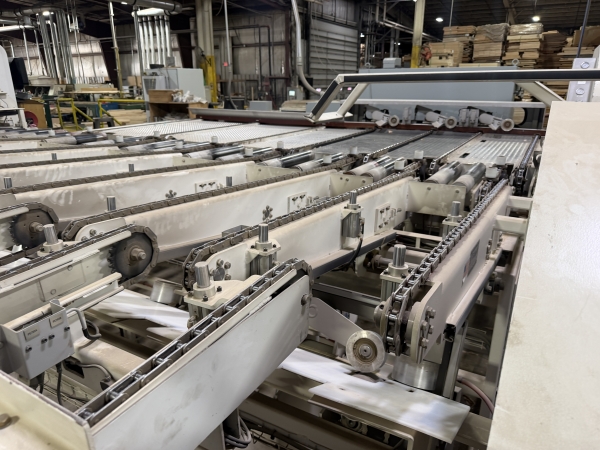

Eagle Y-transfer coming out of a Woodeye Scanner
Woodeye Scanner is not for sale
Machine is currently feeding 2 saws (Eagle Talon 3000 and Paul C14E)
The entire line was set-up to handle 6-16' material
The transfer would send stock narrower than 8" at 4/4 thickness to Eagle Talon 3000
Wider stock would be sent to the Paul C14

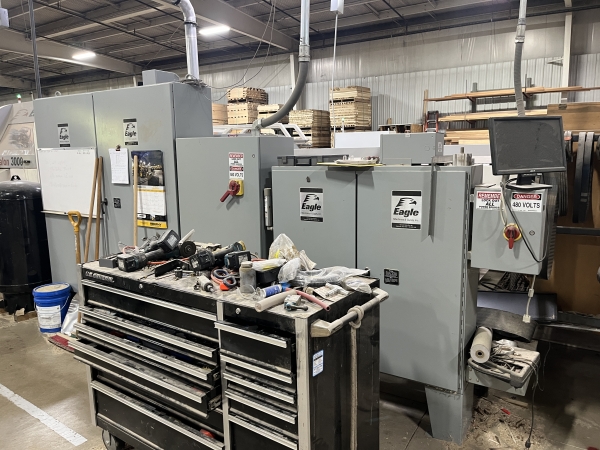

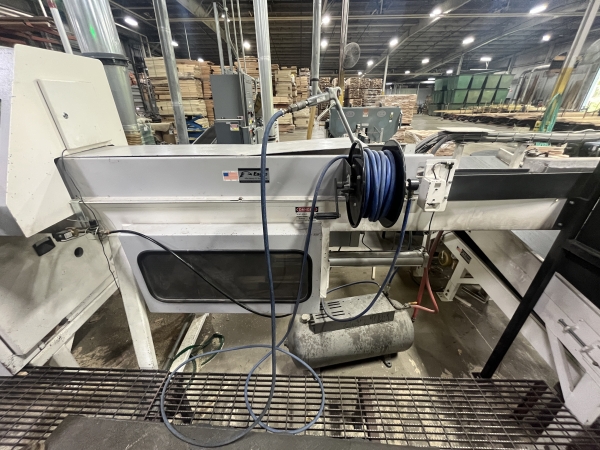

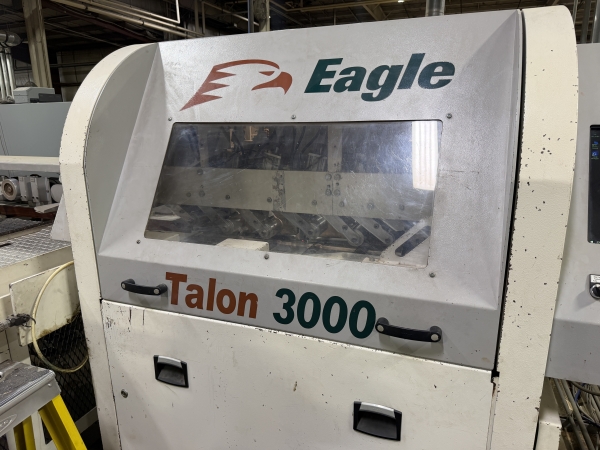

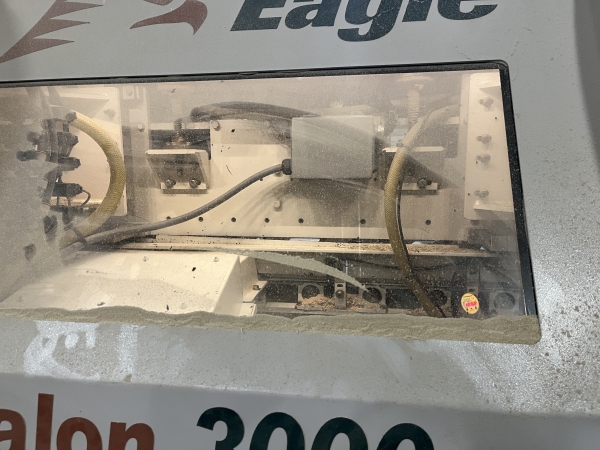

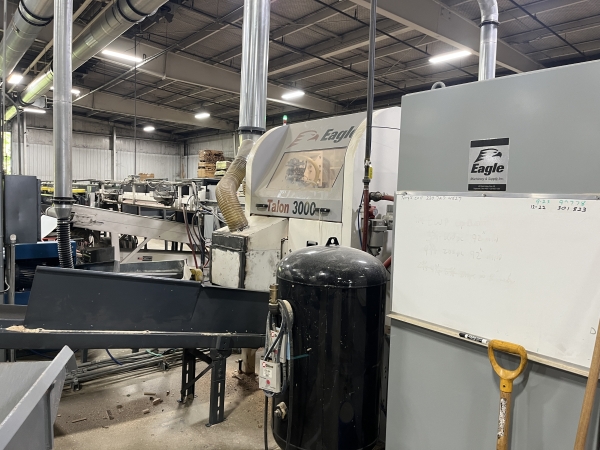

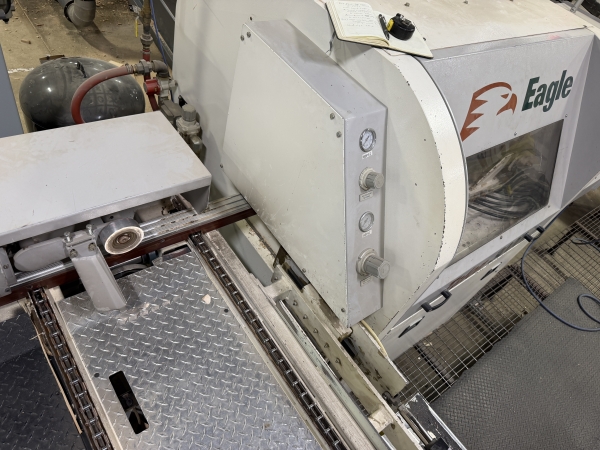

2018 Eagle Talon 3000 Through-Feed Optimizng Cut-off Saw!
Feeds from Left-to-Right

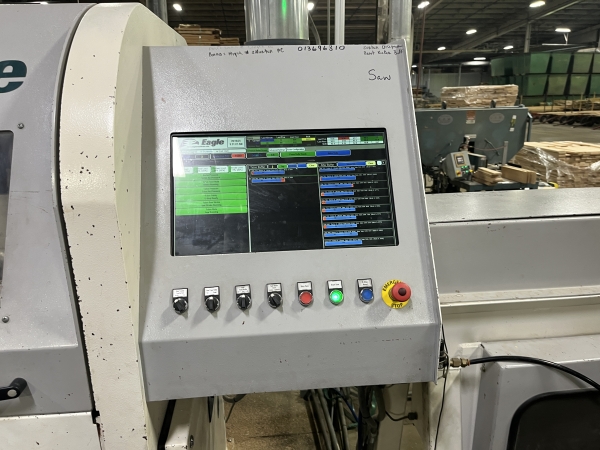

Currently in a line set-up with a (Woodeye Scanner - not for sale) but is also set up for crayon mark reading in the software

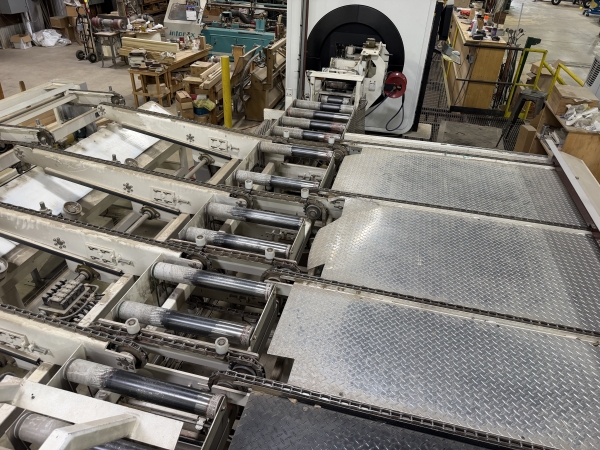

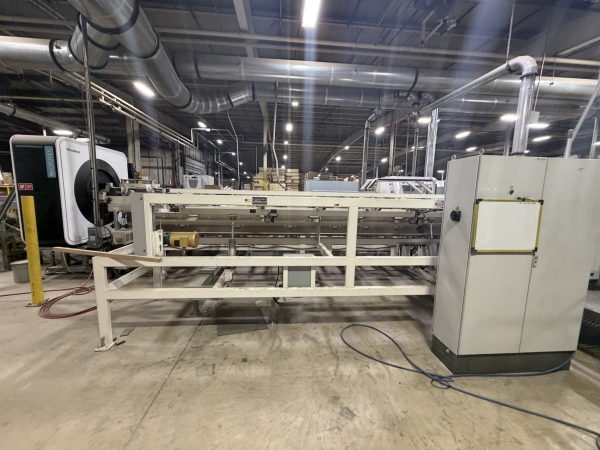

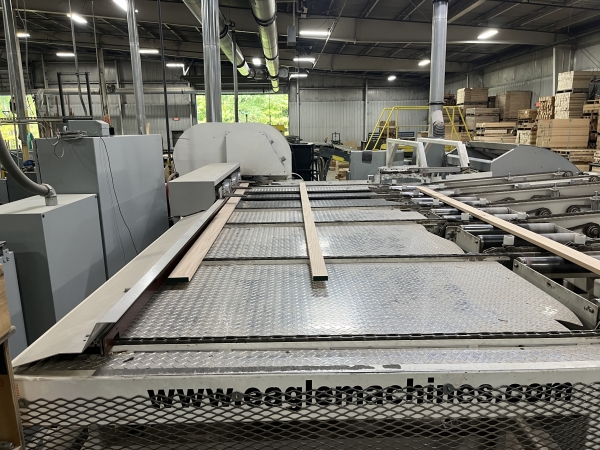

90 Degree Saw Lateral Feeder Approximatley 14'4" long x 6' Deep

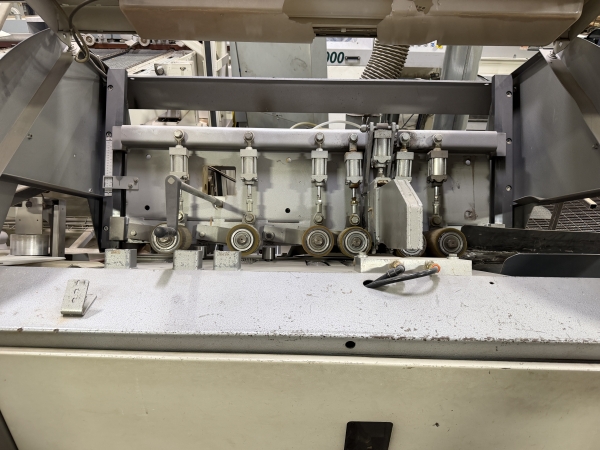

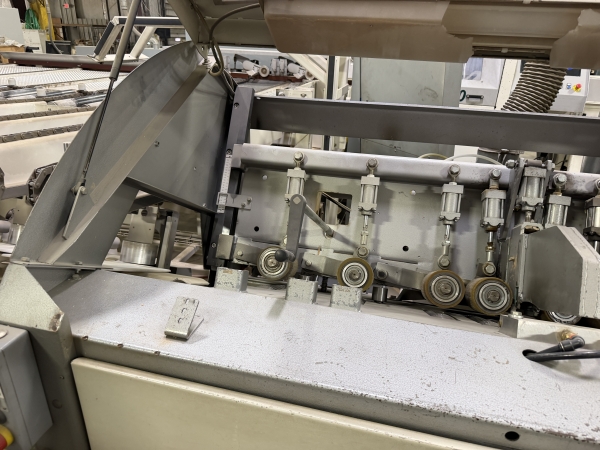

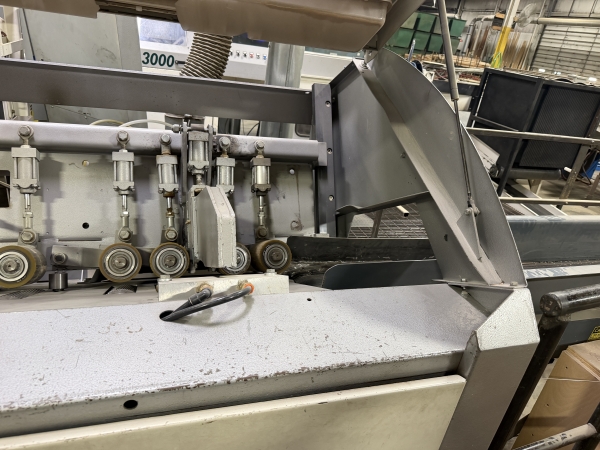

Ten Top & Bottom Feed Rolls

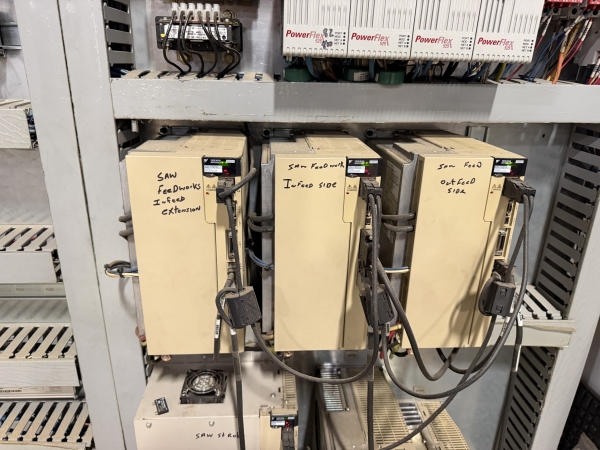

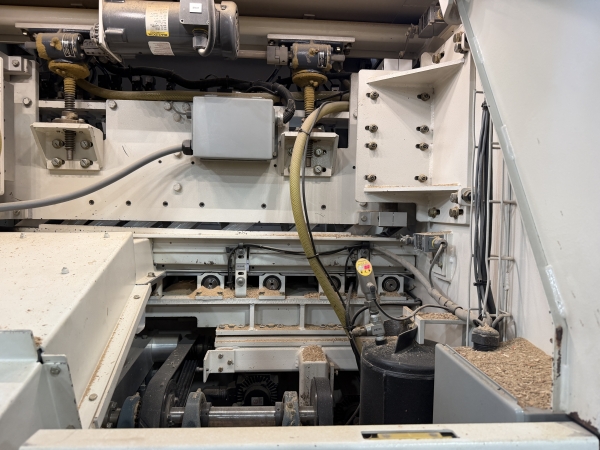

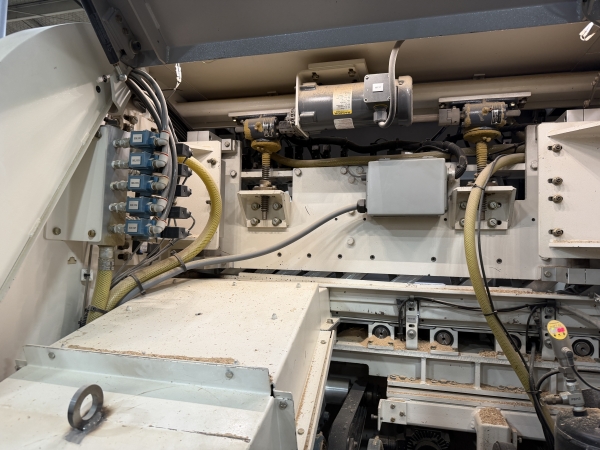

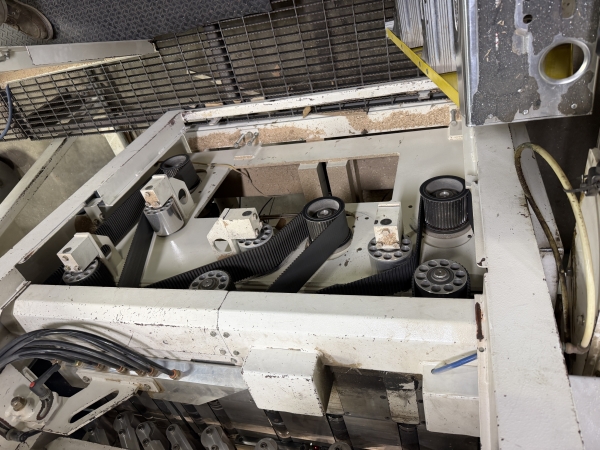

Servo Feed Drive driven by 5 kW servo motor
7 kW Saw Stroke Servo
20HP Blador arbor motor
20" Diameter Blade Capcity
Cut Envelope of 1"x8" or 2"x6"
Machine has a total of 11 kickers stations

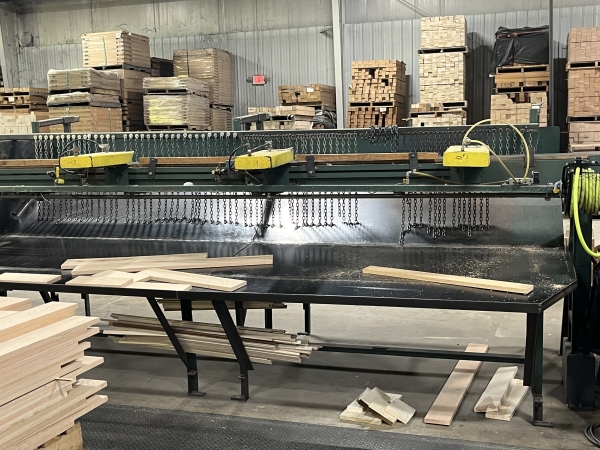

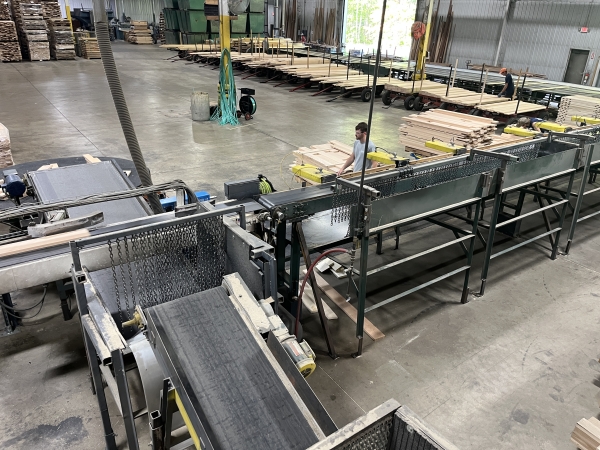

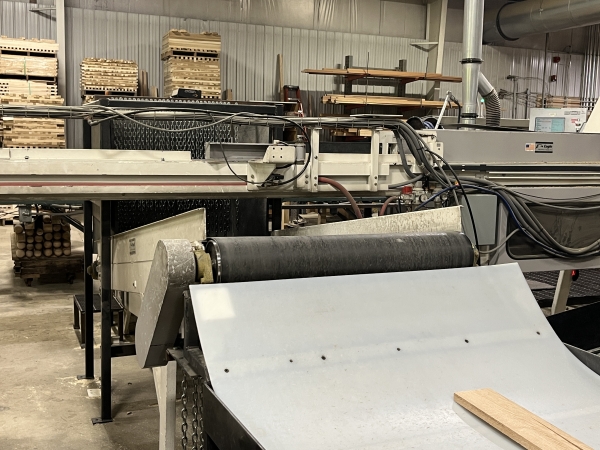

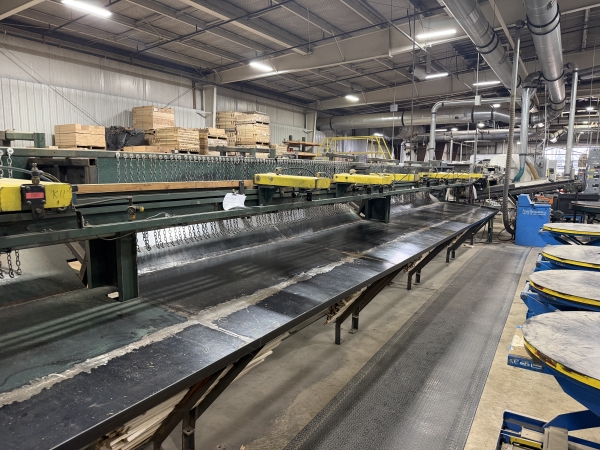

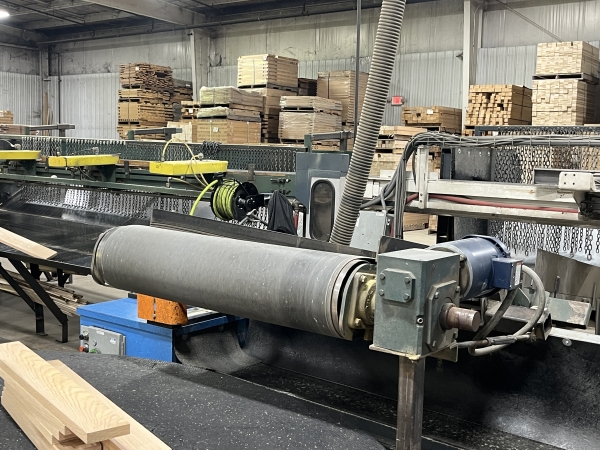

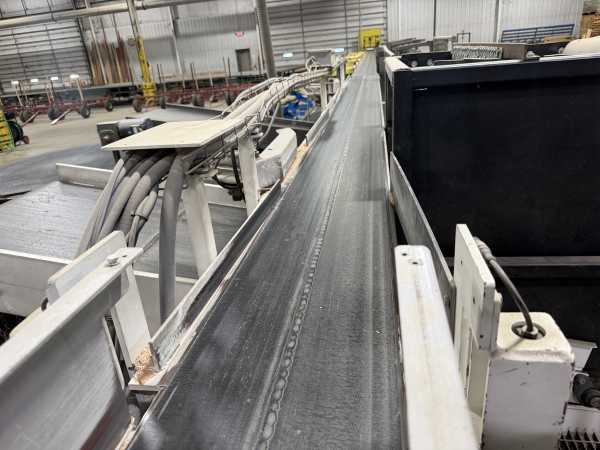

Eagle Kicker Belt 26' long x 12" wide with 2 kickers

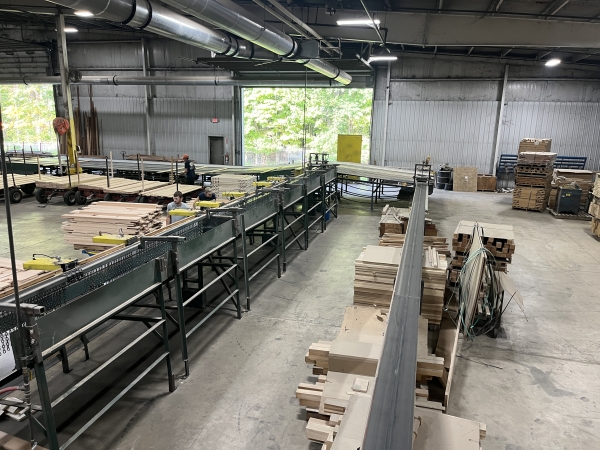

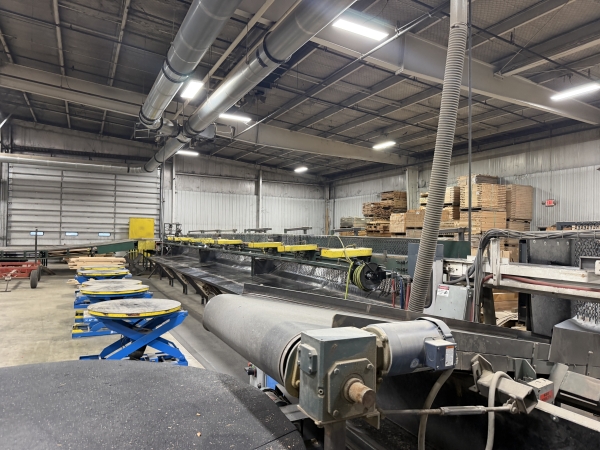

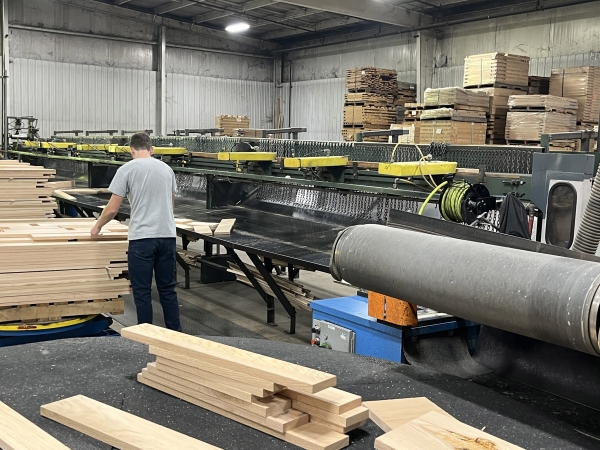

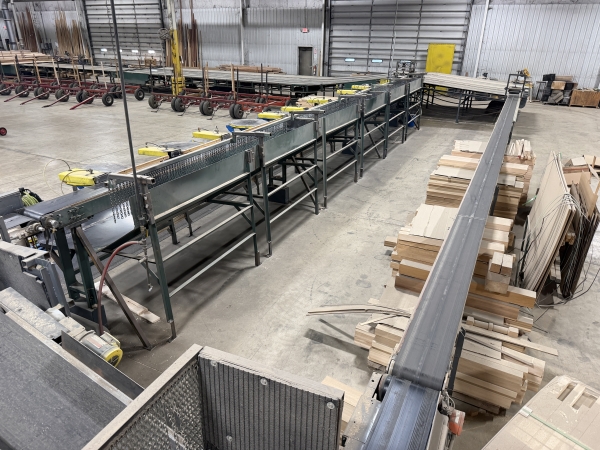

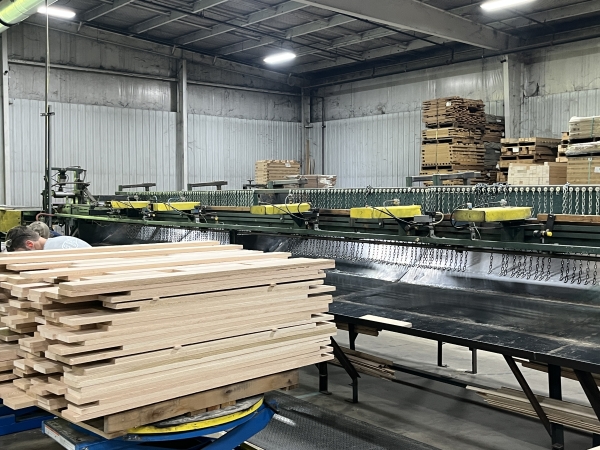

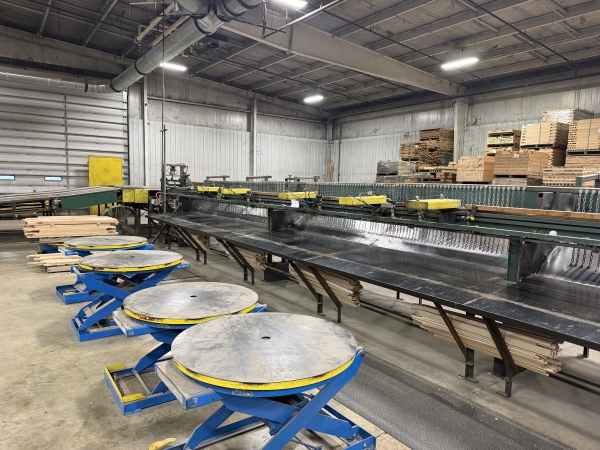

Additional Kickers (9) are on an Automated Lumber Handling Belt Conveyor (kickers were made by current owner)

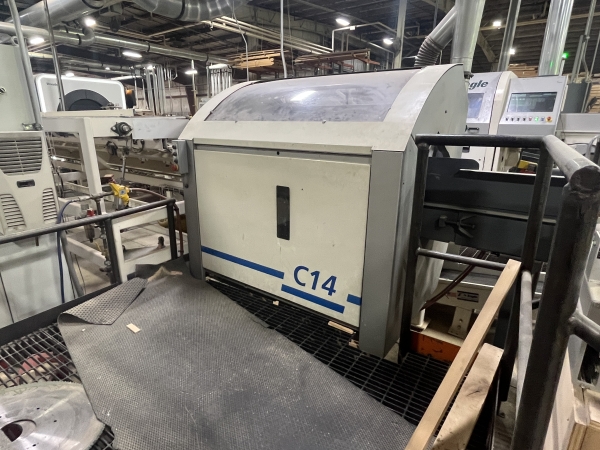

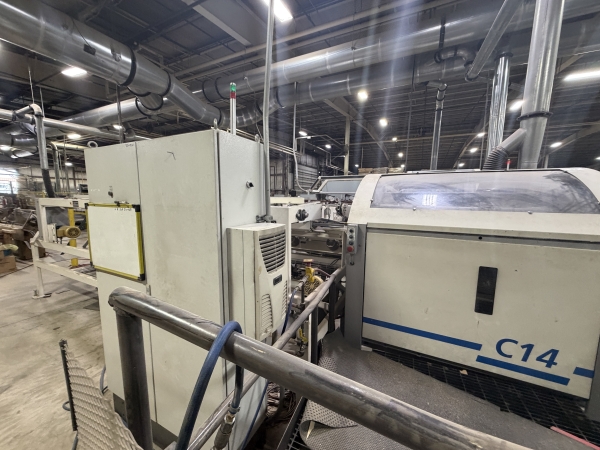

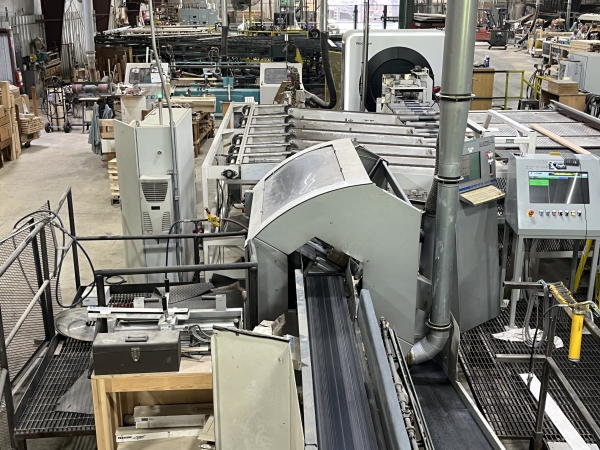

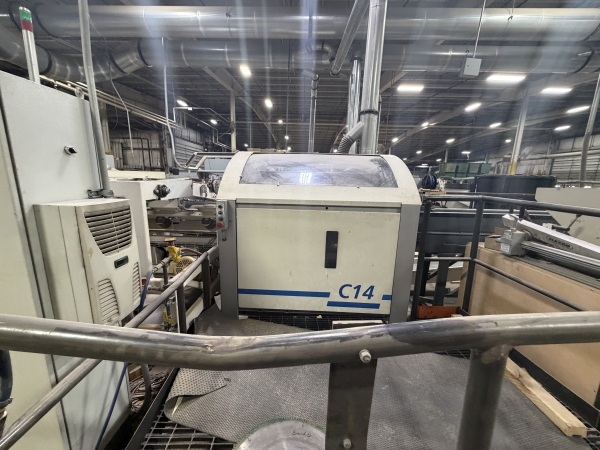

Model C14E - 12" Optimizng Cross Cut Saw
Material Length (Min/Max): 6'-16'
Timber Thickness (Min/Max): 5/8" - 2-1/2"
Min/Max Timber Cross-section: (2"x5/8")/(12"x2-1/2")
Saw Motor: 10HP
Saw Blade: 600mm

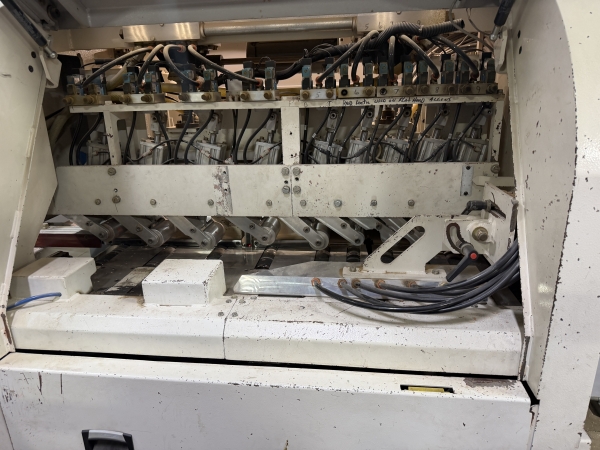

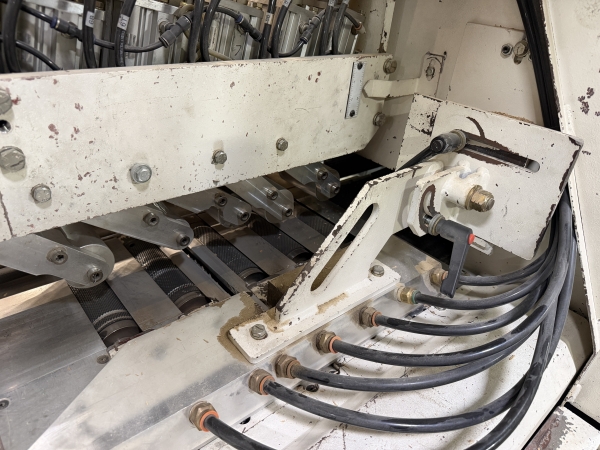

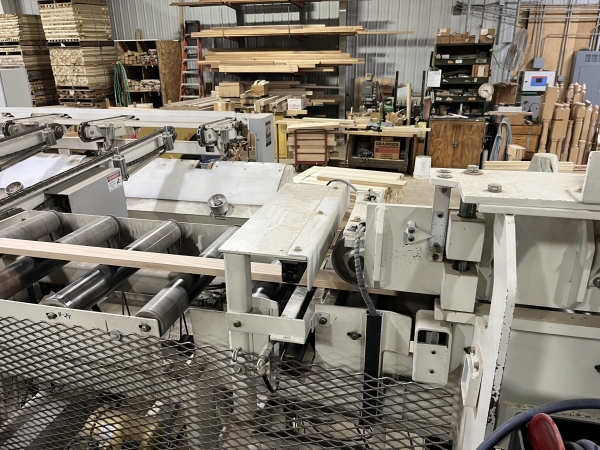

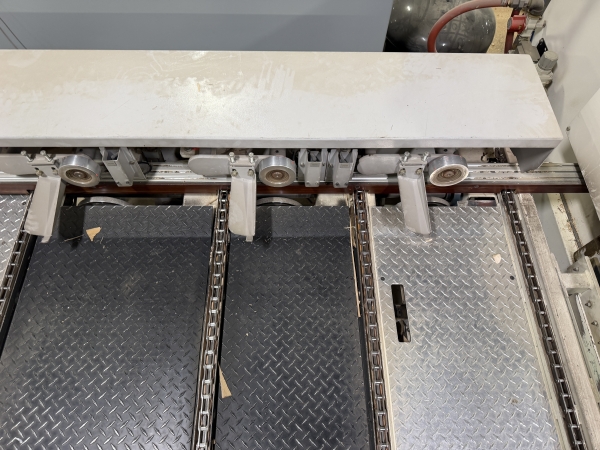

Six Top and Bottom Feed Rolls - Bottom are Steel and the Top are Rubber / Urethane coated

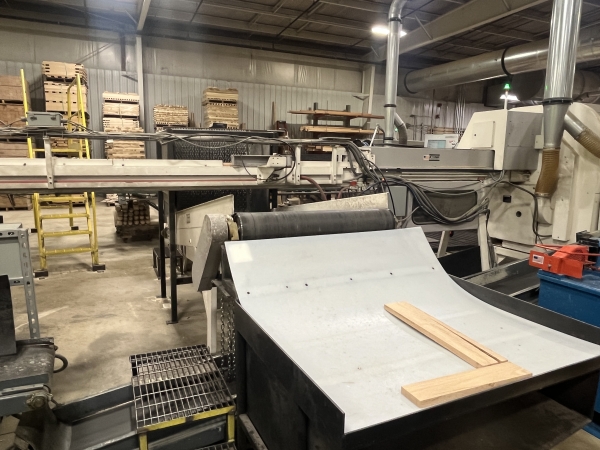

Initial Outfeed Belt with 1 Kicker

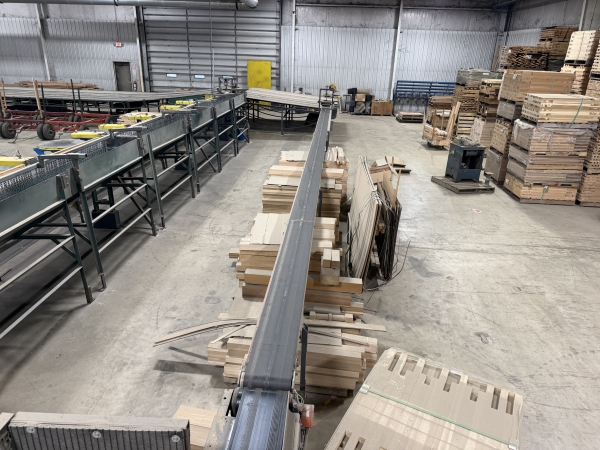

Secondary Transfer belt with pinch roll at the end measuring Aprroximatley 47'9" x 12" wide

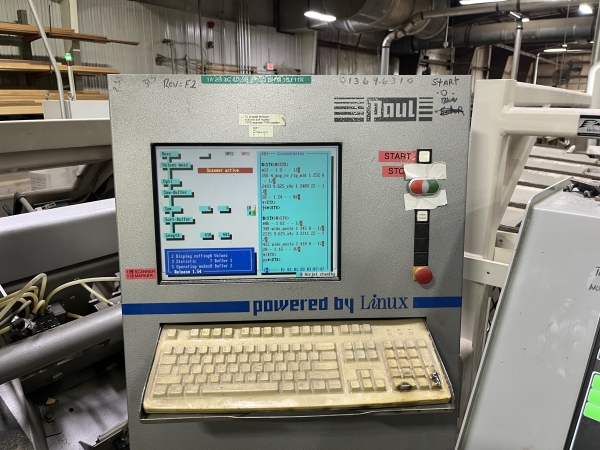

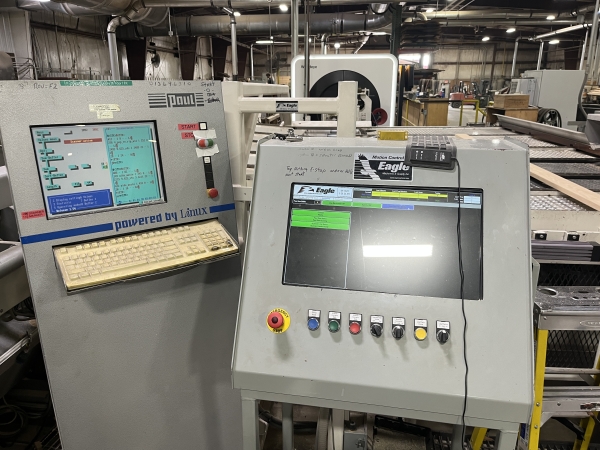

Linux Operating System
Current Voltage: 460V 3ph
This system is currently in a line that is being fed by a Scanner (Woodeye - not for sale) - it has the software and crayon reader to take it back to the original function
Year of Manufacture: 2006
Machine is part of an entire rough mill that is for sale and will be available in late Dec. or Jan.
Specifications are written to the best of our knowledge with some being sourced from literature, we encourage you to inspect the machine and verify
