Newman Model S-382 Double Surface Planer w/ Buss Automation Tilt-Hoist and Stacker System
Machine Available
Stock #52179

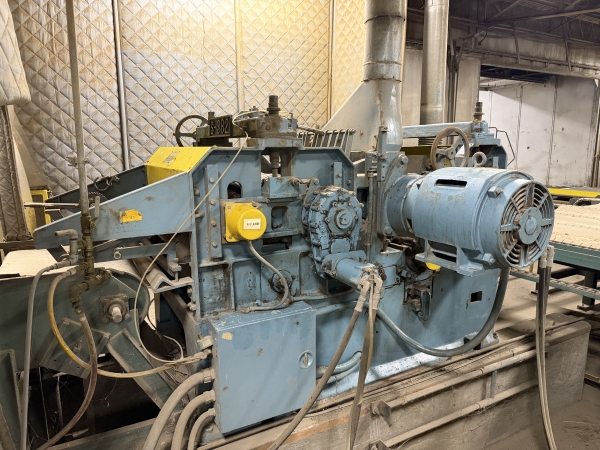

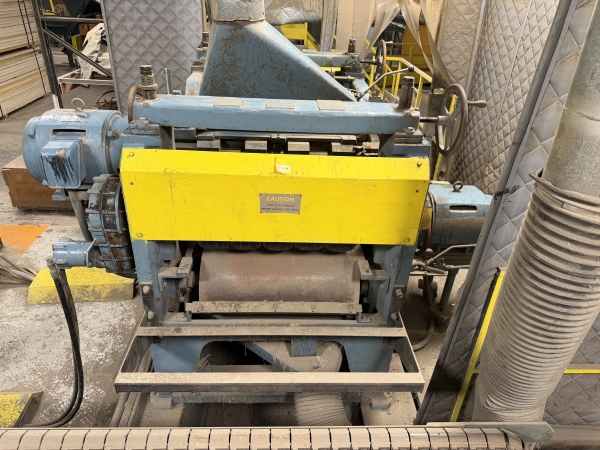

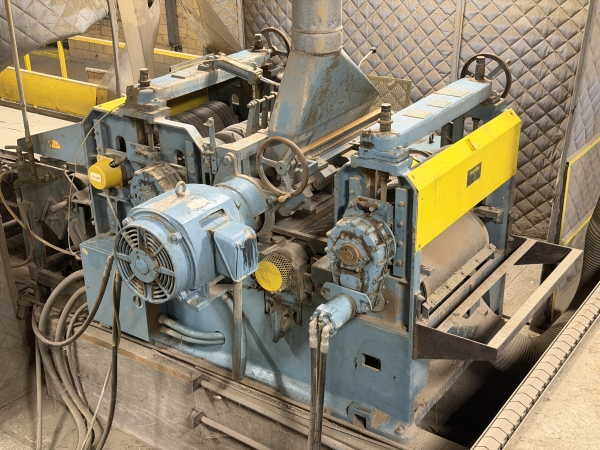

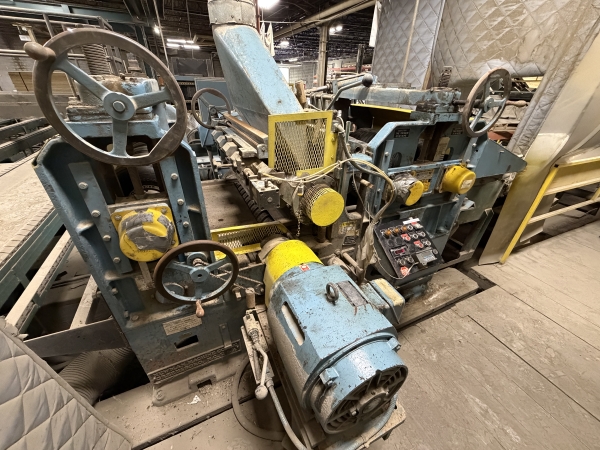

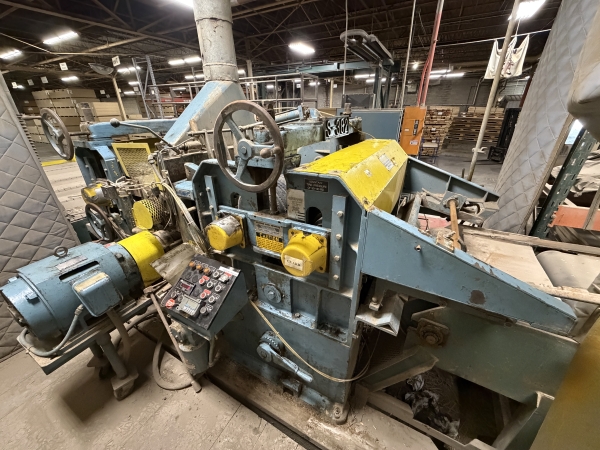

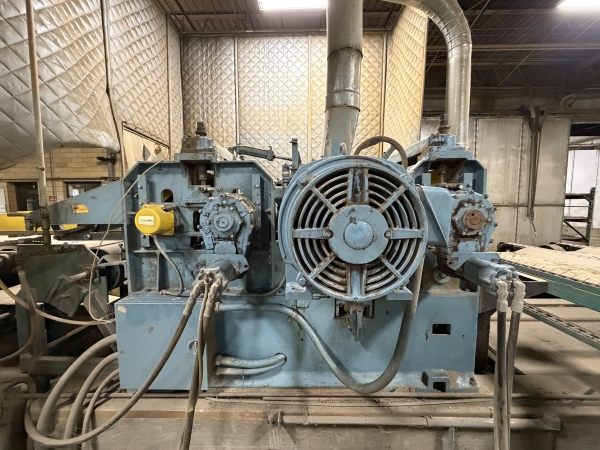

Used- Newman Model S-382 Double Surface Planer
- Maximum Feed Opening: 30" x 6"
- Minimum Stock Thickness: 3/8"
- Minimum Stock Length: 48"
- Feed Speed: 80 - 300 FPM
- Top Head Motor: 75 HP, 230/460v, 3ph
- Bottom Head Motor: 40 HP, 230/460v, 3ph

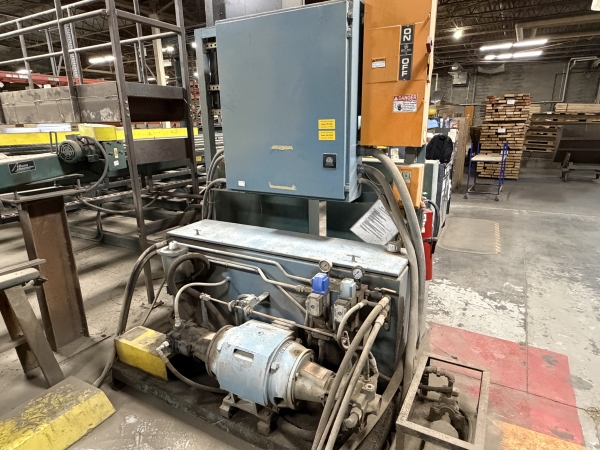

- Hydraulic Power Feed Unit: 25 HP, 230/460v, 3ph

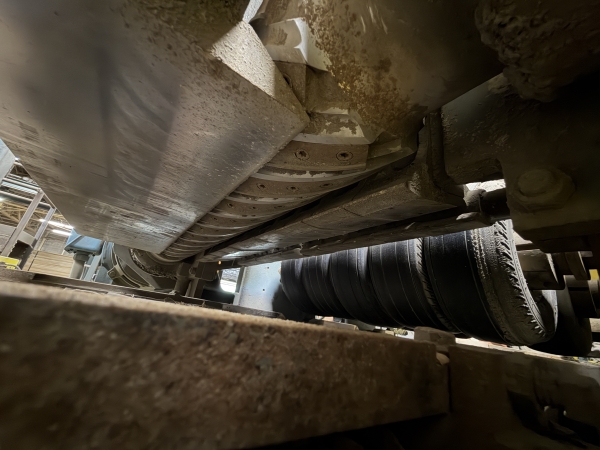

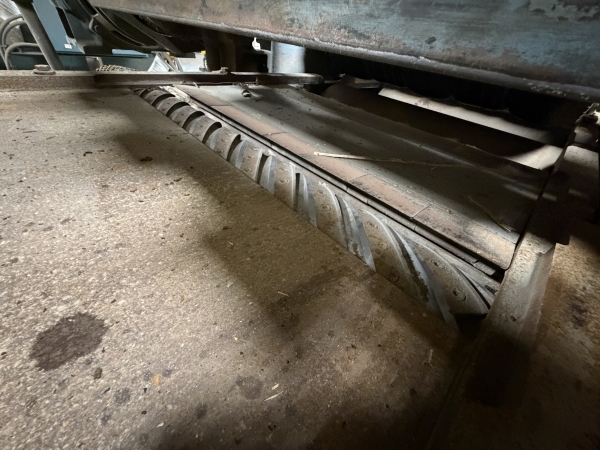

- Top & Bottom Newman QUIETCUT Helical Carbide Cutterheads
- Three Rows of Pneumatic Rubber Feed Tires
- Sectional Chip-Breaker
- Automatic Cut Control
- Anti-Lap Infeed Device
- Grinding Equipment is Included
- Total CFM Required 6400
- Dust Outlets 10" Top and 9" Bottom

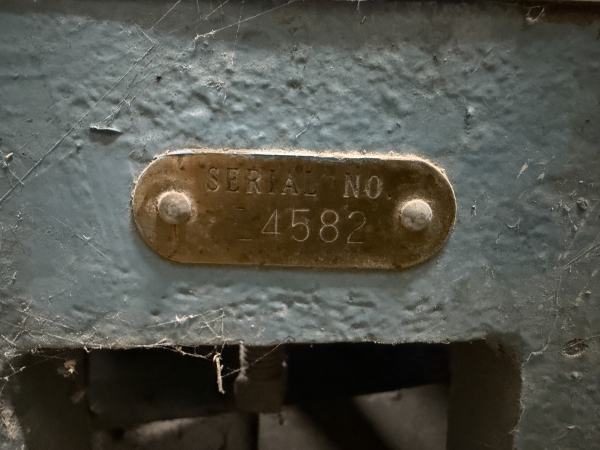

- Serial no. 14582
- Planer Sits on 26” Platform, Making the Pass-Line ~60”

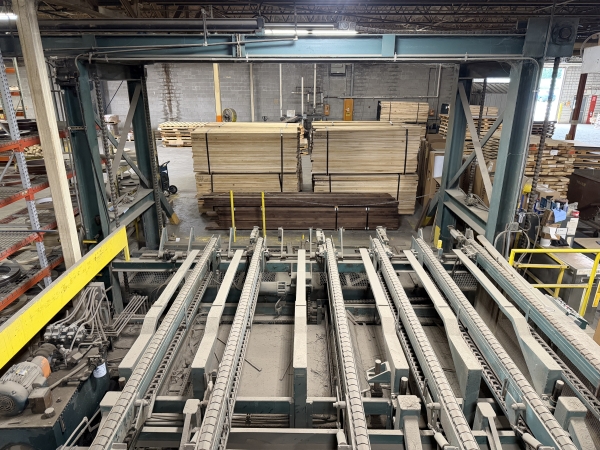

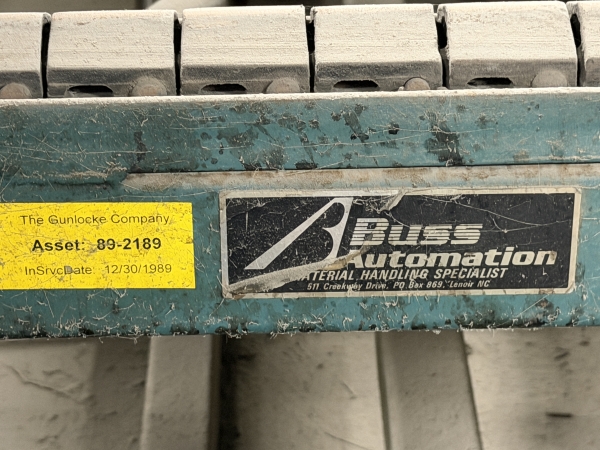

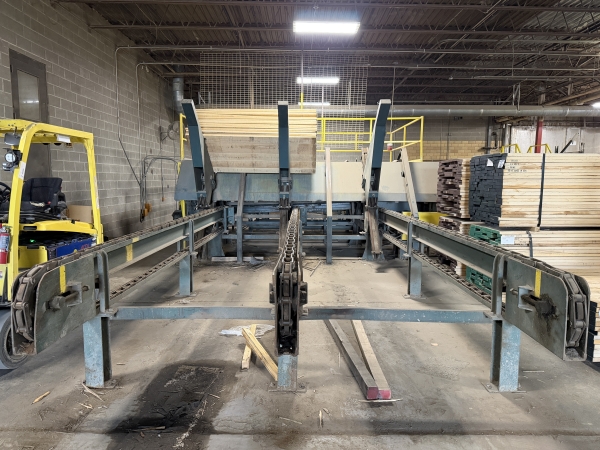

- Buss Automation Three-Strand Infeed Package Deck, 135” W x 216” L
- Chains Spaced at 62” & 68” On-Centers
- System Accepts 6’ – 16’ L Packs

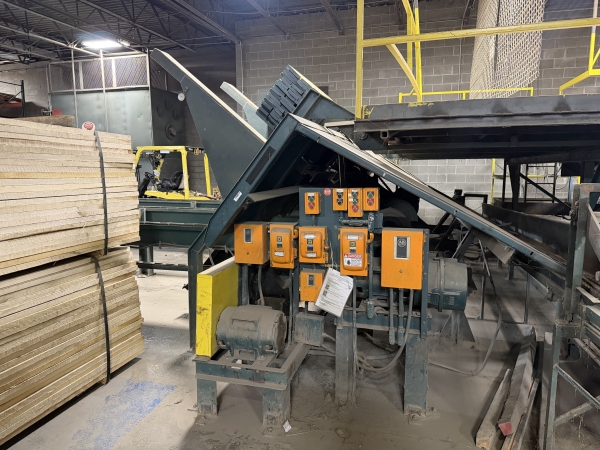

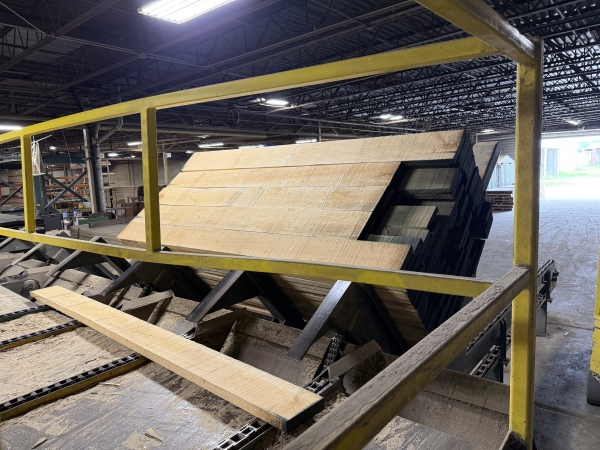

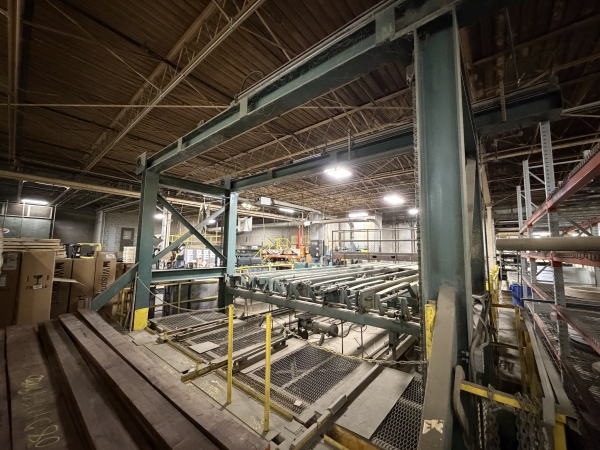

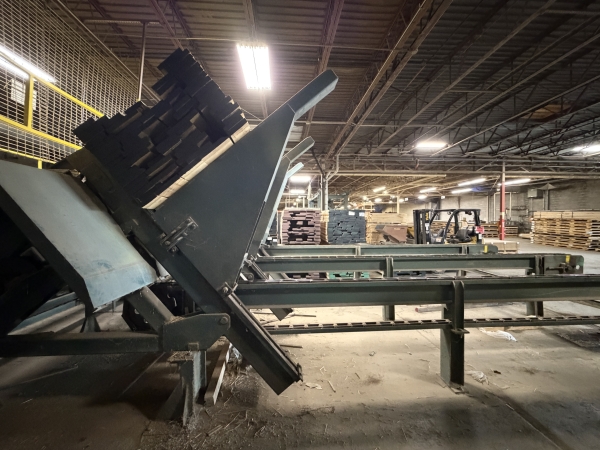

- Buss-Automation Three-Arm Tilt-Hoist, Arms Spaced at 64” & 68”

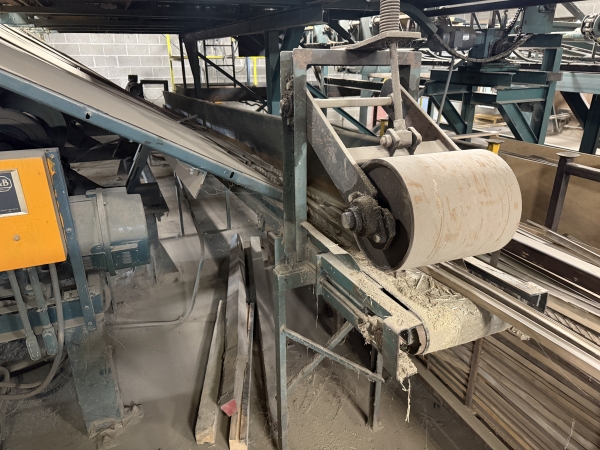

- Sticker Removal Conveyor, 10” W x ~25’ L

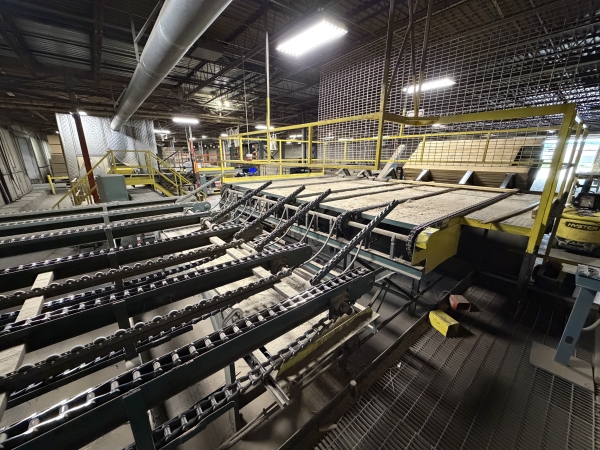

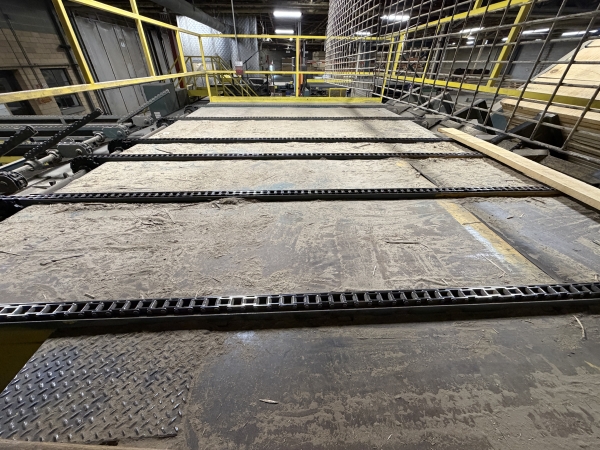

- Six-Strand Chain Deck, 171” W x 140” L
- Chains Spaced at 32”, 28”, 21”, 44”, 45” On-Centers

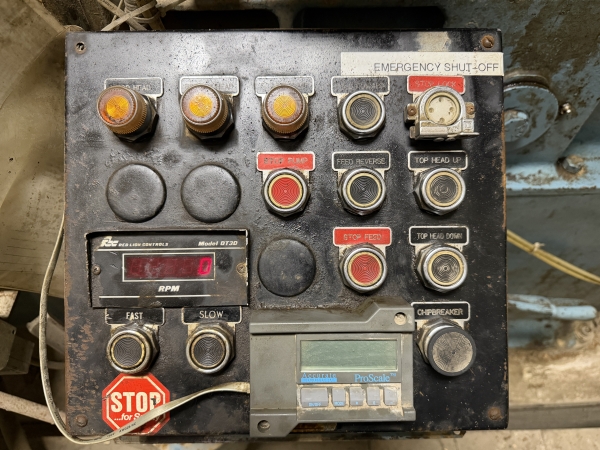

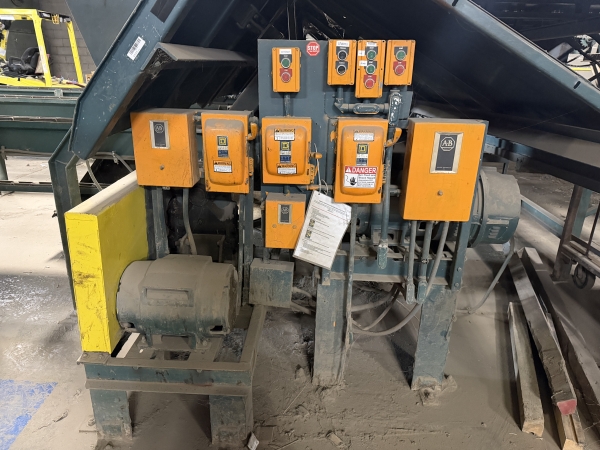

- Pedestal Control for Chain Decks
- Five-Arm Tippel

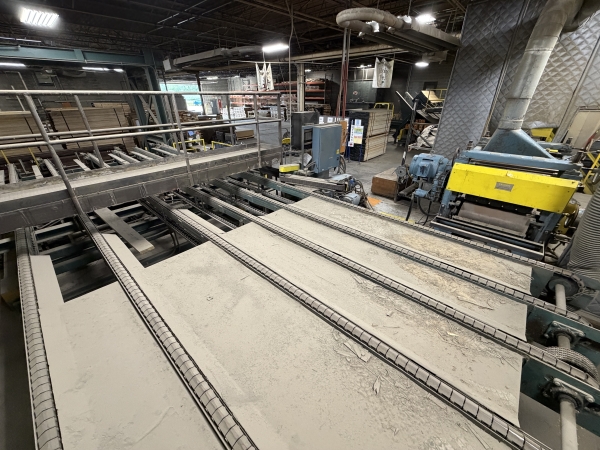

- Planer Infeed Conveyor 32” W x ~48’ L

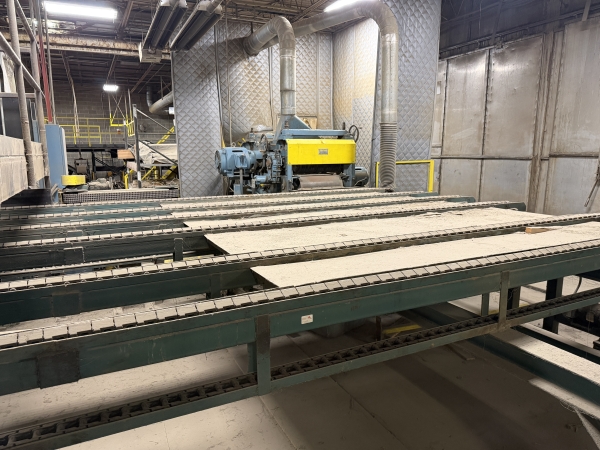

- Six-Strand Decline Chain Deck, 169” W x ~33’ L
- 434” L Outfeed Chain Deck w/ H78-A Roof-Top Chain & Near-Side Even-Ender
- Six-Strands Spaced at 28”, 24”, 27”, 39”, 26”

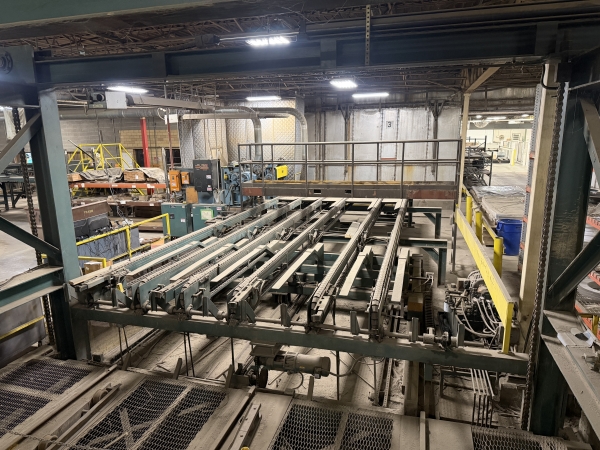

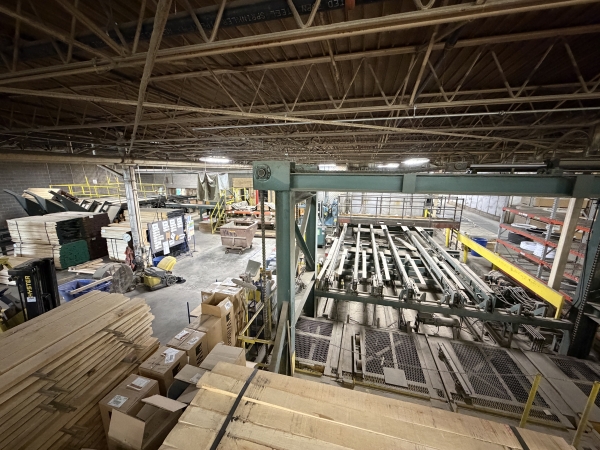

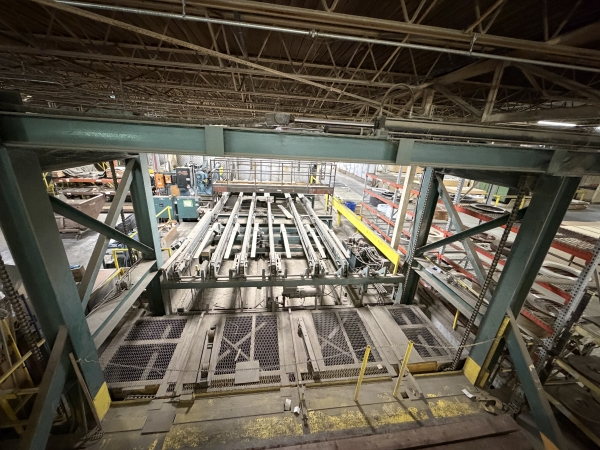

- Buss Automation Lumber Stacker
- Stacker Handles up to 16’ Bunks, 5’ Pack-Width
- Six 62” L Stacking Arms
