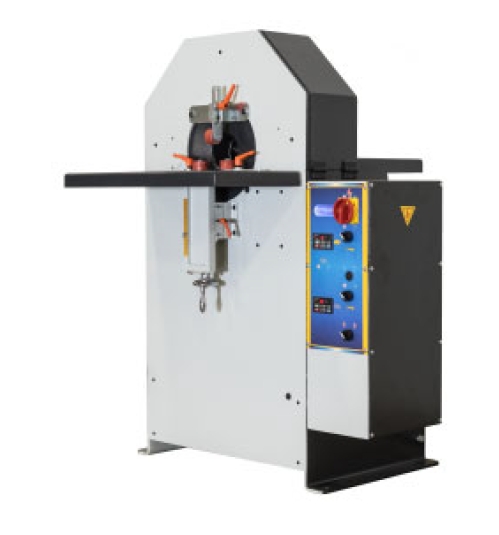

Northtech Model NT-ES43 4 Sided Straight and Curved Part Edge Sander
Machine Available
Stock #626030N
New- 2 Belt with 360° rotation
- (1) 1HP sanding motor
- Amperage requirements: 230V/460V 3PH: 4/2 AMPS
- (1) 1/4HP 0~11M/min (0-35fpm) variable speed feed motor
- Min. working length: 350mm (13-3/4") for straight workpiece
- 200mm (7.8") radius and greater
- Min. workpiece curve: 400mm (8") radius and greater
- Round rod working diameter: 10~75mm (3/8 - 3")
- Sanding belt size: (2) 1220mm x 50~90mm ((2) 48" x 2 - 3-1/2")
- Variable rotational belt speed control: 0~1102M/min (0-3600 FPM)
- Variable feed speed control 0-35FPM
- (1) 5" dust port requiring 681 CFM @ point of extraction
- 33-1/2" passline
- Infeed table 12" x 24-1/2"
- Outfeed table: 12" x 24-1/2"
- Net weight: 882 lbs.
- Gross weight: 993 lbs.
