Mid-Oregon PR 2000 Hydraulic 6 Moving Blade 24" Gang Rip Saw and In-Feed System
Machine Available
Stock #201649

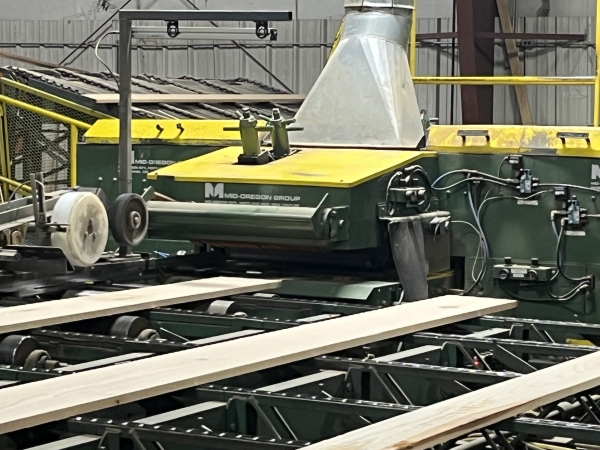

Used- Mid Oregon PR 2000 Hydraulic 6 Moving Blade 24" Gang Rip Saw and In-Feed System
- At the End of the Deck feeding out of the Planer there is a board dealer to separate and go into the in-feed system

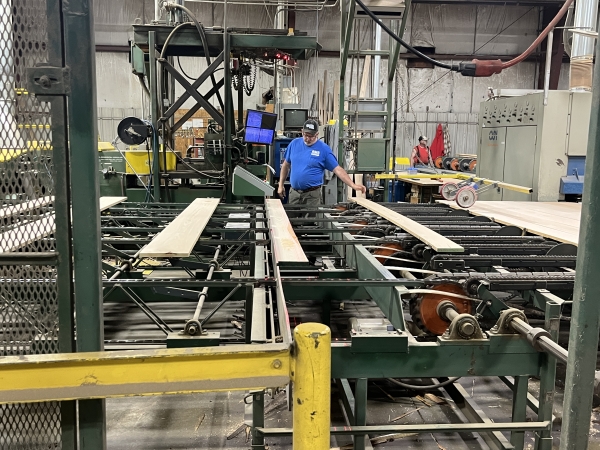

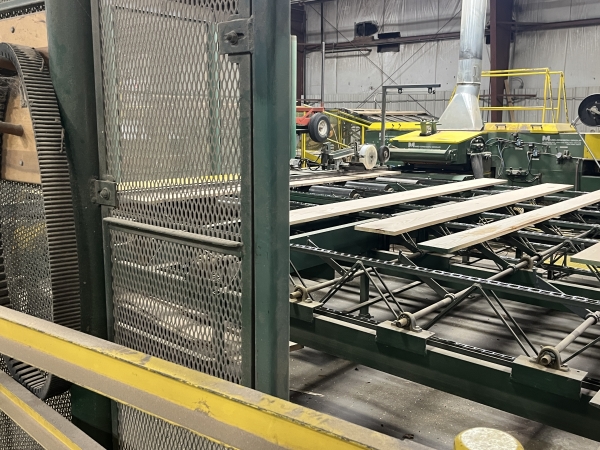

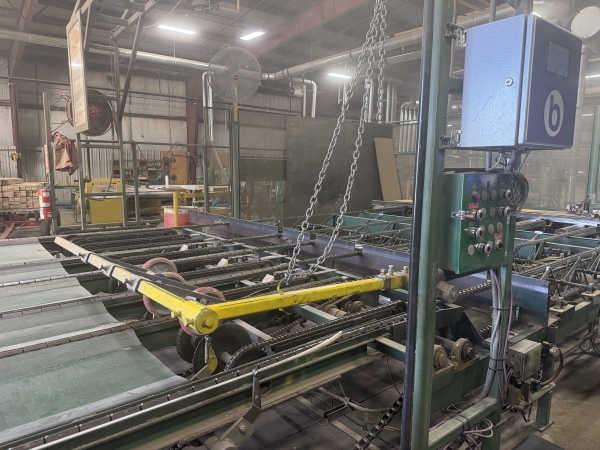

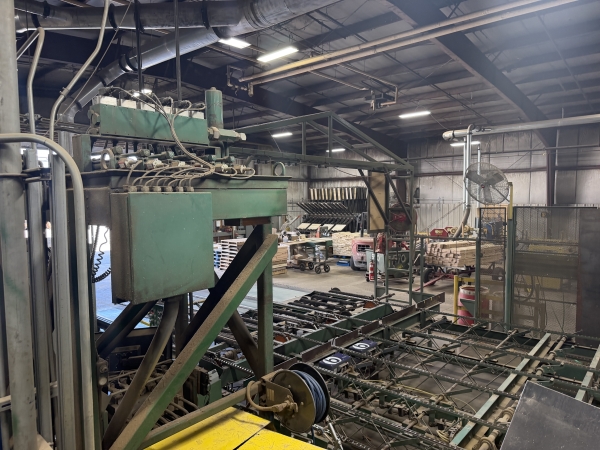

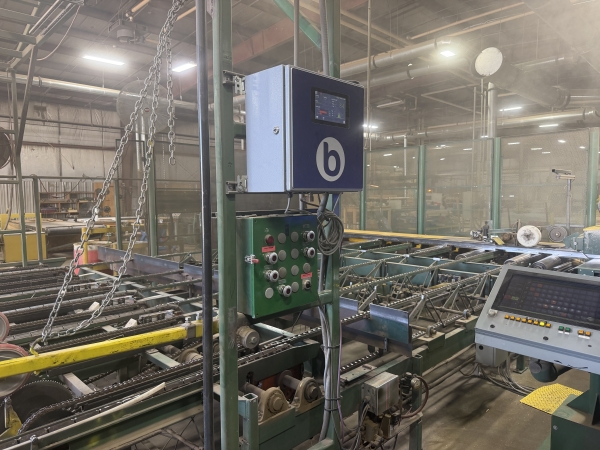

- In-feed System: Mid Oregon In-feed with 7 Strand Deck with Fence

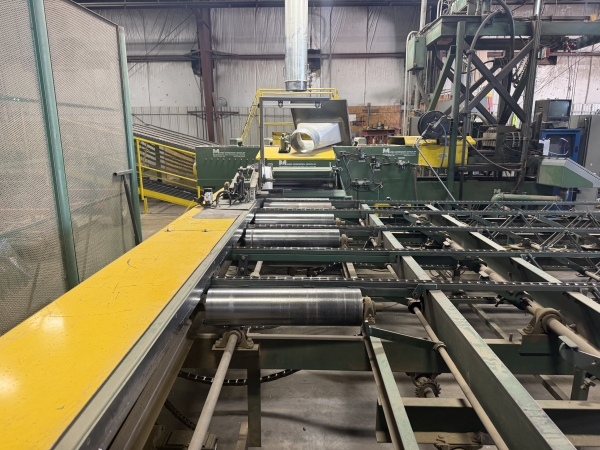

- Fence has two rolls on the top and feed deck has 6 rolls in the bottom for feeding into the rip saw

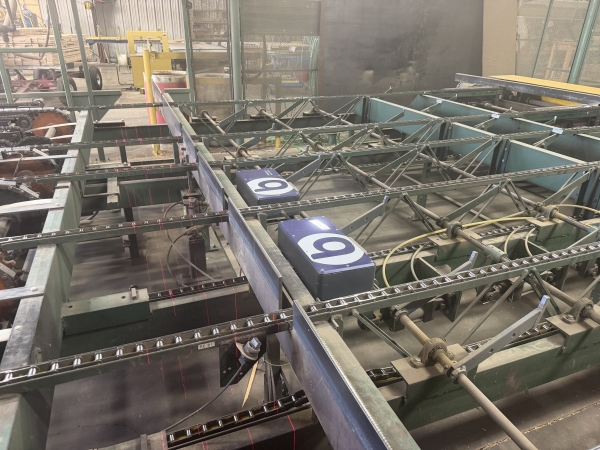

- Movable laser stand with 6 lasers to show operator solutions

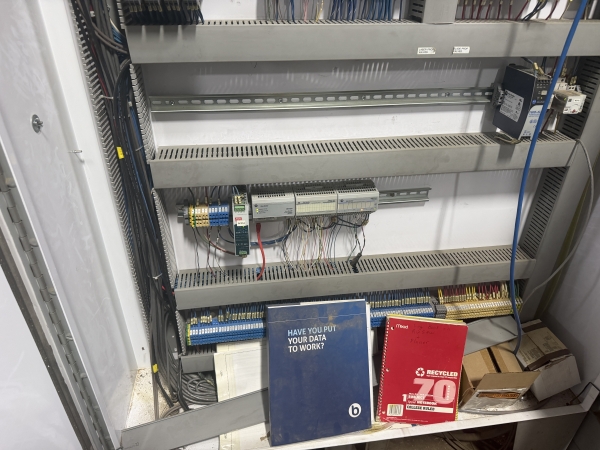

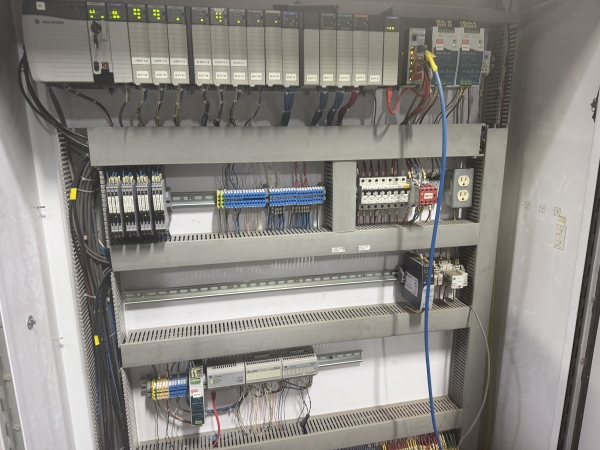

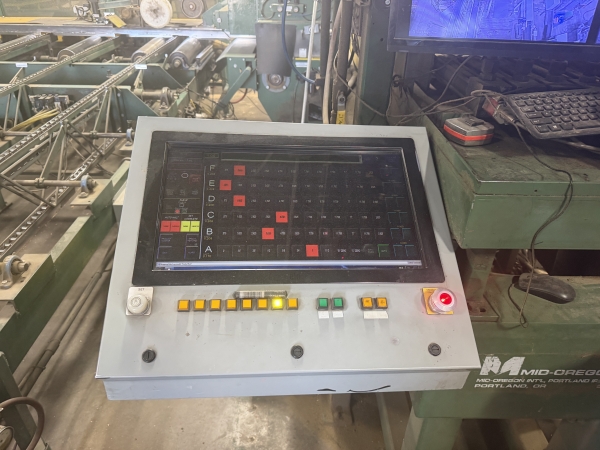

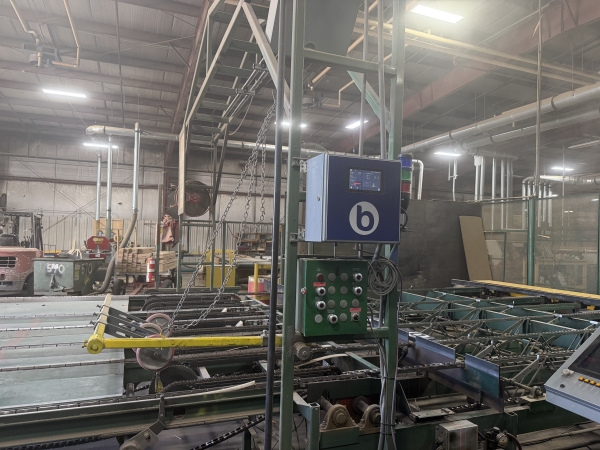

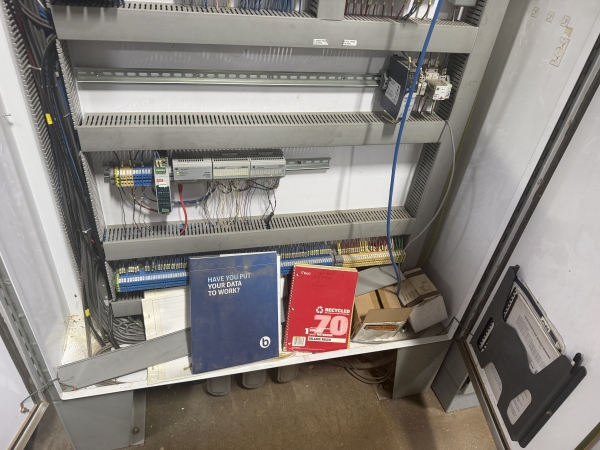

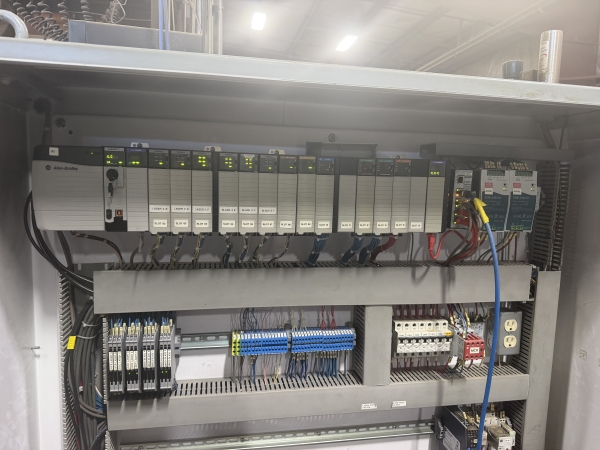

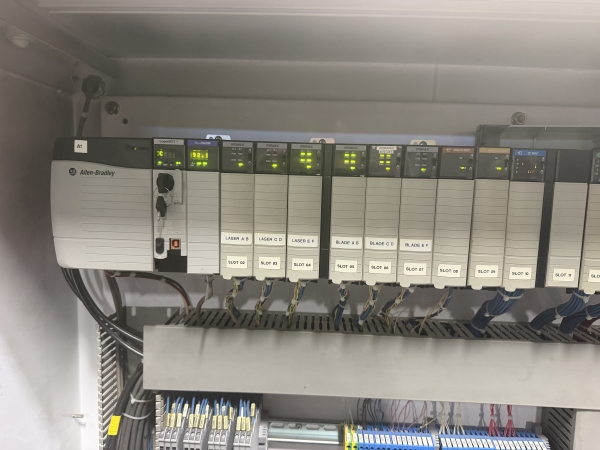

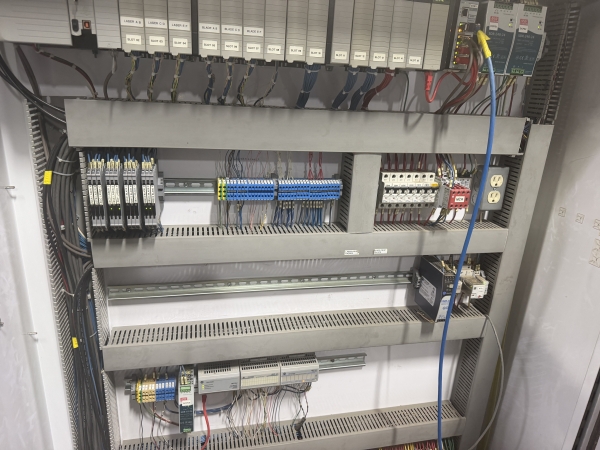

- Photo eyes for width sensing, Allen Bradley controls, and drives for the in-feed
- After disappearing fence the system has 5 boards stops for material in cue to be fed into the rip saw

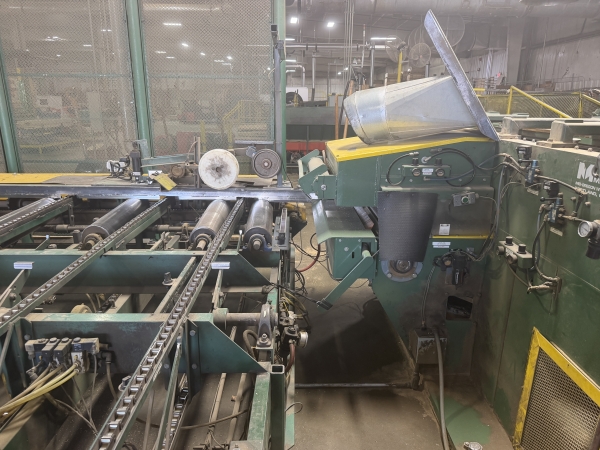

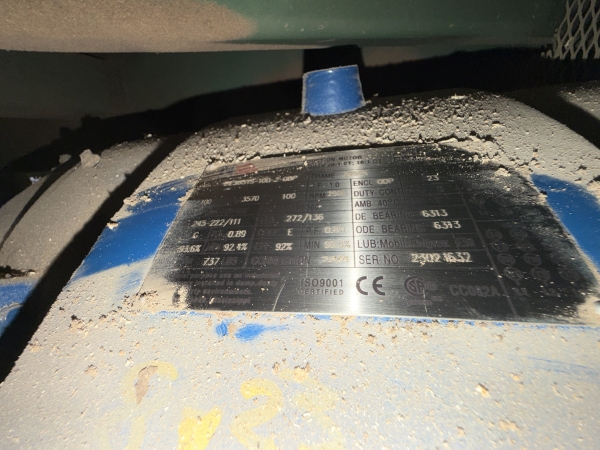

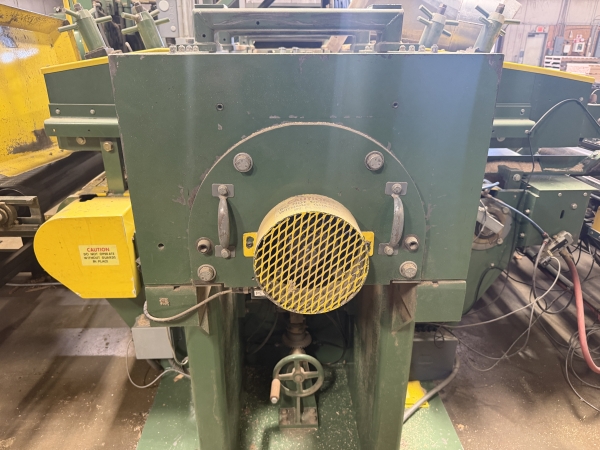

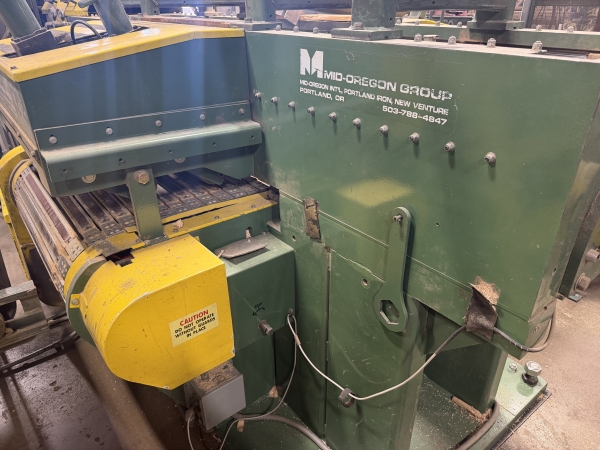

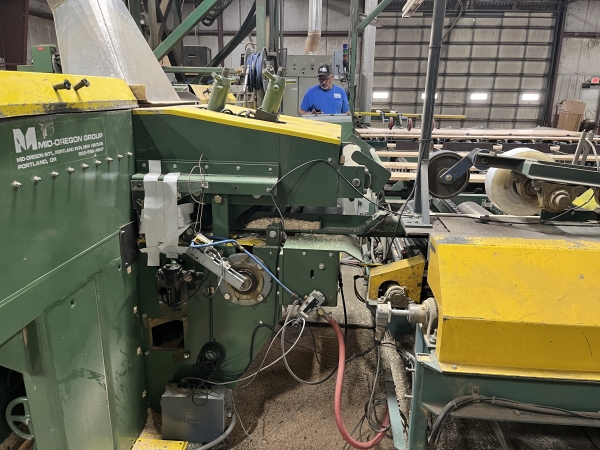

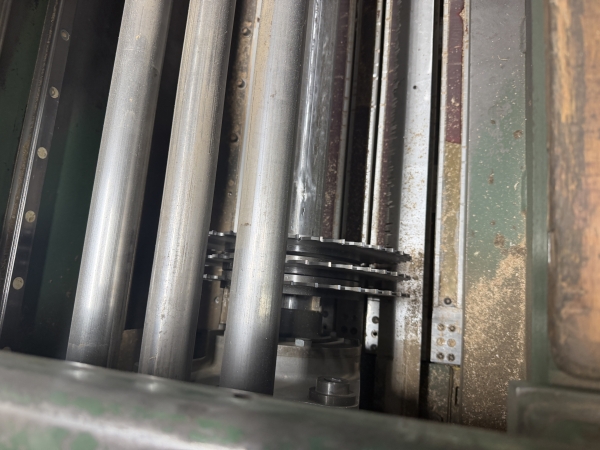

- Gang Rip Saw has a 3" Diameter arbor driven by 100HP Motor

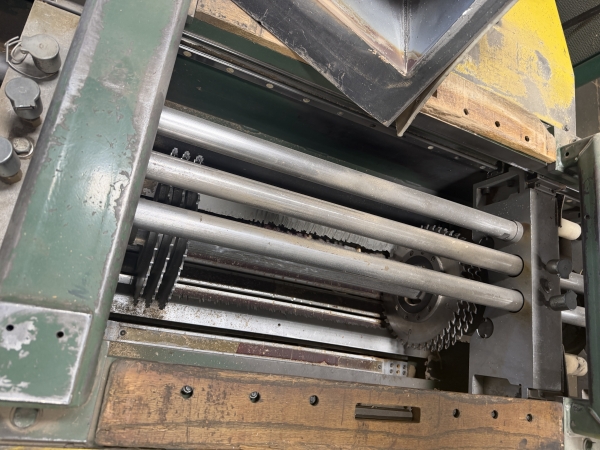

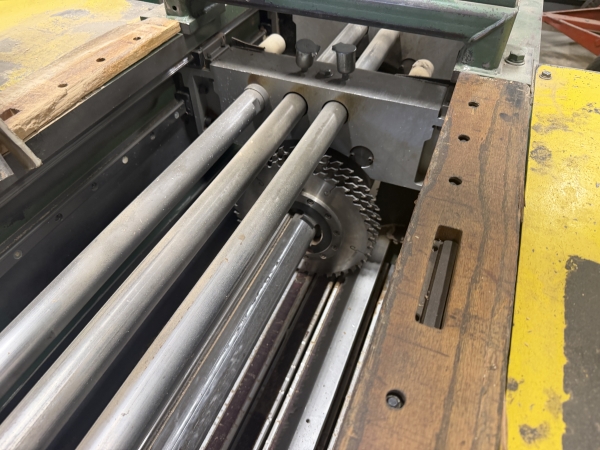

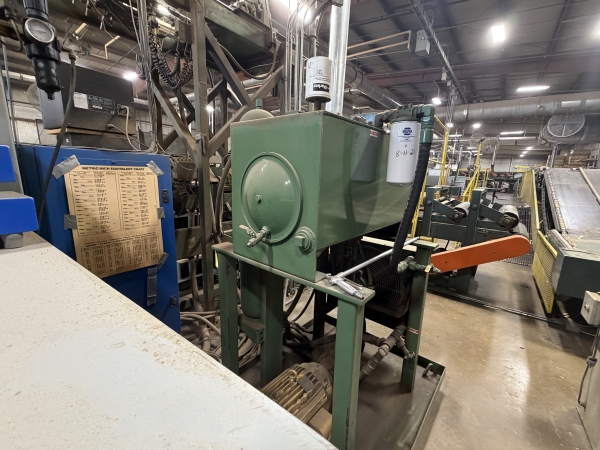

- 6 moving blades moved by Hydraulic unit with hydraulic servo valves

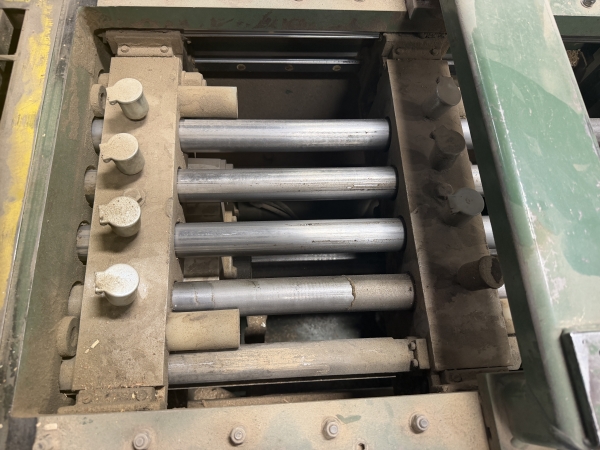

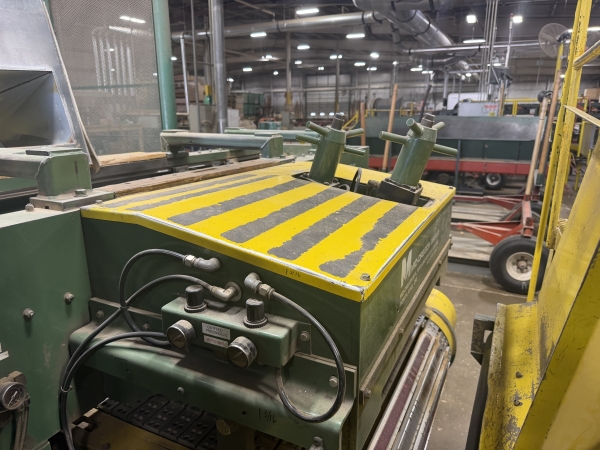

- 4 top pneumic pressure rolls

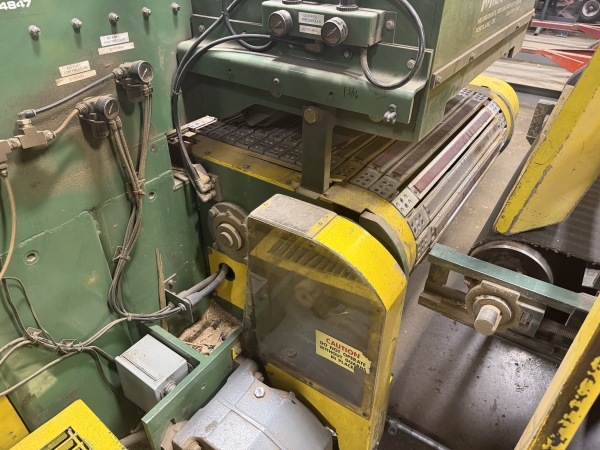

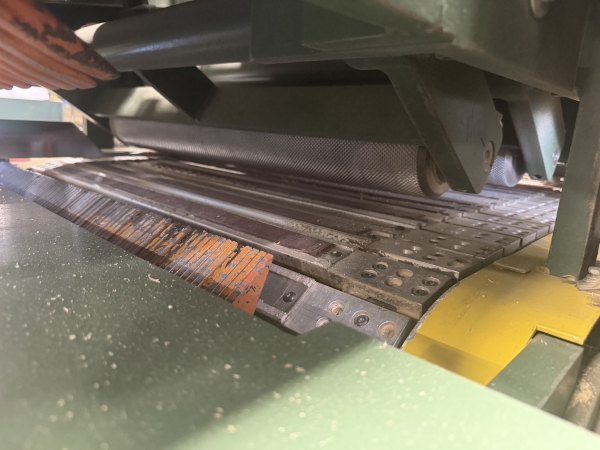

- Slat bed dip chain gang rip saw with 4" pitch with 24" use-able width capacity
- Thickness capacity: 3/4" - 2 1/4"
- Minimum Rip Width: 7/8"
- Feed Speed: 50-300FPM
- Gang Rip Saw New in 2004
- In-feed and all controls for the ripsaw were upgraded in 2017
