OSI Machinerie Entire Rough Mill System with Tilt Hoist, OSI SCP-24 Self-Centering Double-Sided Planer, Mid-Oregon 6 Moving Blade Gang Rip Saw, Eagle Talon 3000 Optimizing Saw and Paul C14 Optimizing Saw
Machine Available
Stock #201648
Used- Entire Rough Mill System with Tilt Hoist, OSI SCP-24 Self-Centering Double-Sided Planer, Mid-Oregon 6 Moving Blade Gang Rip Saw, Eagle Talon 3000 Optimizing Saw and Paul C14 Optimizing Saw

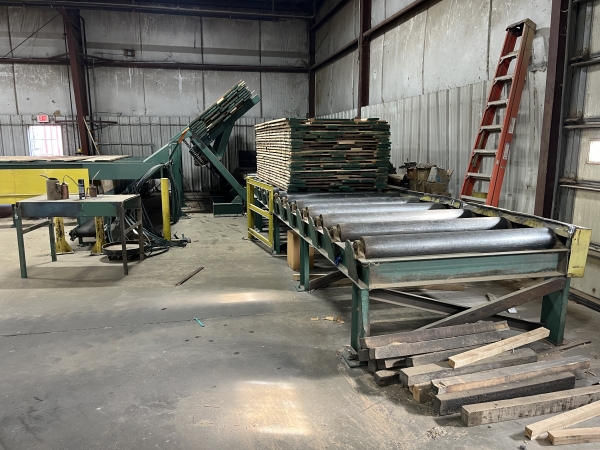

- Driven Roll case set-up to handle pack up to 60" wide and will handle 6-16' long packs

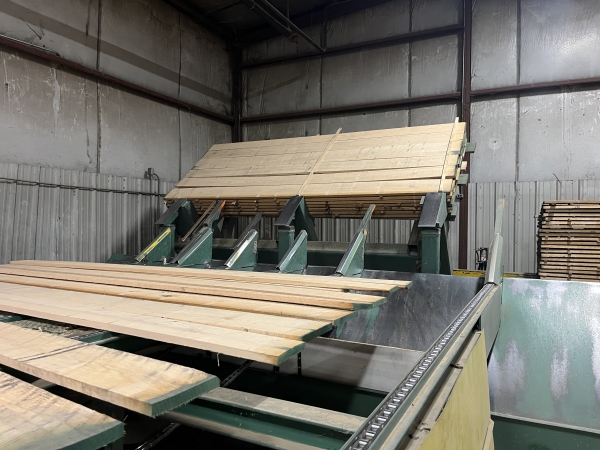

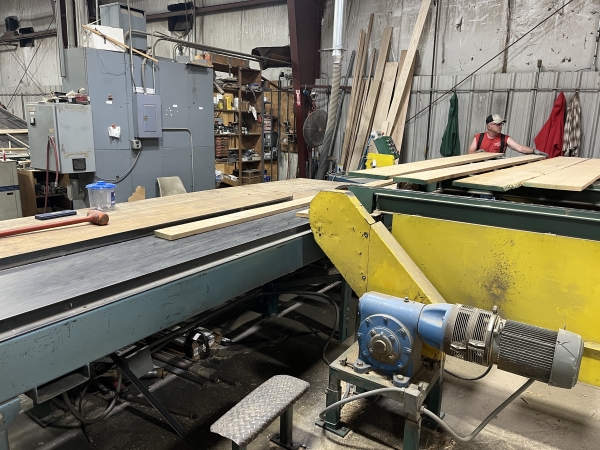

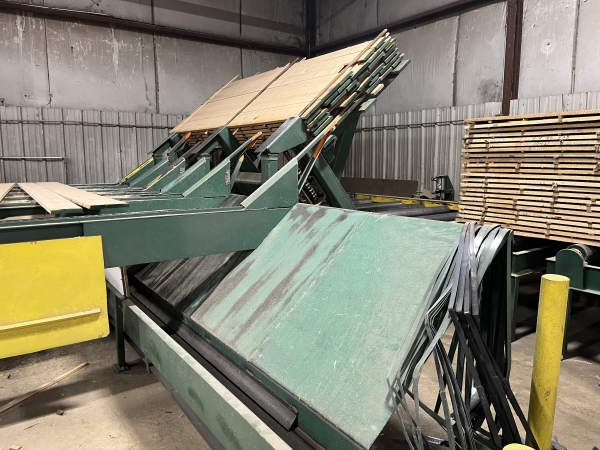

- 3 arm tilt hoist with Mid Oregon Hydraulic Power Pack

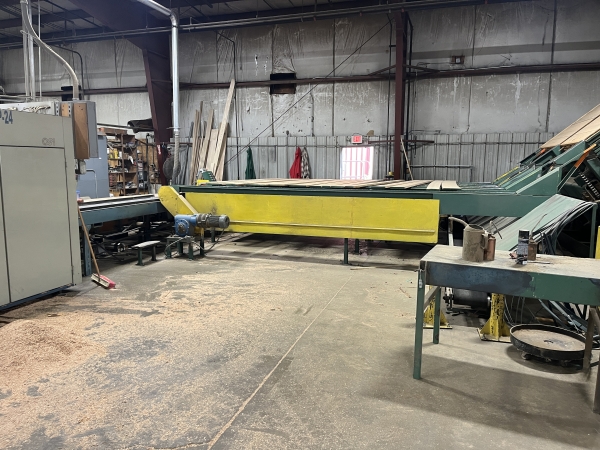

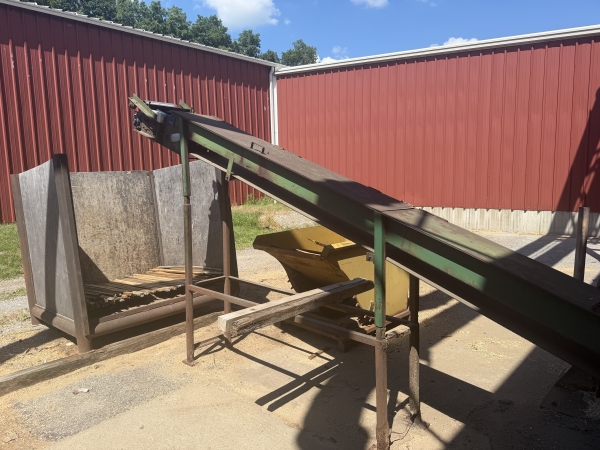

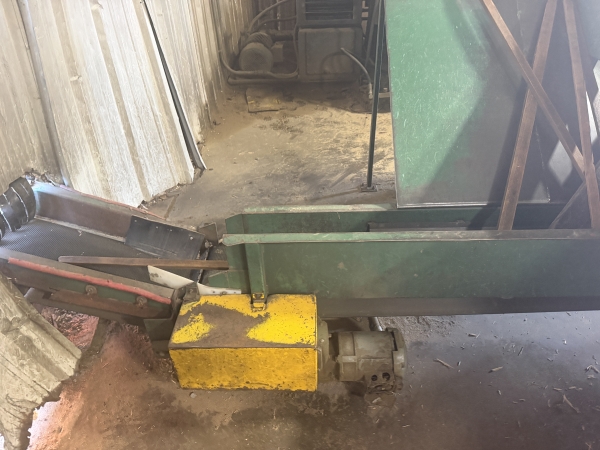

- Has a sticker belt conveyor measuring approximately 12" x 20' long - followed by an approximately 15' long incline conveyor
- Does not have a stick stacker - sticks fall into a bin at the out-feed

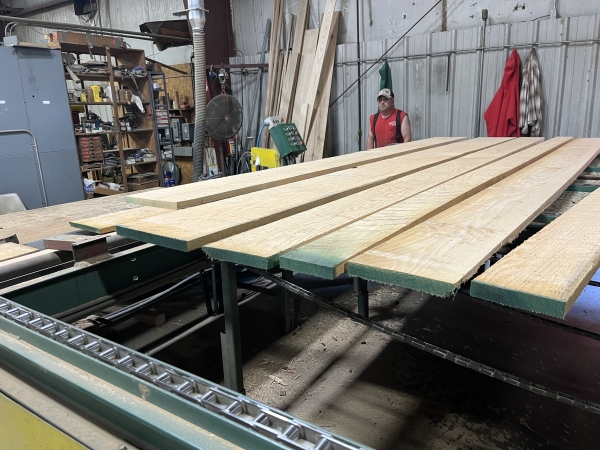

- 6 Stand flat top chain deck with chain spacing at 0-24"-48"-72"-96"-144"

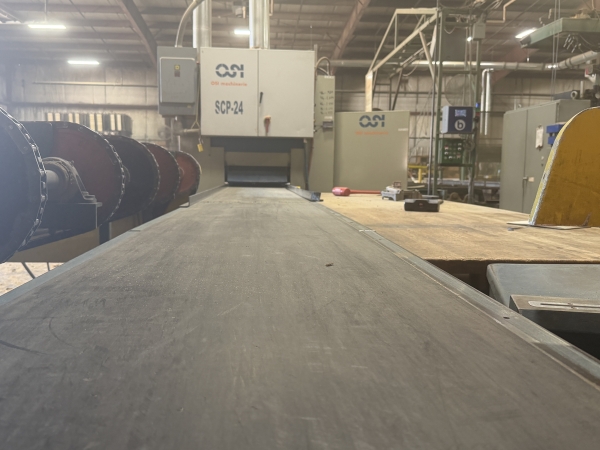

- 24" x 20' Belt conveyor feeding the planer

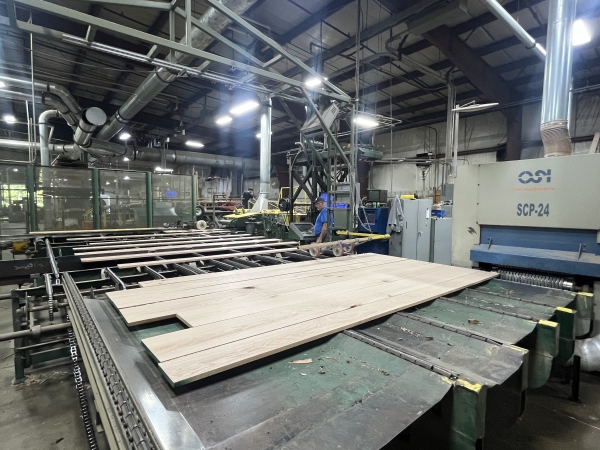

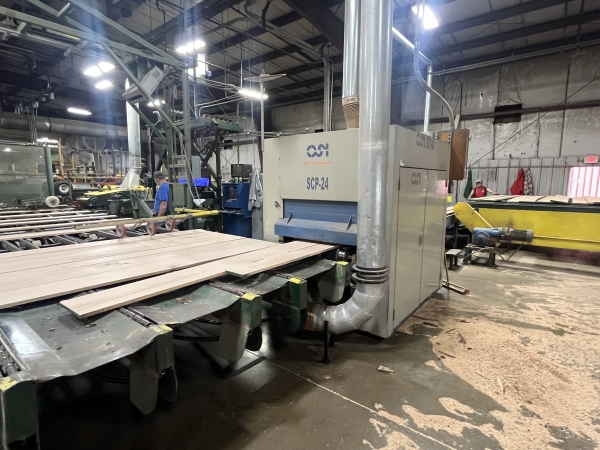

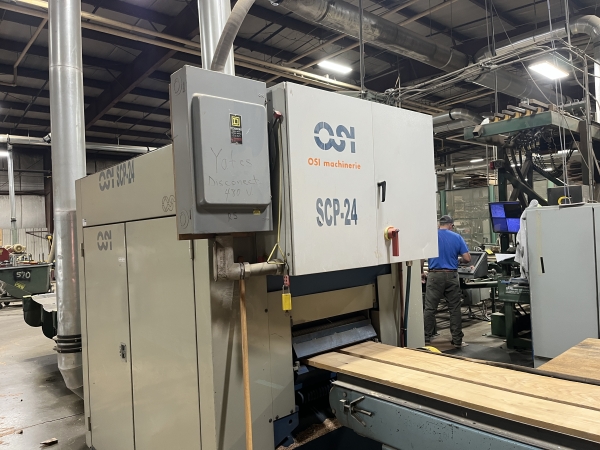

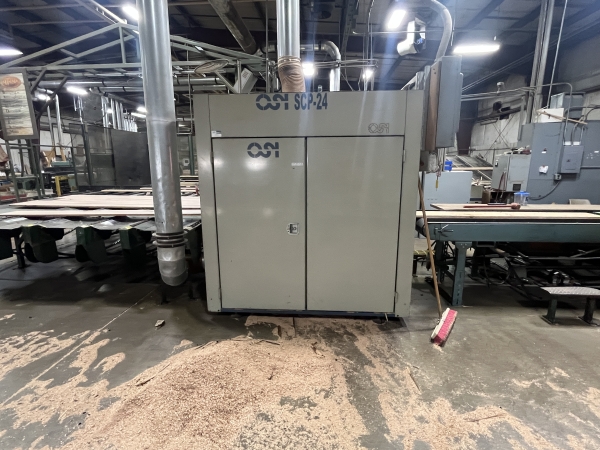

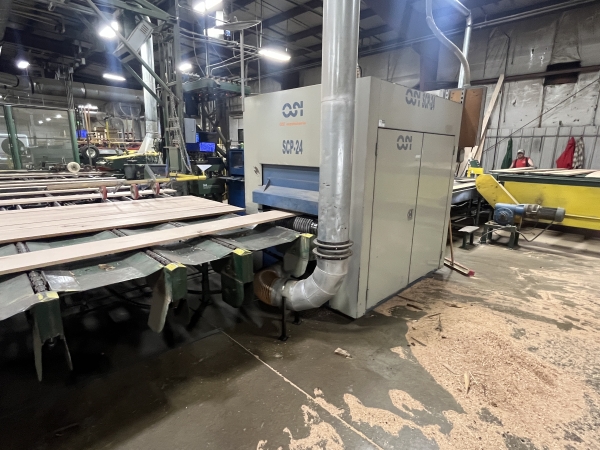

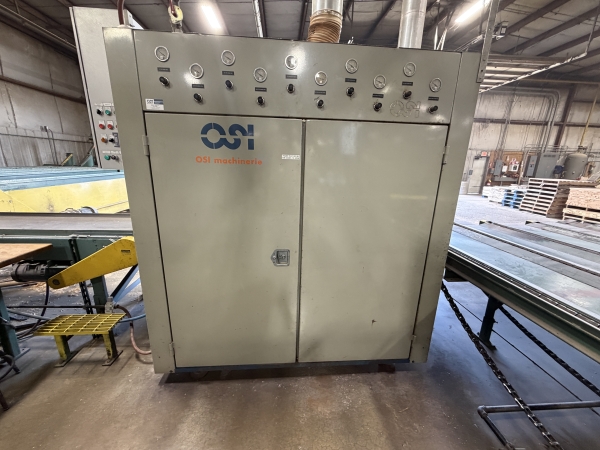

- OSI Self Centering Planer Width Capacity: 24"
- Top Head Motor: 40 HP
- Bottom Head Motor: 40 HP
- Thickness Capacity from 1/2" - 5 1/2"
- Upgraded feed speed of 125FPM
- Machine Currently has Direct-Opposing steel insert cutterheads installed which utilize 15mmx15mmx2.5mm inserts
- Includes a Spare set of aluminum insert cutterheads which were originally sold with the machine when new

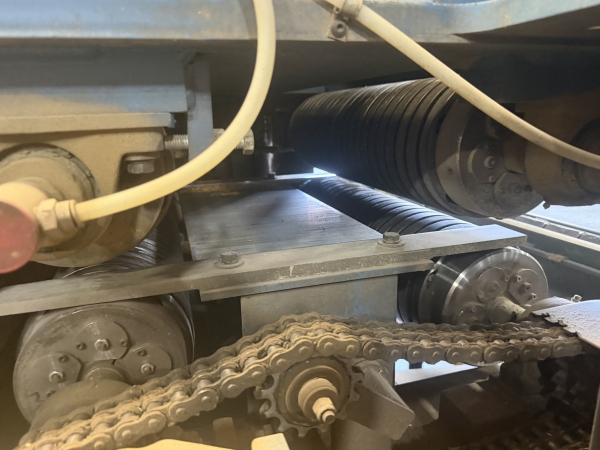

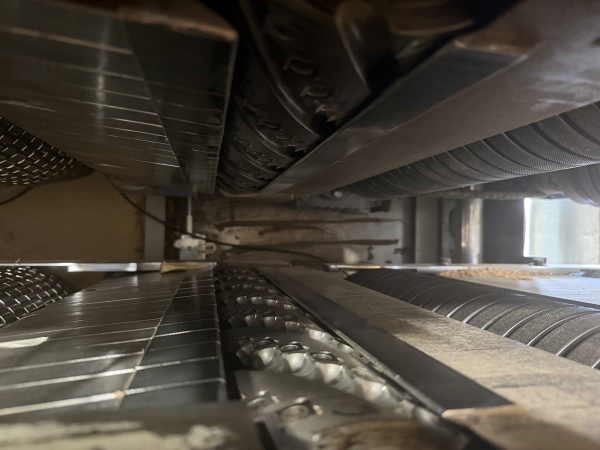

- Face-to-Face Segmented Feed Rolls Ensures Perfect Centering of Every Workpiece

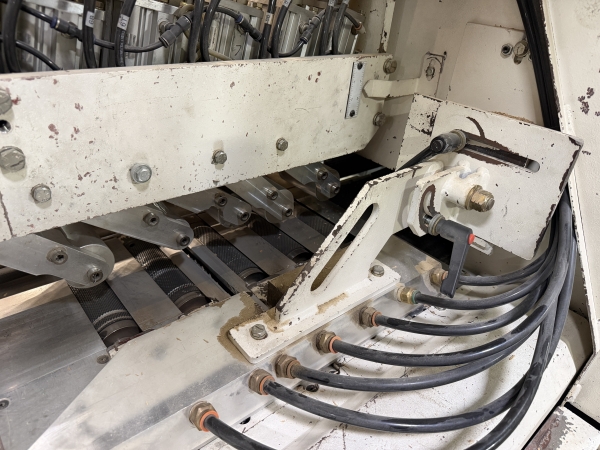

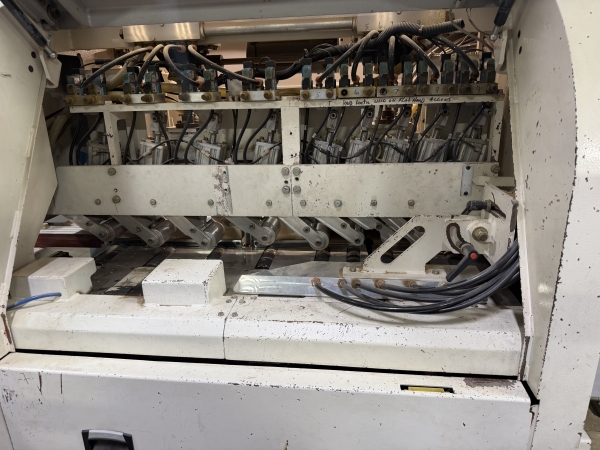

- Segmented Pressure-Fingers follow the shape of each board, eliminating jams and splitting
- 24" Minimum Single Workpiece Length

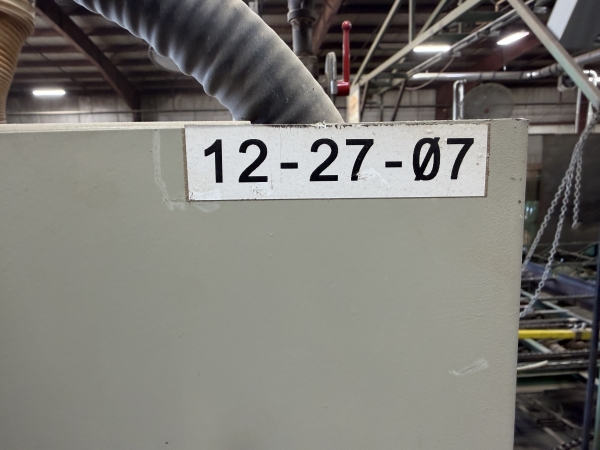

- OSI Self Centering Planer was installed new in late December of 2007

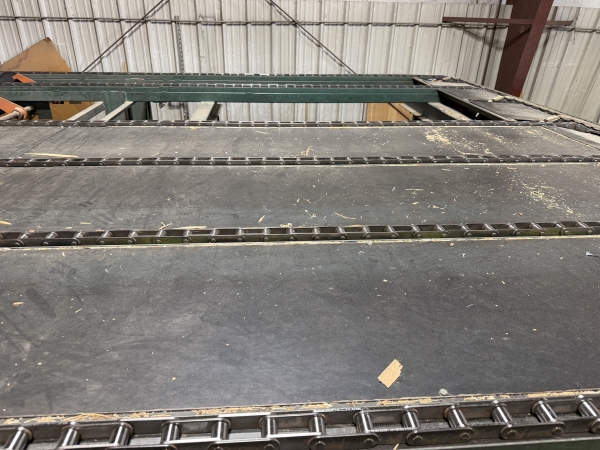

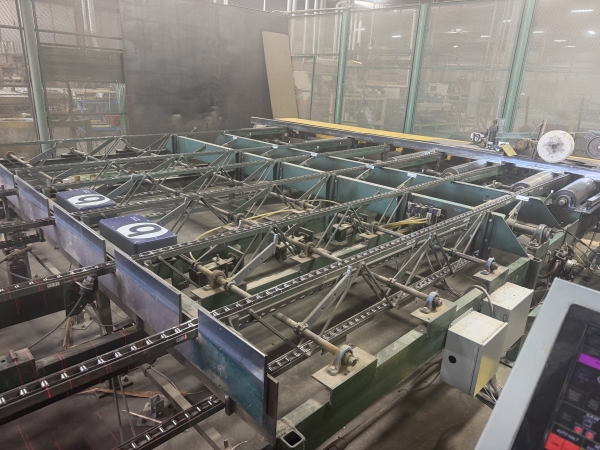

- 6 Stand Panned C550 Roof Top Chain Deck at the out-feed
- Chain Deck measures approximately 12' wide x 12' Deep

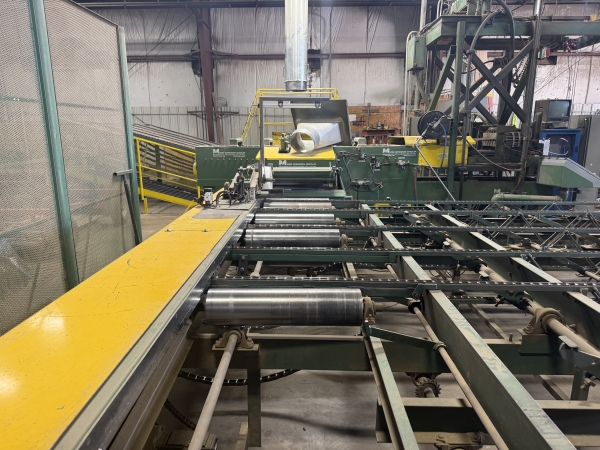

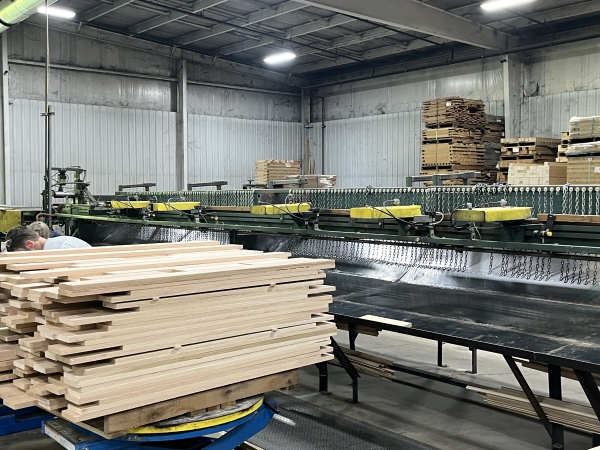

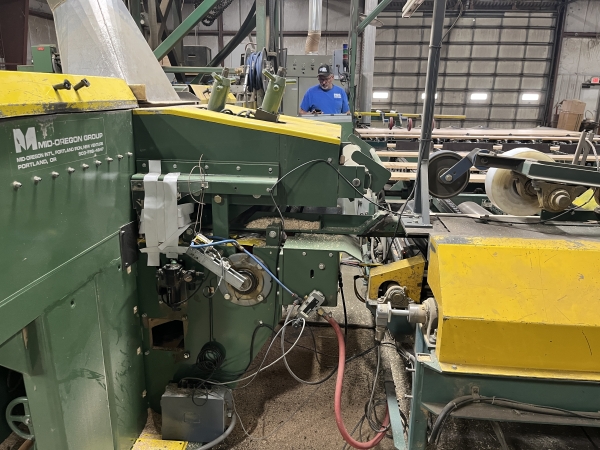

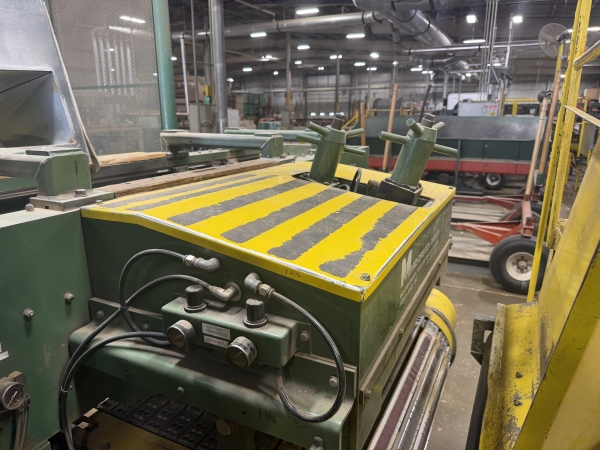

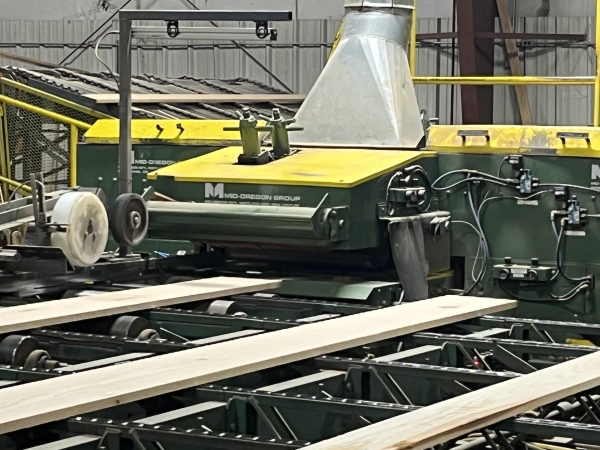

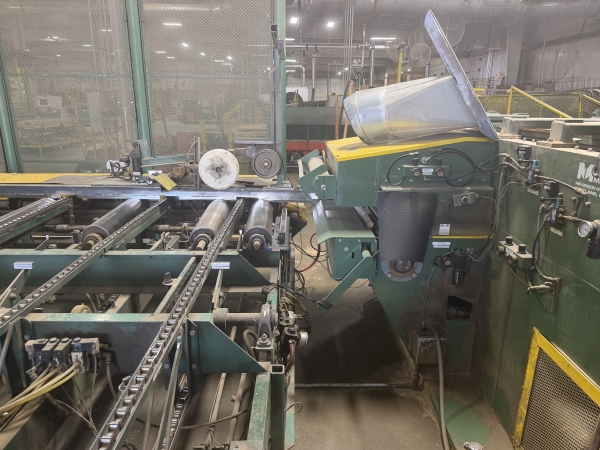

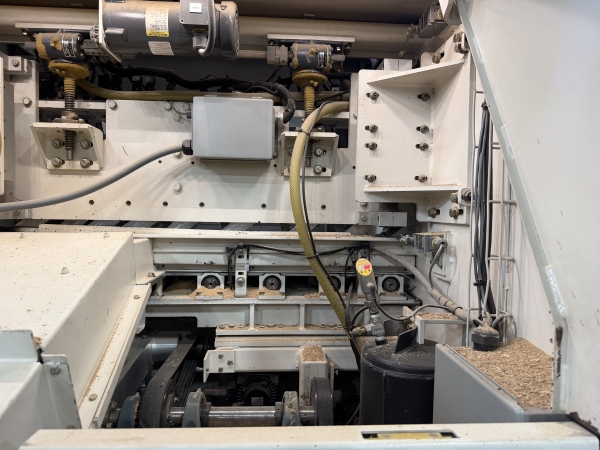

- Mid Oregon PR 2000 Hydraulic 6 Moving Blade 24" Gang Rip Saw and In-Feed System
- At the End of the Deck feeding out of the Planer there is a board dealer to separate and go into the in-feed system

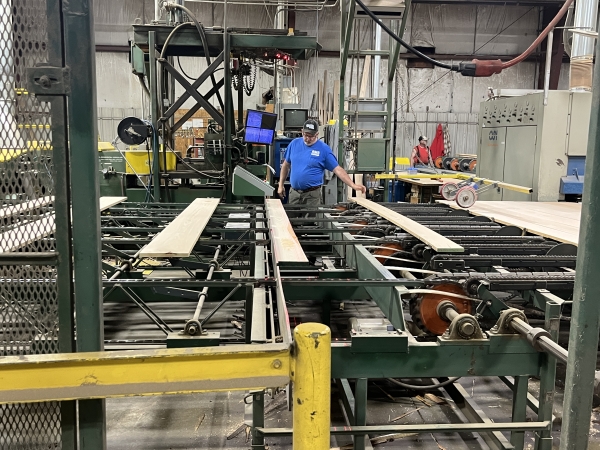

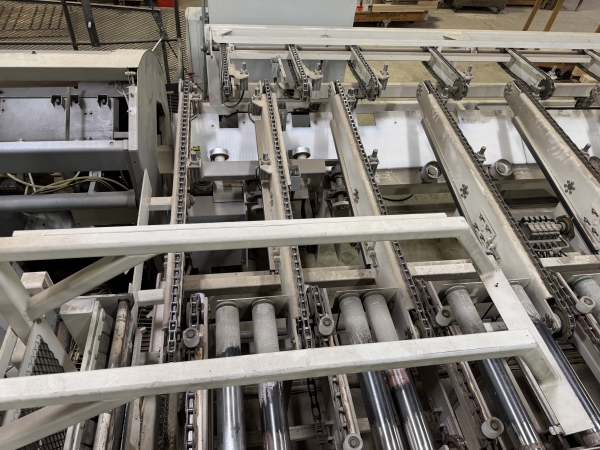

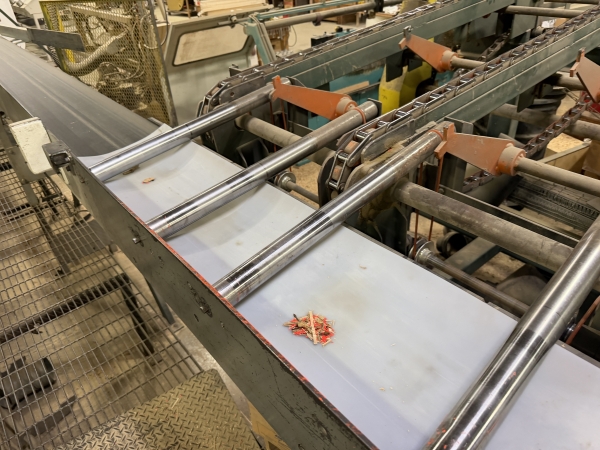

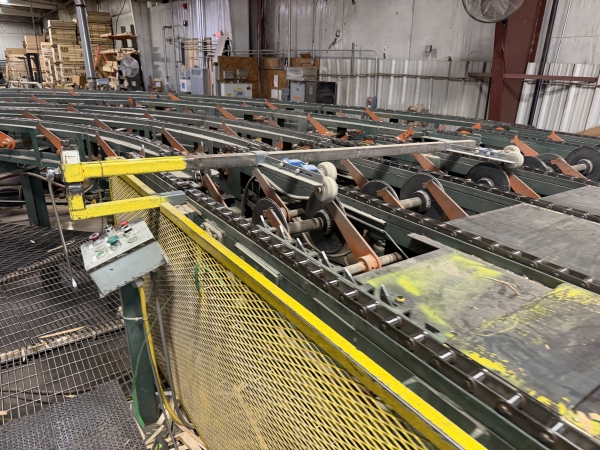

- In-feed System: Mid Oregon In-feed with 7 Strand Deck with Fence
- Fence has two rolls on the top and feed deck has 6 rolls in the bottom for feeding into the rip saw
- Movable laser stand with 6 lasers to show operator solutions

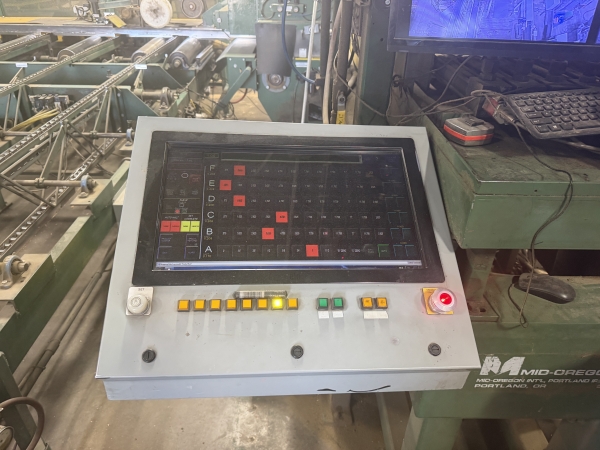

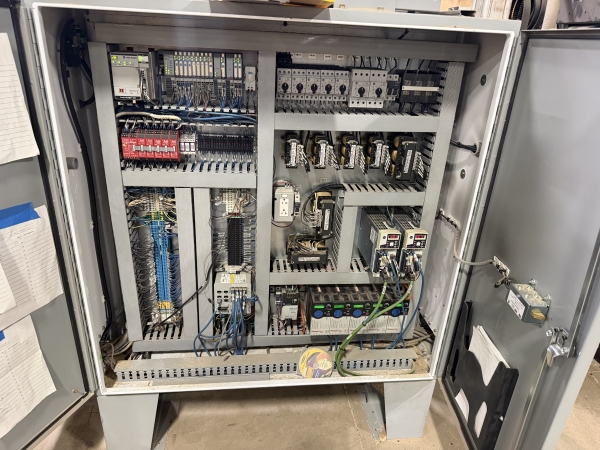

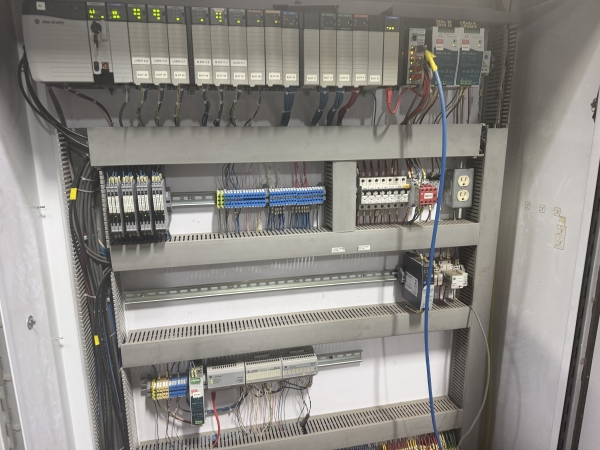

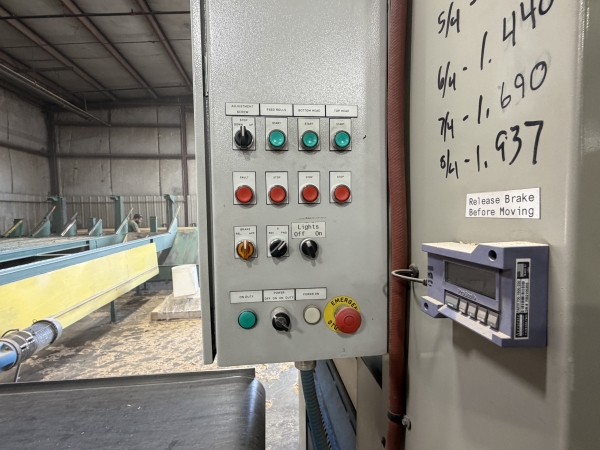

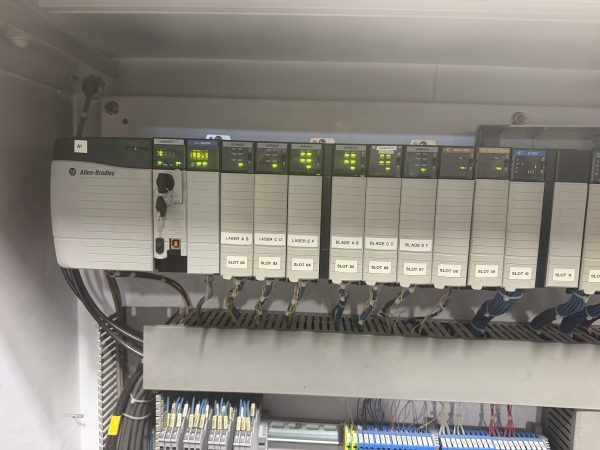

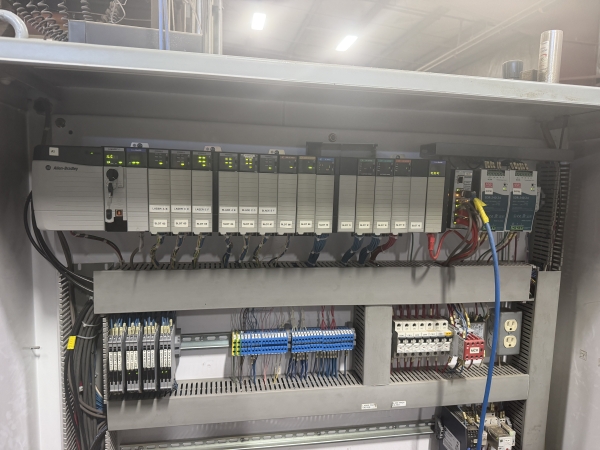

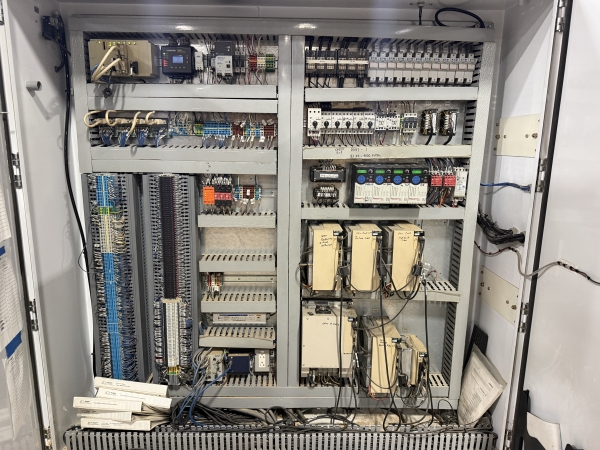

- Photo eyes for width sensing, Allen Bradley controls, and drives for the in-feed
- After disappearing fence the system has 5 boards stops for material in cue to be fed into the rip saw

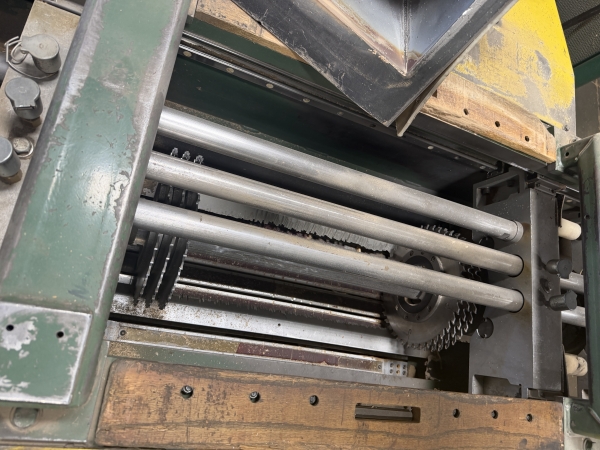

- Gang Rip Saw has a 3" Diameter arbor driven by 100HP Motor
- 6 moving blades moved by Hydraulic unit with hydraulic servo valves

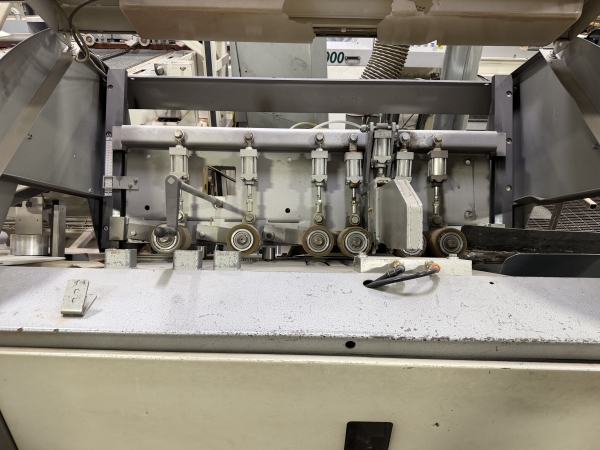

- 4 top pneumic pressure rolls

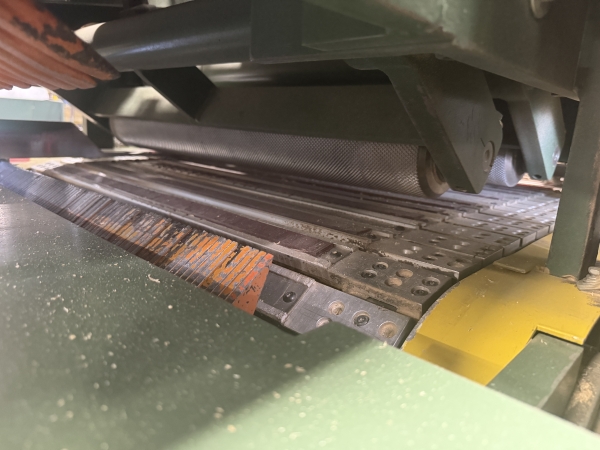

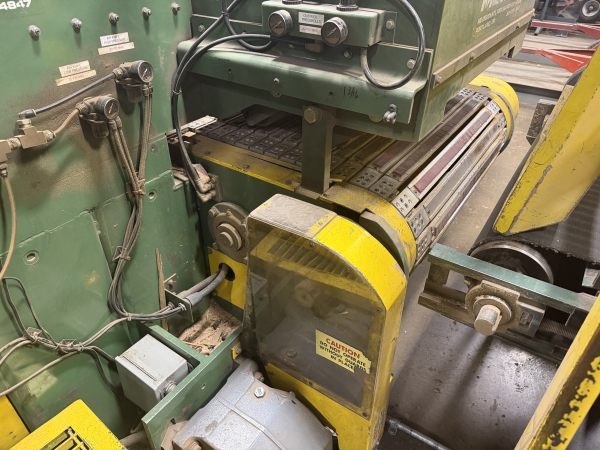

- Slat bed dip chain gang rip saw with 4" pitch with 24" use-able width capacity
- Thickness capacity: 3/4" - 2 1/4"
- Minimum Rip Width: 7/8"
- Feed Speed: 50-300FPM
- Gang Rip Saw New in 2004
- In-feed and all controls for the ripsaw were upgraded in 2017

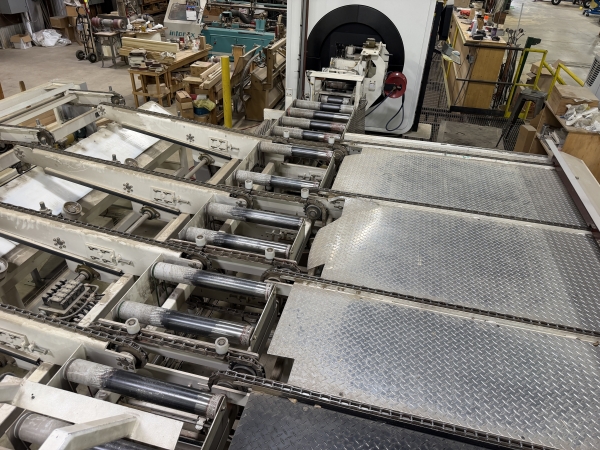

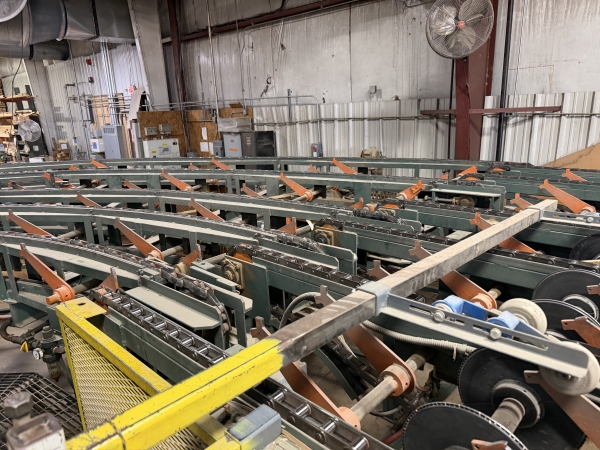

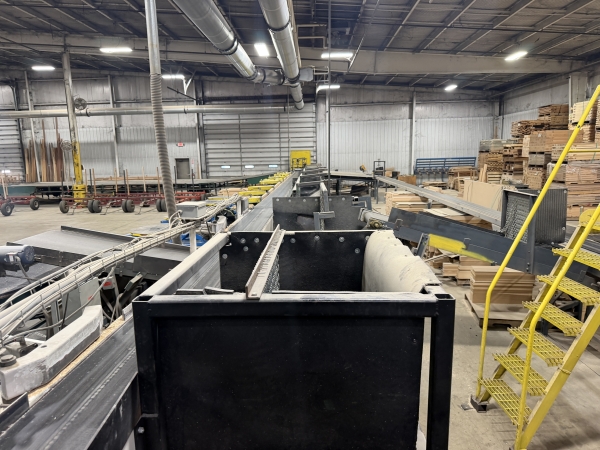

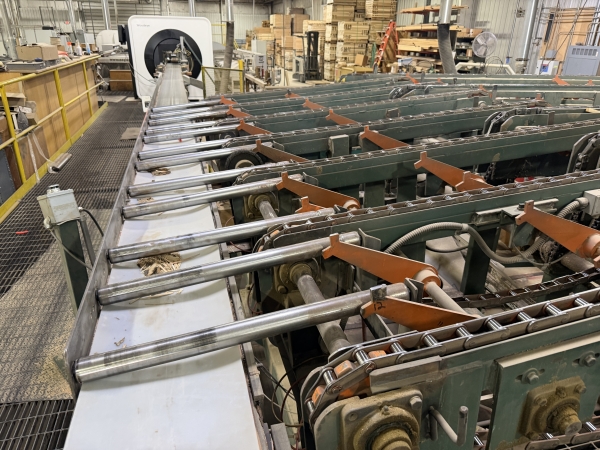

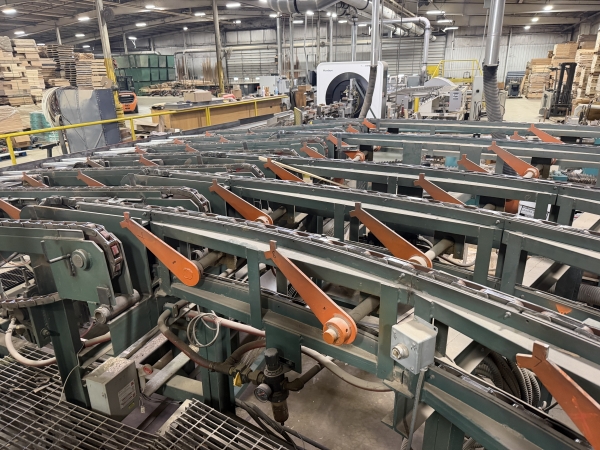

- Material Handling between the Gang Rip Saw and Scanner Consisting of the items to follow

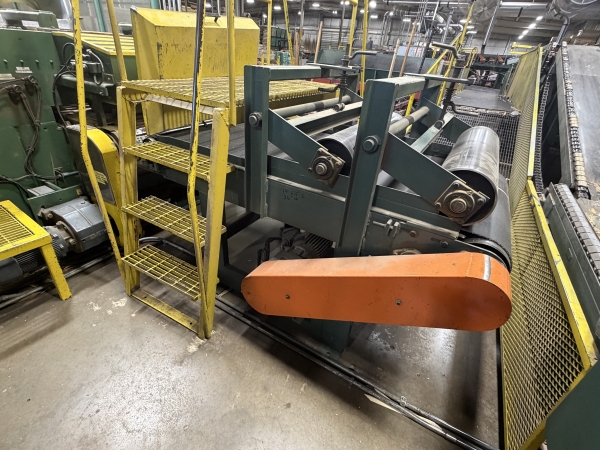

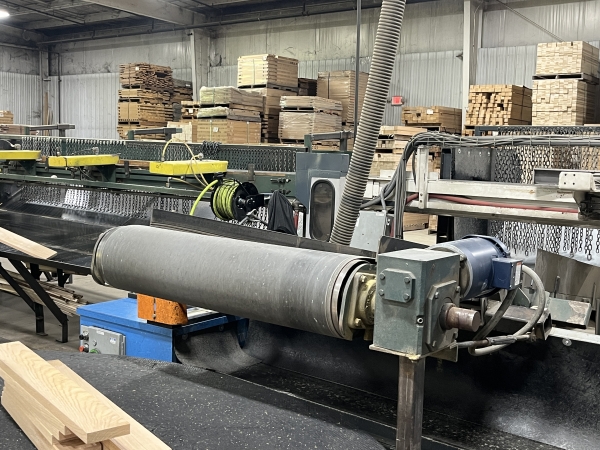

- Automated Lumber Handling 36" Wide x 80" Long belt conveyor with 2 Idle Pinch Rolls Mounted

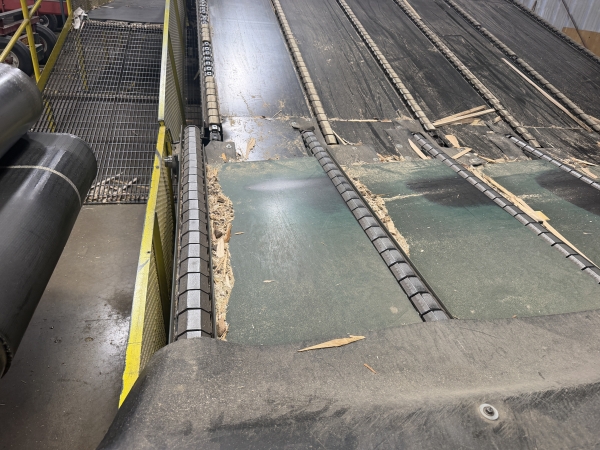

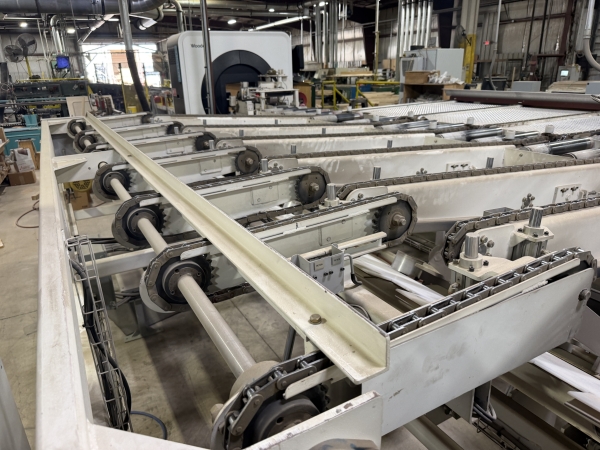

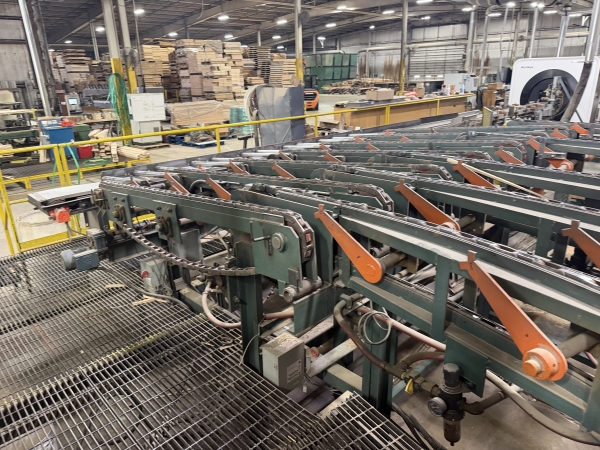

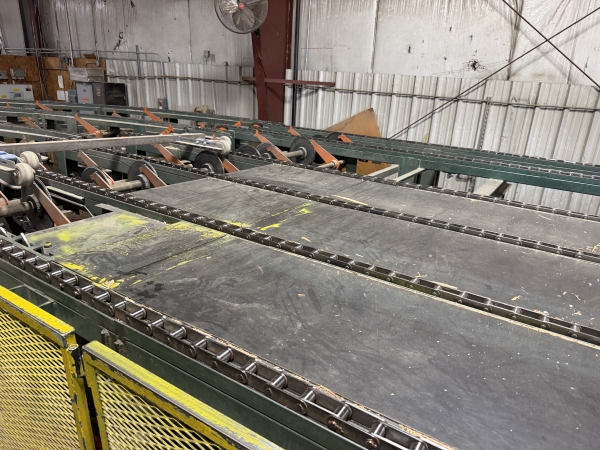

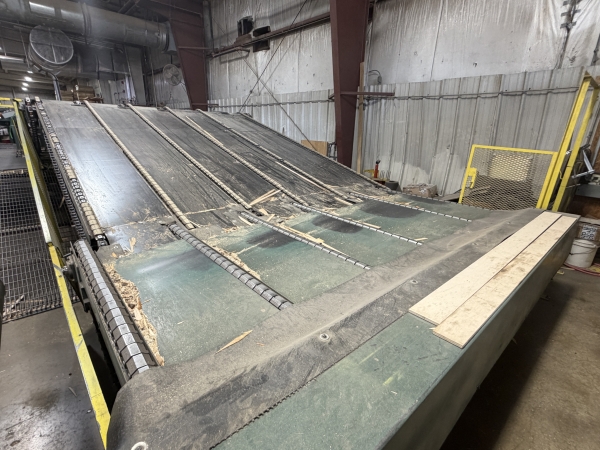

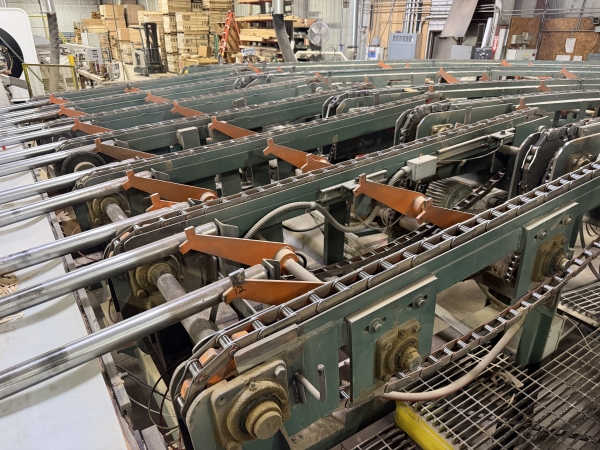

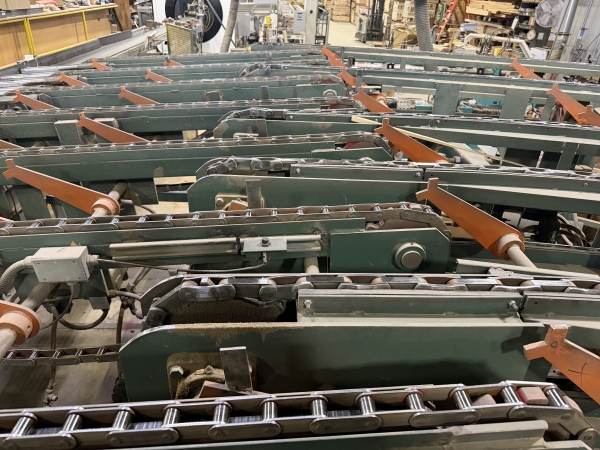

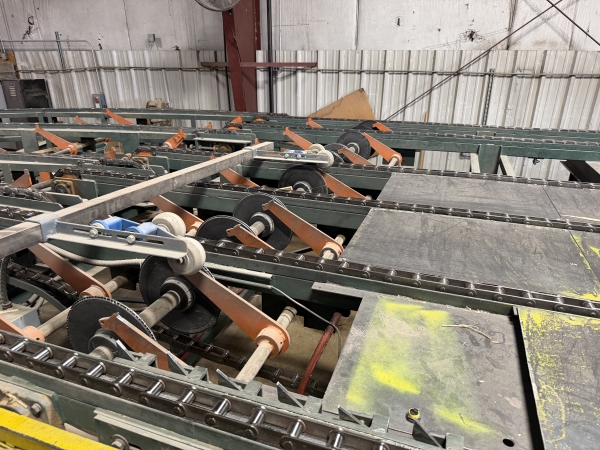

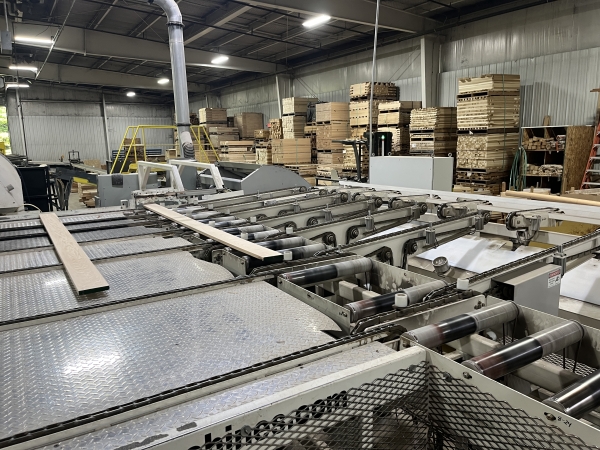

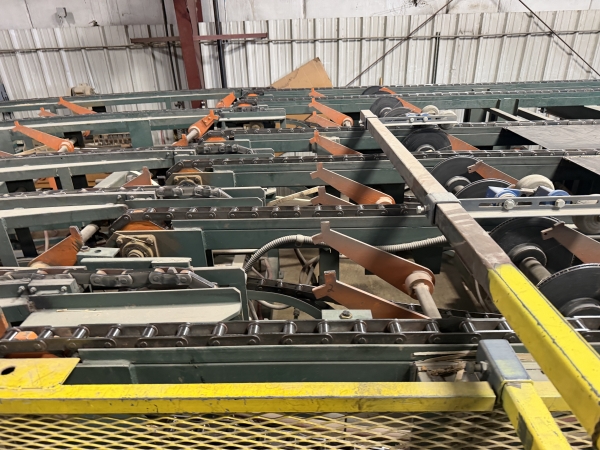

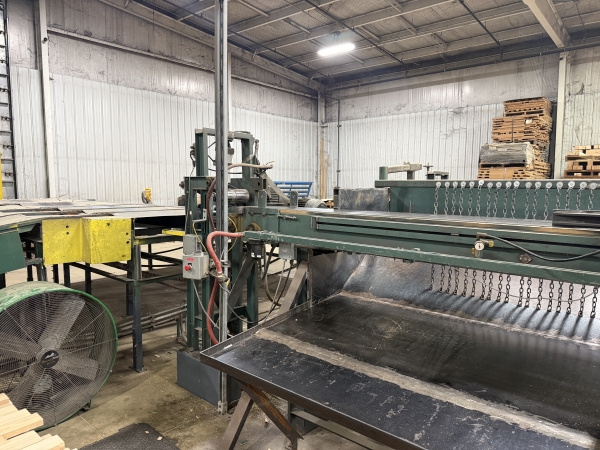

- ALH 12' Wide x 64" Deep panned landing rooftop chain deck with H78B chain

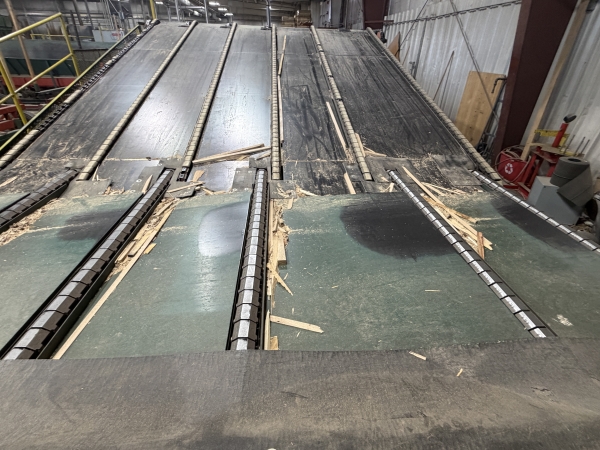

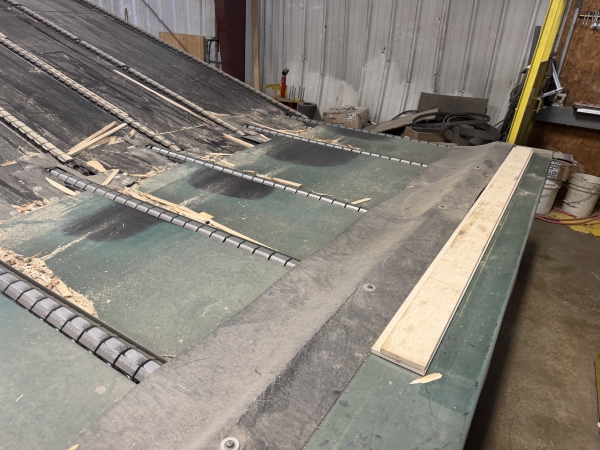

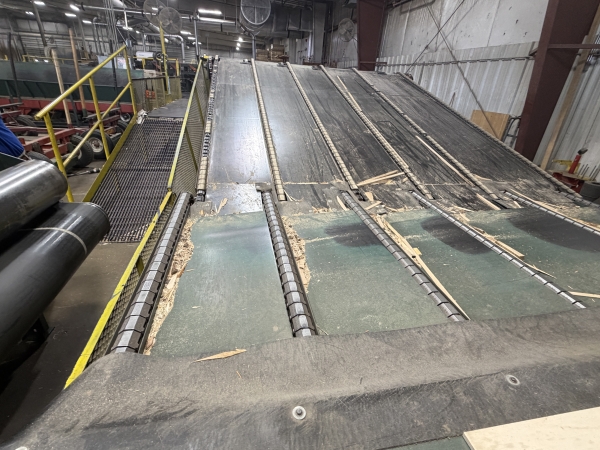

- ALH 12' Wide x 14" Deep inclined, panned Rooftop Chain Deck - 81X chain with rubber padded inserts on top
- After Incline it flatens out with 81X Flat Top Chain also ALH

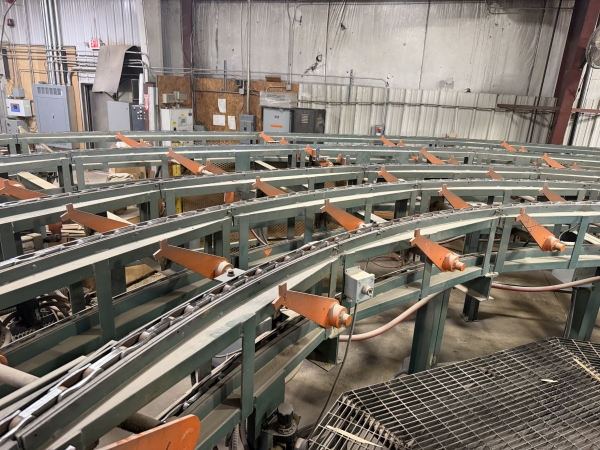

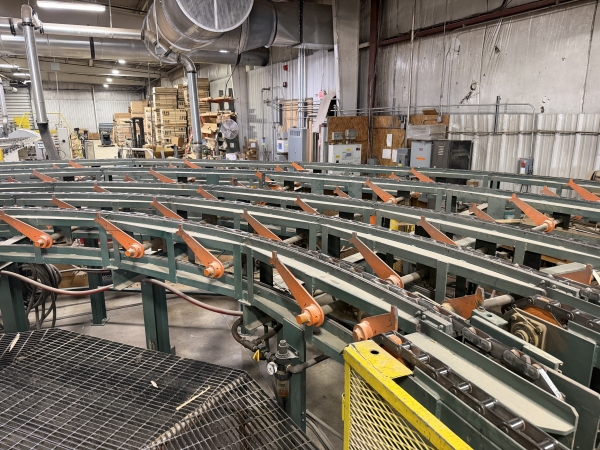

- The system makes a right angle turn
- System has a board dealer followed by 11 stops
- After board stop 9 the system starts to decline toward the a belt conveyor that feeds the Scanner

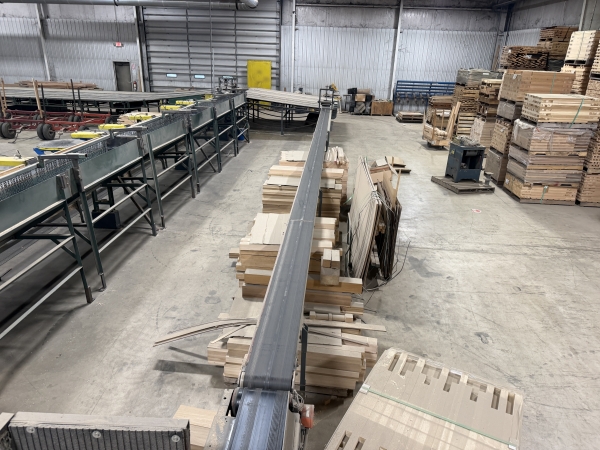

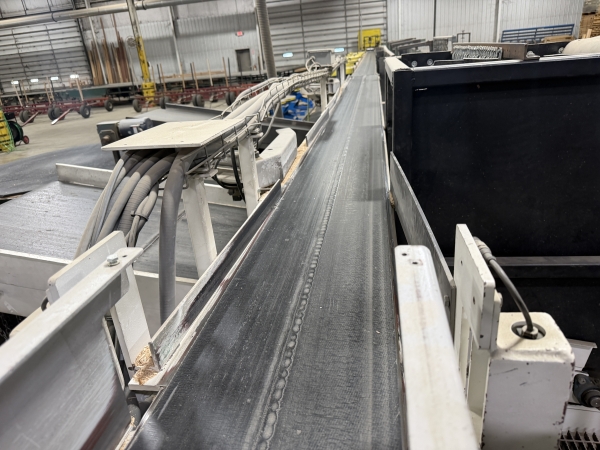

- Paul Belt Conveyor 459" Long x 12 1/2" Wide
- Woodeye Scanner is not available for Sale
- Eagle Y-transfer coming out of a Woodeye Scanner
- Woodeye Scanner is not for sale
- Machine is currently feeding 2 saws (Eagle Talon 3000 and Paul C14E)
- The entire line was set-up to handle 6-16' material
- The transfer would send stock narrower than 8" at 4/4 thickness to Eagle Talon 3000
- Wider stock would be sent to the Paul C14

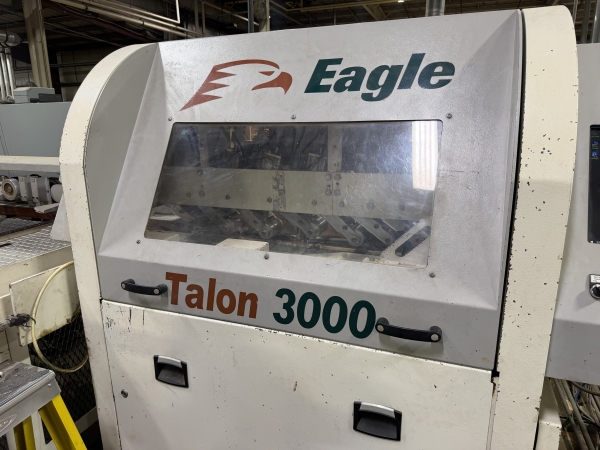

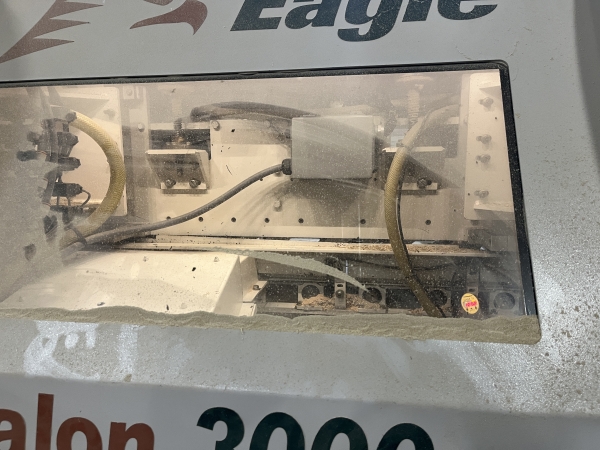

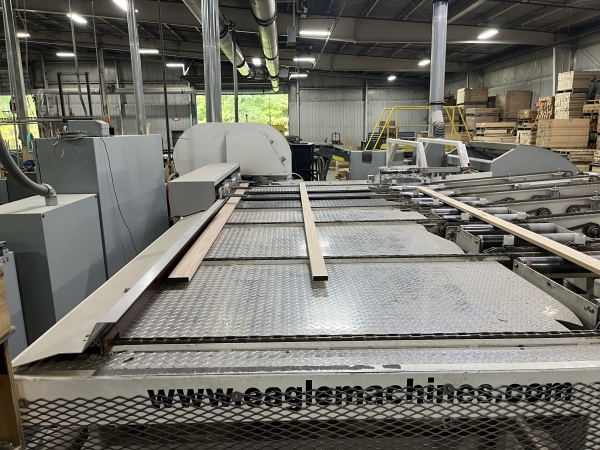

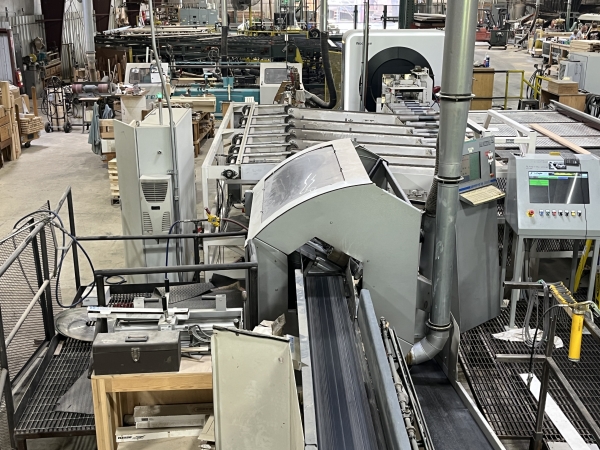

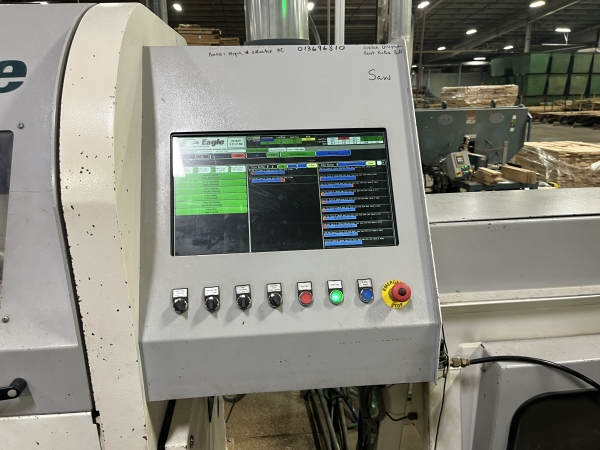

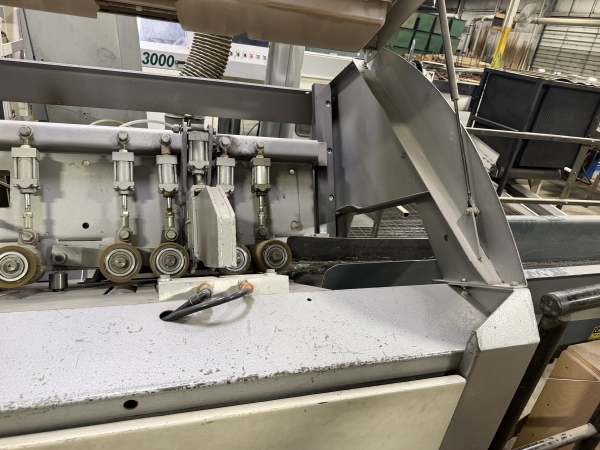

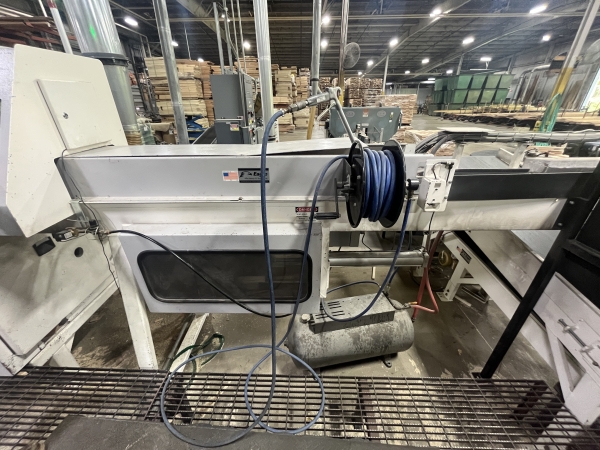

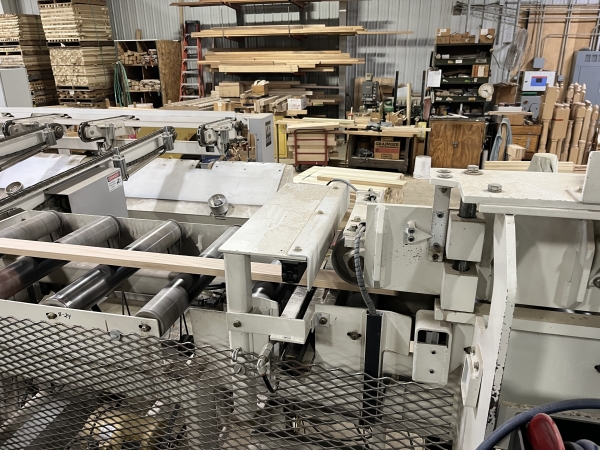

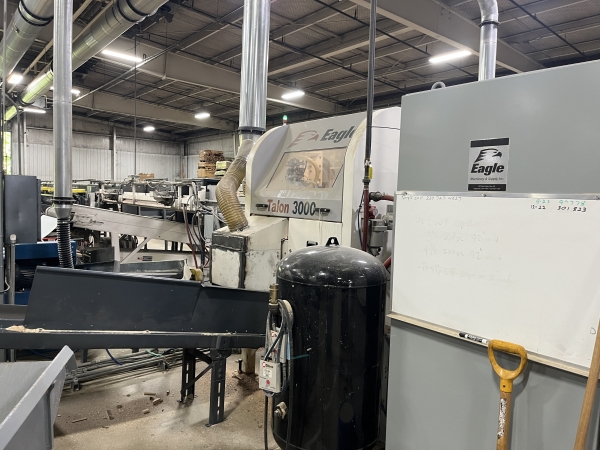

- 2018 Eagle Talon 3000 Through-Feed Optimizng Cut-off Saw!
- Feeds from Left-to-Right
- Currently in a line set-up with a (Woodeye Scanner - not for sale) but is also set up for crayon mark reading in the software
- 90 Degree Saw Lateral Feeder Approximatley 14'4" long x 6' Deep

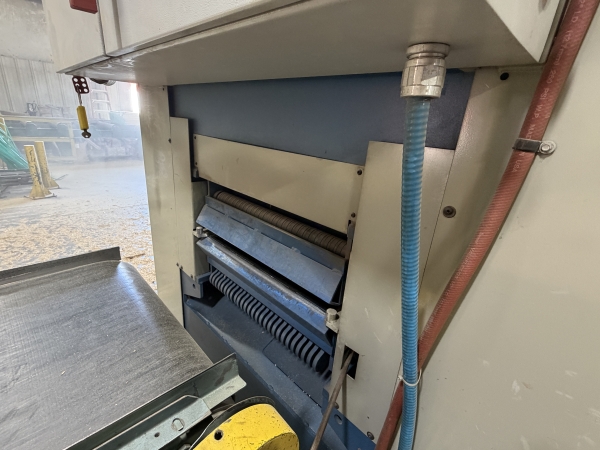

- Ten Top & Bottom Feed Rolls

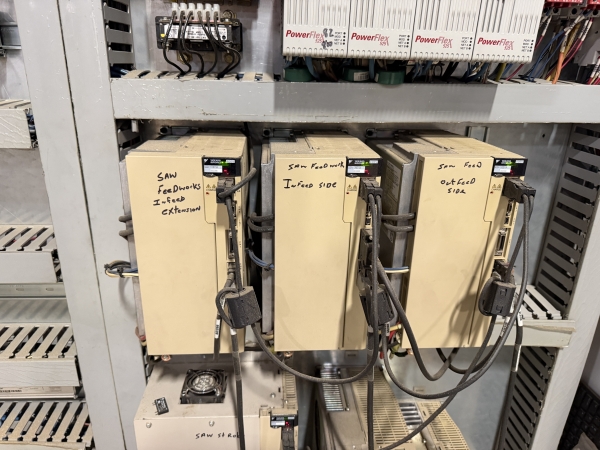

- Servo Feed Drive driven by 5 kW servo motor
- 7 kW Saw Stroke Servo
- 20HP Blador arbor motor
- 20" Diameter Blade Capcity
- Cut Envelope of 1"x8" or 2"x6"

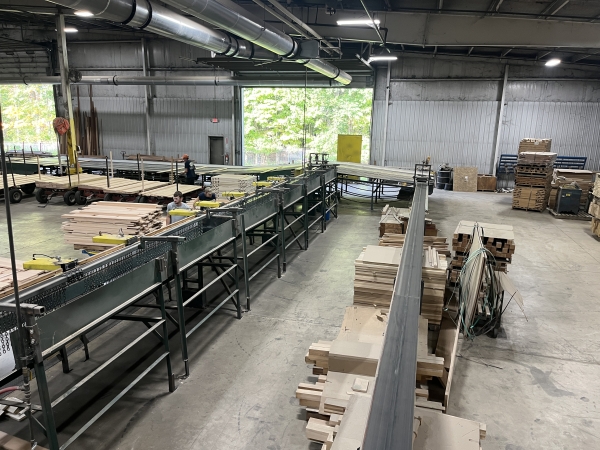

- Machine has a total of 11 kickers stations

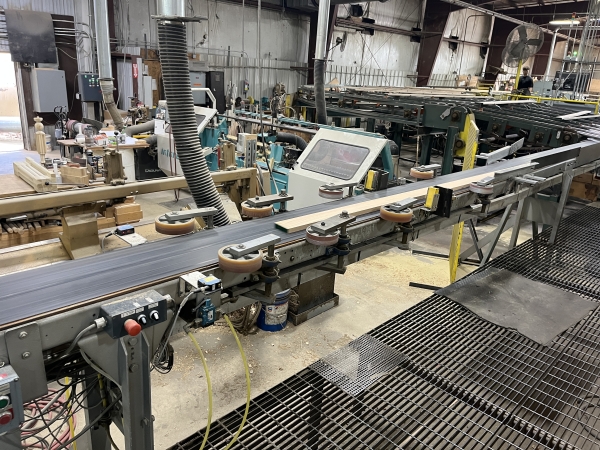

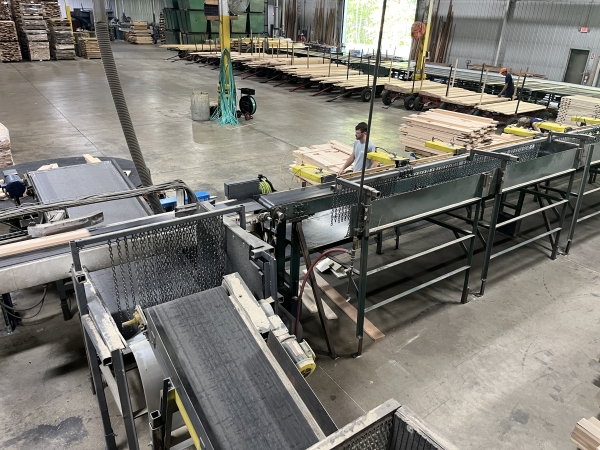

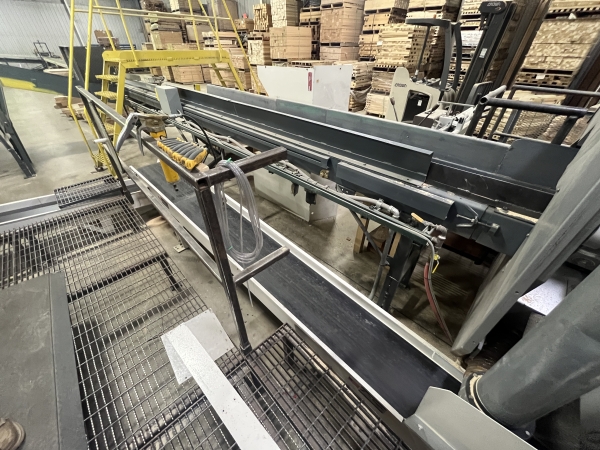

- Eagle Kicker Belt 26' long x 12" wide with 2 kickers

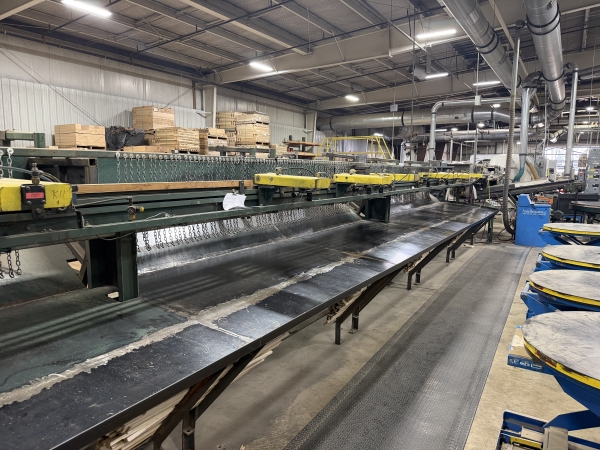

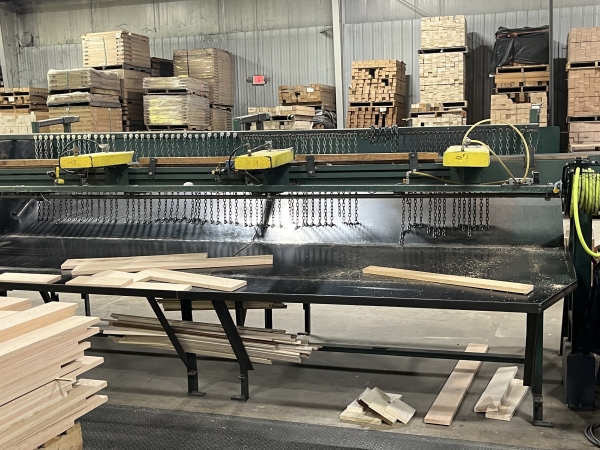

- Additional Kickers (9) are on an Automated Lumber Handling Belt Conveyor (kickers were made by current owner)

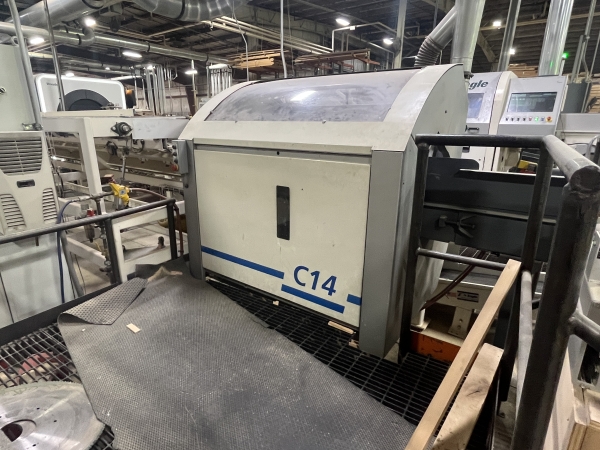

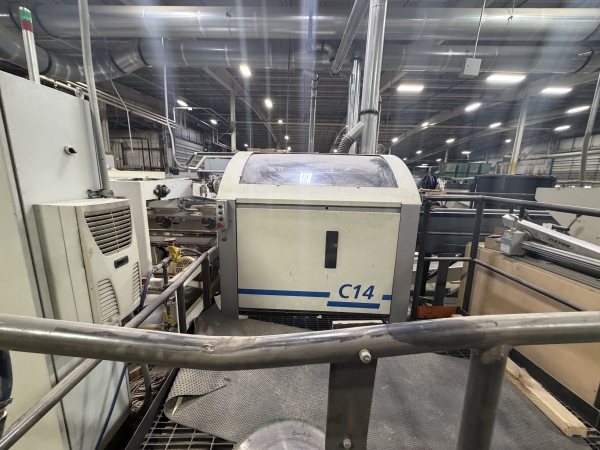

- Model C14E - 12" Optimizng Cross Cut Saw
- Material Length (Min/Max): 6'-16'
- Timber Thickness (Min/Max): 5/8" - 2-1/2"
- Min/Max Timber Cross-section: (2"x5/8")/(12"x2-1/2")
- Saw Motor: 10HP
- Saw Blade: 600mm
- Six Top and Bottom Feed Rolls - Bottom are Steel and the Top are Rubber / Urethane coated
- Initial Outfeed Belt with 1 Kicker

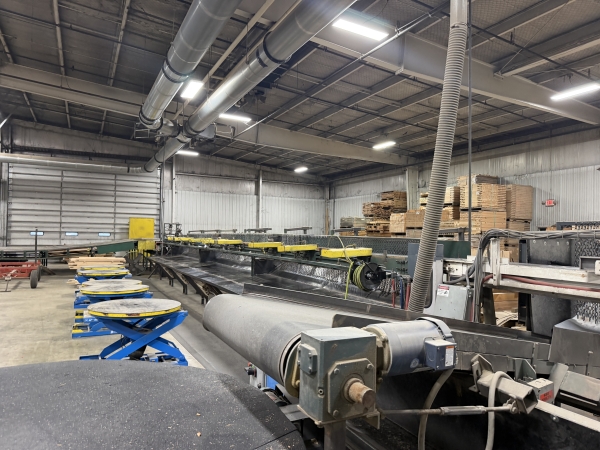

- Secondary Transfer belt with pinch roll at the end measuring Aprroximatley 47'9" x 12" wide

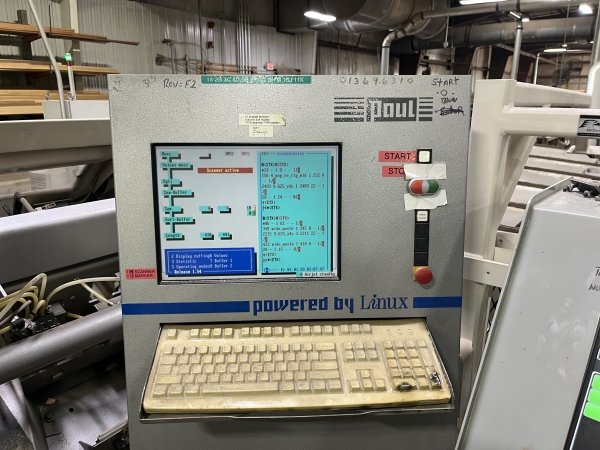

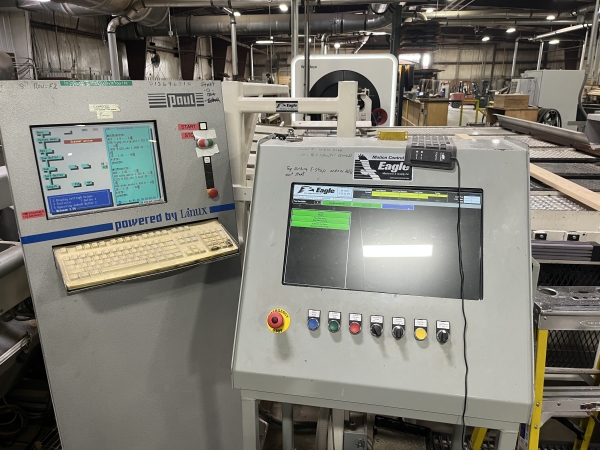

- Linux Operating System

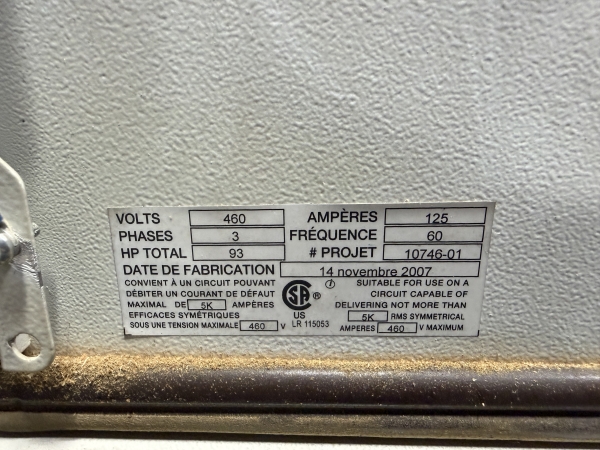

- Current Voltage: 460V 3ph
- This system is currently in a line that is being fed by a Scanner (Woodeye - not for sale) - it has the software and crayon reader to take it back to the original function
- Year of Manufacture: 2006
- Machine is part of an entire rough mill that is for sale and will be available in late Dec. or Jan.
- Specifications are written to the best of our knowledge with some being sourced from literature, we encourage you to inspect the machine and verify
