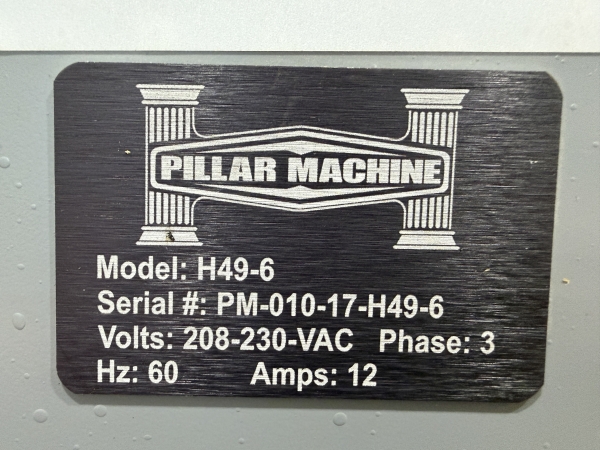

Pillar Mode H49-6 Bore, Glue and Dowel
Machine Available
Stock #2260

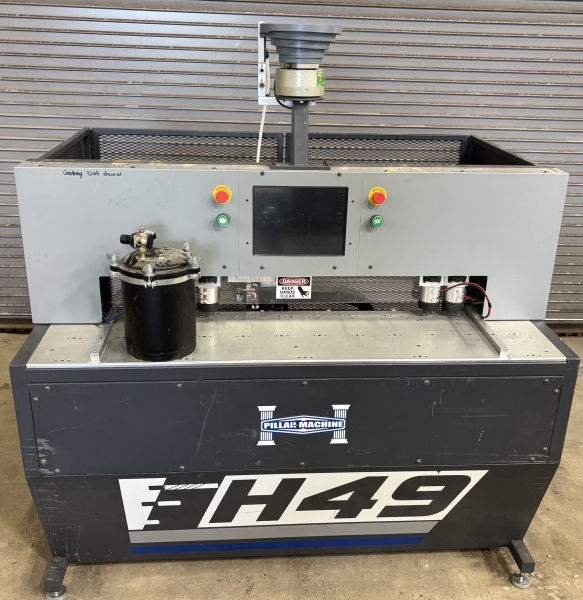

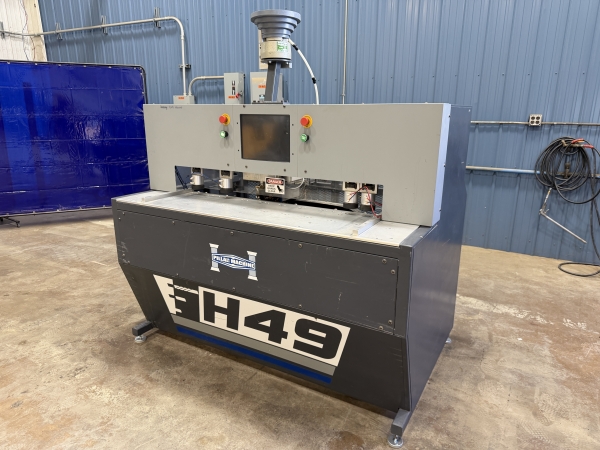

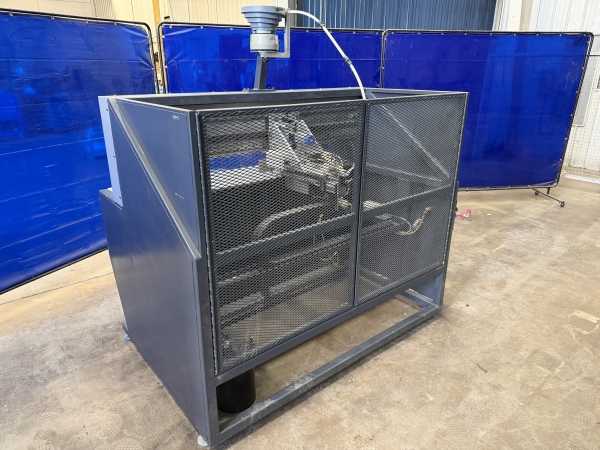

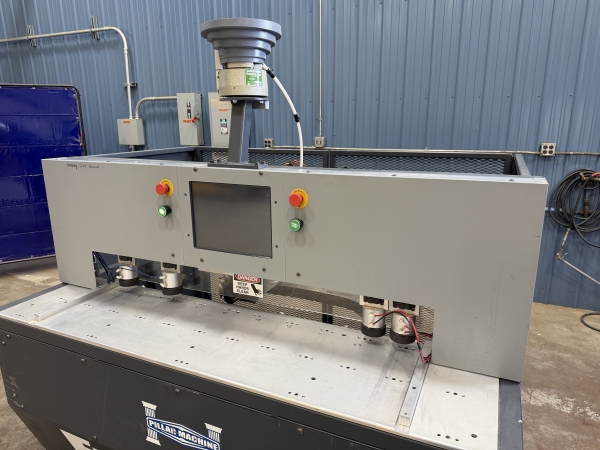

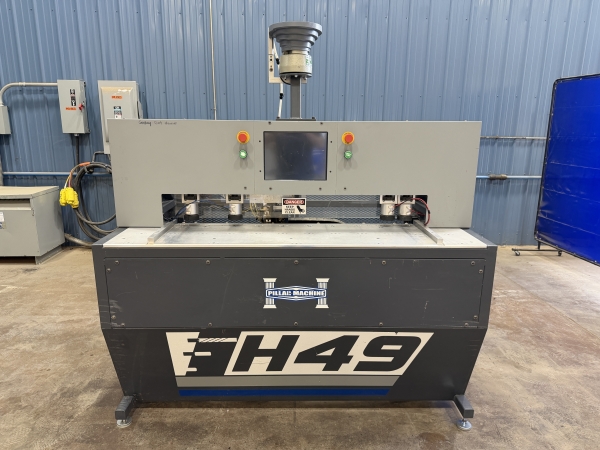

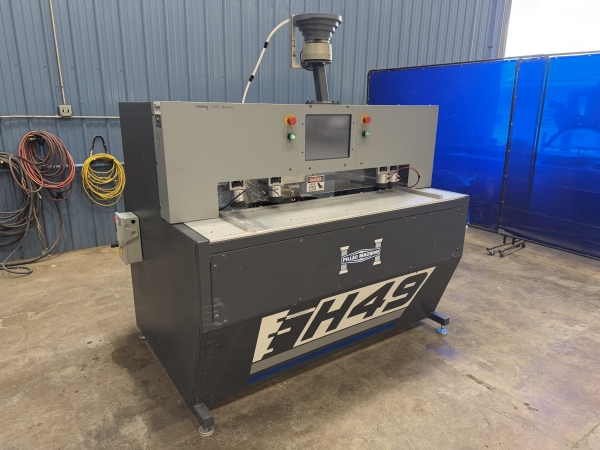

Used- Pillar Model H49 Horizontal Bore and Dowel
- The H49 is a horizontal bore and dowel CNC machining center used for case construction in cabinet or furniture manufacturing
- With the H49, you get quick and accurate assembly, gaining production times on CNC routers and point to points by shifting horizontal boring to this machine

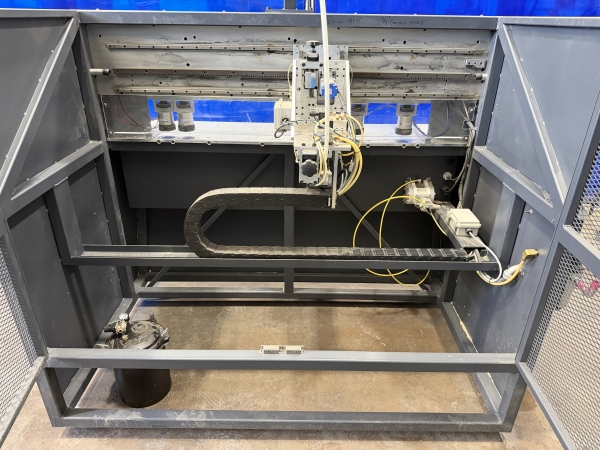

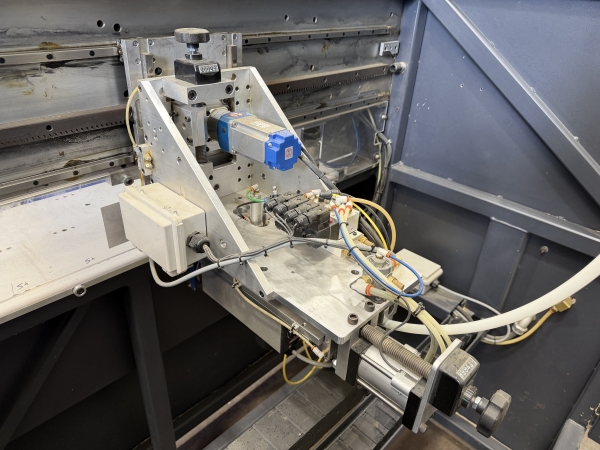

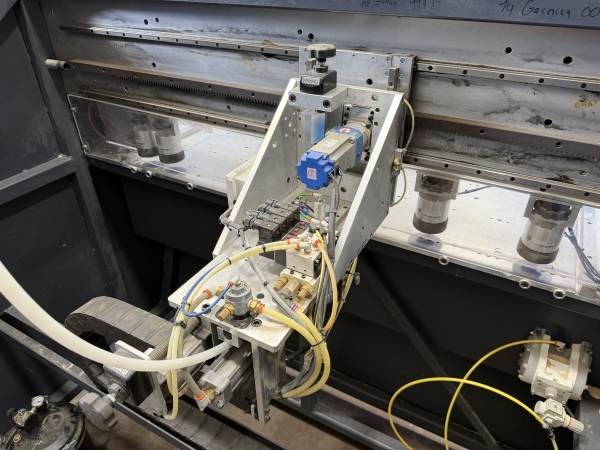

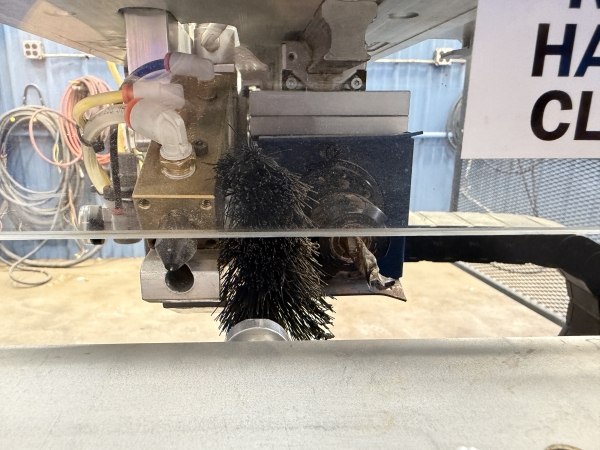

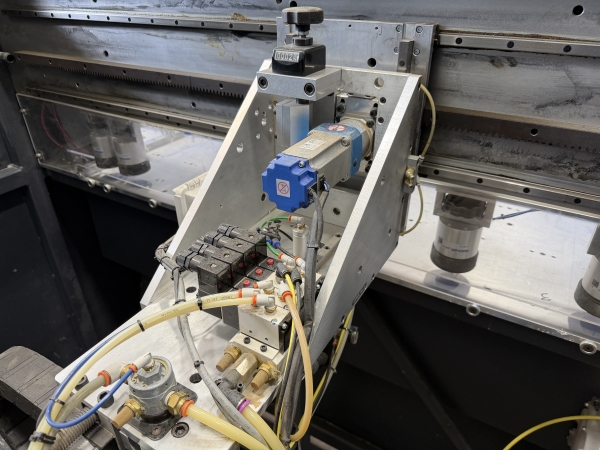

- It is designed to CNC position the spindle, bore a hole, then CNC position the inserter, inject glue or water, then insert a dowel into the hole

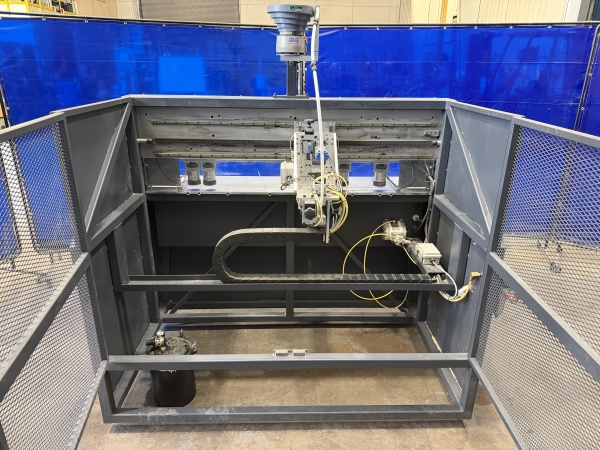

- There are 2 working zones on the standard H49 model allowing for pendulum processing
- While one part is being machined, the other zone can be loaded and queued for machining
- All of this is done during a cycle time of less than one second

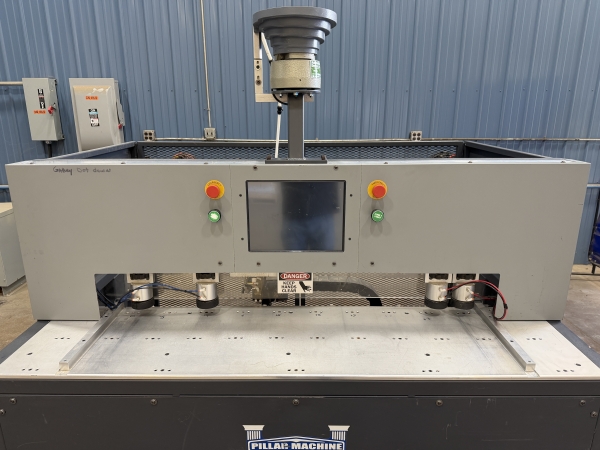

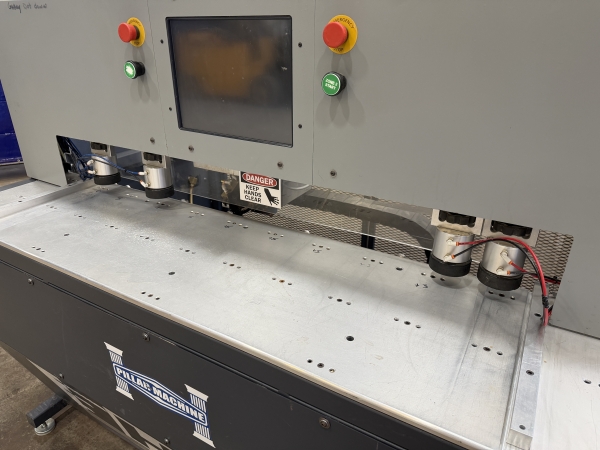

- The H49 has a 49" Working table with 2 work zones
- Standard Features
- CNC controlled X-Axis
- Mechanical manual adjust Digital Readout for Z-Axis
- 1 HP 18,000 RPM Direct Drive Spindle
- 49" Work Area

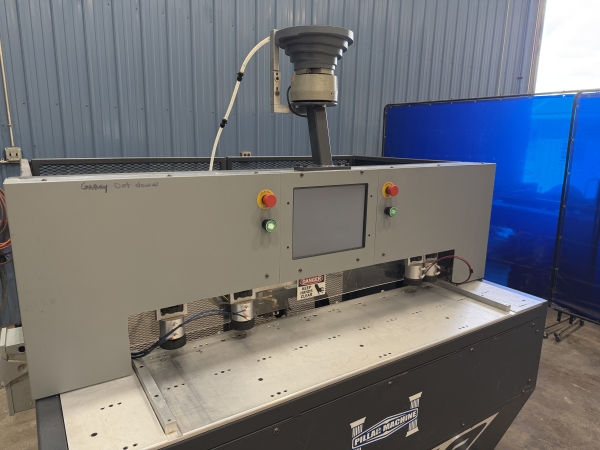

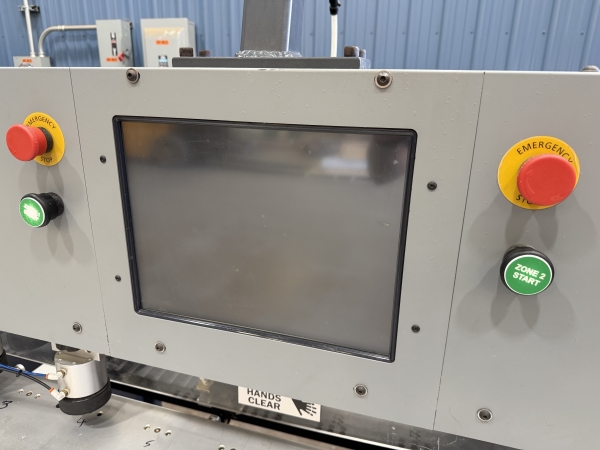

- 15" Color Touch Screen

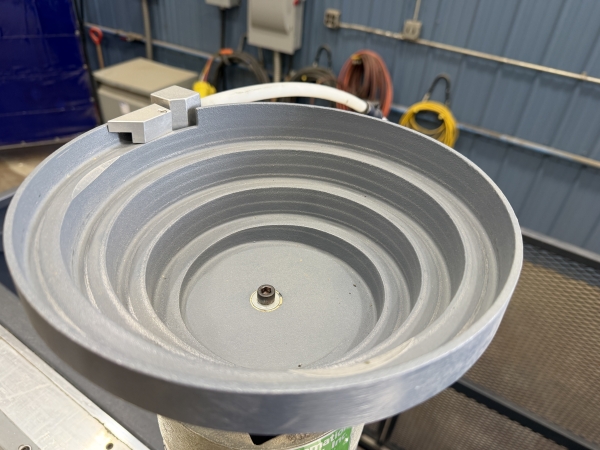

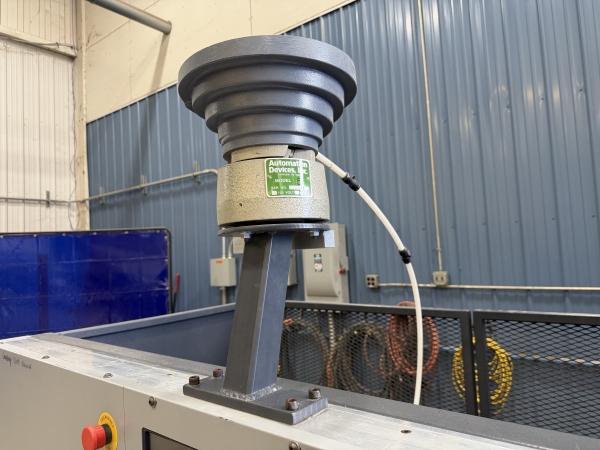

- Dowel Inserter

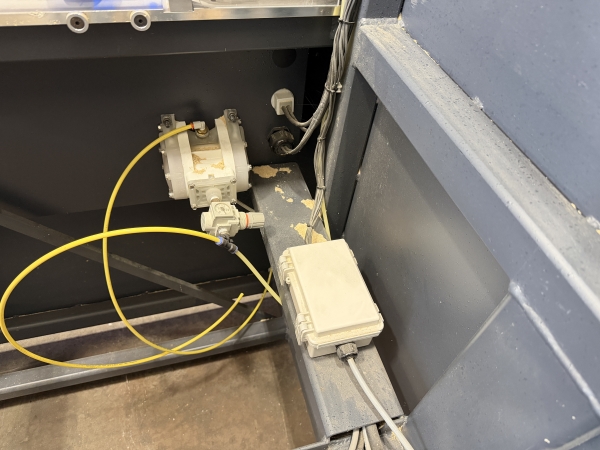

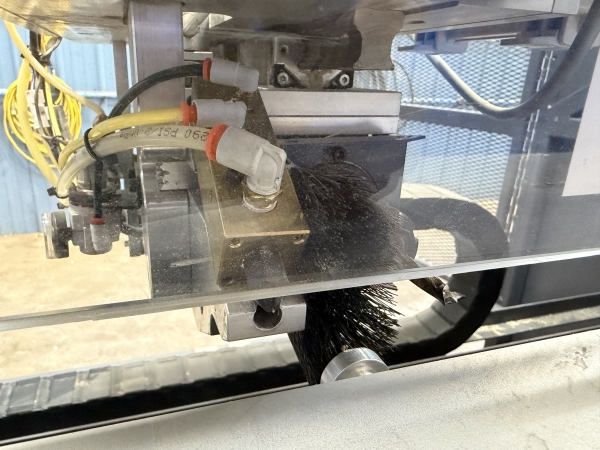

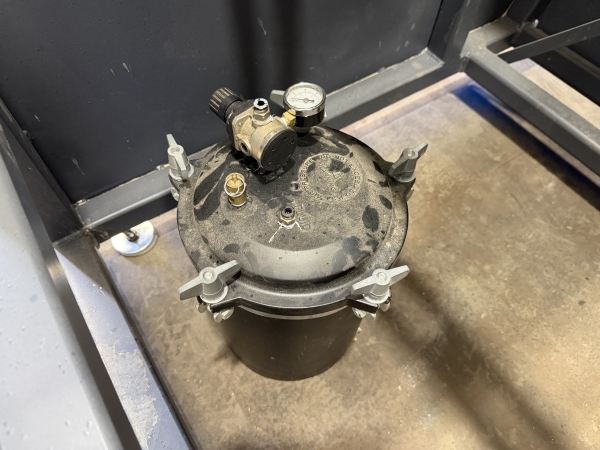

- Sealed Glue System
